I used 26AWG solid insulated wire for mine and it works fine. wires are about 5 inches long and I have only had Swiss fail to boot once when I first installed it and it has been fine ever since.
Will look into that if the reinstall does not yield positive results. Thank you!

Edit: Reinstalled it just now. Wires are about 4 inches long. Connections seem fine. Roughly 1 out of 4 boots is black screen. Sometimes the Pico doesn't have power? Time to get some heavier duty wire.

Last edited by Kioku_Dreams,

master801

Well-Known Member
Member
Joined
Feb 24, 2011
Messages
585
Trophies
0
XP
1,403
Country
United States
Will look into that if the reinstall does not yield positive results. Thank you!

Edit: Reinstalled it just now. Wires are about 4 inches long. Connections seem fine. Roughly 1 out of 4 boots is black screen. Sometimes the Pico doesn't have power? Time to get some heavier duty wire.

I recommend using thinner gauge wire (30 AWG) and not "heavy duty wire".

Data lines tend to be picky when you up the wire gauge and will not respond well, if at all. For ground and power lines, this doesn't matter much, however.


SodaSoba

‿︵‿︵‿︵ヽ(°□° )ノ‿︵‿︵‿︵‿
Member
Joined
May 28, 2018
Messages
553
Trophies
0
Location
Barstow, on the edge of the desert
XP
1,287
Country
United Kingdom
I should be safe with some think kynar I assume it's never seen me wrong, my Pico arrived today so I'll be attempting a install later, Ive seen removing the heatsink can be tricky but heating it up helps with removal but if all else fails I'm sure I have thermal pads from a GPU fix I did.


tech3475

Well-Known Member
Member
Joined
Jun 12, 2009
Messages
2,938
Trophies
1
XP
4,091
Country
I should be safe with some think kynar I assume it's never seen me wrong, my Pico arrived today so I'll be attempting a install later, Ive seen removing the heatsink can be tricky but heating it up helps with removal but if all else fails I'm sure I have thermal pads from a GPU fix I did.

Be careful, according to one video I saw you need thermal pads of different heights.


KleinesSinchen

GBAtemp's Backup Reminder + Fearless Testing Sina
Member
GBAtemp Patron
Joined
Mar 28, 2018
Messages
3,133
Trophies
2
XP
8,525
Country
Germany
Be careful, according to one video I saw you need thermal pads of different heights.
That is my main concern as well: Do I have to order a bunch of different pads just to install a modchip? How likely is it, that the original pads tear and become unusable?
Arguably it does more than XenoGC (Raspi pico already arrived and I plan to try it since I became aware of this breakthrough), but I wouldn't say PicoBoot is easier to install than XenoGC.


tech3475

Well-Known Member
Member
Joined
Jun 12, 2009
Messages
2,938
Trophies
1
XP
4,091
Country
That is my main concern as well: Do I have to order a bunch of different pads just to install a modchip? How likely is it, that the original pads tear and become unusable?
Arguably it does more than XenoGC (Raspi pico already arrived and I plan to try it since I became aware of this breakthrough), but I wouldn't say PicoBoot is easier to install than XenoGC.

When I get round to it, my plan is to try the heatgun method and only order pads if I mess it up.

  • Like
Reactions: KleinesSinchen

Kioku_Dreams

Hi, I'm Cynical!
Member
Joined
Jun 24, 2007
Messages
11,160
Trophies
1
Location
In the Murderbox!
Website
www.twitch.tv
XP
13,387
Country
United States
I recommend using thinner gauge wire (30 AWG) and not "heavy duty wire".

Data lines tend to be picky when you up the wire gauge and will not respond well, if at all. For ground and power lines, this doesn't matter much, however.
Using 30 AWG stranded. The same stuff I used when I installed the Xeno. Tried the install twice now to face the same issue. So, I'm buying new, slightly larger wire.

Last edited by Kioku_Dreams,

SodaSoba

‿︵‿︵‿︵ヽ(°□° )ノ‿︵‿︵‿︵‿
Member
Joined
May 28, 2018
Messages
553
Trophies
0
Location
Barstow, on the edge of the desert
XP
1,287
Country
United Kingdom
I can confirm heating up the heatsink makes it a lot easier and cleaner to remove!

Ok so I got to installing and everything went smoothly, my soldering isn't amazing but I managed it
I mainly followed machonacho install
I isolated the Pico with more than what was probably required in heat tape
No double sided tape so it just sits here

After putting it back together I switched it on and Swiss instantly loaded

I updated my gcvideo and I ran into a few hiccups

After it updated my GameCube only loaded into normal GC bios.
After trying a few times it decided to boot into Swiss again, so I tried to load GCinterface.via holding B
And it worked.

So it's either my wire length being slightly too long or too thin but it does work and works better than shinehax


It's weird why it doesn't always boot I'm hoping it's down to the payload more than my soldering as I can't be bothered redoing it, I'm lazy.


Attachments

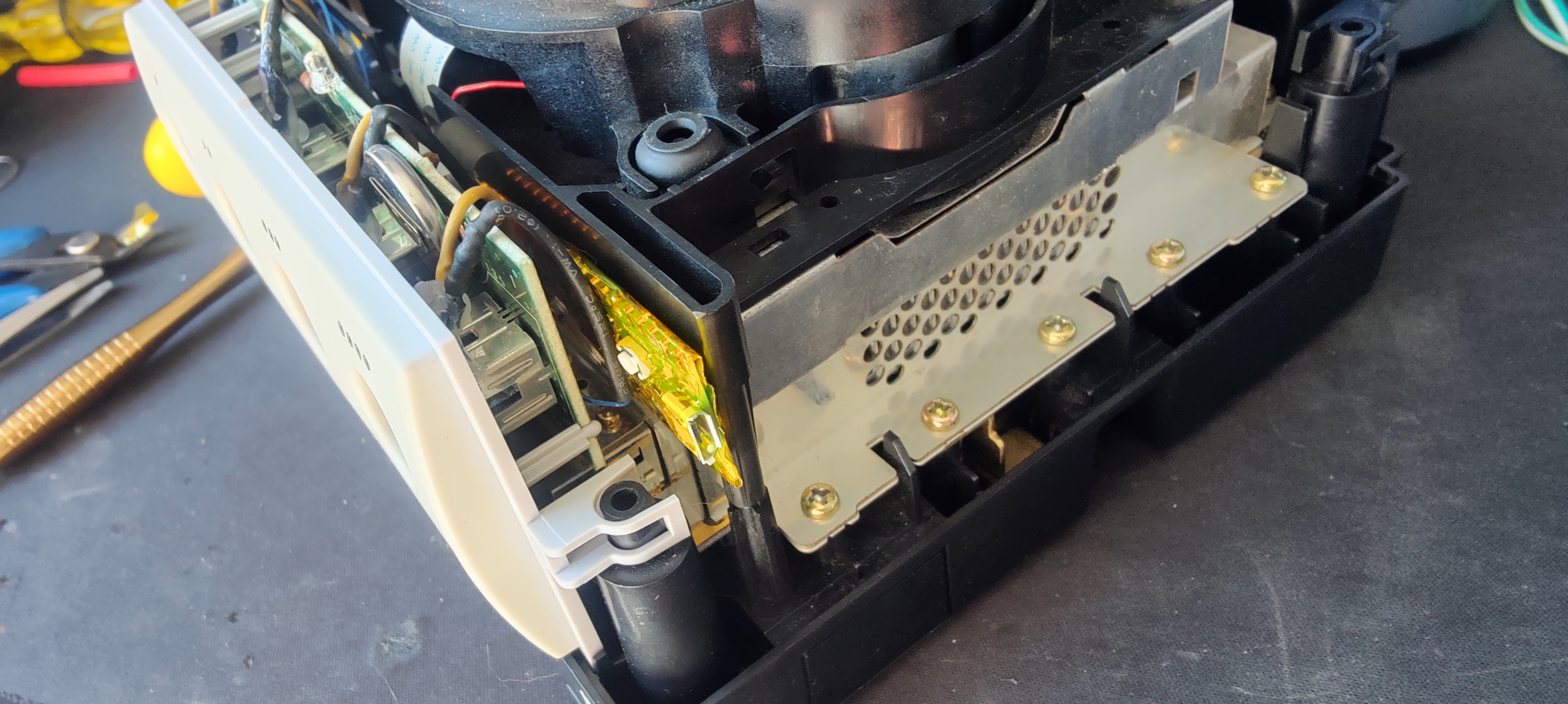

  • IMG20220707160439.jpg
    2.2 MB · Views: 15

Kioku_Dreams

Hi, I'm Cynical!
Member
Joined
Jun 24, 2007
Messages
11,160
Trophies
1
Location
In the Murderbox!
Website
www.twitch.tv
XP
13,387
Country
United States

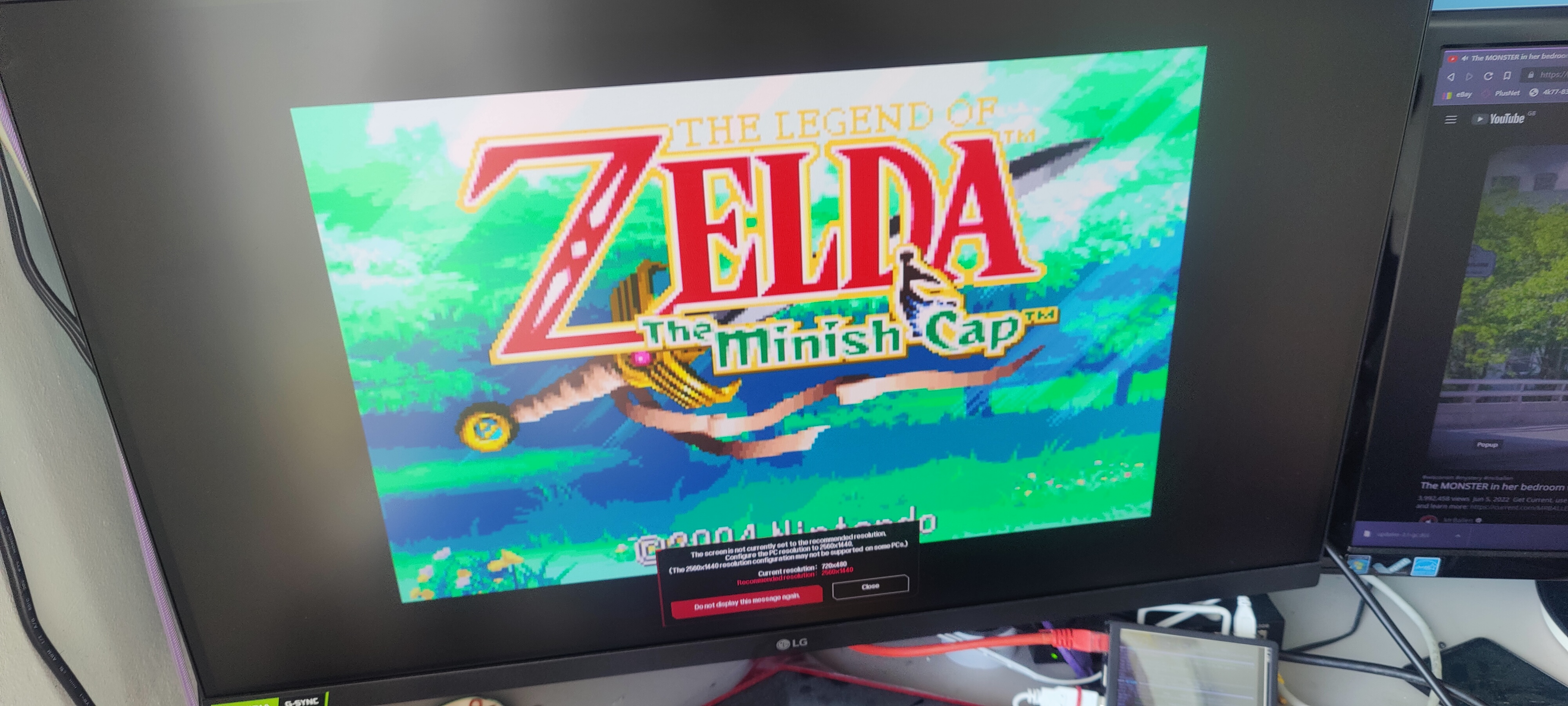

View attachment 317054
I can confirm heating up the heatsink makes it a lot easier and cleaner to remove!

Ok so I got to installing and everything went smoothly, my soldering isn't amazing but I managed it

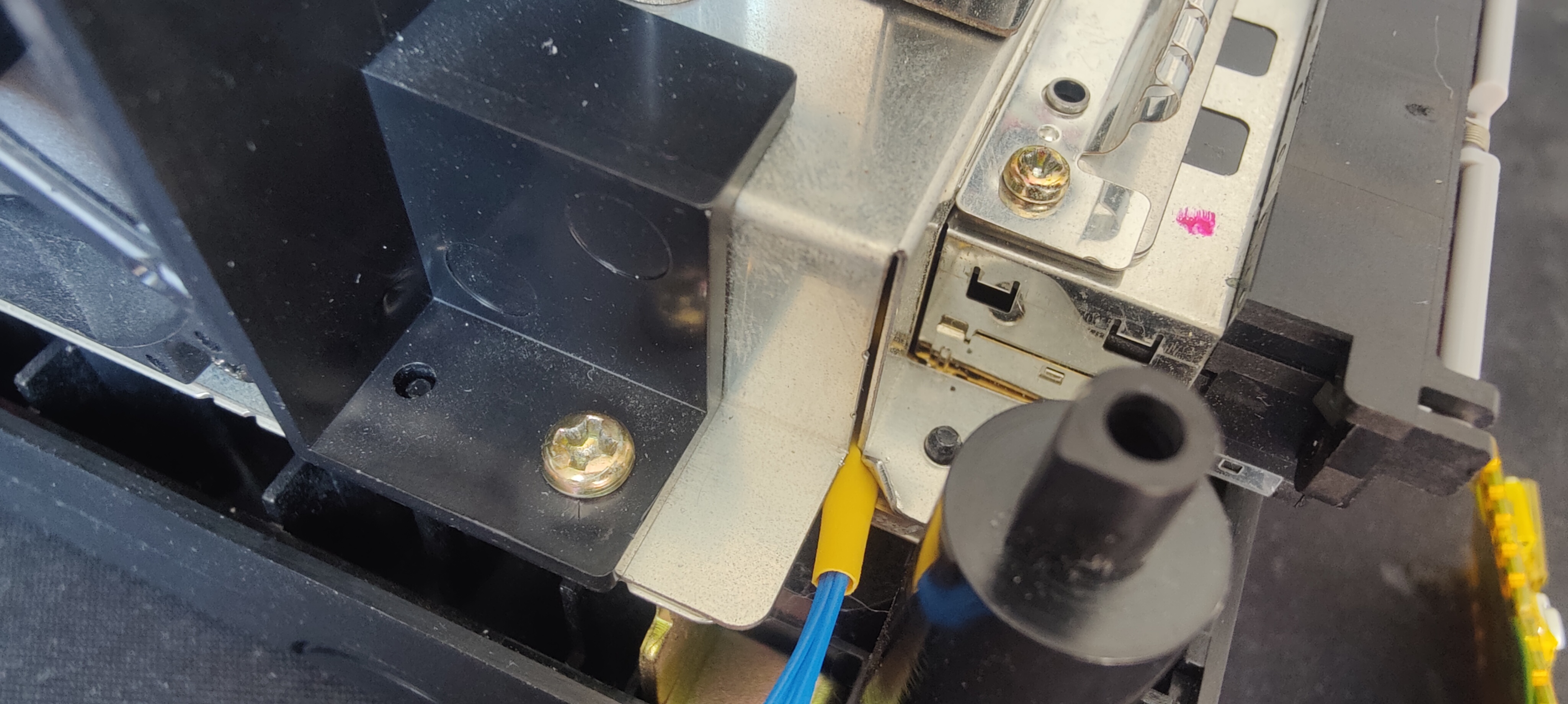

View attachment 317055
I mainly followed machonacho install

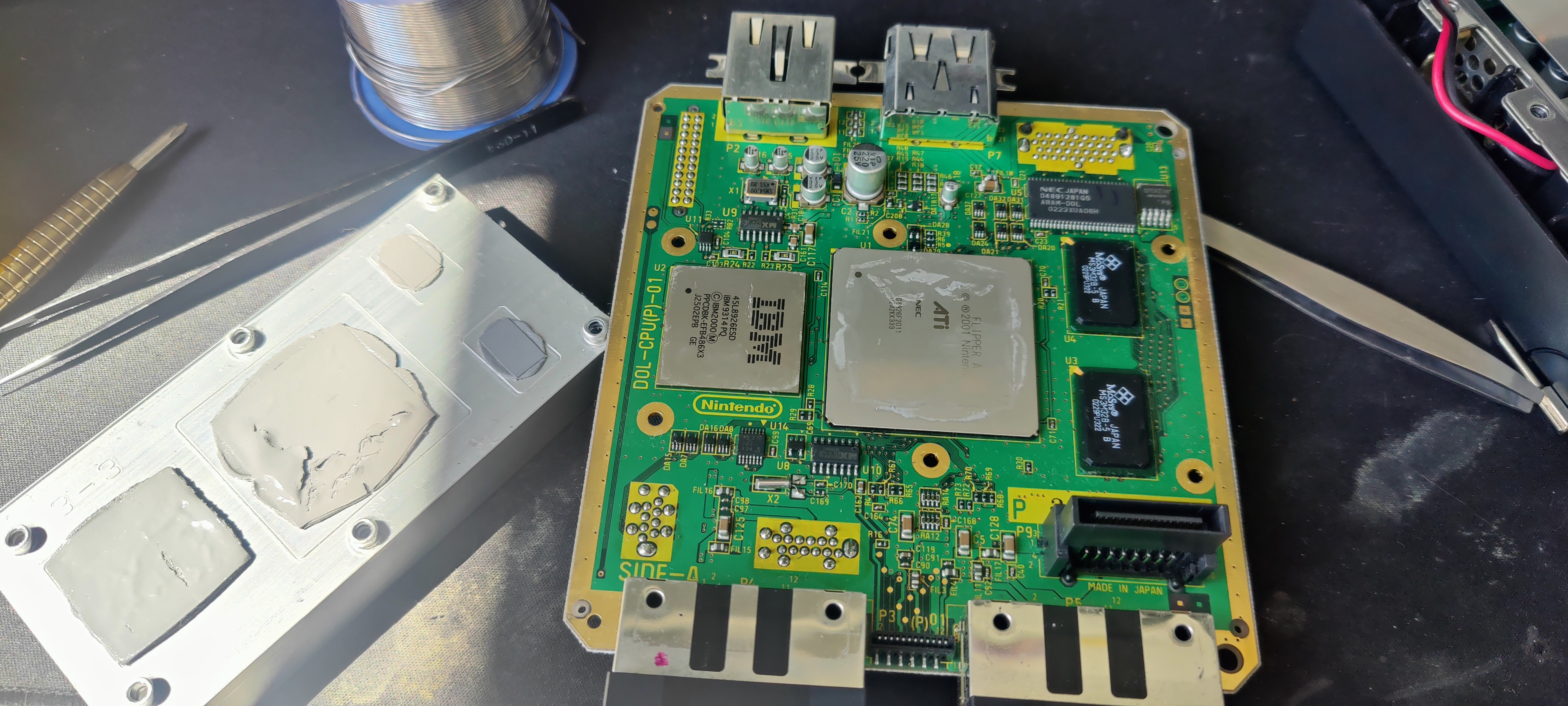

View attachment 317056
I isolated the Pico with more than what was probably required in heat tape

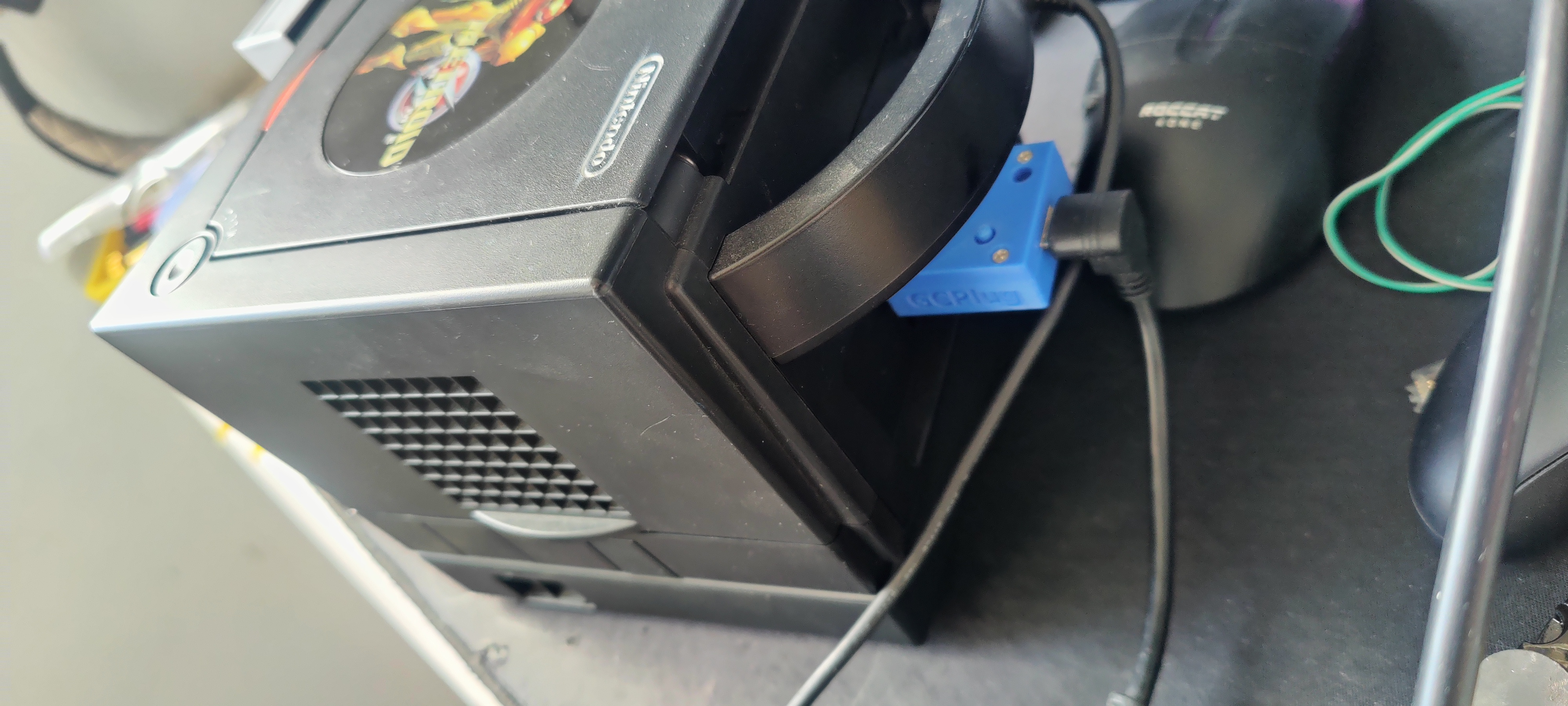

View attachment 317058
No double sided tape so it just sits here

After putting it back together I switched it on and Swiss instantly loaded

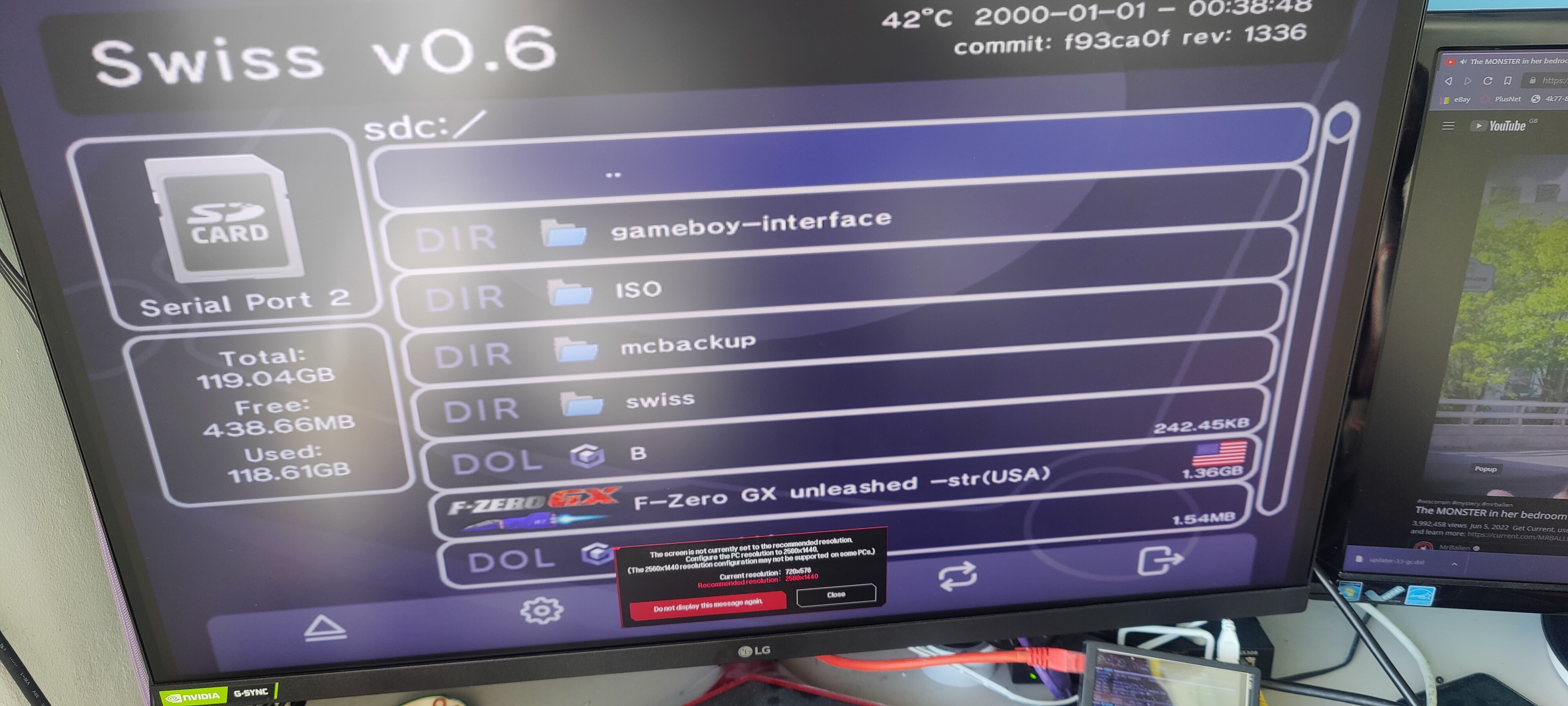

View attachment 317059

I updated my gcvideo and I ran into a few hiccups

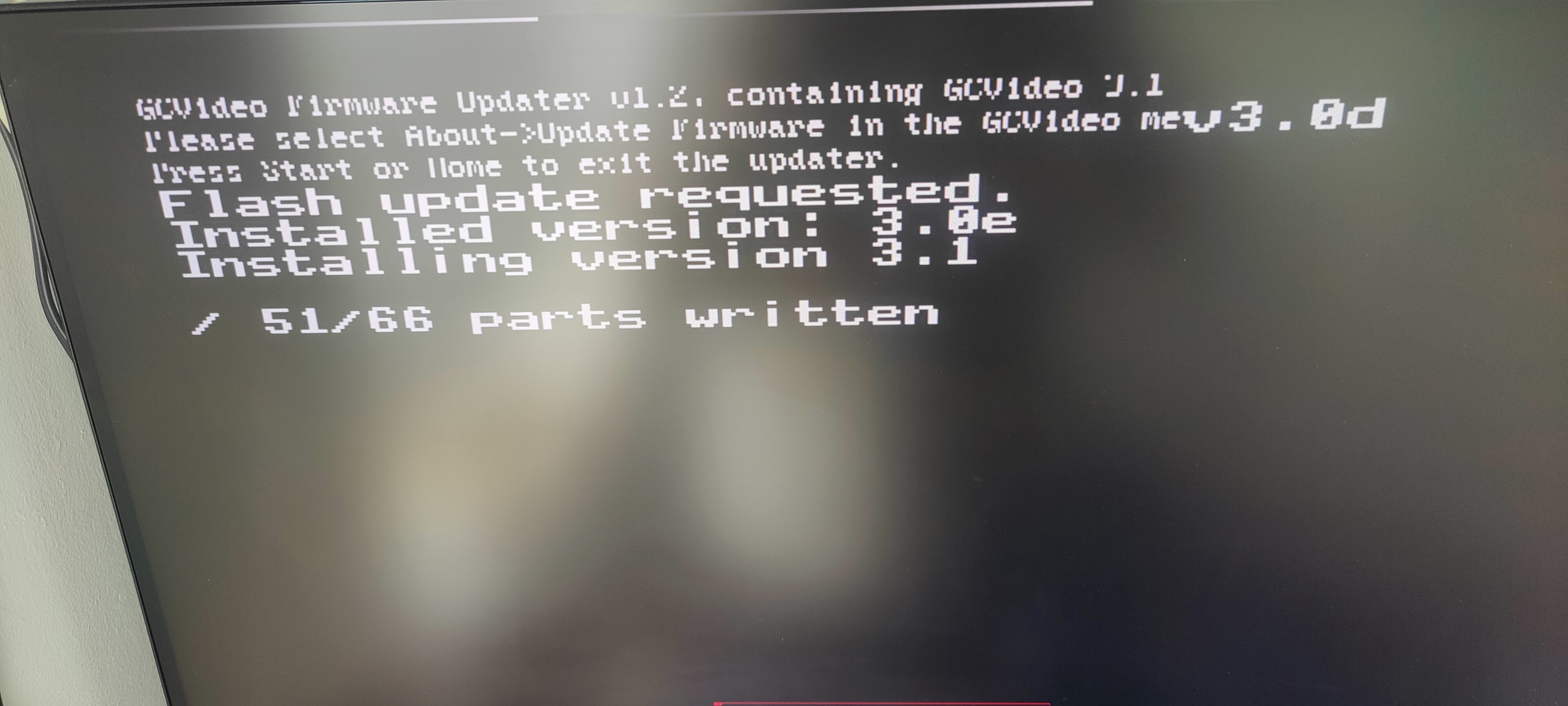

View attachment 317062View attachment 317063

After it updated my GameCube only loaded into normal GC bios.
After trying a few times it decided to boot into Swiss again, so I tried to load GCinterface.via holding B

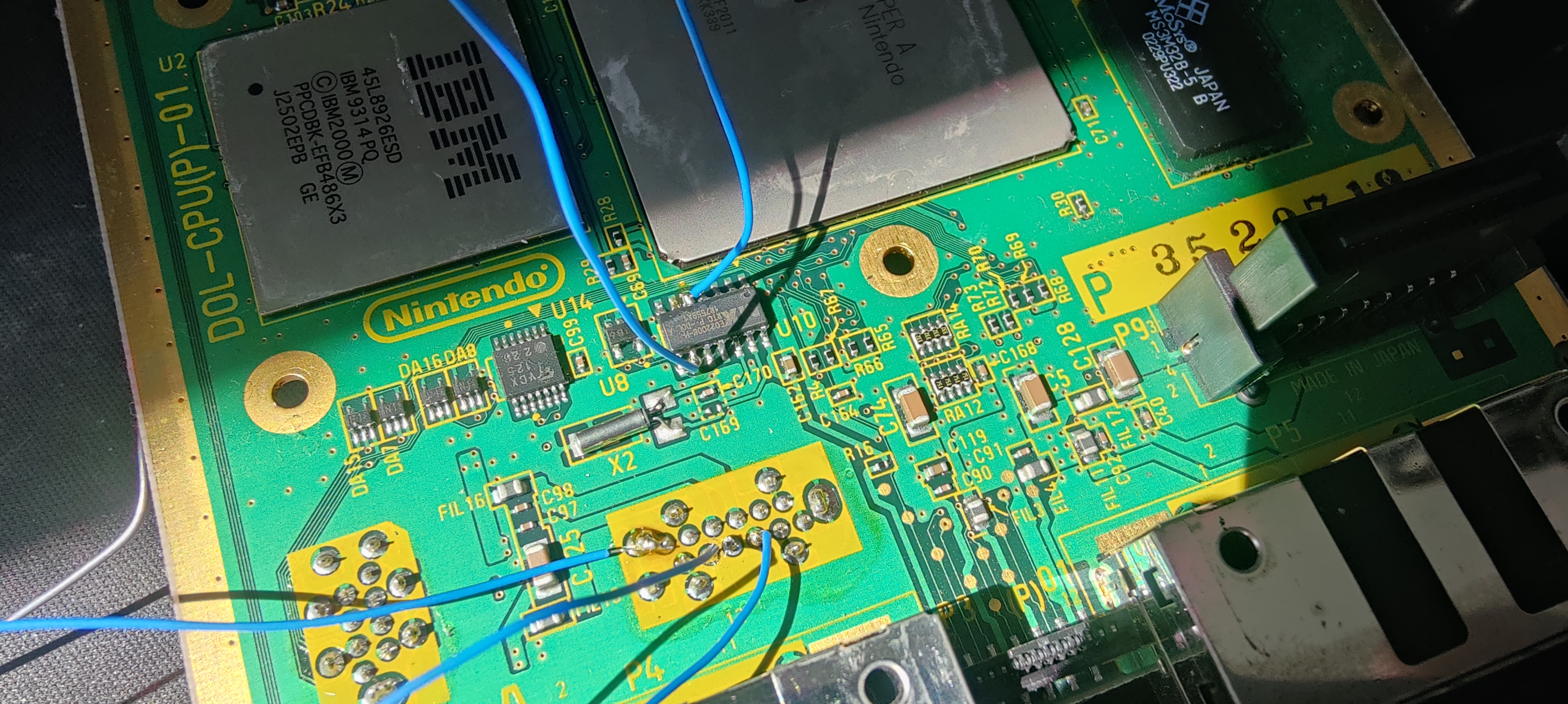

View attachment 317060
And it worked.

So it's either my wire length being slightly too long or too thin but it does work and works better than shinehax

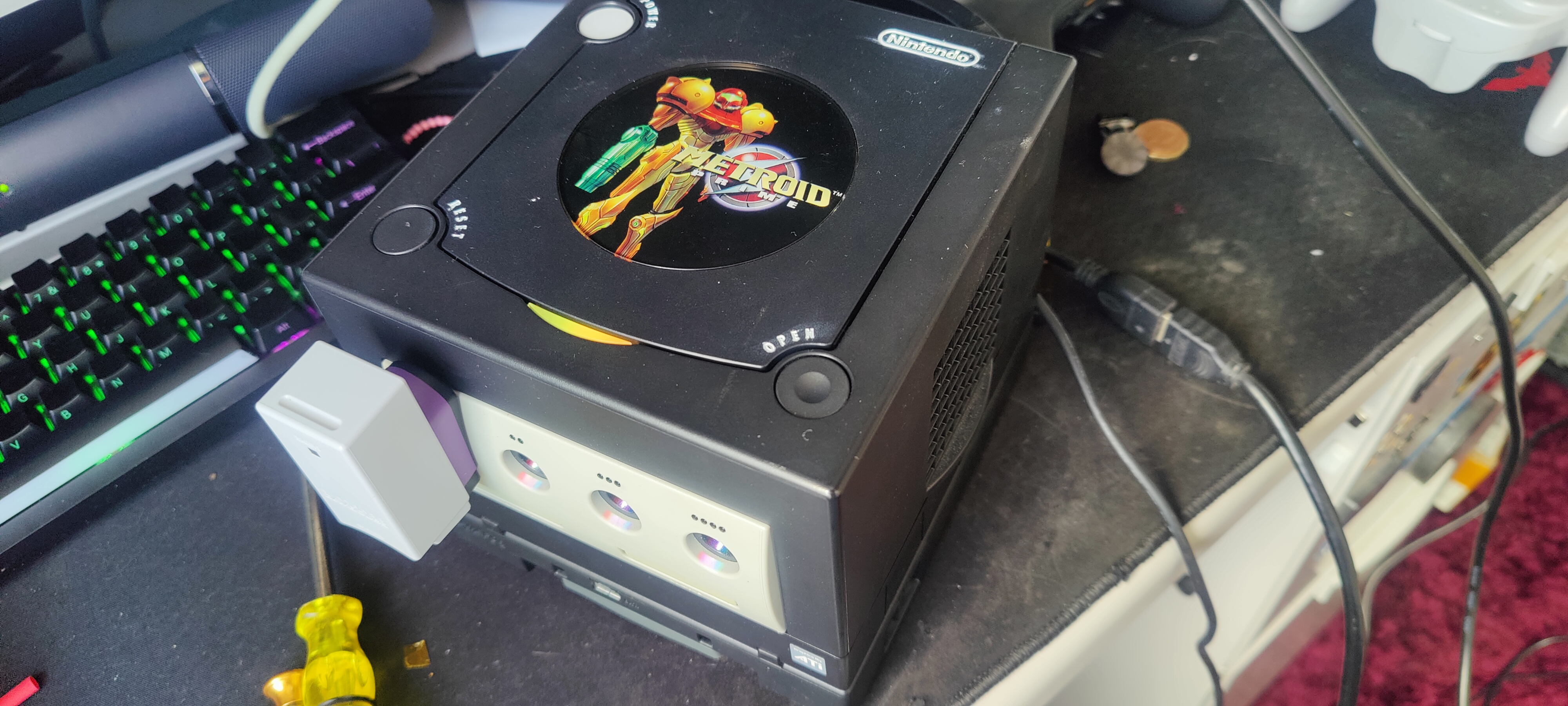

View attachment 317061

It's weird why it doesn't always boot I'm hoping it's down to the payload more than my soldering as I can't be bothered redoing it, I'm lazy.
My problem is kind of similar. Except I also get black screens. Roughly 1/2 of the boots are successful. The other half is either black screen, or no power to the pico. Will be redoing the install next week with some 26 or 28 awg solid core wire (I ordered both).

Last edited by Kioku_Dreams,

hdx

Active Member
OP
Newcomer
Joined
Jun 9, 2007
Messages
44
Trophies
0
XP
582
Country
Poland
My problem is kind of similar. Except I also get black screens. Roughly 1/2 of the boots are successful. The other half is either black screen, or no power to the pico. Will be redoing the install next week with some 26 or 28 awg solid core wire (I ordered both).
Wiring issue. Use shorter wires and maybe thicker ones too.


SodaSoba

‿︵‿︵‿︵ヽ(°□° )ノ‿︵‿︵‿︵‿
Member
Joined
May 28, 2018
Messages
553
Trophies
0
Location
Barstow, on the edge of the desert
XP
1,287
Country
United Kingdom
Wiring issue. Use shorter wires and maybe thicker ones too.

Do you think it's all the lines or just the 3v line? My issues seem to have stopped, for me it might personally be a gcvideo issue trying to run the wrong resolution for the wrong title.

I can get Swiss to use IPR.dol to reset fine but reboot will make the cube boot into normal bios, gb-interface also doesn't reboot but I don't think it ever did worked with IPR reset

And sometimes if I enable the setting "load through IPL" in Swiss to get the GameCube logo to "boot" before the game it resets and just loads the normal bios, I believe this is a gcvideo/Swiss but the issue but it's just a gimmick as it's not really required, but I do miss the GC boot logo.

Aside from that this method is vastly superior to shinehax (quickest softmod method) and the xenogc with Swiss burnt to disc,the takeover buttons to load different dols is awesome and works brilliantly.

I appreciate your efforts & make this easy to do & opensource for anyone and the diagrams you have provided are clean & clear.

As a tip for anyone trying to remove the heatsink using a heat gun/rework station to heat up the heatsink makes it a lot simpler to remove and the thermal pads can usually be saved/reused.


splatool

Well-Known Member
Newcomer
Joined
May 24, 2015
Messages
54
Trophies
0
Age
32
XP
156
Country
Barbados
So if a gamecube had broke disc door sensor meaning lid always detected as open, would this mod bypass that problem?


splatool

Well-Known Member
Newcomer
Joined
May 24, 2015
Messages
54
Trophies
0
Age
32
XP
156
Country
Barbados
I have reason I'm trying to avoid doing that, but hopefully the Pico will actually bypass that issue. (If anyone can confirm that, please do so!)


Esdeath

Well-Known Member
Member
Joined
Jul 16, 2016
Messages
223
Trophies
0
XP
1,224
Country
Germany
So if a gamecube had broke disc door sensor meaning lid always detected as open, would this mod bypass that problem?
Since it will boot straight up into swiss you should be fine, there was also an option in swiss that disables the drive I would additionally activate.

  • Like
Reactions: splatool

splatool

Well-Known Member
Newcomer
Joined
May 24, 2015
Messages
54
Trophies
0
Age
32
XP
156
Country
Barbados
I've been trying to find out for hours if Swiss happened to have an option like that, THANK YOU! And cheers for confirming that it'll bypass the issue.

  • Like
Reactions: SodaSoba
