Oled Volume Resistor

[MiguelDiaz]

Hello guys!, new to the forum.

I was cleaning and fixing the Dat0 on my Switch oled and my screwdriver slip and I think I rip a capacitor marked on the image.

I tried measuring them using the multimeter with continuity to check what voltage should be, but I'm not sure how should I measure the other ones to check the compatible resistor I should get.

I have some donor boards from PS5 Dualsense, not sure if I can pull off a Resistor from there.


Thanks in advance



[MiguelDiaz]

up

Post automatically merged: May 1, 2024

up



[Hassal]

That's not cap its a ferrite bead

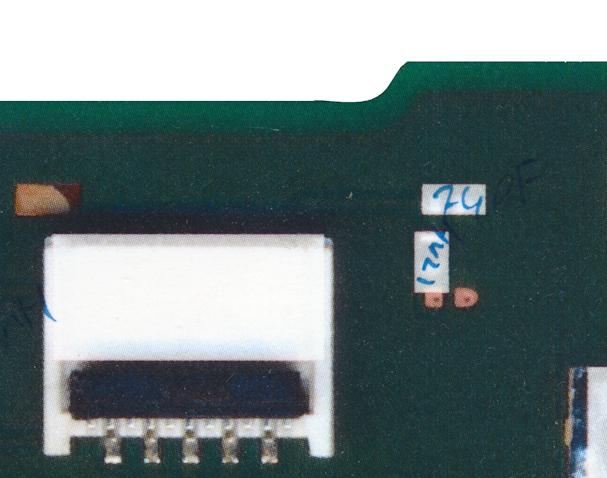

According the diagram its measured 12nH
The cap above it is 70pF



[jkyoho]

doubt that's an inductor but not resistor. Based from OG and lite design, there are always 100~150 ohm resistor on buttons



[Hassal]

I provided the components as per the diagram, I doubt someone will go through the trouble to throw off people. Up to op if they want to follow it.

Post automatically merged: May 1, 2024

doubt that's an inductor but not resistor. Based from OG and lite design, there are always 100~150 ohm resistor on buttons

I stand corrected its indeed a 150 Ohm resistor.



[rr8400]

doubt that's an inductor but not resistor. Based from OG and lite design, there are always 100~150 ohm resistor on buttons

Does anyone know the value of these broken resistors? Both the gnd ones.



[jkyoho]

bottom cap not 100% sure 1000pF or not, but you could live without it.
