Nintendo Switch OLED Immediate black screen/crash when booting into OFW CFW etc but works fine in hekate

[obnoxiousmods]

I just installed a picofly into oled

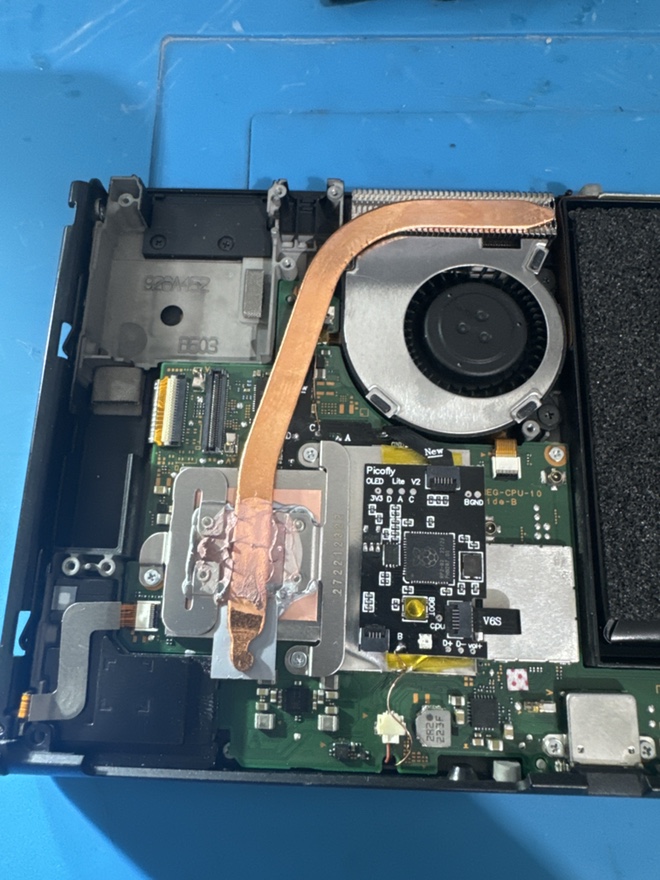

Mod chip works great
Console turns on etc Controller works, charges etc

I can get into hekate but as soon as I pick OFW or CFW it black screens (NO LOGOS OR TEXT + CONSOLE IS ON), if i do volume + power to skip payload and go into OFW it also black screens with or without an SD in

Any ideas on this issue? Any way I can diagnose



[Fede12]

its obv a chip installation problem, recheck your pins with diode mode and with an electronic microscope



[obnoxiousmods]

its obv a chip installation problem, recheck your pins with diode mode and with an electronic microscope

all my diode readings are perfect

3v3: 858
D: 792
A: 762
C: 766
B: 1.550
no shorts to ground

should i just redo everything???



[bvang913]

Does it still boot normally if you remove the chip? Seeing a lot of people coming across issues with these clone chips.



[thesjaakspoiler]

There have been some issues with clone boards where they used the wrong resistor values.
Also some OLED devices need other resistor values because of the brand emmc they are using.
It might be worth checking the picofly sticky thread for more details.



[obnoxiousmods]

Does it still boot normally if you remove the chip? Seeing a lot of people coming across issues with these clone chips.

i just took everything out and it boots into ofw again, trying to install another chip rn

Post automatically merged: Aug 21, 2024

There have been some issues with clone boards where they used the wrong resistor values.
Also some OLED devices need other resistor values because of the brand emmc they are using.
It might be worth checking the picofly sticky thread for more details.

its an SK hynix emmc, what exactly should i be doing in this case, looked at the threads and didnt really find anything useful

Post automatically merged: Aug 21, 2024

i just took everything out and it boots into ofw again, trying to install another chip rn

Post automatically merged: Aug 21, 2024

its an SK hynix emmc, what exactly should i be doing in this case, looked at the threads and didnt really find anything useful

UPDATE: installed a new chip kit from my pack of 10 and it works fine now, no idea what happend there!



[Fede12]

all my diode readings are perfect

3v3: 858
D: 792
A: 762
C: 766
B: 1.550
no shorts to ground

should i just redo everything???

View attachment 453784

did you flashed your chip?

Post automatically merged: Aug 21, 2024

i just took everything out and it boots into ofw again, trying to install another chip rn

Post automatically merged: Aug 21, 2024

its an SK hynix emmc, what exactly should i be doing in this case, looked at the threads and didnt really find anything useful

Post automatically merged: Aug 21, 2024

UPDATE: installed a new chip kit from my pack of 10 and it works fine now, no idea what happend there!

couldve been a lot of things:
bad chip
bad firmware
bad D0



[obnoxiousmods]

did you flashed your chip?

Post automatically merged: Aug 21, 2024

couldve been a lot of things:
bad chip
bad firmware
bad D0

thanks so much for trying to help



[Peeta01]

thanks so much for trying to help

Hi Obnoxiousmods,
I have the same issue. when you installed the new chip, did you just replaced the chip or all the ribbons? Unfortunately, unlike you i ordered only 1. So, i have to order another replacement to see if this is the case. TIA!



[obnoxiousmods]

Hi Obnoxiousmods,
I have the same issue. when you installed the new chip, did you just replaced the chip or all the ribbons? Unfortunately, unlike you i ordered only 1. So, i have to order another replacement to see if this is the case. TIA!

I ended up replacing everything, also PLEASE backup your NAND as soon as possible before you do anything else always back up your nand, as well as your keys PRODINFO+KEYS most important but id make a rawdump or atleast a dump of all partitions other than USER
