Nintendo switch OLED alt point for modchip install

JaRocker

Well-Known Member
OP
Member
Joined
May 3, 2018
Messages
281
Trophies
0
XP
1,083
Country
Jamaica

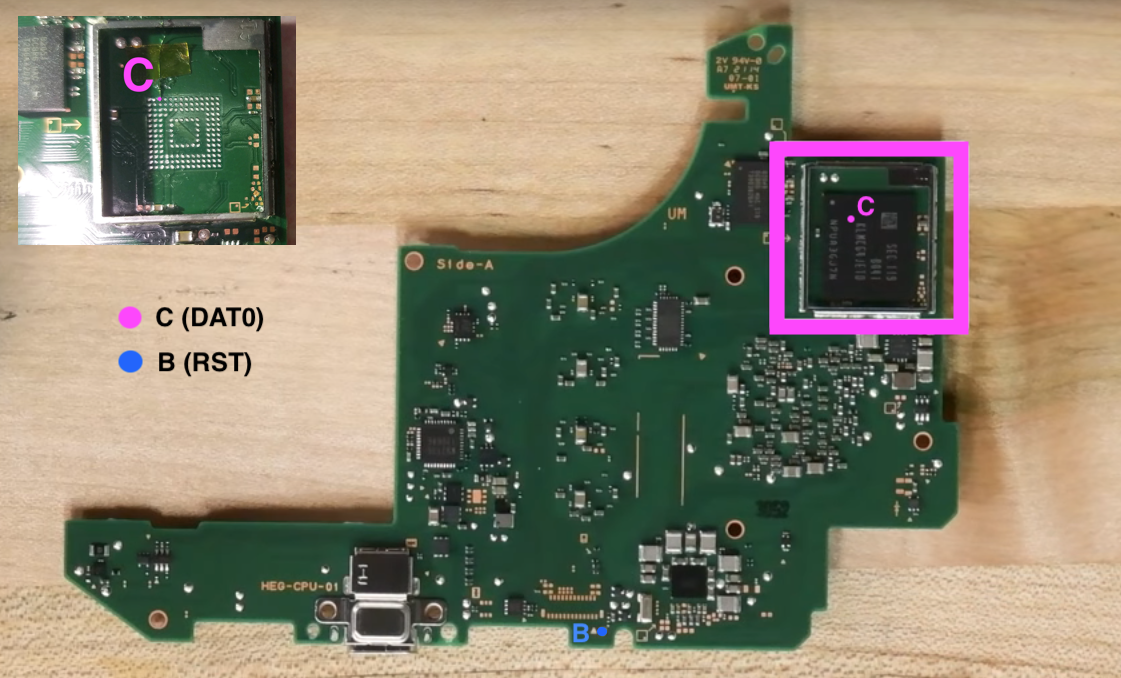

everything seems to be installed just the same aside from the EMMC and that's what the alt Point are for.

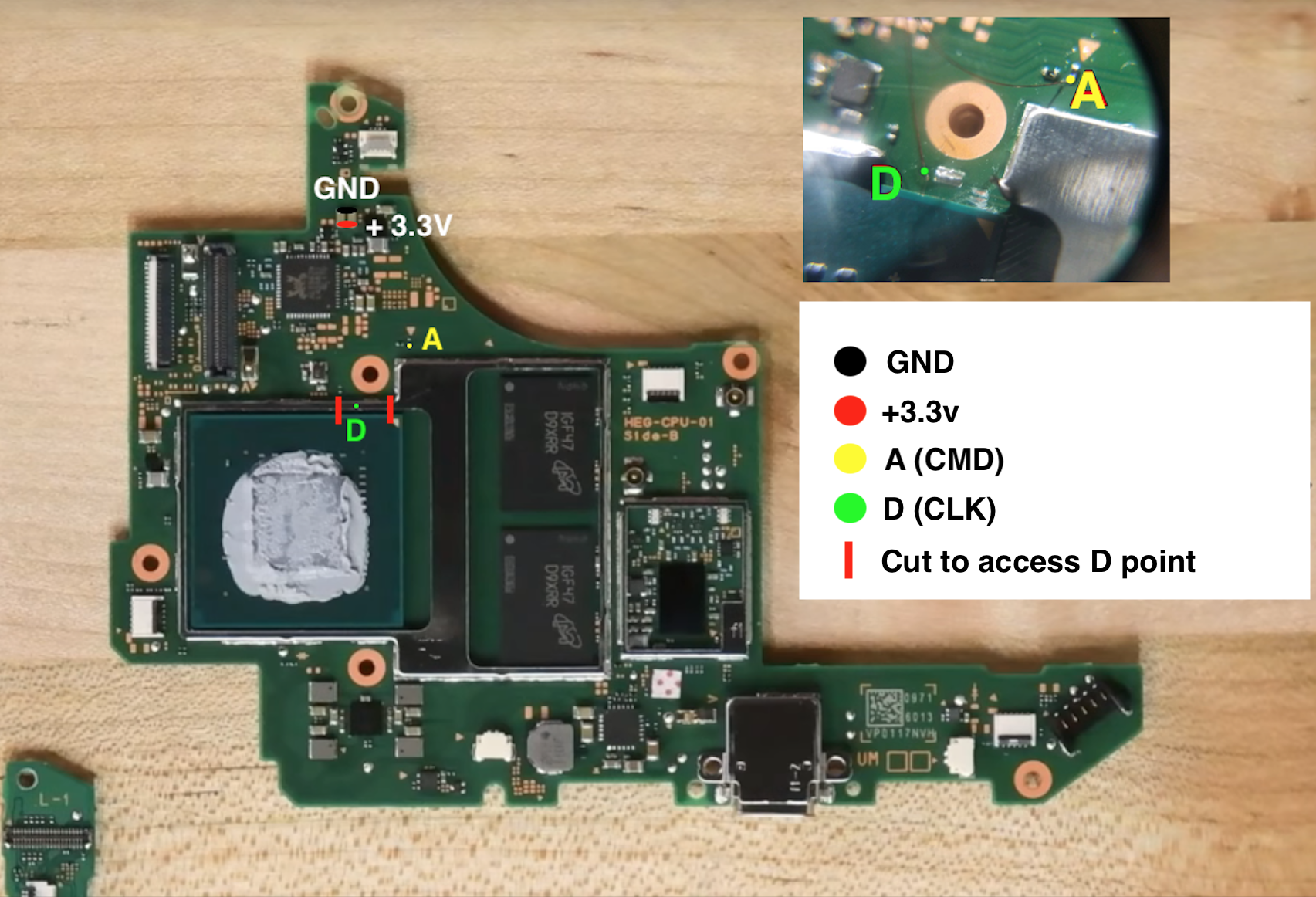

one-point seem to be problematic and that's Point C and D I don't know where D is going, I don't think you need to completely remove the EMC to install it though.
ill be doing this install my self maybe ill wait for Atmos support to be fully added before doing so
you can find the original post here. https://tieba.baidu.com/p/7573220146


new photos
Green Joy-Con D-Pad Shells for Nintendo Switch


Attachments

  • photo_2021-10-13_11-37-53 (2).jpg
    photo_2021-10-13_11-37-53 (2).jpg
    140.1 KB · Views: 3
  • photo_2021-10-13_11-37-53.jpg
    86.9 KB · Views: 7
  • photo_2021-10-13_11-37-54 (2).jpg
    photo_2021-10-13_11-37-54 (2).jpg
    56.6 KB · Views: 9
  • photo_2021-10-13_11-37-54.jpg
    142.3 KB · Views: 5
  • photo_2021-10-13_11-37-55 (2).jpg
    photo_2021-10-13_11-37-55 (2).jpg
    169 KB · Views: 10
  • photo_2021-10-13_11-37-55.jpg
    70.8 KB · Views: 8
  • ucJB54b.png
    2.3 MB · Views: 13
  • C6F0ORI.jpeg
    163.4 KB · Views: 12
  • bxTxKuV.png
    1.1 MB · Views: 9
Last edited by JaRocker,

de9ed

Well-Known Member
Member
Joined
Oct 22, 2020
Messages
162
Trophies
0
Age
27
XP
354
Country
Canada
Other points looks easy enough. Except C. Is there an alternative point ? Do we have to remove the emmc for C ?

Has anyone tried it yet. I have the chips and OLED.


Attachments

  • photo_2021-10-13_11-37-55 (2)~2.jpg
    photo_2021-10-13_11-37-55 (2)~2.jpg
    249.4 KB · Views: 9
Last edited by de9ed,
  • Like
Reactions: mvmiranda

JaRocker

Well-Known Member
OP
Member
Joined
May 3, 2018
Messages
281
Trophies
0
XP
1,083
Country
Jamaica
I'm betting you can run hot air on emmc and just tuck your jumper wire into place without pulling emmc. I have chips and an oled switch on standby I might give this a try this weekend. If I end up having to reball emmc it wont be the end of the world.
yup you should be able to. I'm just just going to use my hot iron to heat he the wire and just it push it in, that's what I did on the corona Xbox 360

  • Like
Reactions: mvmiranda

mvmiranda

Well-Known Member
Member
Joined
Oct 29, 2013
Messages
1,387
Trophies
0
Age
39
Location
Brazil, Sao Paulo
Website
www.gamemod.com.br
XP
1,245
Country
Brazil
yup you should be able to. I'm just just going to use my hot iron to heat he the wire and just it push it in, that's what I did on the corona Xbox 360
well, we'll have to know how far we should push in and the correct "spot" for placing the wire.
also, I wonder if there's any way of knowing whether your wire is at the right ball or not.

Last edited by mvmiranda,

susi91

Well-Known Member
Member
Joined
Sep 13, 2018
Messages
277
Trophies
0
XP
666
Country
Germany
I'm betting you can run hot air on emmc and just tuck your jumper wire into place without pulling emmc.
I doubt that this will work.
The eMMC chip is much bigger than the ball grid array, i.e. the DAT0 ball isn't at the edge of the chip.


susi91

Well-Known Member
Member
Joined
Sep 13, 2018
Messages
277
Trophies
0
XP
666
Country
Germany
well I can try using a needles that why I don't have to worry about it bending
Yes, maybe something like a needle but soft like a copper wire... The left side of the tip insulated with nail enamel, on the right side some silver conductive, then clamp the 'needle' between the C ball and ball next to it!? I.e. silver conductive glue to the C point? Probably a mess and not reliable ;)

But it's even worse, that there isn't an easy way to take a backup of the eMMC. If something goes wrong, the whole switch is for parts... First desirable step after desoldering would be to dead-bug the eMMC (solder some wires to it and to an eMMC reader, then take a proper backup). Just in case, I guess reballing isn't an easy task without equipment.

If there isn't another point for C on the board, ninty did it very well this time...


vulp_vibes

Well-Known Member
Newcomer
Joined
Mar 13, 2013
Messages
86
Trophies
0
XP
963
Country
United States
well I can try using a needles that why I don't have to worry about it bending
here is the clearance you have to work with on the switch's emmc, with a hobby knife blade for comparison. even a strip of printer paper is a friction fit.. good luck


Attachments

  • PXL_20211015_191351499.jpg
    238.9 KB · Views: 9
  • Like
Reactions: susi91

Quezacotl

Active Member
Newcomer
Joined
Aug 12, 2020
Messages
39
Trophies
0
Age
35
XP
95
Country
Finland
Googling at EMMC pinouts, seems that most likely the two corner balls are NC, so no worry if you short those. If that's the case, it would be little easier to make the adapter, because no need that much tolerance.


JaRocker

Well-Known Member
OP
Member
Joined
May 3, 2018
Messages
281
Trophies
0
XP
1,083
Country
Jamaica
Googling at EMMC pinouts, seems that most likely the two corner balls are NC, so no worry if you short those. If that's the case, it would be little easier to make the adapter, because no need that much tolerance.
even though I've been complaining, I love this $hit it gets my adrenaline going. I'm itching to just take my switch apart


de9ed

Well-Known Member
Member
Joined
Oct 22, 2020
Messages
162
Trophies
0
Age
27
XP
354
Country
Canada
well, we'll have to know how far we should push in and the correct "spot" for placing the wire.
also, I wonder if there's any way of knowing whether your wire is at the right ball or not.
True that what I'm Thinking too. How do you know how far it goes and which balls. Emmc balls are tiny

  • Like
Reactions: mvmiranda

Magnus Hydra

It’s rare for me to be here.
Member
Joined
Dec 12, 2011
Messages
134
Trophies
0
XP
358
Country
United States

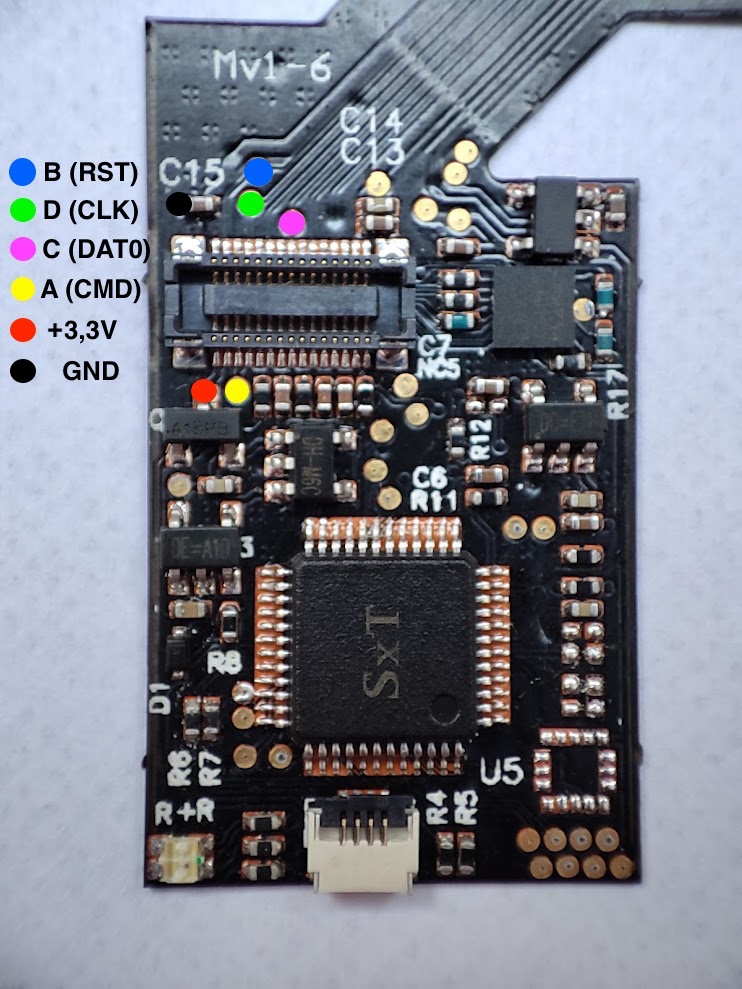

another pic and some more info. There might be an alt for D0 but not shared yet. Idk.


Attachments

  • E617C0F0-3EC8-48E1-AF6B-928C8B676569.jpeg
    604 KB · Views: 15
  • E1967043-243C-45A0-923C-3A4F9D40666B.jpeg
    53.6 KB · Views: 9
  • Like
Reactions: mvmiranda

caki883

Well-Known Member
Newcomer
Joined
Sep 20, 2020
Messages
86
Trophies
0
Age
30
XP
398
Country
Germany
I'm betting you can run hot air on emmc and just tuck your jumper wire into place without pulling emmc. I have chips and an oled switch on standby I might give this a try this weekend. If I end up having to reball emmc it wont be the end of the world.
It´s very easy to push the nand that way when it´s hot
