Hardware Nintendo switch joycons and fan problem

Dr_Mo91

Member
OP
Newcomer
Joined
Jun 18, 2019
Messages
5
Trophies
0
Age
30
XP
28
Country
Denmark
Hello, I'm working on a switch that works fine apart from the fan doesn't spin and the joycon's don't charge. The joycon's get recognised and pair with the switch however they don't charge when attached to the switch. The joycons also work unattached from the side of the switch.

When I plug the charger into the switch while looking at the controller screen on the switch the charge icon flashes up for a split second underneath the controller and then disappears.the switch is running the latest Nintendo update


vulp_vibes

Well-Known Member
Newcomer
Joined
Mar 13, 2013
Messages
86
Trophies
0
XP
1,023
Country
United States
do the joy-cons charge if you remove the fan? I had one unit where the fan had malfunctioned and was shorting the 5V rail that the joy-con use to charge. removing the fan allowed them to charge again, and there were no further issues after replacing the broken fan.

  • Like
Reactions: Everlasting1337

Dr_Mo91

Member
OP
Newcomer
Joined
Jun 18, 2019
Messages
5
Trophies
0
Age
30
XP
28
Country
Denmark
do the joy-cons charge if you remove the fan? I had one unit where the fan had malfunctioned and was shorting the 5V rail that the joy-con use to charge. removing the fan allowed them to charge again, and there were no further issues after replacing the broken fan.
Thank you very much for that, I will try it now and keep you updated


Paco46

Member
Newcomer
Joined
Nov 16, 2020
Messages
7
Trophies
0
Age
21
XP
34
Country
Canada
do the joy-cons charge if you remove the fan? I had one unit where the fan had malfunctioned and was shorting the 5V rail that the joy-con use to charge. removing the fan allowed them to charge again, and there were no further issues after replacing the broken fan.

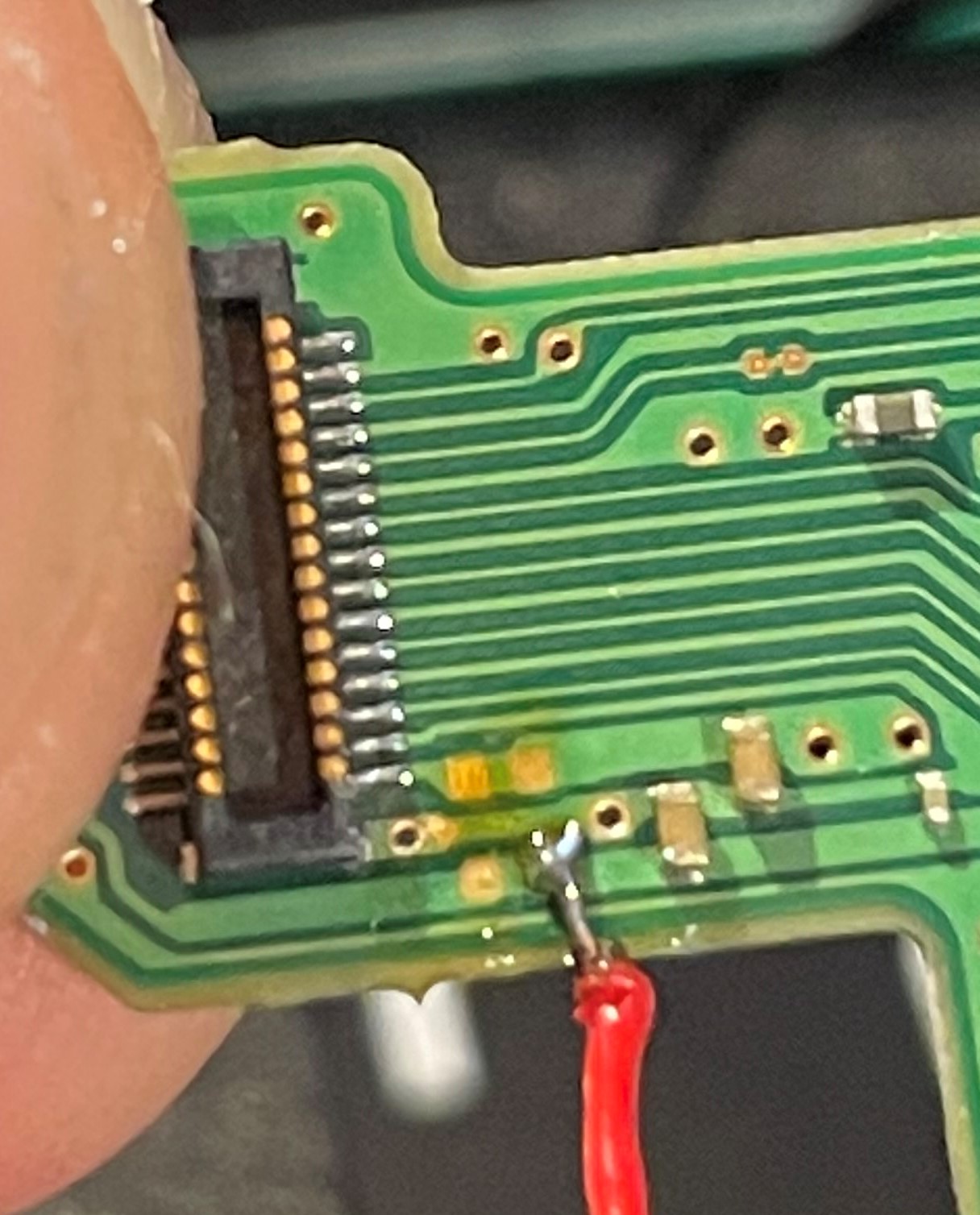

@pyorin This is super unrelated but I could use some help with this (I don't know why I wasn't given the option to PM you). I saw your post of alternate solder points for M0 trinkets (Im using RCM x86) and I couldnt solder the 3.3v properly so i decided to use the alternate nand points. Is this correct or was i supposed to join the two points together with the wire (extend the wire to the pad to the left aswell).
Thanks, and sorry for the misplaced question


Attachments

  • IMG_0923.jpg
    291.9 KB · Views: 70

Everlasting1337

Well-Known Member
Newcomer
Joined
Dec 26, 2020
Messages
65
Trophies
0
Age
115
XP
149
Country
United States
@pyorin This is super unrelated but I could use some help with this (I don't know why I wasn't given the option to PM you). I saw your post of alternate solder points for M0 trinkets (Im using RCM x86) and I couldnt solder the 3.3v properly so i decided to use the alternate nand points. Is this correct or was i supposed to join the two points together with the wire (extend the wire to the pad to the left aswell).
Thanks, and sorry for the misplaced question
These are the points - So yes.
alternative3v-jpg.149057

  • Like
Reactions: Paco46
