Hardware Nintendo Switch Fan not spinning

note9

Member
OP
Newcomer
Joined
Sep 13, 2020
Messages
17
Trophies
0
Age
44
XP
90
Country
United Kingdom
Have a NS with a fan not spinning. original fan is shorted between GND and 5v.
I replaced the fan with a new one and that also isnt spinning. so i tested the fan with a 5v power supply and it spins.

attach a picture with some voltages and diode mode readings. also the previous owner had replaced the resistor near the screen fpc as shown in the picture with a cap. i put back the resistor ~2.2k.
cant remember the voltages on pin 1 and 3, can take voltage measurements again if needed.

what else can i check?

also can some post the resistor values of marked purple and blue square.

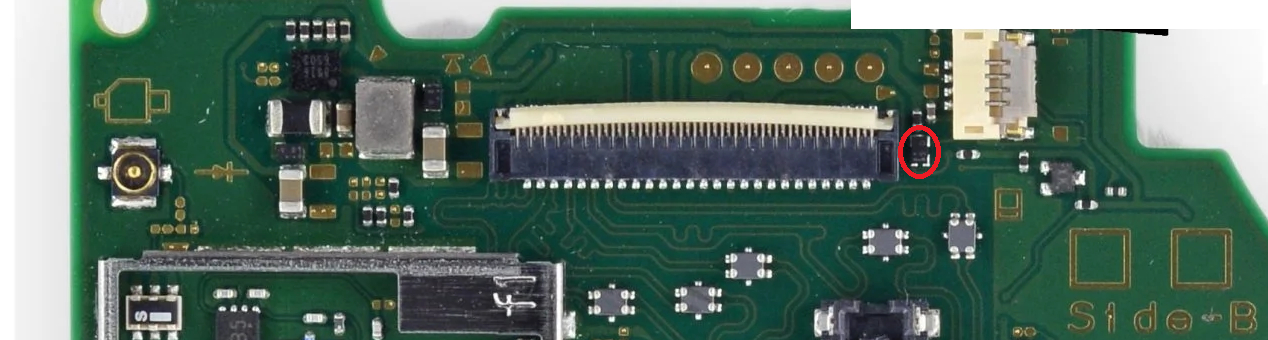

also i'm looking for the component below as it soldered the wrong way round and i lost it after i removed it.
