new chinese sx dongle 15$

Discussion in 'Switch - Backup Loaders & Modchips' started by kristiansja, Aug 3, 2018.

  1. Wzzrd

    Wzzrd Newbie

    Newcomer
    1
    Aug 12, 2018
    Germany

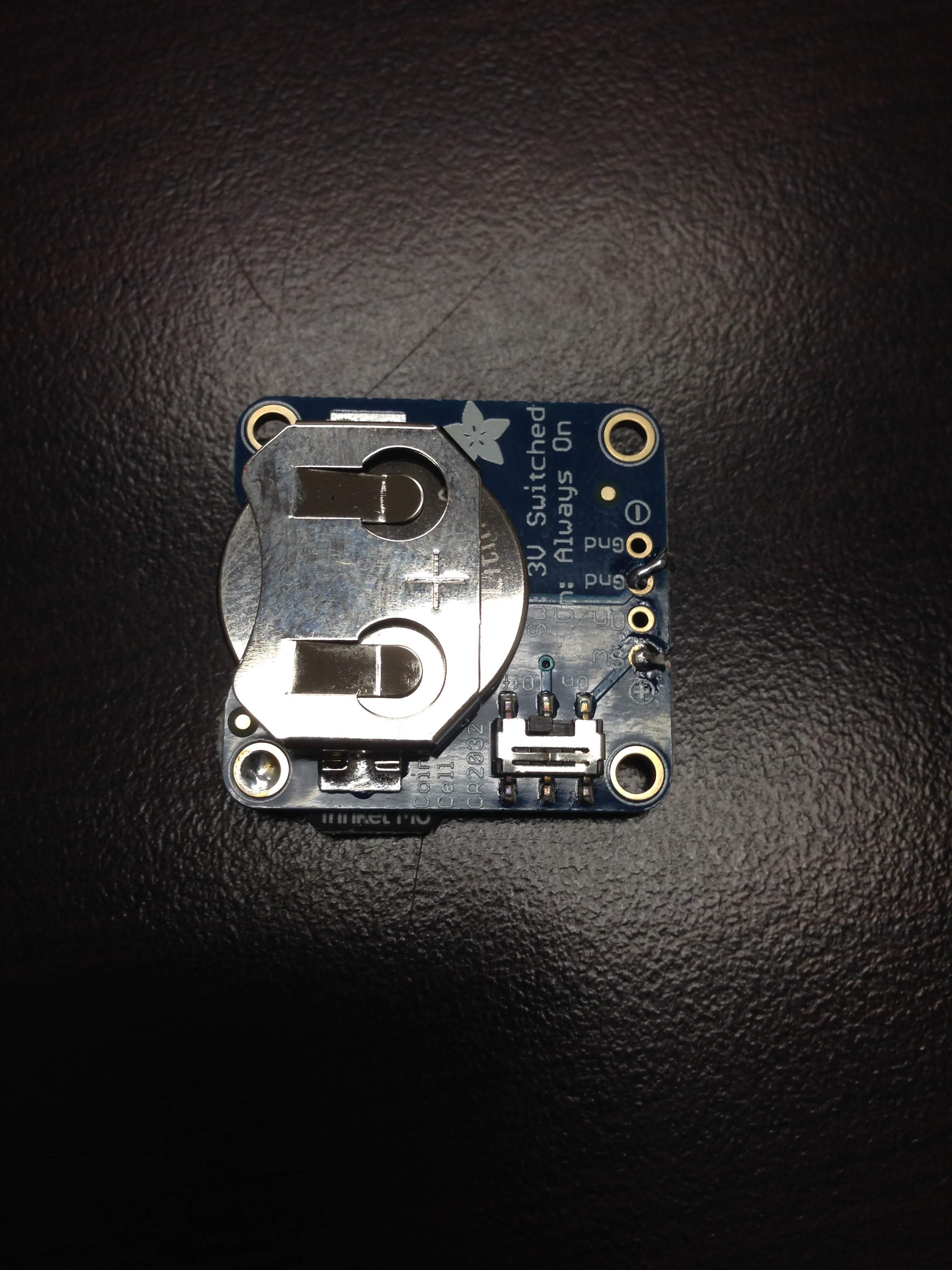

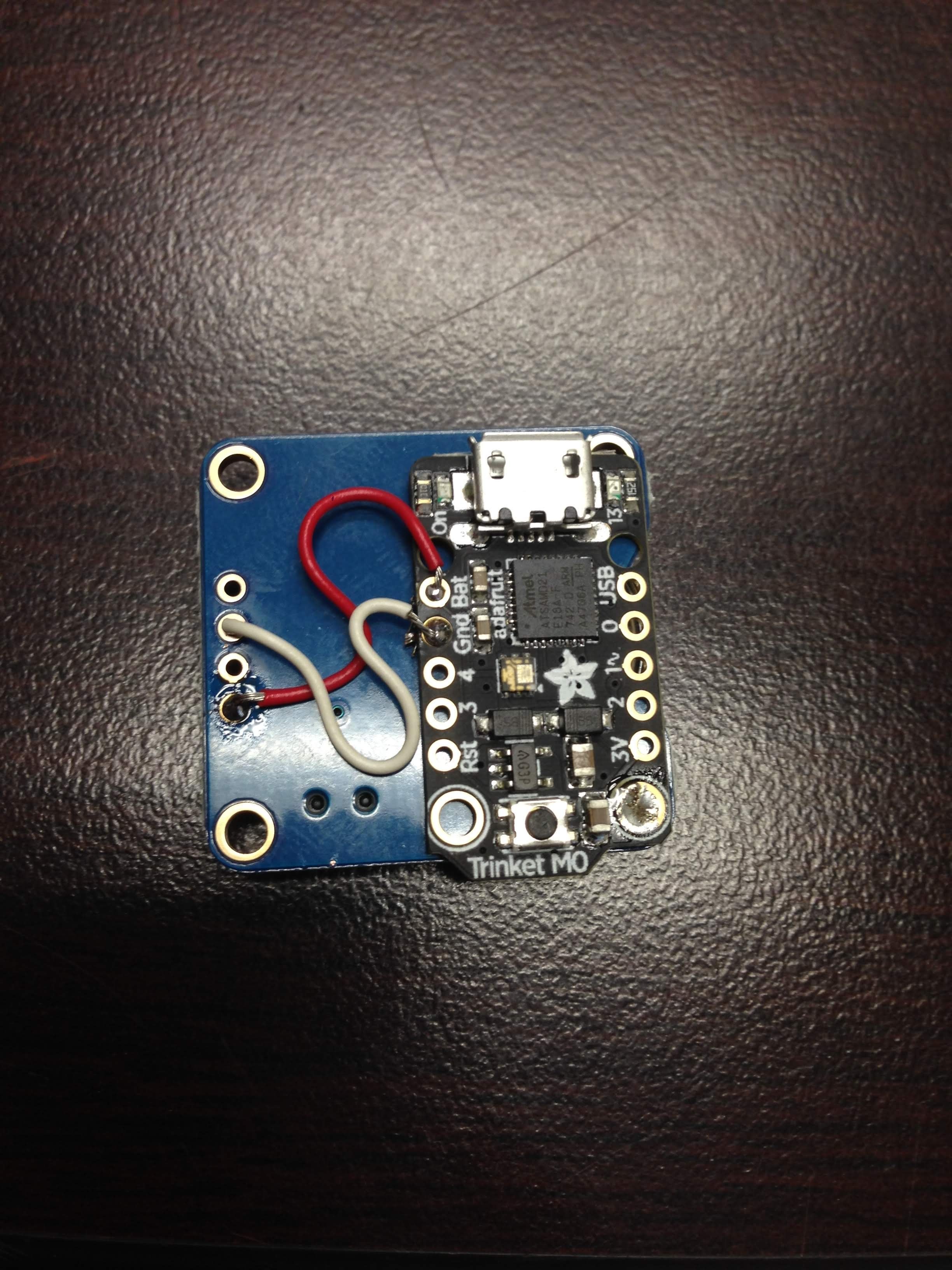

    At first I tried to solder the boards like you did. But I allways had to touch the trinket board to get ground. Then I checked the page you linked to and found that this guy used the other ground soldering point. After I also changed the soldering points for ground it worked for me. Is it working for you flawless this way?

  2. Ragenrok

    Ragenrok Member

    Newcomer
    1
    Jul 22, 2018
    Canada
    It's been flawless for me, not sure why you would be having grounding issues. Do you have a picture of what you did?

    Also did you solder the two corners together? I'm curious if maybe those corners work a small grounds and since I soldered my corners that it fixed any ground issues.

    I can check next week at work with my multimeter

    Last edited by Ragenrok, Aug 17, 2018
  3. Wzzrd

    Wzzrd Newbie

    Newcomer
    1
    Aug 12, 2018
    Germany
    I have not soldert the edges. Maybe this fixed it for you.

  4. Wzzrd

    Wzzrd Newbie

    Newcomer
    1
    Aug 12, 2018
    Germany
    Strange thing - after several successful boot attempts i now allways have to push the reset button on the trinket to inject the payload

  5. jaysea

    jaysea GBAtemp Regular

    Member
    6
    Aug 17, 2009
    Netherlands
    Maybe because they do not want to solder themselves?

  6. Cariboufou

    Cariboufou Member

    Newcomer
    2
    Jun 5, 2018
    France
    i was worried but works fine with reinx !

  7. lolboy

    lolboy GBAtemp Advanced Fan

    Member
    8
    Jul 16, 2009
    Netherlands
    I believe pictures from two dimensions (realities) got mixed.

  8. Cariboufou

    Cariboufou Member

    Newcomer
    2
    Jun 5, 2018
    France
  9. regnad

    regnad Button Masher

    Member
    8
    May 19, 2008
  10. Quicksilver88

    Quicksilver88 GBAtemp Advanced Fan

    Member
    4
    Jan 26, 2013
    United States

    Check out their github....it has instructions and they are also posting updated payload files:

    https://github.com/euclala/RCM-X86

    ShadyGame likes this.
  11. enderer

    enderer GBAtemp Regular

    Member
    4
    Jul 19, 2015
    United States
    can anyone help me to change the payload on my dongle? i read about the trinket m0 i'm supposed to press the button twice and mount it as a drive but i can't get it to mount.

  12. Keylogger

    Keylogger GBAtemp Addict

    Member
    11
    May 3, 2006
    France
    Same question...

    I have the dongle mounted but there is a Uf2 file on it, not bin file
    https://github.com/euclala/RCM-X86

  13. Cariboufou

    Cariboufou Member

    Newcomer
    2
    Jun 5, 2018
    France
    Last edited by Cariboufou, Aug 24, 2018
  14. enderer

    enderer GBAtemp Regular

    Member
    4
    Jul 19, 2015
    United States
    it says the same thing i read before: double click the button. i have double clicked this button relentlessly, leaving time in between. i have disconnected it and tried again i have done it all - in regards to double-clicking the button, and never has it mounted a drive. all it does is blink green once.

    i've opened device manager and found its listing by sorting devices by container. when i double click it, it disappears from device manager. so maybe it's trying to mount?

    EDIT: does it have to be usb 3.0?

  15. Ragenrok

    Ragenrok Member

    Newcomer
    1
    Jul 22, 2018
    Canada
    try a different cord? I had alot of issues with the first cable I tried, second one worked great.

    What lights do you see after you press the button twice? If I use a bad micro usb cable I see 1 Green and 2 red, if I use my good one I see 2 Green and 1 red then it mounts to my computer. The cable works for other things but it wont for this, I have to use a higher quality cable form a different brand to make it work as my cheapy ones wont do it, also USB 2 and 3 ports both work for me.

    Last edited by Ragenrok, Aug 25, 2018
  16. enderer

    enderer GBAtemp Regular

    Member
    4
    Jul 19, 2015
    United States
    no cord, it's got a usb connector attached. when i double tap the button, it blinks green once then continues red (charging).

  17. Ragenrok

    Ragenrok Member

    Newcomer
    1
    Jul 22, 2018
    Canada
    What I meant was try a different micro USB cord. When I double press the button on mine I get 2 green and 1 red lights on I think (as in 3 lights on at once)

  18. itsjch

    itsjch GBAtemp Regular

    Member
    5
    Feb 22, 2016
    Australia
    Sydney
    I just got mine in the mail its really good!

  19. brollikk

    brollikk GBAtemp Fan

    Member
    5
    Mar 8, 2018
    United States
    The price of this dongle plus a license for sx os is pretty similar to just buying an sx Pro. Is it even worth getting this?

  20. Ragenrok

    Ragenrok Member

    Newcomer
    1
    Jul 22, 2018
    Canada
    Depends, for me in Canada it was $10 usd cheaper to buy a m0 trinket and license due to shipping and I had it in 4 days. Cheapest I could get the SX pro was $35+$15 in shipping and it was atleast a 3 week wait (maybe more).
