Hardware New 3DS buttons and touch not working

giofrida

Active Member
Newcomer
Joined
Jul 31, 2013
Messages
30
Trophies
0
XP
373
Country
Italy
Update:
user @testerfan helped me out troubleshooting the issue. Apparently, I/O lines connecting CPU to the many microcontrollers (such as the touch screen controller) are damaged and cannot be repaired since Nintendo engineers traced them between top and bottom layers of the board.
I ended up buying a new board for around 30 euros and console now works again.

  • Like
Reactions: MrMcTiller

MrMcTiller

GBATemp's Tiller
Member
Joined
Mar 7, 2017
Messages
1,180
Trophies
0
Age
19
Location
Iowa
XP
1,407
Country
United States
Update:
user @testerfan helped me out troubleshooting the issue. Apparently, I/O lines connecting CPU to the many microcontrollers (such as the touch screen controller) are damaged and cannot be repaired since Nintendo engineers traced them between top and bottom layers of the board.
I ended up buying a new board for around 30 euros and console now works again.
Well... at least you got it fixed...


Squirrel61

Active Member
Newcomer
Joined
Nov 24, 2008
Messages
25
Trophies
0
XP
212
Country
Netherlands
Update:
user @testerfan helped me out troubleshooting the issue. Apparently, I/O lines connecting CPU to the many microcontrollers (such as the touch screen controller) are damaged and cannot be repaired since Nintendo engineers traced them between top and bottom layers of the board.
I ended up buying a new board for around 30 euros and console now works again.
I think @testerfan is on the right track, but not fully spot-on. I have a New 3DS with the same problem. When cold booted, it is working perfectly well for about 30-45 mins, then erratic movements are starting, caused by the circle pad and shortly thereafter, the buttons stop working, except for the home button, zl/zr buttons and the thumbstick. When I leave it cool down for 1-2 hours, it is working again.

My opinion is that one of the microcontrollers, which is responsible for the touchscreen, circle pad and most of the buttons, is not making good contact with the solder pads it is mounted on. This happens a lot with chips that are BGA-mounted and heat up and cool down. When the microcontroller is properly reflowed, the board will most probably work again.

If @testerfan is reading this: do you happen to know which microcontroller is responsible for touchscreen, circle pad and buttons? I like to have a go at reflowing but I'm not sure which chip it is.


testerfan

Well-Known Member
Member
Joined
May 28, 2013
Messages
169
Trophies
0
Age
43
Website
www.fixxmaster.com
XP
1,639
Country
United States
I think @testerfan is on the right track, but not fully spot-on. I have a New 3DS with the same problem. When cold booted, it is working perfectly well for about 30-45 mins, then erratic movements are starting, caused by the circle pad and shortly thereafter, the buttons stop working, except for the home button, zl/zr buttons and the thumbstick. When I leave it cool down for 1-2 hours, it is working again.

My opinion is that one of the microcontrollers, which is responsible for the touchscreen, circle pad and most of the buttons, is not making good contact with the solder pads it is mounted on. This happens a lot with chips that are BGA-mounted and heat up and cool down. When the microcontroller is properly reflowed, the board will most probably work again.

If @testerfan is reading this: do you happen to know which microcontroller is responsible for touchscreen, circle pad and buttons? I like to have a go at reflowing but I'm not sure which chip it is.

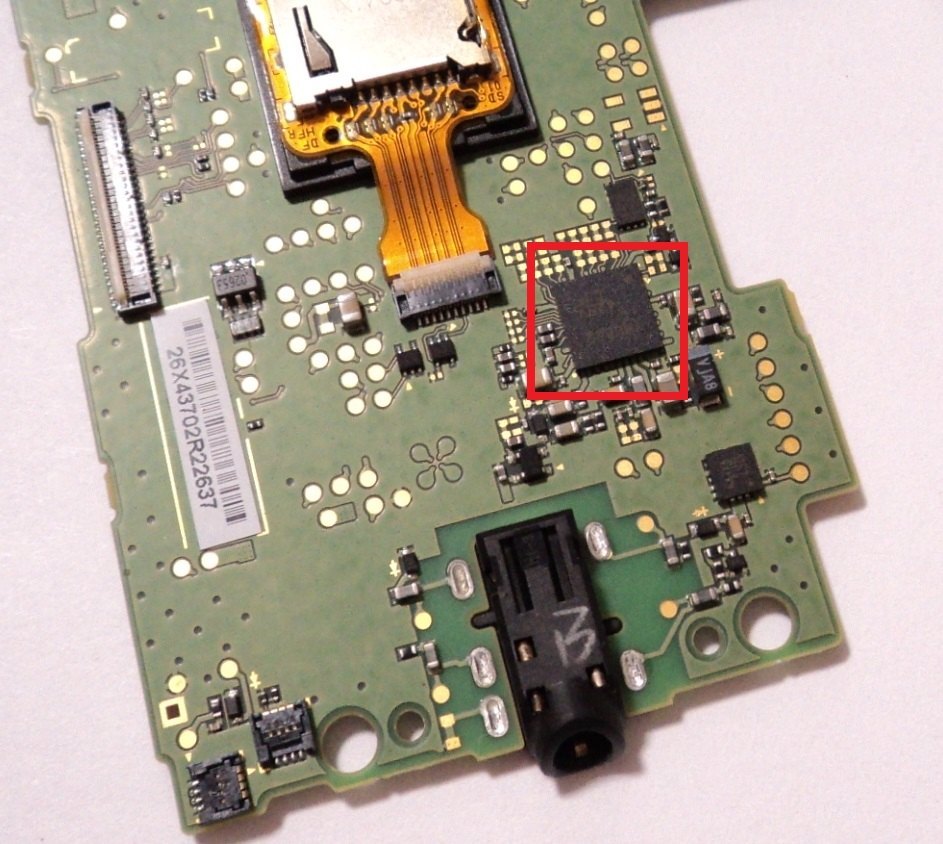

Here is the picture of the chip, it's a New 3DS XL motherboard, but it's the same architecture and the chip is roughly in the same place on a regular New 3DS model. This chip controls the touchscreen input and audio, but when the touchscreen signal is shorted - it doesn't let you do anything with the buttons as well (all buttons controlled directly by the CPU and not really affected by this failure, just same effect when touchscreen has physical dent in it - the system won't respond to the buttons).
Nintendo used this chip on every model starting with 3DS, and I've only seen the actual failures on original 3DS and 3DS XL models. Never seen this chip fail on New 3DS or New 3DS XL, even though the system may act exactly as though it's defective, reflowing it or replacing it with a new chip on New 3DS model won't do anything, as stated before the chip itself is not a problem, otherwise you would never get any audio or touch from the system no matter if it's cold or hot, once this chip fails - those functions are never coming back



Matt1534

New Member
Newbie
Joined
Aug 17, 2019
Messages
2
Trophies
0
Age
35
XP
39
Country
Canada
Here is the picture of the chip, it's a New 3DS XL motherboard, but it's the same architecture and the chip is roughly in the same place on a regular New 3DS model. This chip controls the touchscreen input and audio, but when the touchscreen signal is shorted - it doesn't let you do anything with the buttons as well (all buttons controlled directly by the CPU and not really affected by this failure, just same effect when touchscreen has physical dent in it - the system won't respond to the buttons).
Nintendo used this chip on every model starting with 3DS, and I've only seen the actual failures on original 3DS and 3DS XL models. Never seen this chip fail on New 3DS or New 3DS XL, even though the system may act exactly as though it's defective, reflowing it or replacing it with a new chip on New 3DS model won't do anything, as stated before the chip itself is not a problem, otherwise you would never get any audio or touch from the system no matter if it's cold or hot, once this chip fails - those functions are never coming back

View attachment 144723
I have exact same problem put the board in a known working device and all symptoms returned.(Mine may work no more than 30 seconds before all buttons and touch except zr and xl and c stick. Mine will eventually freeze completely as well. Also put the good board in my device and everything works great so it's 100% the main board. I could see it being a chip and isn't getting a 100% connection causing the failure. Has anyone managed to fix their board.


Matt1534

New Member
Newbie
Joined
Aug 17, 2019
Messages
2
Trophies
0
Age
35
XP
39
Country
Canada
I think @testerfan is on the right track, but not fully spot-on. I have a New 3DS with the same problem. When cold booted, it is working perfectly well for about 30-45 mins, then erratic movements are starting, caused by the circle pad and shortly thereafter, the buttons stop working, except for the home button, zl/zr buttons and the thumbstick. When I leave it cool down for 1-2 hours, it is working again.

My opinion is that one of the microcontrollers, which is responsible for the touchscreen, circle pad and most of the buttons, is not making good contact with the solder pads it is mounted on. This happens a lot with chips that are BGA-mounted and heat up and cool down. When the microcontroller is properly reflowed, the board will most probably work again.

If @testerfan is reading this: do you happen to know which microcontroller is responsible for touchscreen, circle pad and buttons? I like to have a go at reflowing but I'm not sure which chip it is.
Hey did you have any luck or is the board truly no good? I guess I'll keep my eyes lot for a new board


sslmm

Member
Newcomer
Joined
Apr 17, 2019
Messages
7
Trophies
0
Age
32
XP
608
Country
Portugal
Hi there guys.

My new 3ds has been having these symptoms for a long time but i thought that it was a faulty analog and replaced it and it worked for a year without problems.
But it started again and even with another new analog it simply doesn't respond to anything (except for the home button, zl/zr buttons and the thumbstick).

So is there any fix for this without changing the motherboard? i don't want to lose my saved games and if i change the motherboard i will lose them.

Thanks in advance


lone_wolf323

Well-Known Member
Member
Joined
May 27, 2011
Messages
4,920
Trophies
1
XP
3,955
Country
Canada
Hi there guys.

My new 3ds has been having these symptoms for a long time but i thought that it was a faulty analog and replaced it and it worked for a year without problems.
But it started again and even with another new analog it simply doesn't respond to anything (except for the home button, zl/zr buttons and the thumbstick).

So is there any fix for this without changing the motherboard? i don't want to lose my saved games and if i change the motherboard i will lose them.

Thanks in advance
There is jksm and checkpoint which allow you to extract your gamesaves to have as backups in case stuff like this happens.


sslmm

Member
Newcomer
Joined
Apr 17, 2019
Messages
7
Trophies
0
Age
32
XP
608
Country
Portugal
I know about those options but without buttons working i can't do anything. I thought that it was just a problem with the circle pad and that it would be solved by replacing it :/


MaRC5

Member
Newcomer
Joined
Jun 3, 2019
Messages
12
Trophies
0
Age
37
XP
160
Country
Russia
I have the same problem on New 3DS. In addition, there is also a crackling sound from the speakers. If you close and open the console, then the buttons work for a couple of seconds. Disconnecting the touchpad from the board does not help - the problem is with the controller or the capacitors / resistors next to it, or the board.
In accordance with the wiibrew, the controller name is -TI AIC3010B
39C4ETW.

Last edited by MaRC5,

nicker

New Member
Newbie
Joined
Jan 14, 2022
Messages
2
Trophies
0
Age
39
XP
10
Country
China
I have the same problem. No sound, no 3D, every button no response except c-s, zl and zr when system start.
But in GodMode9, the buttons looks normal.
So it s software problem or hardware?
