Need help with picofly install. Odd problems

[regayoV]

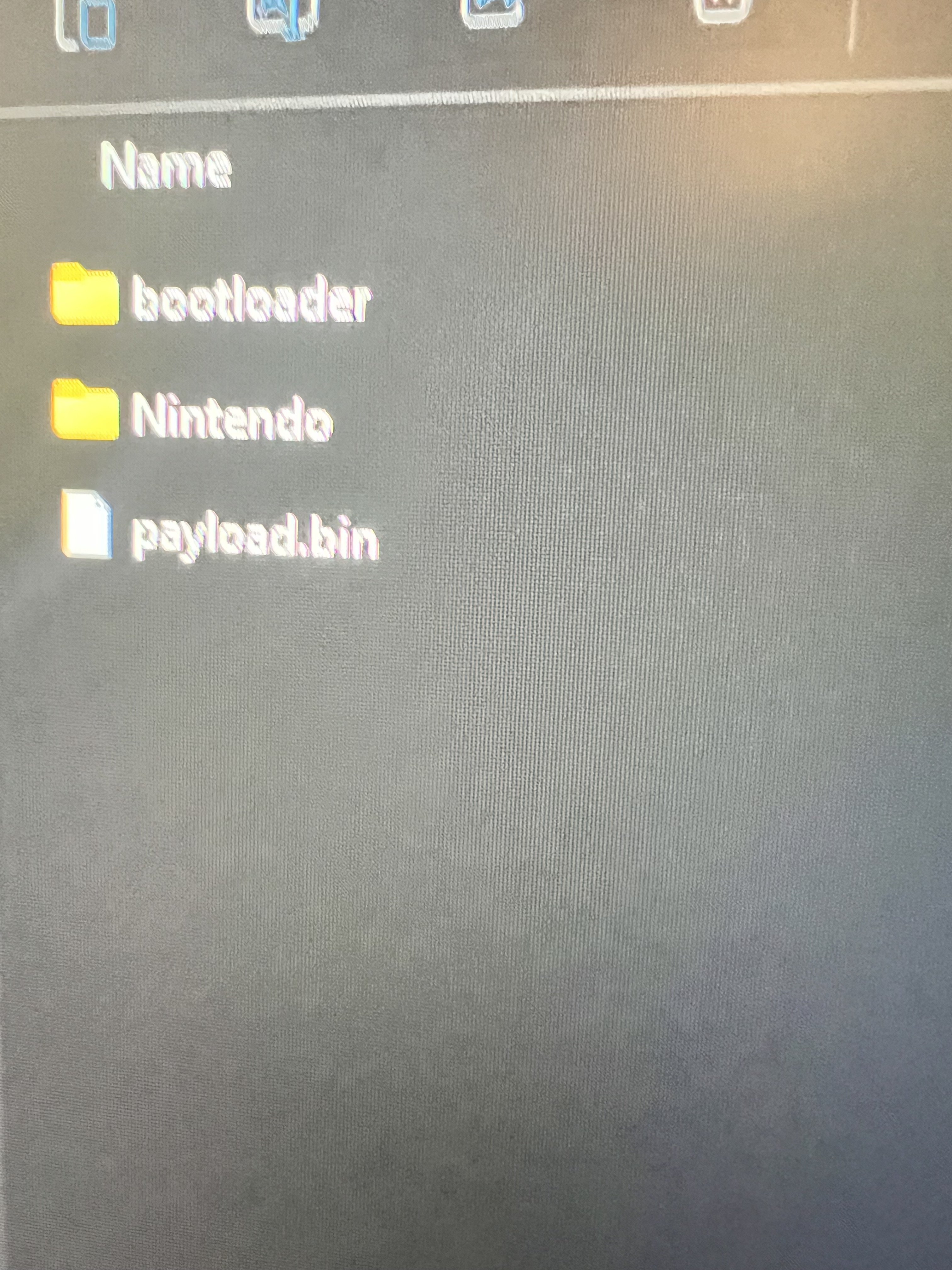

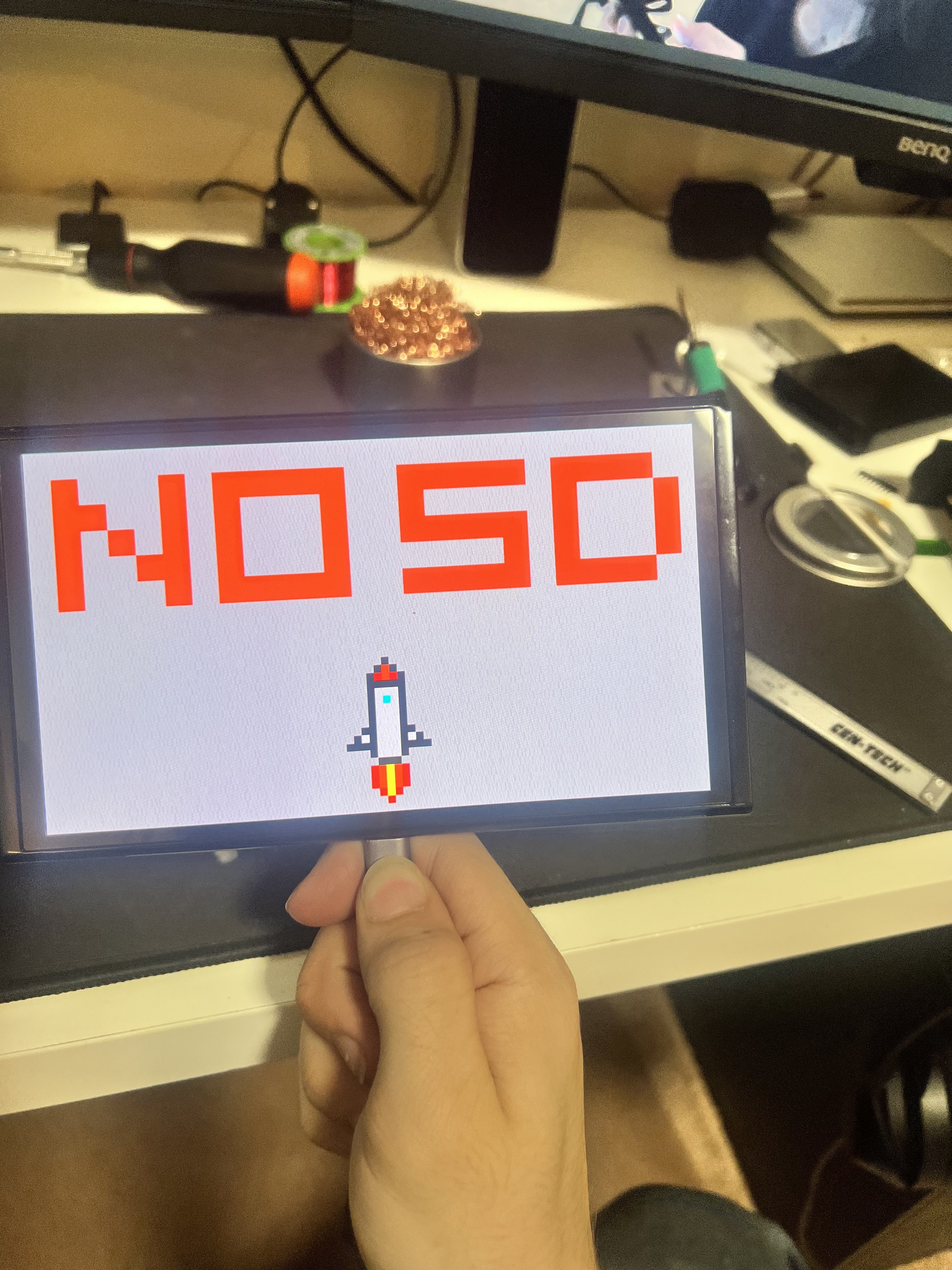

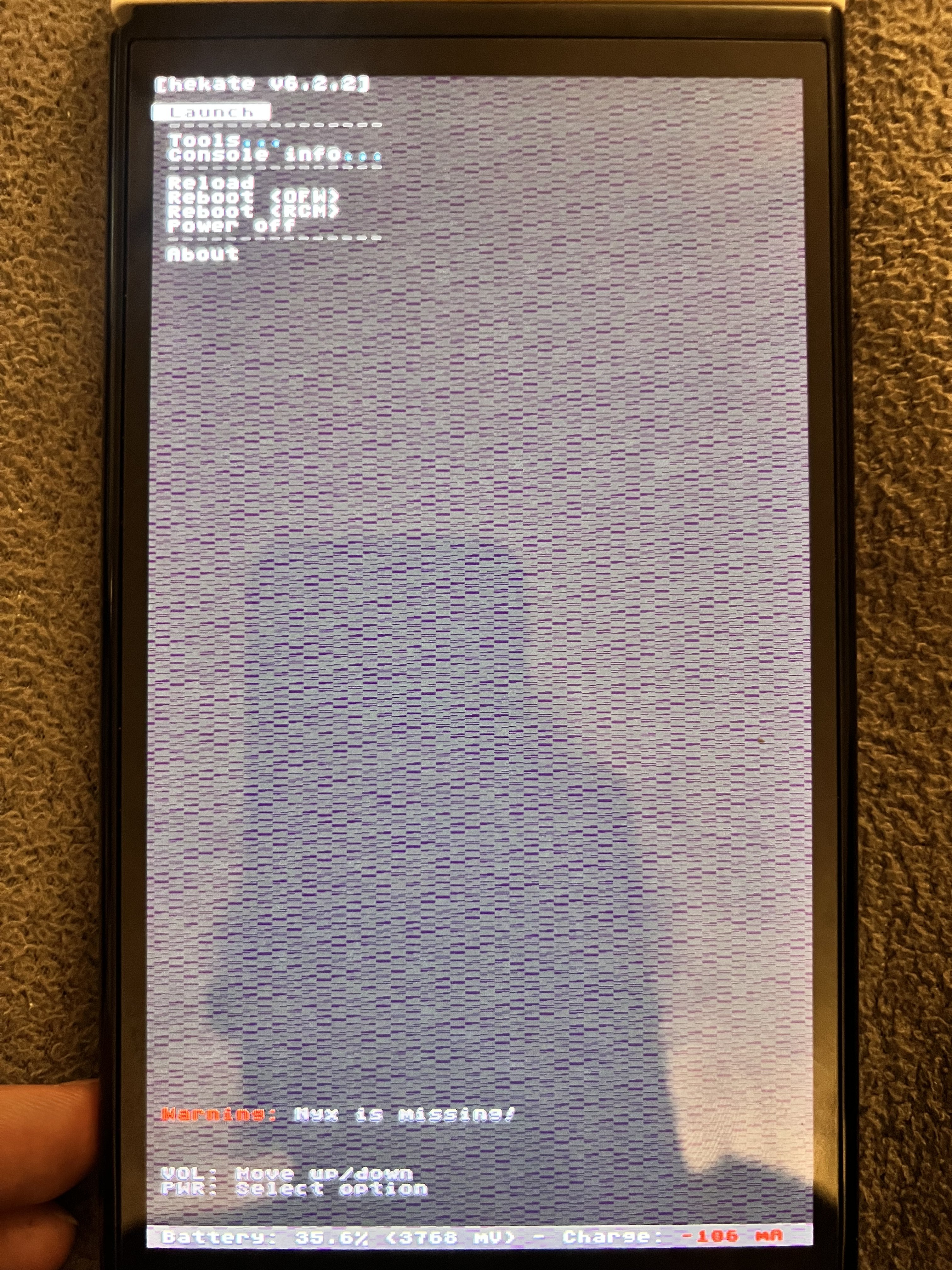

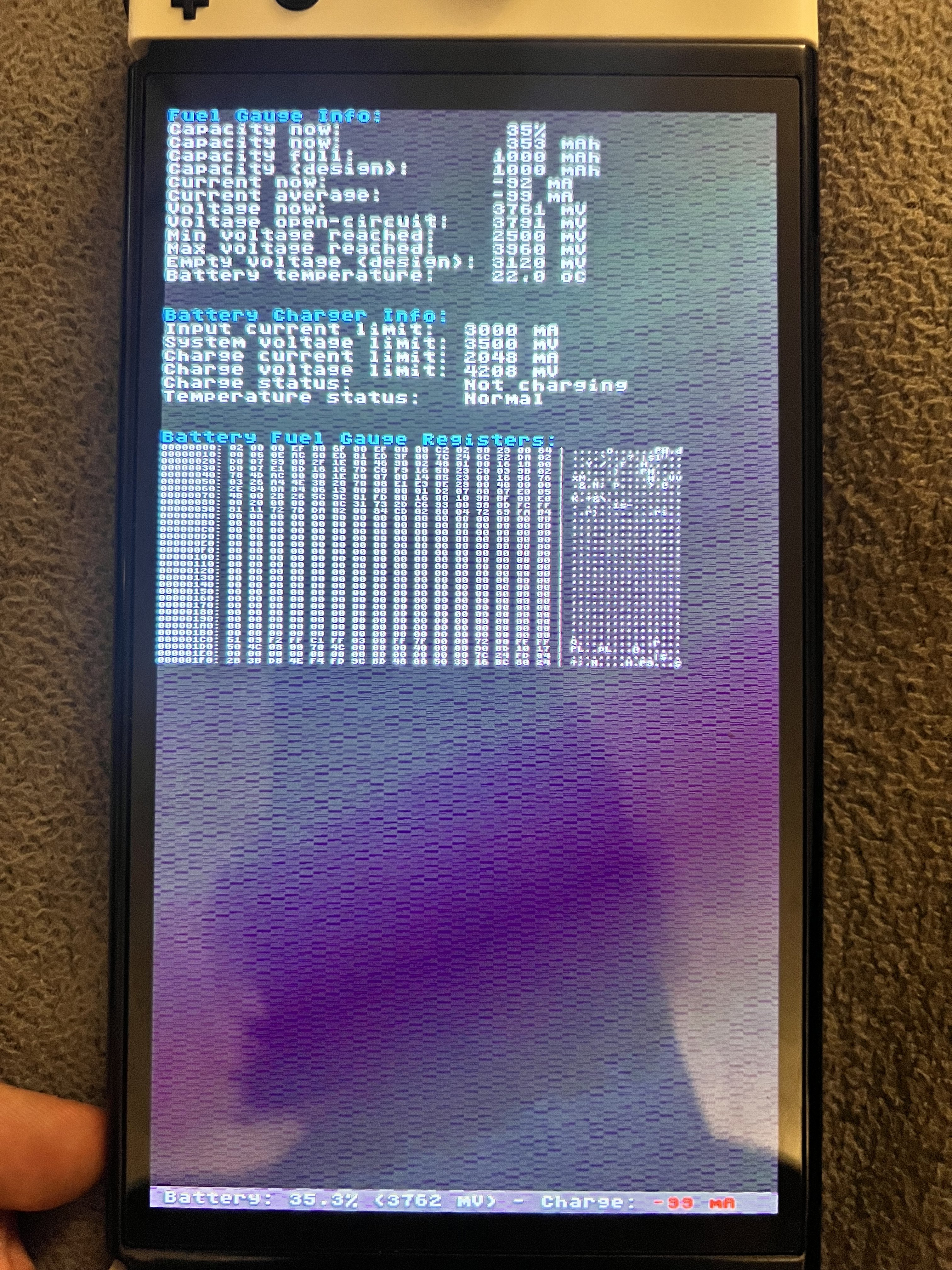

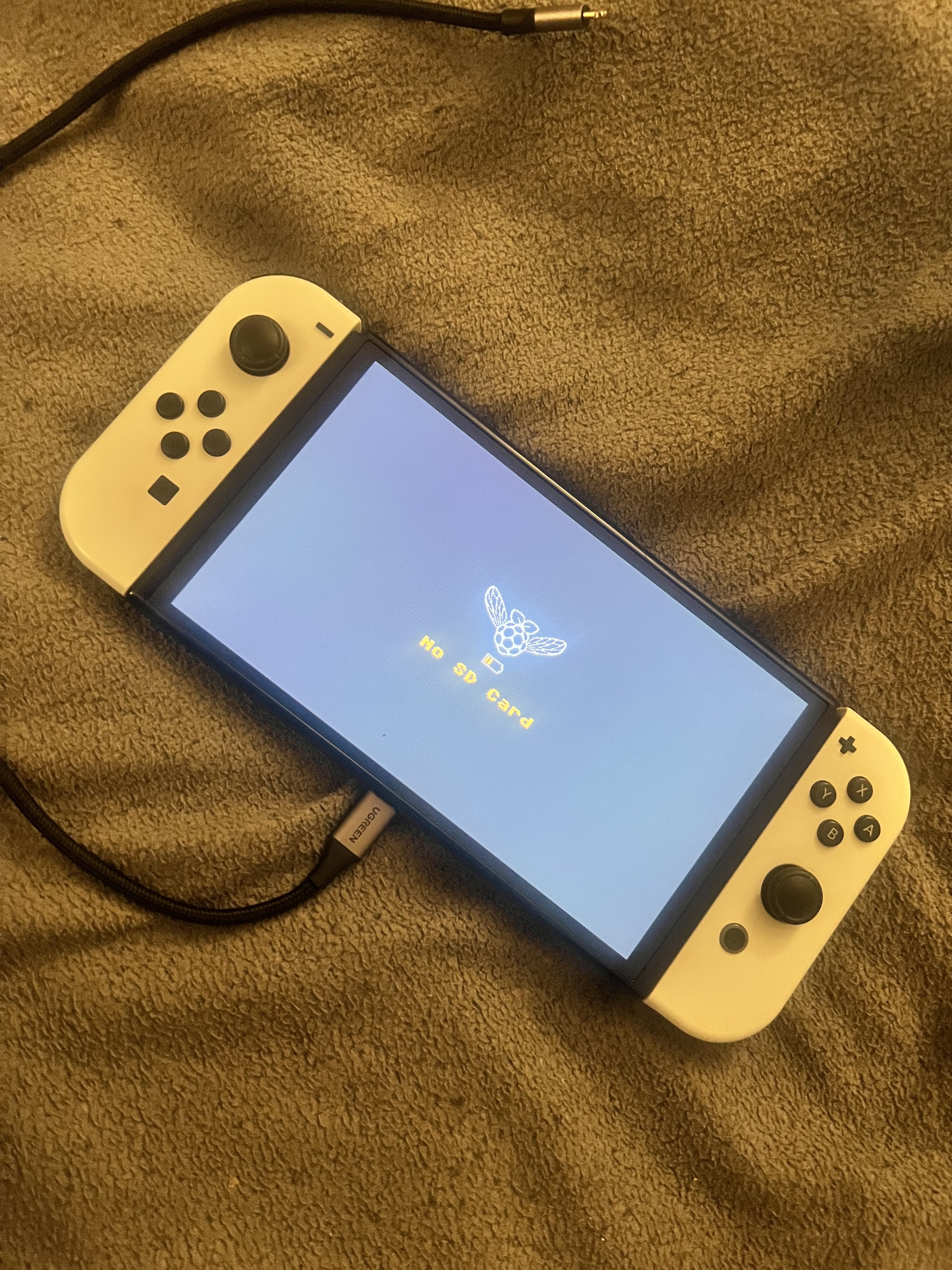

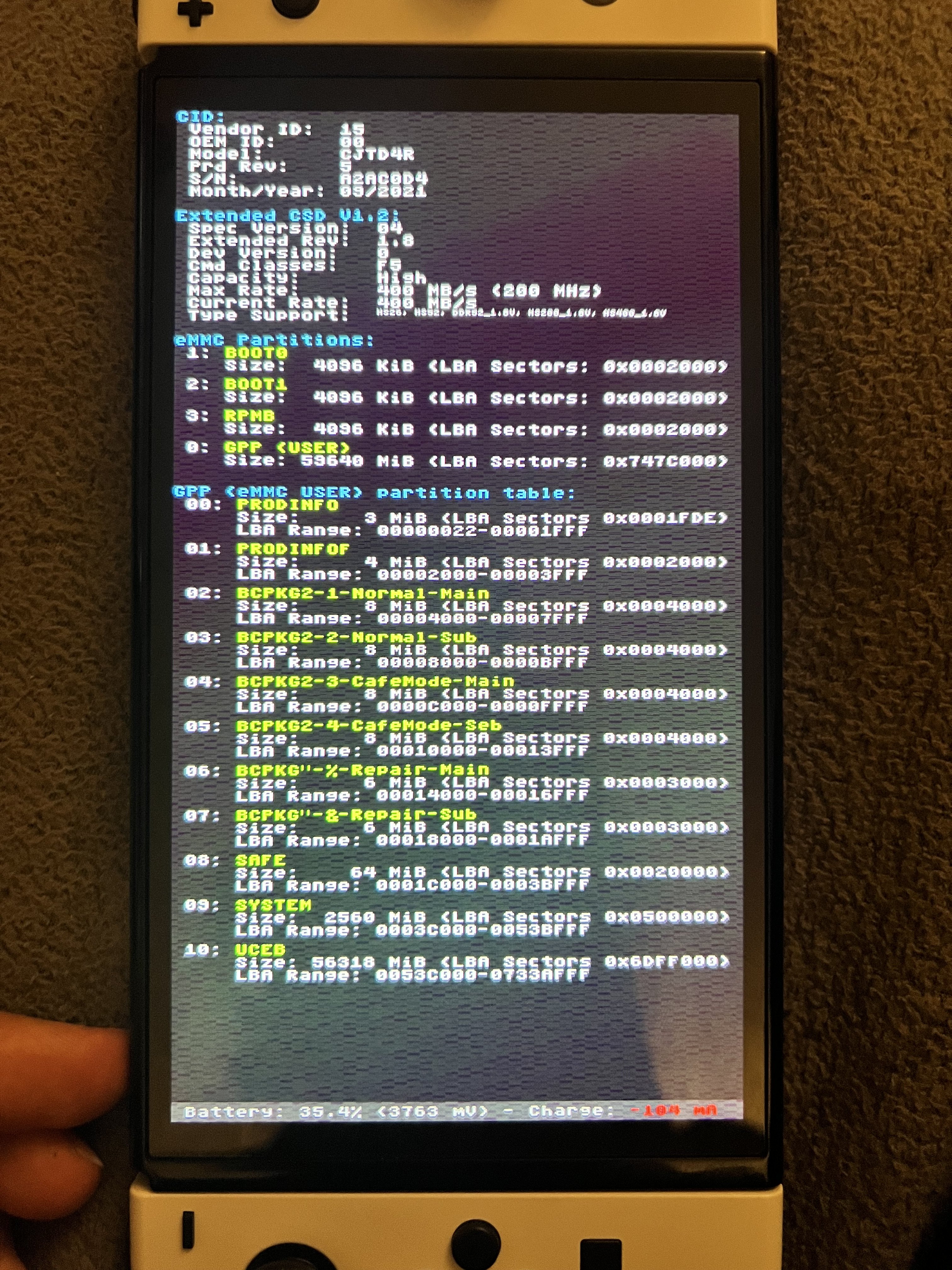

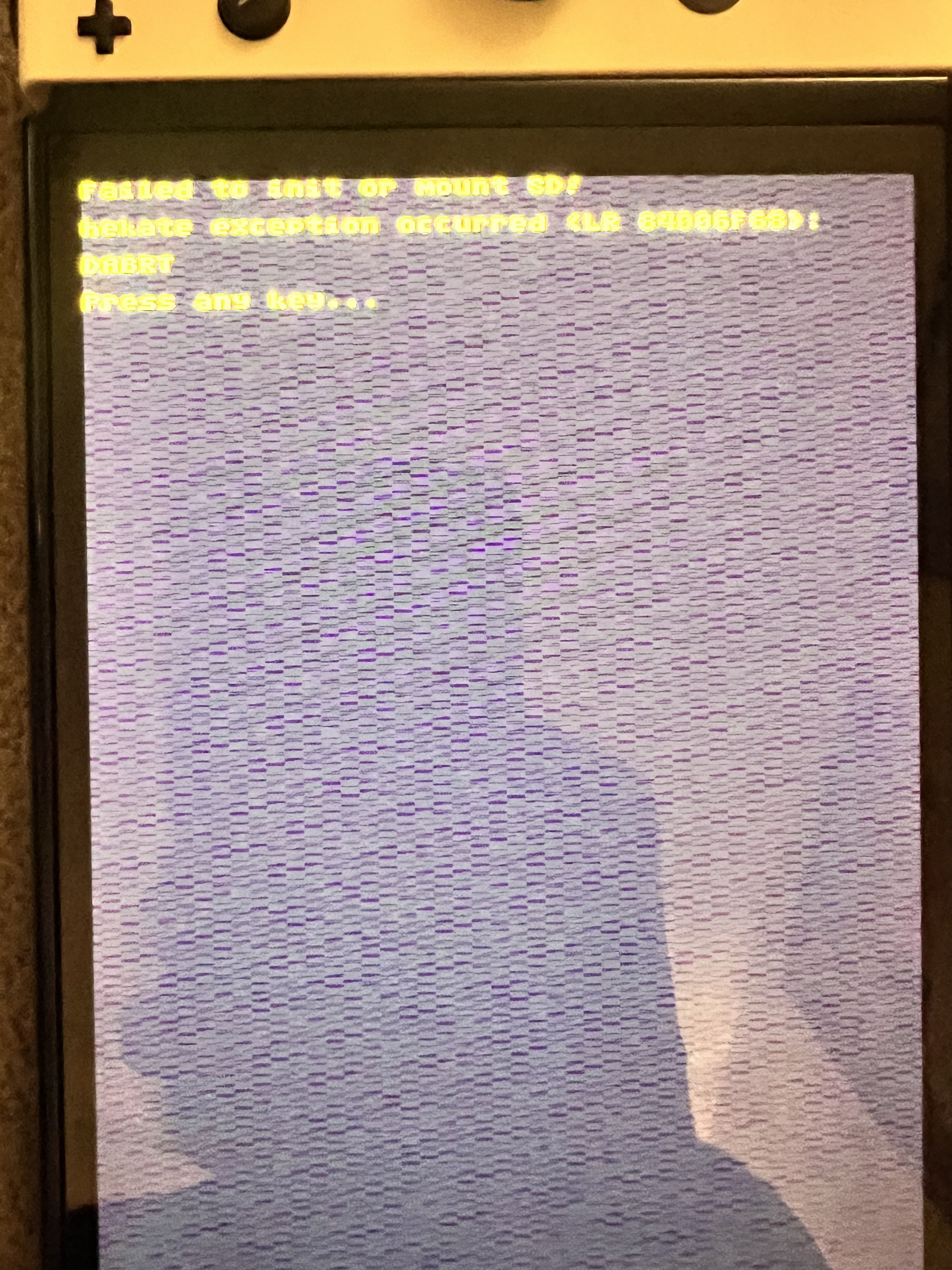

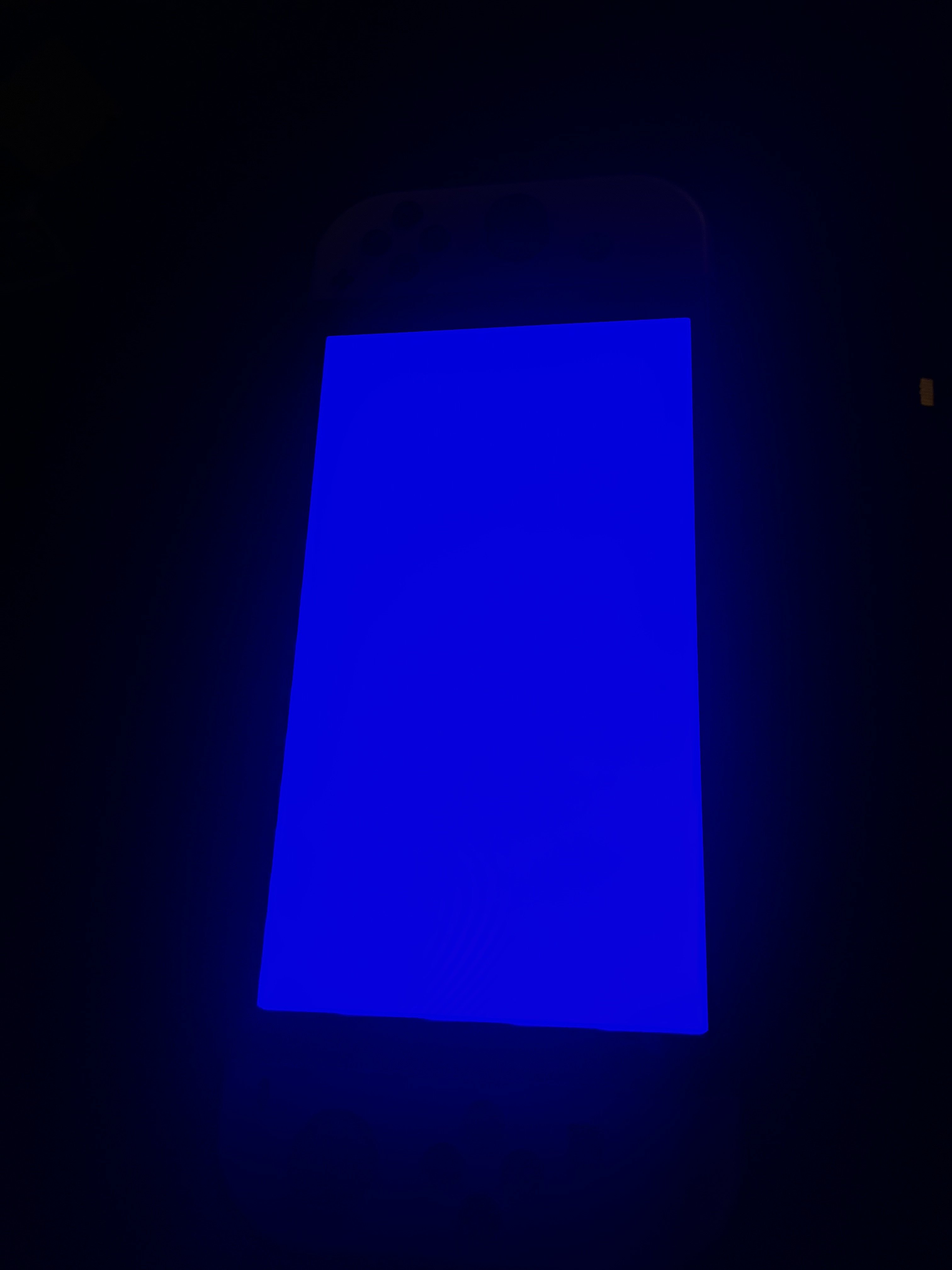

Installed the modchip. no issue and no apparent messups. It boots fine to the no sd screen without an sd. When I insert an sd and turn it on it sits on a black screen. I removed the sd card as I thought it was not workinh and got to this vertical hekate screen and was able to check emmc and sd card “I was able to reinsert sd whilst in the menu and see it’s info aswell” if I select “reboot (ofw)” I’m shown a blue screen and same with holding volume buttons on boot to bypass chip still bluescreen.

Tried with two picofly chips



[jkyoho]

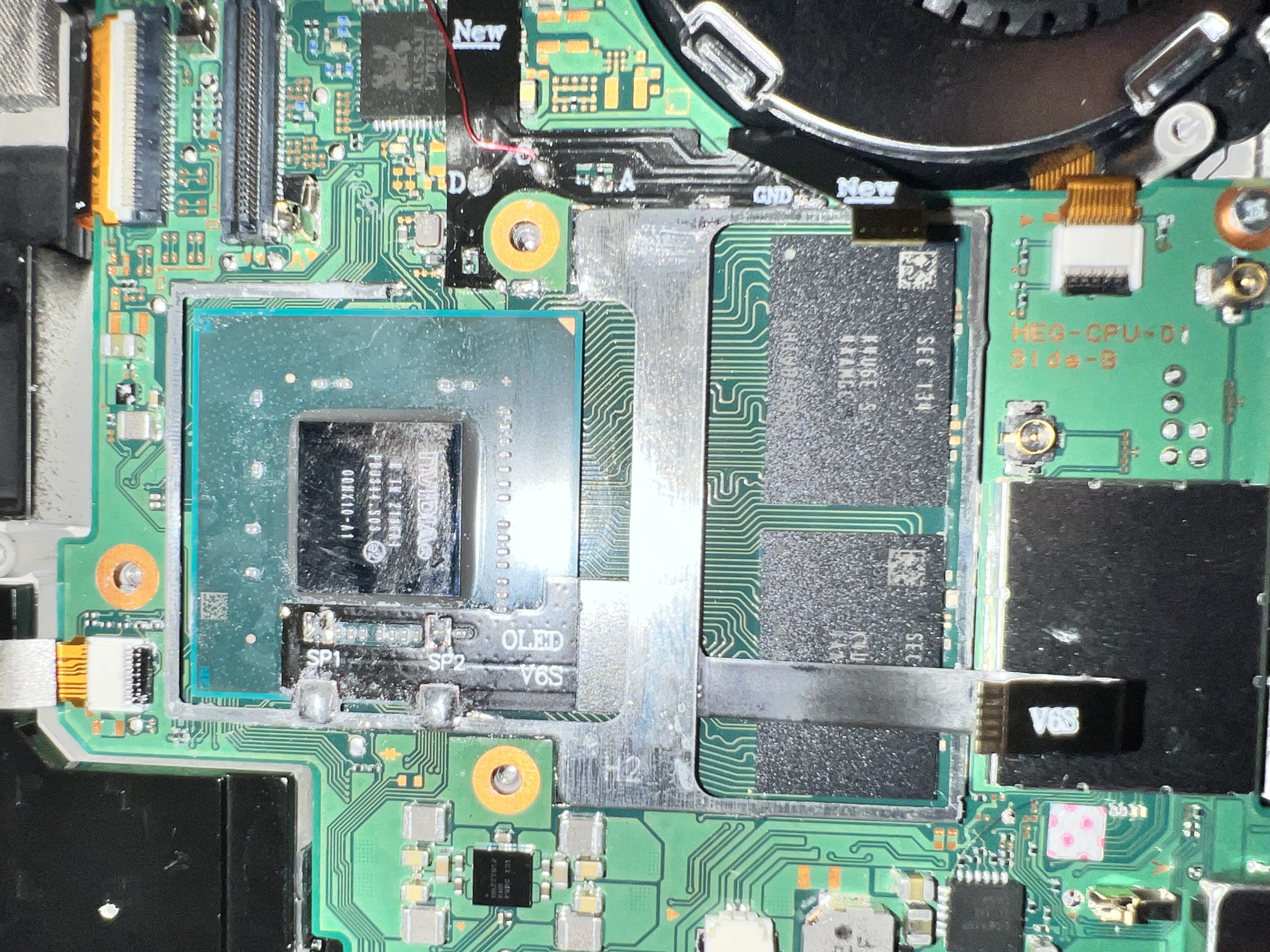

remove the cpu metal shield and take pictures around cpu and ram . Youi likely have issue on ram



[regayoV]

remove the cpu metal shield and take pictures around cpu and ram . Youi likely have issue on ram



[jkyoho]

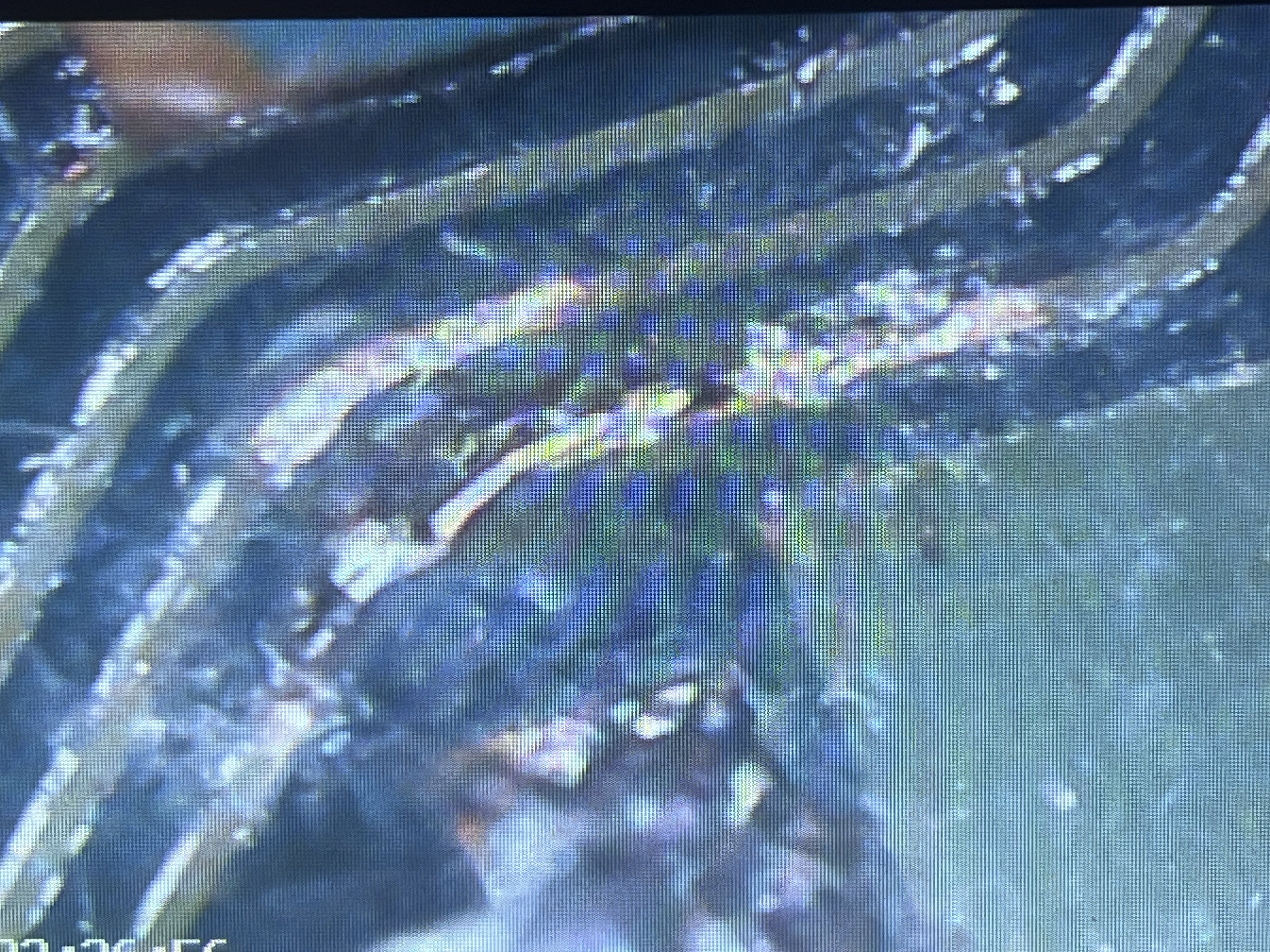

try taking another close up from different angle



[regayoV]

try taking another close up from different angle



[jkyoho]

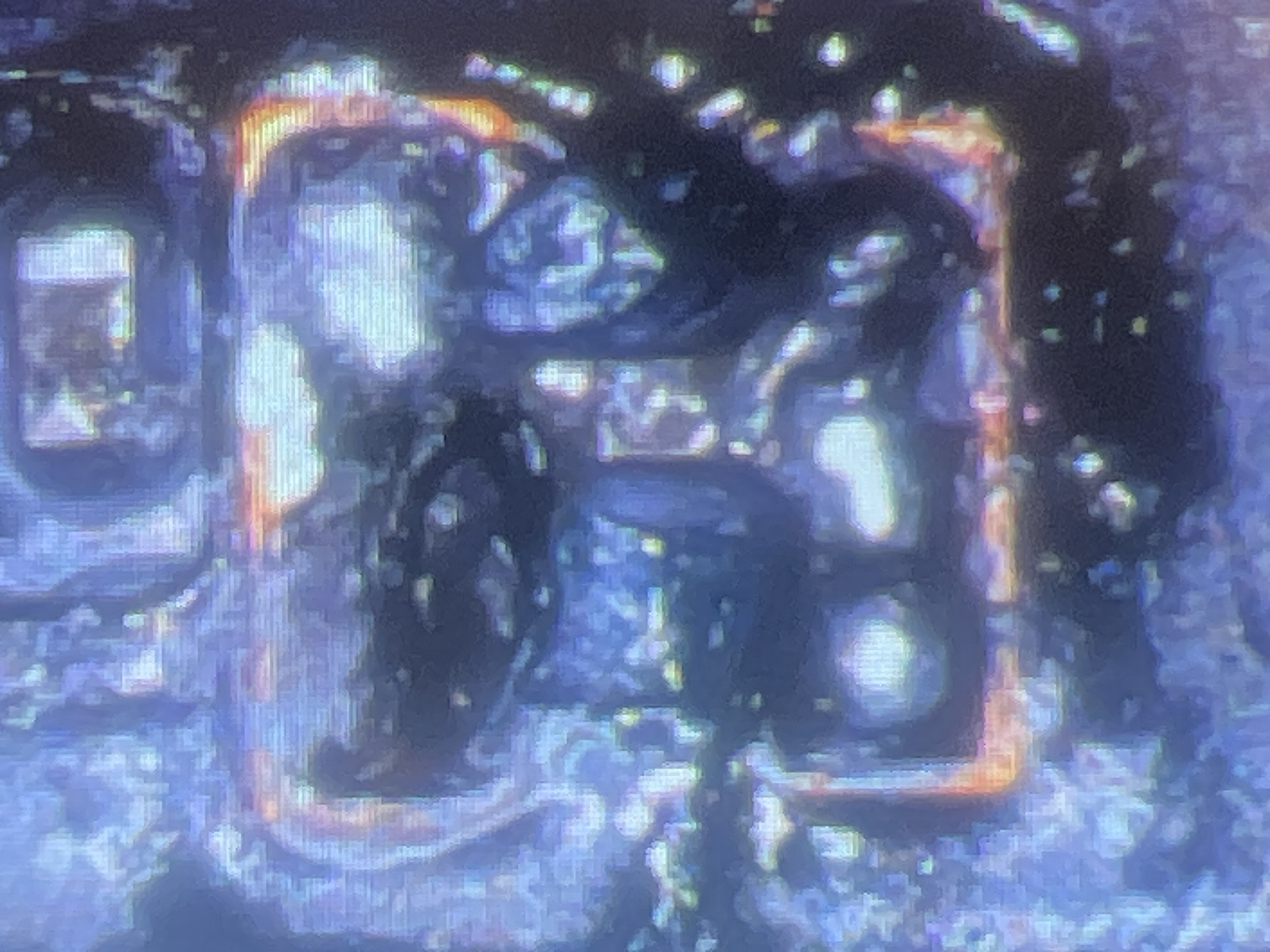

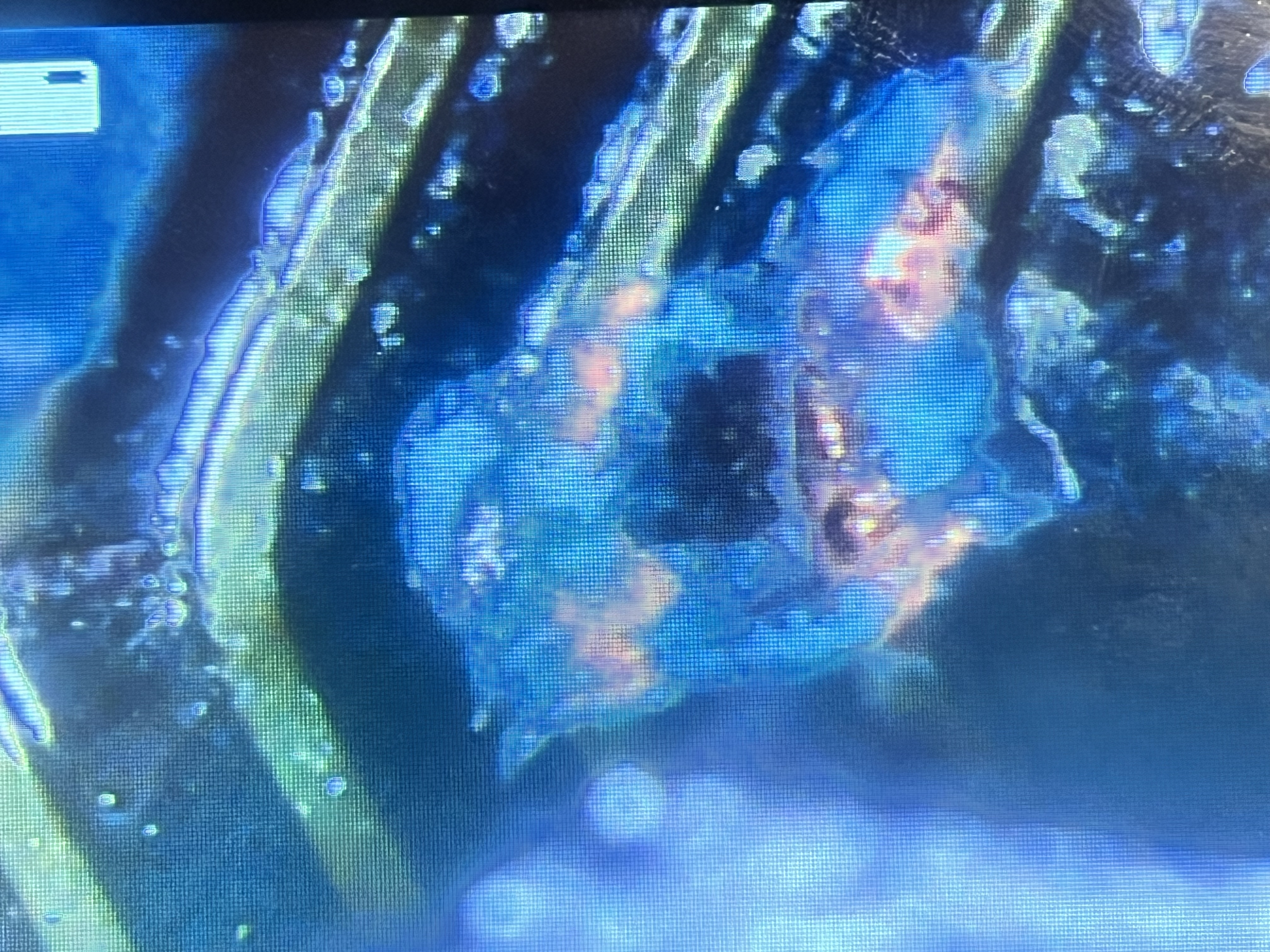

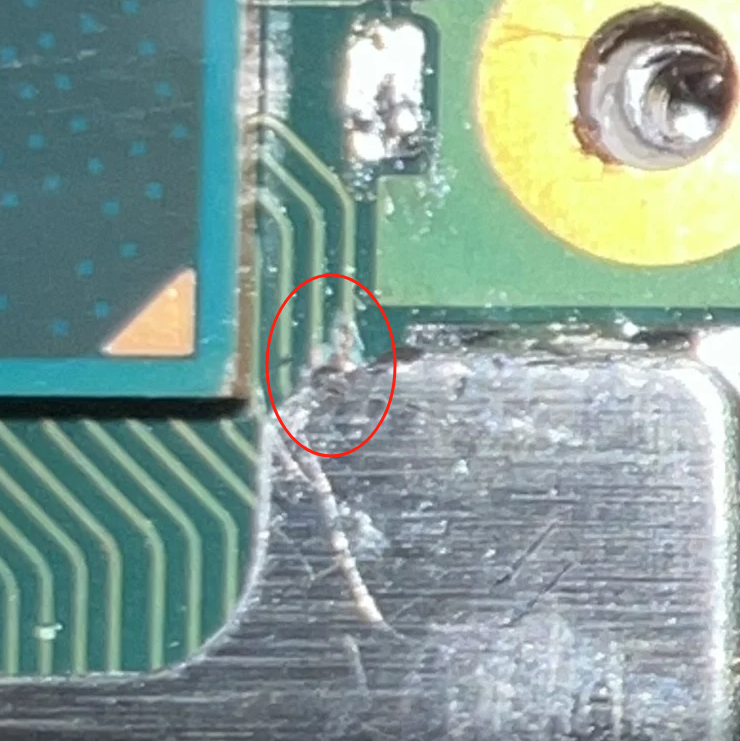

There we go, now you know what to fix



[regayoV]

try taking another close up from different angle

Slightly better photo



[jkyoho]

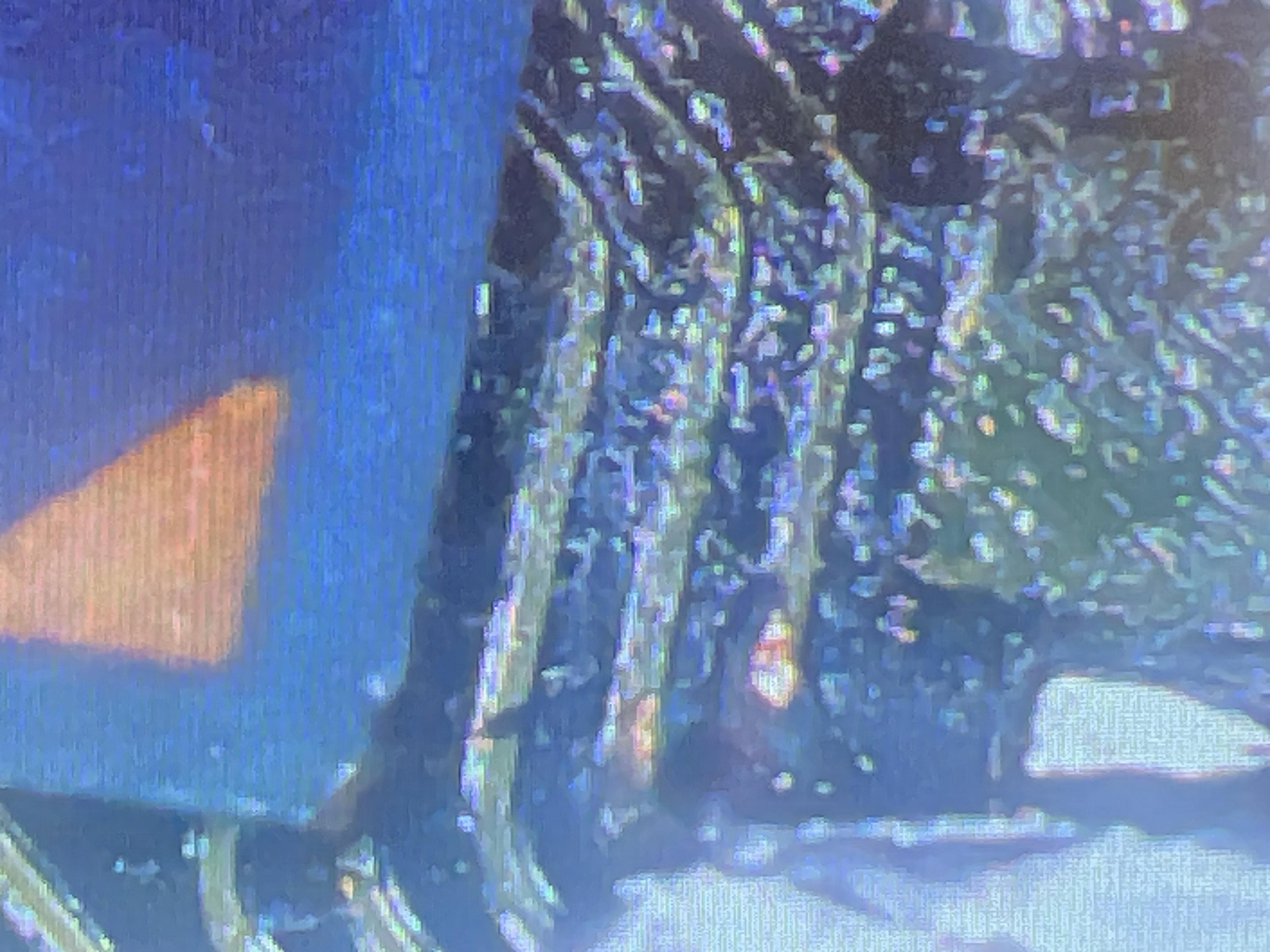

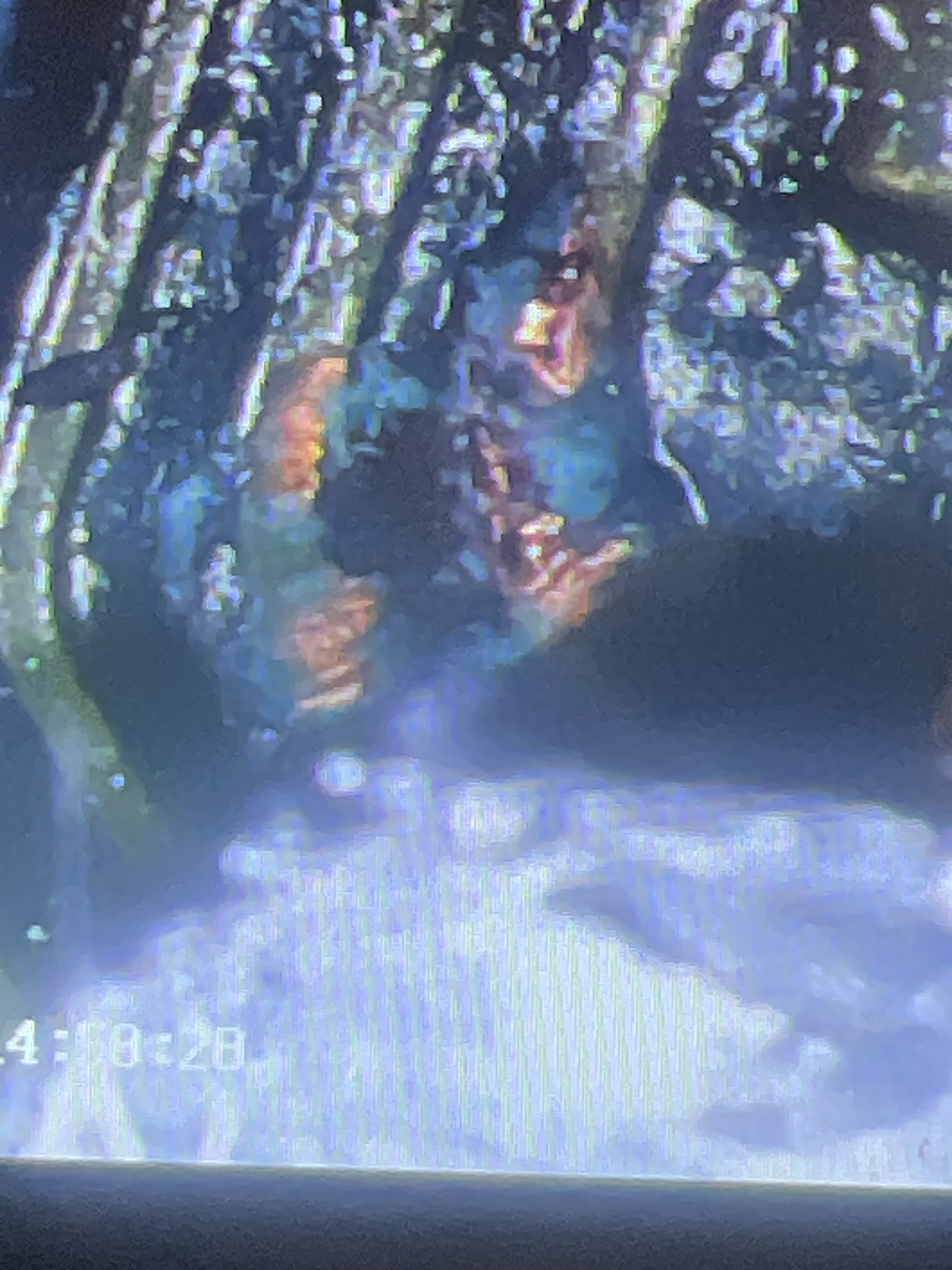

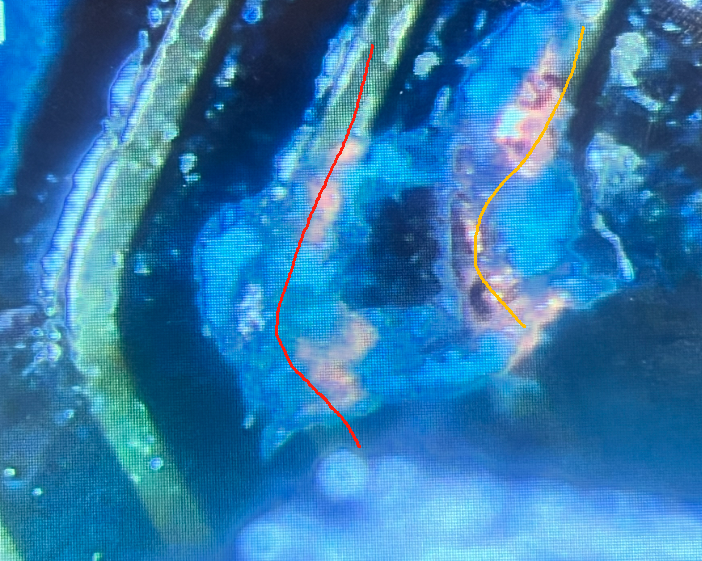

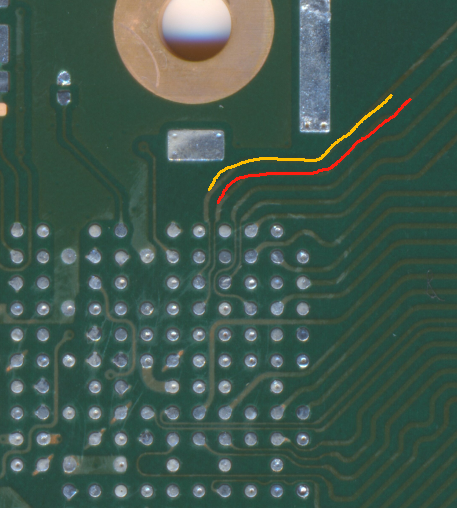

Yellow line is broken for sure, red line not 100% sure but worth to fix it since you need to fix yellow one.



[regayoV]

Yellow line is broken for sure, red line not 100% sure but worth to fix it since you need to fix yellow one.

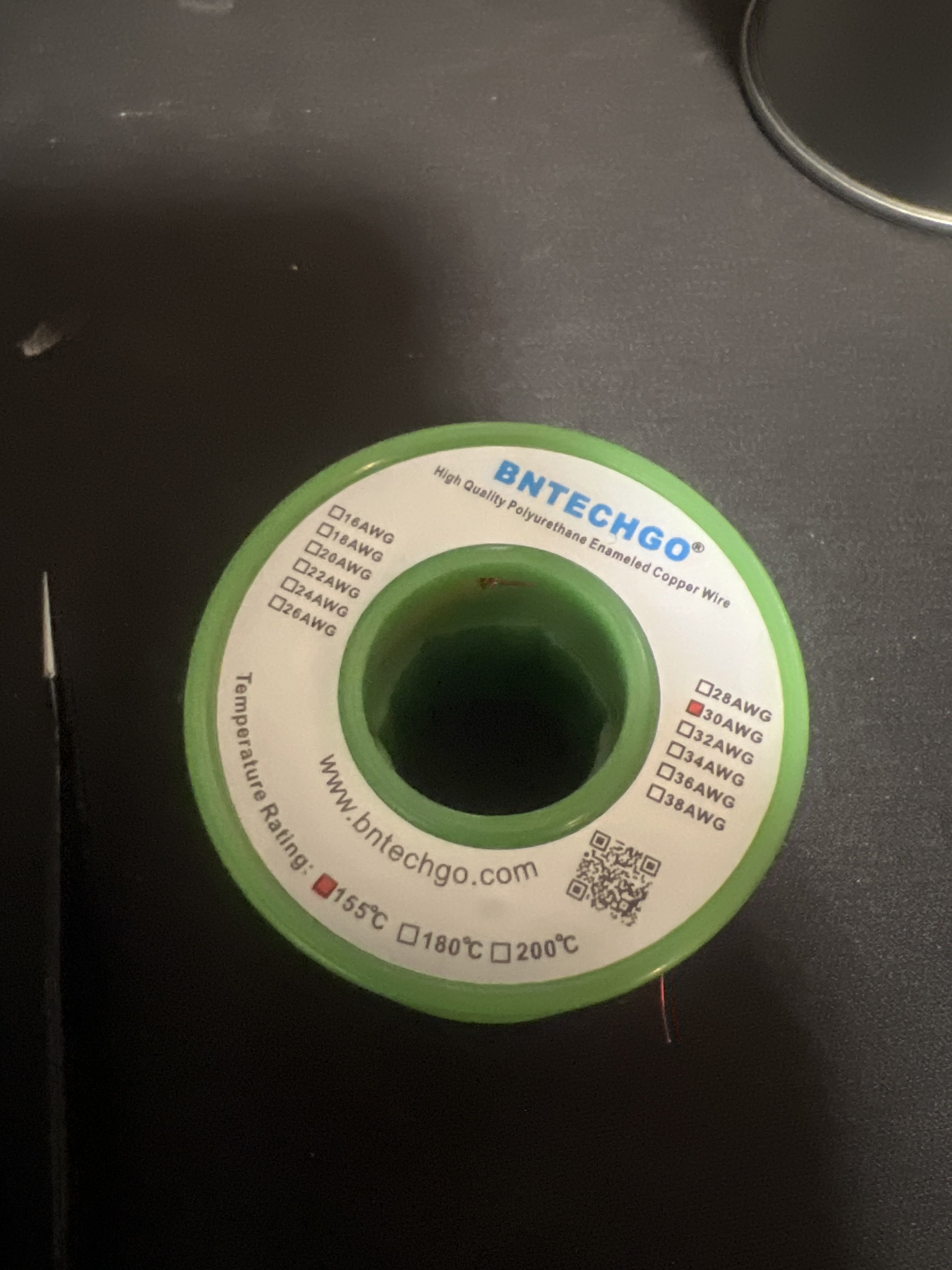

How should I go about fixing it, would bridging with solder do or should I use wire? I have some 30awg enamel wire



[jkyoho]

How should I go about fixing it, would bridging with solder do or should I use wire? I have some 30awg enamel wire

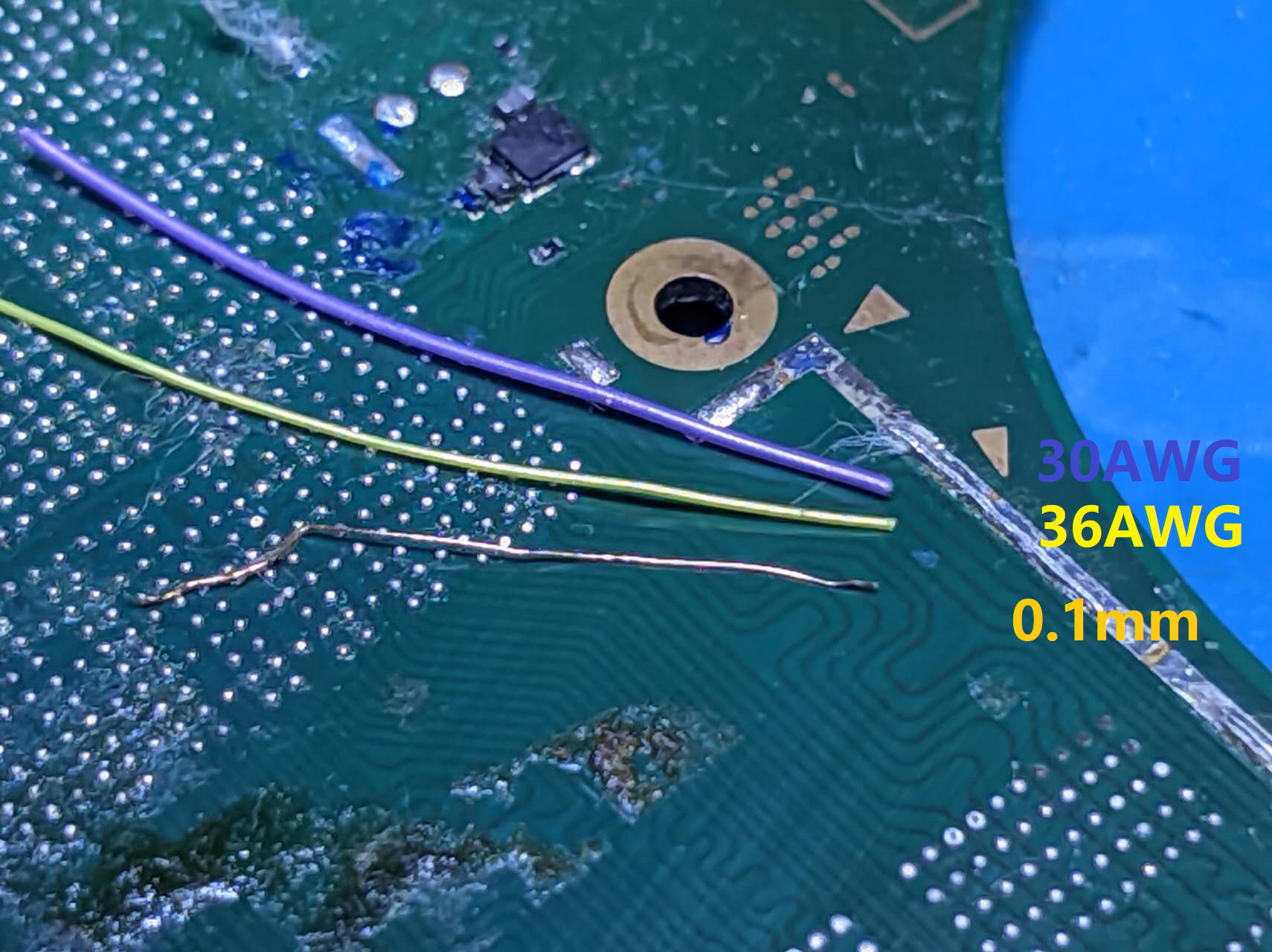

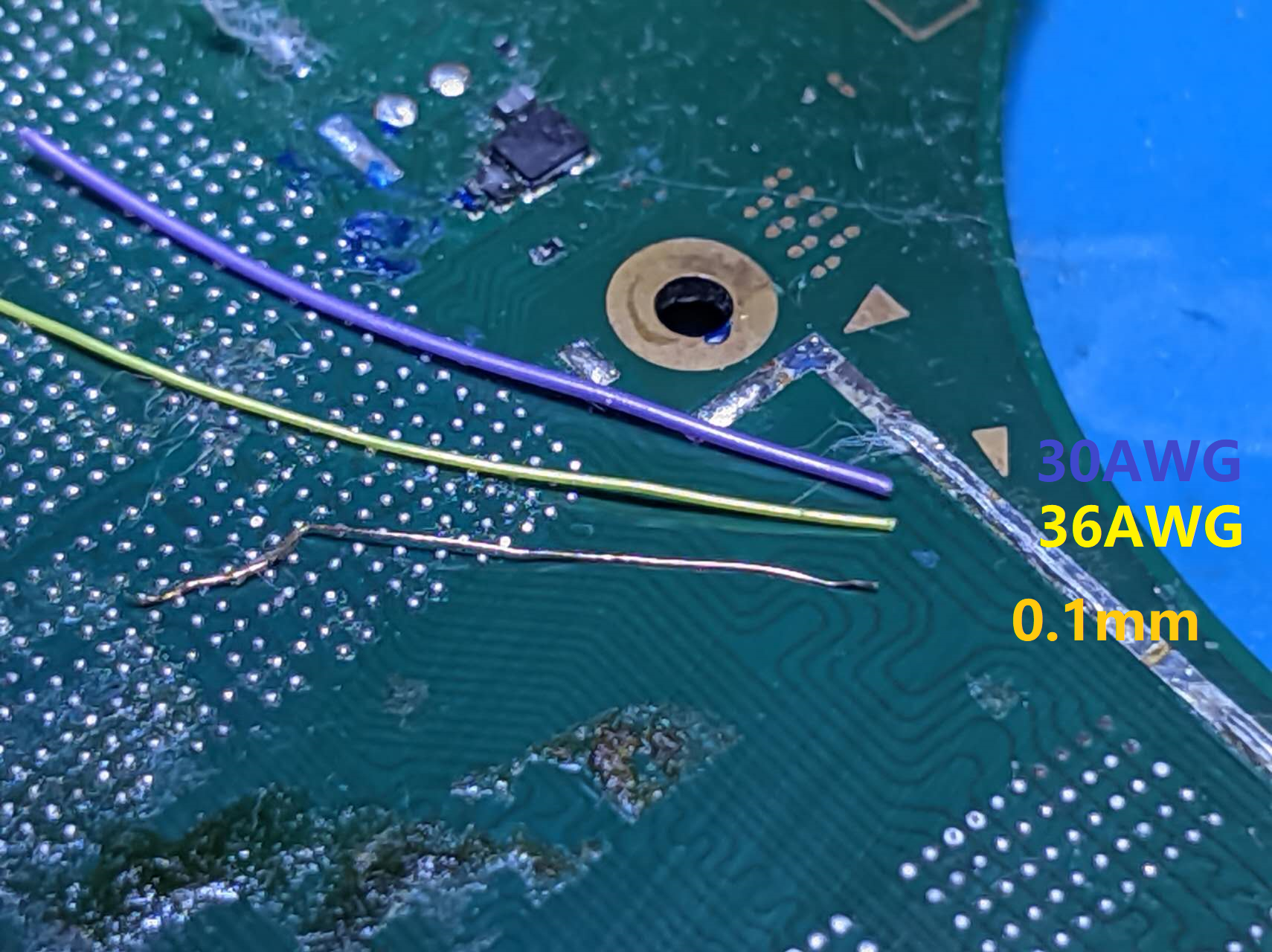

NO, 30awg is way to thick. You need some line 0.02~0.1mm jumper wire



[regayoV]

NO, 30awg is way to thick. You need some line 0.02~0.1mm jumper wire
View attachment 474444

Alright I bought this https://a.co/d/ehHQDye
Should this work? Arrives in 2 days



[jkyoho]

Alright I bought this https://a.co/d/ehHQDye
Should this work? Arrives in 2 days

Should work. those are very common jumper wire



[regayoV]

Should work. those are very common jumper wire

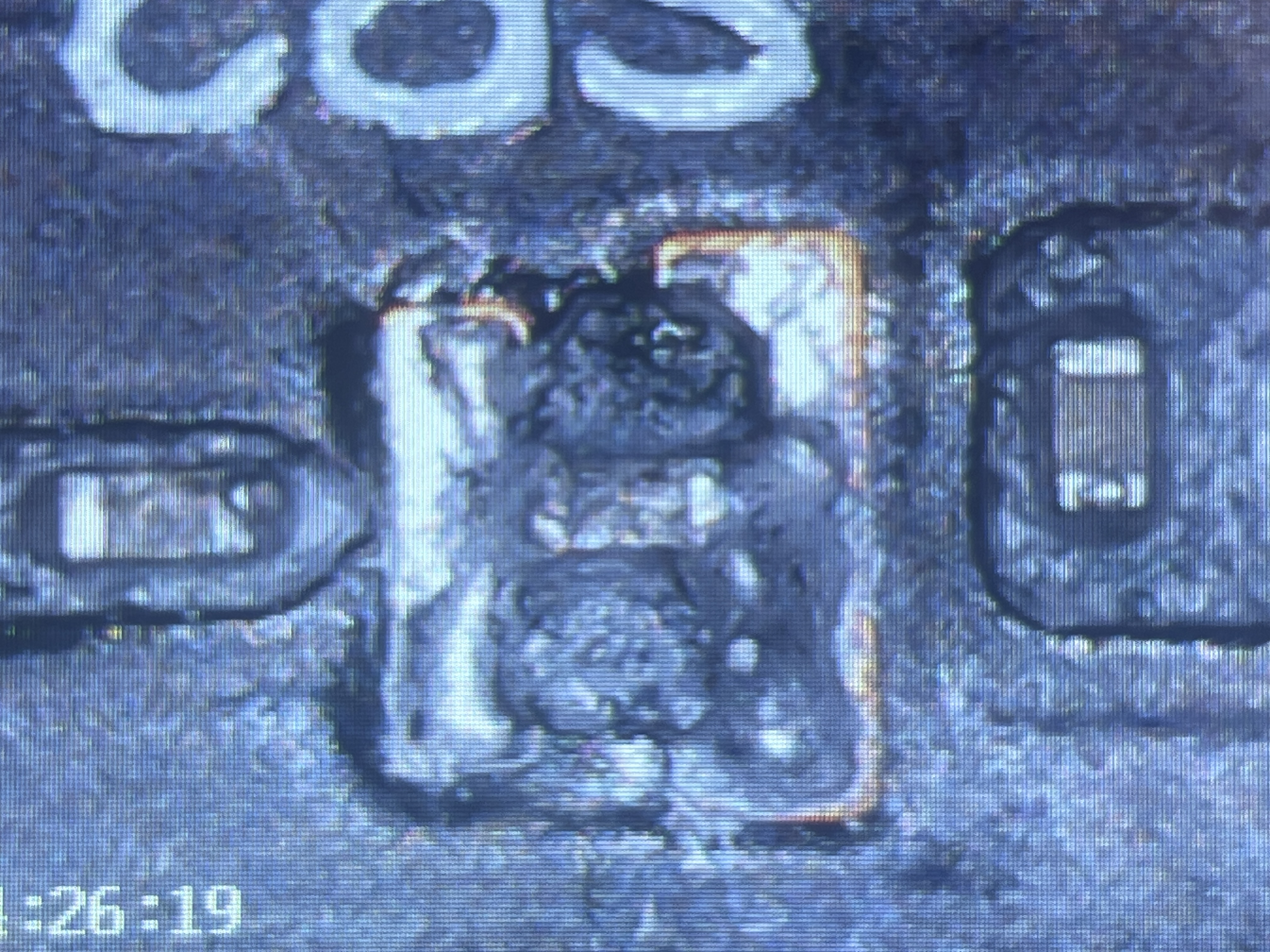

Cleaned up the area prepping for the fix and yup you were right about only one being broken. Jumper wire arriving earlier than expected, Gets here tomorrow. Should I also get some uv solder mask?



[jkyoho]

sure, it is quite close to the metal shield edge. Solder mask gives you protection and isolation.



[rull_bull]

Hold on a minute!

leave that to a pro, looking at your soldering i would not recommend you to try that with your lack of skills.

Your switch seems still possible to rescue by someone who knows how to micro solder.
You clearly should not try this repair by yourself, I would say that you will most likely end up with a brick that is non salvageable even for a pro.



[regayoV]

Hold on a minute!

leave that to a pro, looking at your soldering i would not recommend you to try that with your lack of skills.

Your switch seems still possible to rescue by someone who knows how to micro solder.
You clearly should not try this repair by yourself, I would say that you will most likely end up with a brick that is non salvageable even for a pro.

Didn’t see this till after lol, I fixed it successfully but definitely see how your advice would be smarter. I want to learn soldering and came into this knowing I’d probably break it. Happy I didn’t!

Post automatically merged: Dec 7, 2024

sure, it is quite close to the metal shield edge. Solder mask gives you protection and isolation.

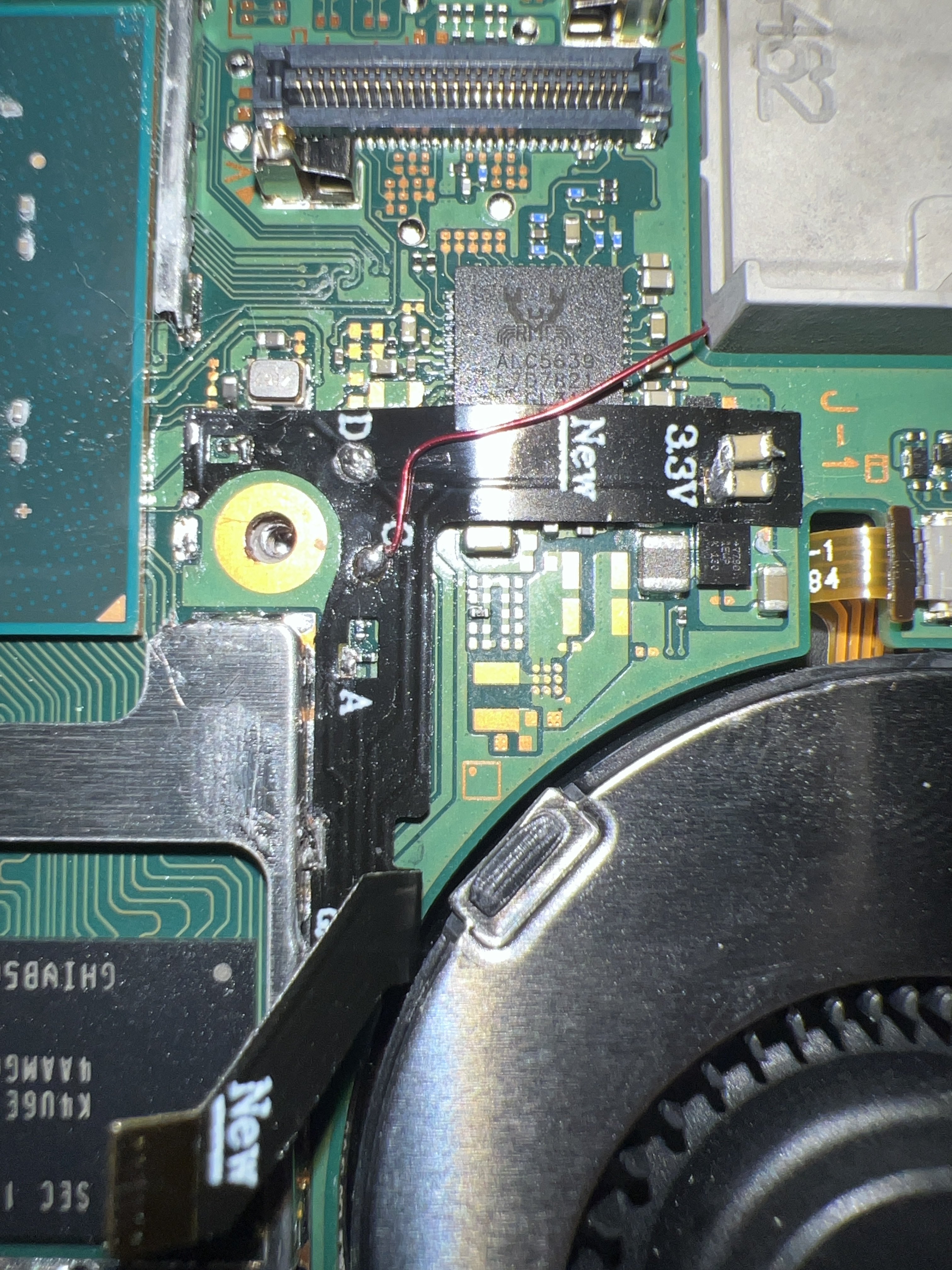

Messy? A bit. But it works now. And I’m glad I learned more soldering along the way.



[jkyoho]

Didn’t see this till after lol, I fixed it successfully but definitely see how your advice would be smarter. I want to learn soldering and came into this knowing I’d probably break it. Happy I didn’t!

Post automatically merged: Dec 7, 2024

Messy? A bit. But it works now. And I’m glad I learned more soldering along the way.

the right end need some more touch up, it seems cold joint.
