N3DSXL Not Charging with new port

Discussion in '3DS - Console, Accessories and Hardware' started by DeadlySin9, Aug 21, 2015.

  1. DeadlySin9
    OP

    DeadlySin9 Member

    Newcomer
    14
    1
    Aug 21, 2015
    United States
    I ordered a N3DS XL of eBay so I could get it cheap, knowing it had a charging issue. I figured I could just use my old 3DS charging cradle to charge it through the contacts, but that didn't work. I checked the pins and motherboard connections before finally putting a brand new port in there, but it still won't charge. I know the battery is good because I charged it in the old 3DS and it retained a full charge, and I was able to transfer things to the new 3ds and play plenty of games. Anyone have any idea why it wouldn't be charging at this point?

  2. Razor83

    Razor83 GBAtemp Regular

    Member
    284
    75
    Dec 23, 2009
    Likely one of the SMD fuses has blown, or the EM filter has failed. Especially likely if the system has been wet at all (Check the water damage stickers)

  3. DeadlySin9
    OP

    DeadlySin9 Member

    Newcomer
    14
    1
    Aug 21, 2015
    United States
    Water damage stickers appear to be normal. I'll have to test the fuses and filter. Would you happen to know which fuses are for the battery, or do i just need to get testing?

  4. Razor83

    Razor83 GBAtemp Regular

    Member
    284
    75
    Dec 23, 2009
    Well I have not worked on the N3DS XL specifically, but assuming that the layout is the same as the old 3DS models try checking the components in the attached picture. You should have continuity between the A-A, B-B, C-C points.


    Attached Files:

  5. DeadlySin9
    OP

    DeadlySin9 Member

    Newcomer
    14
    1
    Aug 21, 2015
    United States
    No continuity between the B points, the others were fine. Considering the connections look solid, seems the thing has failed.

  6. Razor83

    Razor83 GBAtemp Regular

    Member
    284
    75
    Dec 23, 2009

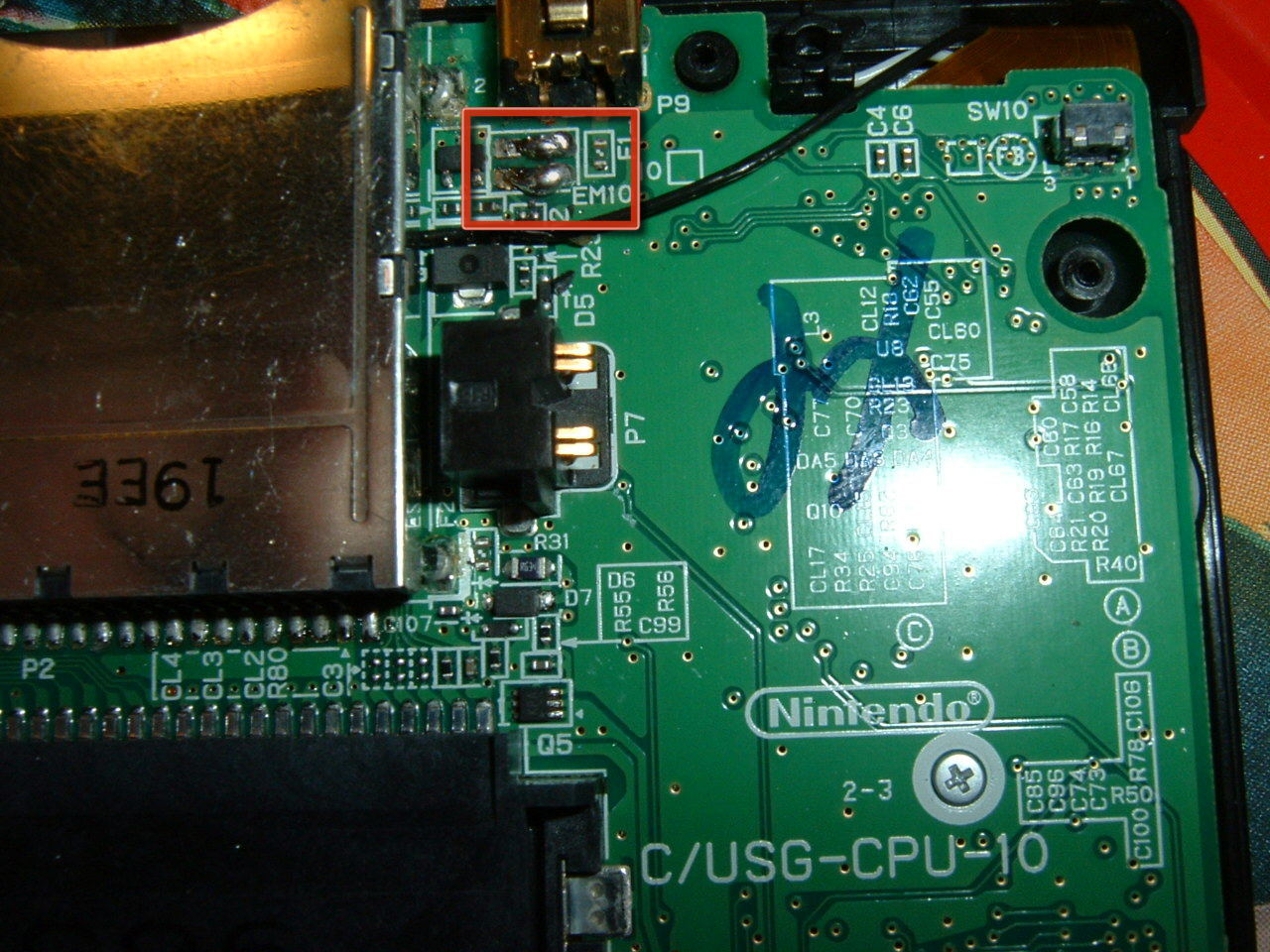

    Well the EM filter has likely failed, but to confirm that its the only failed component you could temporarily solder a small wire between the two B points and then see if it charges with a genuine Nintendo charger. I know some people have bypassed the EM filter entirely:-
    https://www.ifixit.com/Guide/Repairing+Nintendo+DS+-+Not+Charging+Repair+Guide/6884#s29202
    https://d3nevzfk7ii3be.cloudfront.net/igi/buJlx4BXWYPwp2ue
    But I dont personally recommend that, IMO its always best to replace it.

    DeadlySin9 likes this.
  7. DeadlySin9
    OP

    DeadlySin9 Member

    Newcomer
    14
    1
    Aug 21, 2015
    United States
    Plugged in a charger and carefully made contact with a wire by hand and the charge light came on. Ordering a replacement now. Thanks for the help!

  8. Razor83

    Razor83 GBAtemp Regular

    Member
    284
    75
    Dec 23, 2009
    No problem, glad I could help :yaynds:

  9. rip-it-up

    rip-it-up GBAtemp Regular

    Member
    246
    21
    Oct 19, 2009
    manchester
    I had the same problem with a n3ds xl, I dint buy a new part just resoldered the joint
