1. AlanJohn

    AlanJohn くたばれ
    Moderator

    Joined:
    Jan 6, 2011
    Messages:
    3,726
    Country:
    Ukraine
    I had the same issue with my DSi. Even after I had the fuse repaired.

    I get it all the time after reassembling my DSi, usually it's because of a bad connection on the power cable (those wires are very fragile). Try to clean it with some isopropyl alcohol (or any high % alcohol) before trying to do any soldering work.

    Since it worked fine before disassembly, I'm positive it's a connection issue.

    P.S: Try the paper trick with the battery.

    Last edited by AlanJohn, Jun 25, 2020
    MyDePain likes this.
  2. MyDePain

    MyDePain GBAtemp Regular
    Member

    Joined:
    Nov 23, 2016
    Messages:
    115
    Country:
    France
    I'll try that for my case (without much hope to be honest, but it's worth trying). Thanks for the advice. I hope it'll fix yours OP.
    (Again, feel free to let me know if I made any mistake. It helps me a lot :))

  3. Razor83

    Razor83 GBAtemp Fan
    Member

    Joined:
    Dec 23, 2009
    Messages:
    370
    Country:
    I could be mistaken but it looks like you have trapped/kinked the main power cables (red and black wires) The wires are meant to fit inside a small plastic groove, otherwise they get trapped and damaged by the rear case when reassembling. If those wires are damaged at all then the light will blink like you have experienced.

    The fuses are probably ok, and you can test them with a multimeter.

    Also, it looks like you might be using an electric screwdriver to remove the screws? If thats the case I strongly recommend only screwing/unscrewing by hand. I only say this as I noticed small squiggly scratches on the PCB near all the screws on the power board.

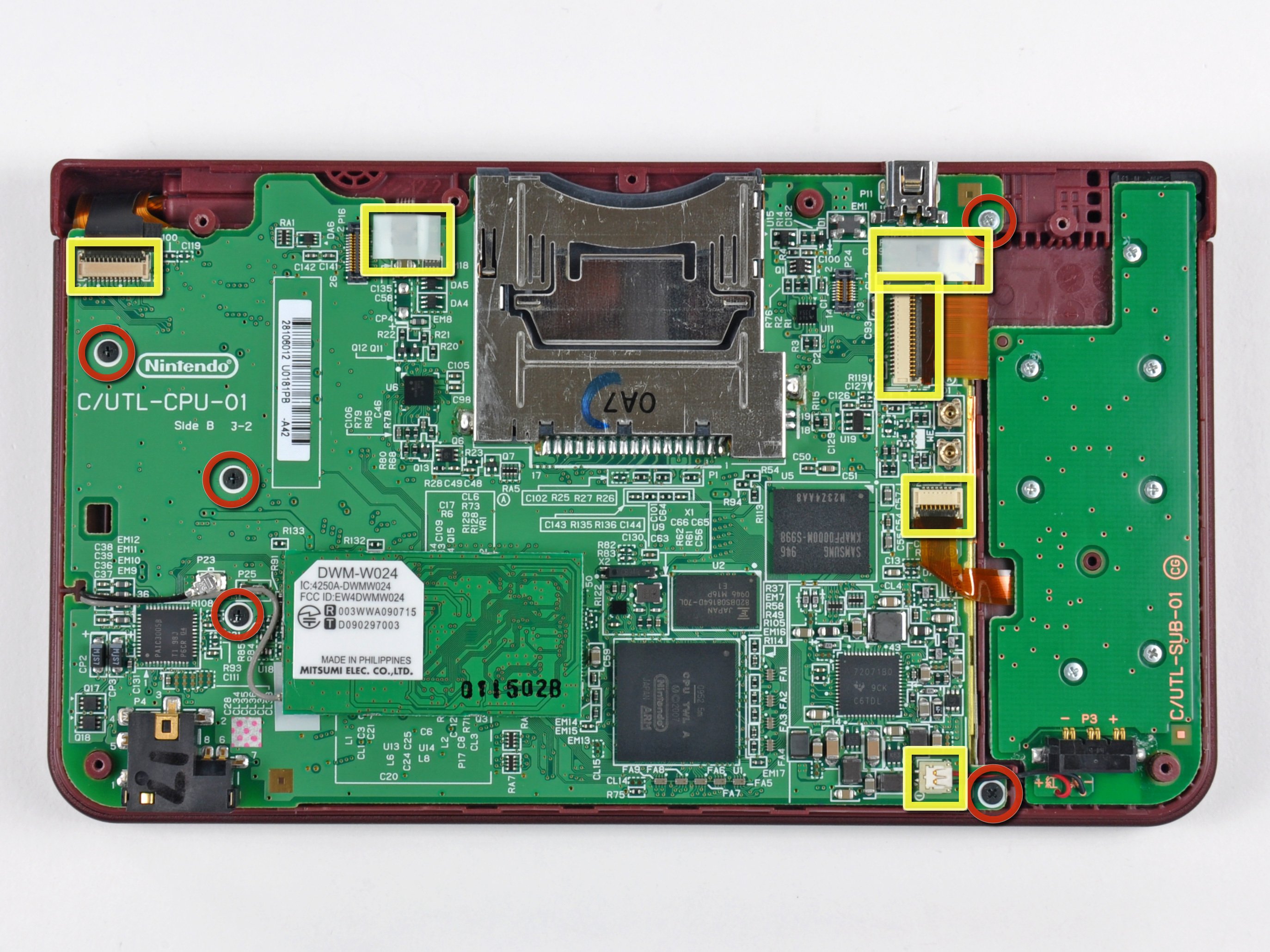

    <EDIT> Also not sure what is happening with your WiFi antenna wires? Have you just placed them loose temporarily for the photo? The antenna wires have specific grooves they are designed to fit inside:-
    https://d3nevzfk7ii3be.cloudfront.net/igi/AGI3vUrxZWSGG1gU.full
    https://d3nevzfk7ii3be.cloudfront.net/igi/tyoQPFgig6JdI2jf.full
    If you are trying to close the case with the wires loose like that, then they will be trapped and will apply pressure to the WiFi board etc.

    Last edited by Razor83, Jun 26, 2020
    MyDePain likes this.
  4. JackGR

    OP JackGR Member
    Newcomer

    Joined:
    May 12, 2020
    Messages:
    42
    Country:
    Greece
    Update after a long time ago. I finally fixed it just by replacing the power board from a cheap one on eBay. I kept the old one for fixing it on the future maybe.

    MyDePain and banjo2 like this.
  5. Patoutech

    Patoutech Newbie
    Newcomer

    Joined:
    Mar 21, 2020
    Messages:
    7
    Country:
    France
    Hi all, Is there anyone among you who can give me the values of some components of the DSI xl motherboard. I had an oxidation of some components that I would like to replace. Thanks to you
