my DS Mode is Still bricked!

Discussion in '3DS - Flashcards & Custom Firmwares' started by CodyWGamer, Jan 17, 2019.

?
  1. Yes

    6 vote(s)
    16.2%
  2. No

    28 vote(s)
    75.7%
  3. yes but it's fixed

    3 vote(s)
    8.1%
  4. no i have a different ds mode problem...

    0 vote(s)
    0.0%
  1. Skirlez

    Skirlez GBAtemp Regular

    Member
    3
    Dec 8, 2018
    Israel
    I have never seen a situation like this. Well, it looks like a dead end. Since you have a Flashcart with NTRBoot in, it's better to just buy a New 3DS model Or even buy a 2DS and hack it quickly if you really want to play DS games on a 3DS.

  2. CodyWGamer
    OP

    CodyWGamer GBAtemp Regular

    Member
    2
    Dec 10, 2018
    United States
    it means that my ds mode is cursed once it gets CFW lol also i was trying to do an individual expierment on my ds mode with godmode9 on the TWL bit in the SYSNAND VIRTUAL bit... I didnt use the one where it's in SYSNAND LVL 3 I used the LVL 1 SYSNAND bit... so that's probably the case...

    — Posts automatically merged - Please don't double post! —

    by the way I was doing that BEFORE you recommended Decrypt9WIP

    — Posts automatically merged - Please don't double post! —

    I should really stop messing with stuff without knowing what im doing lol

    at least i learnt a bit more about programming while doing this Individual experiment lol

  3. KleinesSinchen

    KleinesSinchen The backup reminder

    Member
    6
    Mar 28, 2018
    Germany
    @CodyWGamer Now... I'm playing around with your problem at the moment and was able to (partially) reproduce this. Not fully, because I'm a coward. This is best explained with some screenshots. The nice program fuse-3ds is able to mount NAND-backups on a computer. The setup procedure took a while, but eventually I got it running on a virtual machine with Ubuntu Mate 16.04.

    This is how far I got:

    1. Setting up an EmuNAND with GodMode9 on a secondary SD and backing up that EmuNAND to a file.

    → pretty straighforward and standard so far

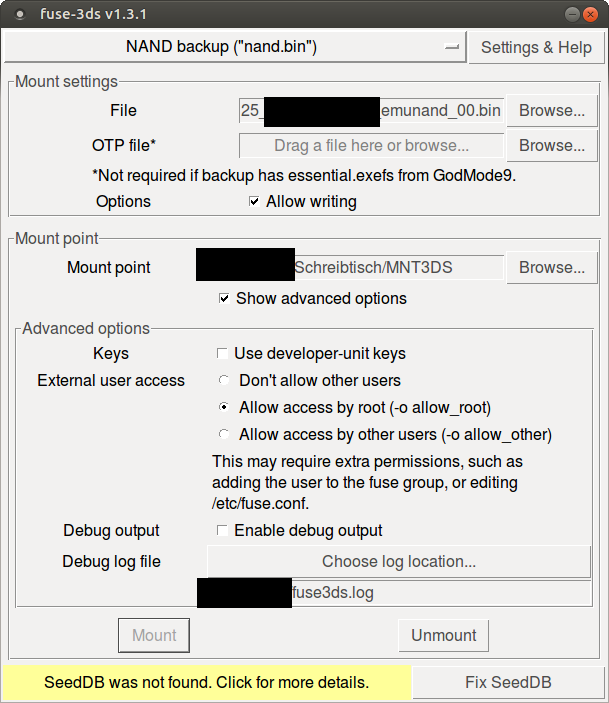

    2. Setting up fuse-3ds like explained on the Github page and mounting the backup of my EmuNAND.

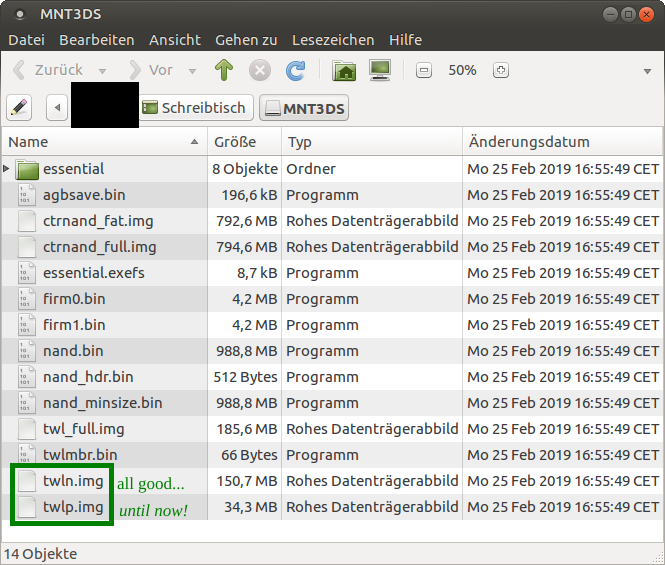

    → not easy, but it worked:​
    01_mount. 02 Mounted.

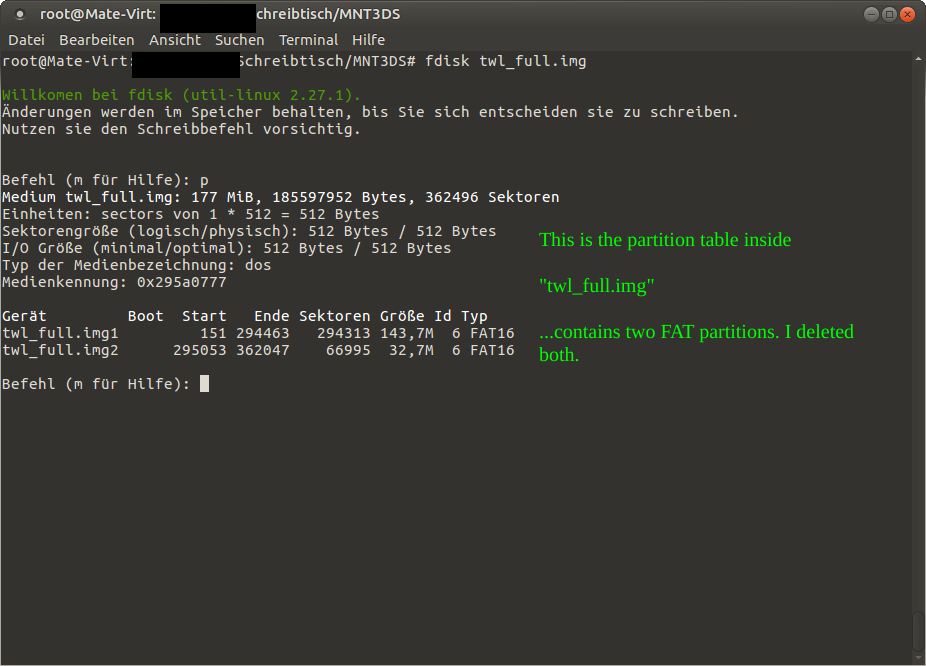

    3. Deleting the partitions inside twl_full.img with fdisk, unmounting and mounting again:

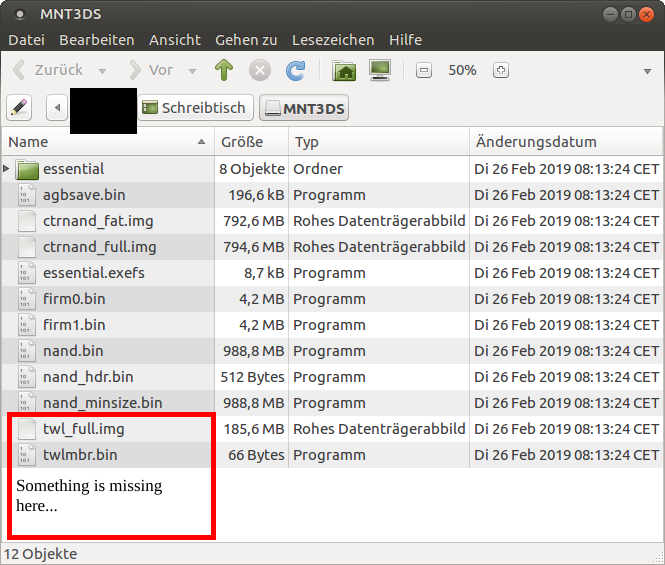

    → as expected TWLN and TWLP are gone:​
    03_fdisk_twl_full.img. 04_partition_table_in_twl_full_nuked.

    4. Restoring the damaged NAND-backup to EmuNAND:
    → TWLN and TWLP are gone on EmuNAND as well:​
    05 EmuNAND_missing_TWL_partitions.
    (Sorry for the German language setting in the VM. Forgot to switch to English.)

    As expected my DS-mode was not broken because of torturing EmuNAND. There was something about the reboot into TWL_Firm and AGB_Firm not working with EmuNAND… which means my 3DS started DS games normally (I think it just continued to use the intact "SYSNAND TWLN".

    Now again, I'm a coward and did not dare to restore the damaged image to SysNAND.


    The next step (I need a break) is trying to repair the damaged image by injecting something from my O2DS (pretending the good version of twl_full.img from the O3DSXL is gone.)

    Last edited by KleinesSinchen, Feb 26, 2019
  4. CodyWGamer
    OP

    CodyWGamer GBAtemp Regular

    Member
    2
    Dec 10, 2018
    United States
    ok good to know that you did this on your EmuNAND because we dont want you to ds brick your sysnand because of some random idiot on the internet lol regardless i was using the HEX EDITOR on GodMode9 to edit the TWLN.BIN (which is a sysnand LVL 1 edit) i was just tinkering around and somehow that's how my TWL files in my sysnand went missing... from everything so i cant download ANY ds software anymore... doing so will just have an error same with eshop... i CAN download ds system software but, as always, it just goes to sleep mode... or give me an error

  5. KleinesSinchen

    KleinesSinchen The backup reminder

    Member
    6
    Mar 28, 2018
    Germany
    Does not look good. I'm not skilled enough to dig deeper.
    There seems to be console unique data. Overwriting the damaged twl_full.img with the one from the 2DS results in breaking the complete NAND image altogether. I simply don't know where the MBR sector for the TWL partitions is and how to copy only the MBR sector and the (empty) filesystems.
    https://www.3dbrew.org/wiki/Flash_Filesystem
    https://www.3dbrew.org/wiki/NCSD
    Edit:
    By a little trial an error I found the correct dd commands to restore twln and twlp from the clean donor to the damaged twl_full.img - even in case of damaged partition table (this should not be the case here because it requires lvl3 privileges to destroy twlmbr.bin as TurdPooCharger pointed out below).

    Last edited by KleinesSinchen, Feb 28, 2019
  6. TurdPooCharger

    TurdPooCharger Meh

    Member
    11
    Jan 1, 2018
    United States
    @CodyWGamer, I will need to contact you by PM after this.

    ***

    I found a similiar case at:
    Like @KleinesSinchen, I too was able to recreate the missing TWLN and TWLP drives.
    Warning: Spoilers inside!

    If you hex view clean copies of these, they are:
    • twln.bin - FAT16 partition.
      • shared2/0000 - FAT12 partition within twln.bin.
    • twlp.bin - FAT12 partition.
    • twlmbr.bin is their shared partition table.
    Were you trying to increase the size of the TWLN partition, so you could carry more DSiWare games?

    The partitions are fixable but...
    The TWLN contains private files such as inspect.log and product.log with information regarding your 3DS manufacturing and hardware specs. I'm not sure if they're required to make the DSi mode work, as they list stuff like MAC Address, Serial Number, Region, initial firmware, assembly date, and various component calibration & QC inspection tests. If they're lost, the original exact copies can't be recreated.

    Those files might be retrievable if the TWLN partition is salvageable... Were your hex edits limited to the headers, or did you try dropping in larger/smaller sized twln.bin and twlp.bin into the [S:] drive?

    ***

    Soo, my testing had an unpleasant surprise.
    • [S:] SYSNAND VIRTUAL is the most dangerous drive to mess around with. Period.
    The name VIRTUAL is a misnomer because even though you can't press (Y) (X) and delete any of the *.bin "files" found within it, you can very much badly edit or overwrite injecting them with garbage substitutes.

    While trying to retrace the steps you took, I decided to copy and paste a blank 66 bytes twlmbr.bin with all zeros, ignoring the big and bold red warning stating that changes can lead to a brick.

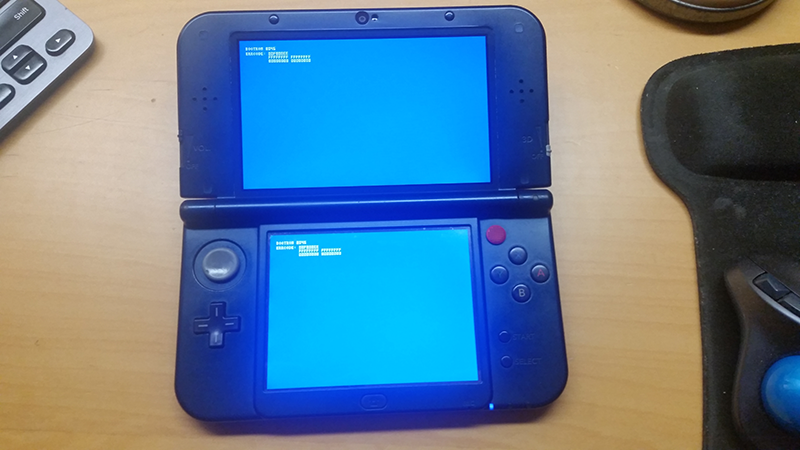

    twlmbr.bin - bootrom brick.
    For anyone not familiar with what this is, what you have here is the infamous bootrom 8046 blue screens of death brick. If this were to happen to you, you can't access Luma chainloader → GodMode9 from either the SD card and CTRNAND, fastboot3ds menu (if you have this over boot9strap), and Recovery Mode.

    Because this was software based and barring physical damage to the 3DS motherboard, this is something CTRTransfer wouldn't be able to fix. if you don't have a SysNAND *.bin image, you would need to use Lazarus3DS borrowing another like-type (old/new) 3DS decrypted NAND image.

    To recover from this, I had to use NTRboot with GodMode9 as boot.firm on the SD card in order to Restore SysNAND (safe).

    ***

    This brick gave me quite a scare like the time my Windows 7 64-bit netbook has its system32.dll infected with a virus, causing it to refuse booting normally. In safe mode, I found this sucker after scanning my hard drive with multiple anti-malware programs. As for why this happened in the first place, I might or might not have visited questionable websites looking for certain software as a broke college student. :ph34r:

    Windows was being a pansy refusing my request to delete system32.dll so much so that I was pissed enough to create a bootable Linux pen drive and deleted it from there. Ah ha, a win over the stupid virus!

    The victory was short lived. At the time, I didn't seriously believe that specific *.dll file was all that important. With it missing, the computer would turn on and then off with not even safe mode working. It took borrowing a clean copy of my roommate's system32.dll from his Win7 64-bit desktop and adding it back through Linux to fix it, albeit with weird boot issues stating missing files at start up (his was Win 64-bit Pro / mine was home edition).

    Let's just say the embarrassment was not missed on him after explaining the dilemma. Lol.

    Last edited by TurdPooCharger, Feb 26, 2019
    emuashui likes this.
  7. CodyWGamer
    OP

    CodyWGamer GBAtemp Regular

    Member
    2
    Dec 10, 2018
    United States
    jesus christ i didnt know i discovered something no one else knew about wow... also i did know already that sysnand virtual shouldnt be tampered with obviously... and thank god you had a flashcart or whatever to fix that brick otherwise... i screwed you up for having my own screw up lol

  8. TurdPooCharger

    TurdPooCharger Meh

    Member
    11
    Jan 1, 2018
    United States
    PM'd sent. We have some business to take care of.

  9. CodyWGamer
    OP

    CodyWGamer GBAtemp Regular

    Member
    2
    Dec 10, 2018
    United States
    ok so after full reading your message... no i wasnt trying to increase my dsiware data (because i really dont need to) I was just tinkering around in the TWLN.bin file with HEX editior in Godmode9 to see if I can independently fix the ds brick...

    — Posts automatically merged - Please don't double post! —

    so what did i ACTUALLY discover a terrible error that no one else did or this just plain stupidity from an average teen that no one was stupid enough to do themselves lol

  10. KleinesSinchen

    KleinesSinchen The backup reminder

    Member
    6
    Mar 28, 2018
    Germany
    @CodyWGamer just wondering… does your AGB_FIRM still work? Maybe I missed this; I can’t remember if you said something about that at some point already.

    Last edited by KleinesSinchen, Mar 15, 2019
  11. CodyWGamer
    OP

    CodyWGamer GBAtemp Regular

    Member
    2
    Dec 10, 2018
    United States
    it actually does yes.

  12. kenzonatra

    kenzonatra Newbie

    Newcomer
    1
    Oct 4, 2017
    Indonesia
    Same problem and can't fix with all tutorial

  13. BaamAlex

    BaamAlex GBAtemp Advanced Fan

    Member
    4
    Jul 23, 2018
    Germany
    Which method did you use to install cfw?

  14. DPyro

    DPyro GBAtemp Regular

    Member
    3
    Oct 17, 2008
    Canada
    Why people don't create backups before messing with their console I will never understand.

  15. BaamAlex

    BaamAlex GBAtemp Advanced Fan

    Member
    4
    Jul 23, 2018
    Germany
    Me too. Maybe is this a case for the Mythbusters

  16. DPyro

    DPyro GBAtemp Regular

    Member
    3
    Oct 17, 2008
    Canada
    sfc /scannow would have fixed your issue.

  17. CodyWGamer
    OP

    CodyWGamer GBAtemp Regular

    Member
    2
    Dec 10, 2018
    United States
    all i can say is welcome to the club...

  18. Skirlez

    Skirlez GBAtemp Regular

    Member
    3
    Dec 8, 2018
    Israel
    Ok, here we go again.
    Your one looks fixable,
    First of all try to open another DS app, maybe DS Download Play is corrupt.

    Go to "System Settings", then "Internet Settings" and then "Nintendo DS Connections"
    If that one works, then just follow the next link.
    and this:
    https://3ds.hacks.guide/troubleshooting#dsi--ds-functionality-is-broken-after-completing-the-guide
    and this:
    https://3ds.hacks.guide/ctrtransfer
    And then look on EVERY SINGLE MESSAGE TurdPooCharger commented on this thread.
    (don't try what you did already twice)

  19. MDashK

    MDashK GBAtemp Regular

    Member
    4
    Jul 22, 2011
    Internetus Exploratis
    Last edited by MDashK, May 7, 2019
    CodyWGamer likes this.
  20. Skirlez

    Skirlez GBAtemp Regular

    Member
    3
    Dec 8, 2018
    Israel
    You said you only ran TWLFix-CFW? Did you not update the system after that?
    What it does is delete the essential TWL Files, System Update sees that you don't have the files and reinstalls them.

    Quantumcat likes this.
