1. mikelbc

    mikelbc Newbie
    Newcomer

    Joined:
    Dec 1, 2020
    Messages:
    5
    Country:
    Spain
    would be a good option to protect the usb against writing? or can it cause problems?

  2. Jayro

    OP Jayro MediCat Dev and Gameboy Modder
    Developer

    Joined:
    Jul 23, 2012
    Messages:
    9,392
    Country:
    United States
    I think there's a Ventoy plugin you can change to make the drive read-only, but I might be wrong.

    mikelbc likes this.
  3. Bobby_65

    Bobby_65 Newbie
    Newcomer

    Joined:
    Apr 12, 2021
    Messages:
    1
    Country:
    Switzerland
    Hi

    First: Thanks for that great tool.
    Second: Some people panic, when they should deactivate their antivirus, even when its temporarily
    My proposition: The Installation can also be made without trouble with antivirus and security.
    Just boot windows in safe mode (press F8 and then F4 in windows-boot. Search "Start your PC in safe mode in Windows" in a search-engine).
    Best regards from Switzerland
    Bobby

  4. BastardFromNowhere

    Newcomer

    Joined:
    Dec 16, 2020
    Messages:
    27
    Country:
    Belgium
    Yes be carreful! In read-only the Medicat VHD can't work...

  5. Gentoonix

    Gentoonix Newbie
    Newcomer

    Joined:
    Apr 12, 2021
    Messages:
    1
    Country:
    United States
    Is there a simple way to create a bootable ISO image of MediCat? I'm using YUMI and I have a ton of tools already loaded on my SSD. If not, no big deal, just curious.

  6. Jayro

    OP Jayro MediCat Dev and Gameboy Modder
    Developer

    Joined:
    Jul 23, 2012
    Messages:
    9,392
    Country:
    United States
    MediCat USB is no longer an ISO image as of v20.

    MediCat USB is not YUMI compatible either. It is based on Ventoy, which adds UEFI support. The v19.10 is the last ISO version, and you can find it on a popular site that hosts torrents, and has a pirate ship for a logo. version 18.10 is also on there. I uploaded the torrents there myself, so I know they're safe.

    BastardFromNowhere likes this.
  7. AAA3A

    AAA3A GBAtemp Regular
    Member

    Joined:
    Feb 4, 2021
    Messages:
    122
    Country:
    France
    After the customization and all the icons added to the sub-menu, there is quite a difference! Take a look at the images below to see the difference.

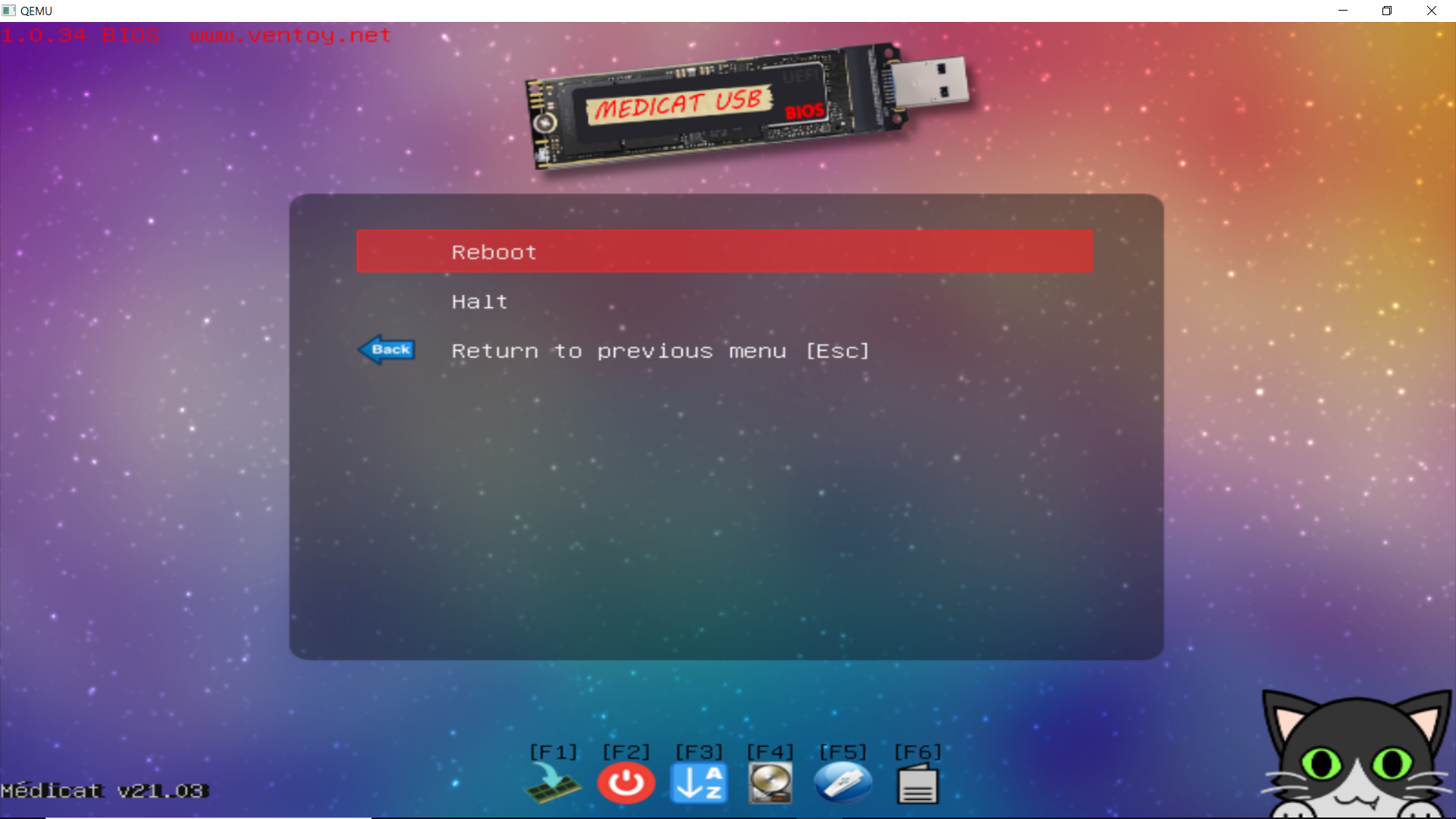

    Avant 001.png
    Submenu F2

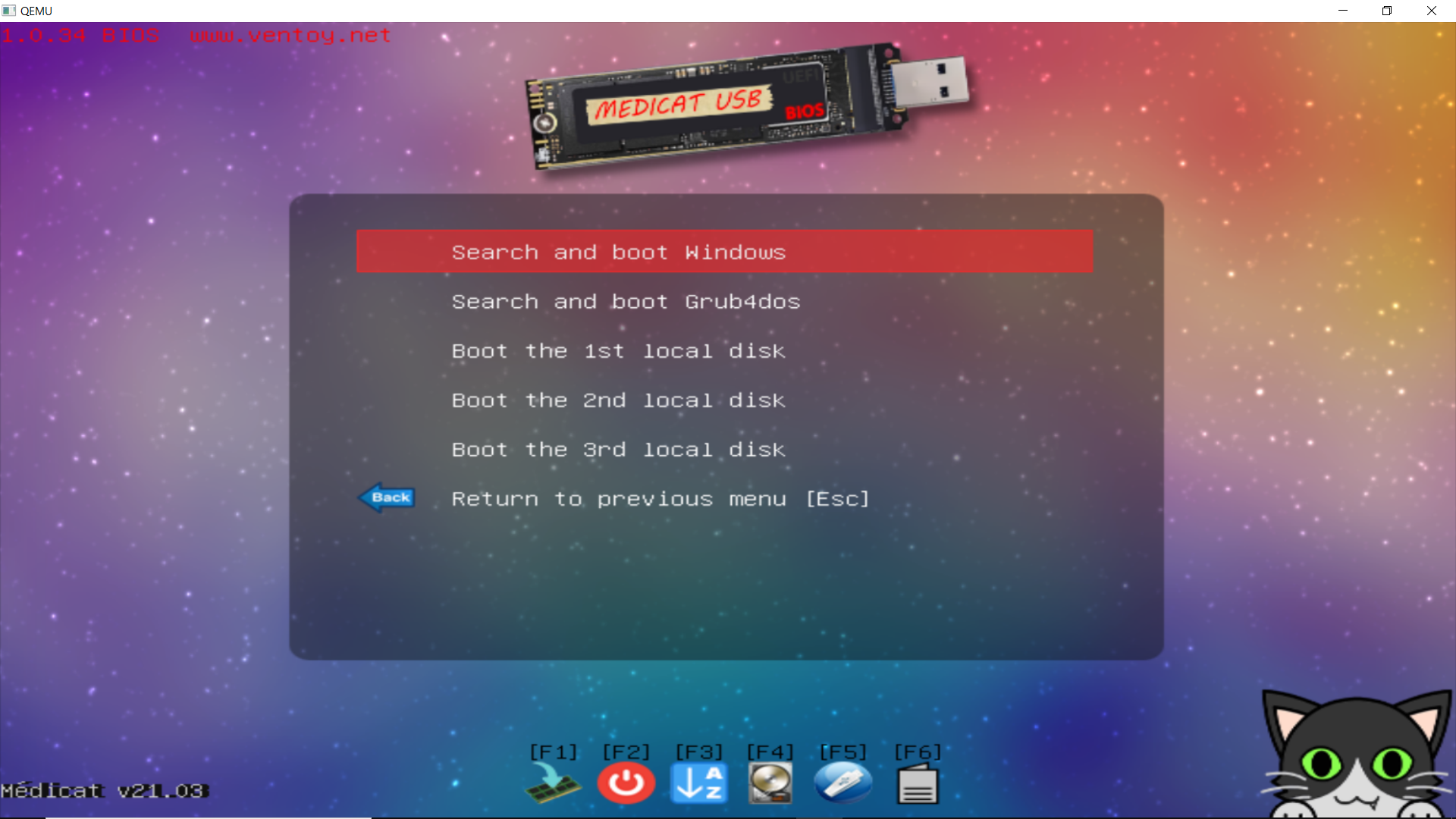

    Avant 002.png
    Submenu F4

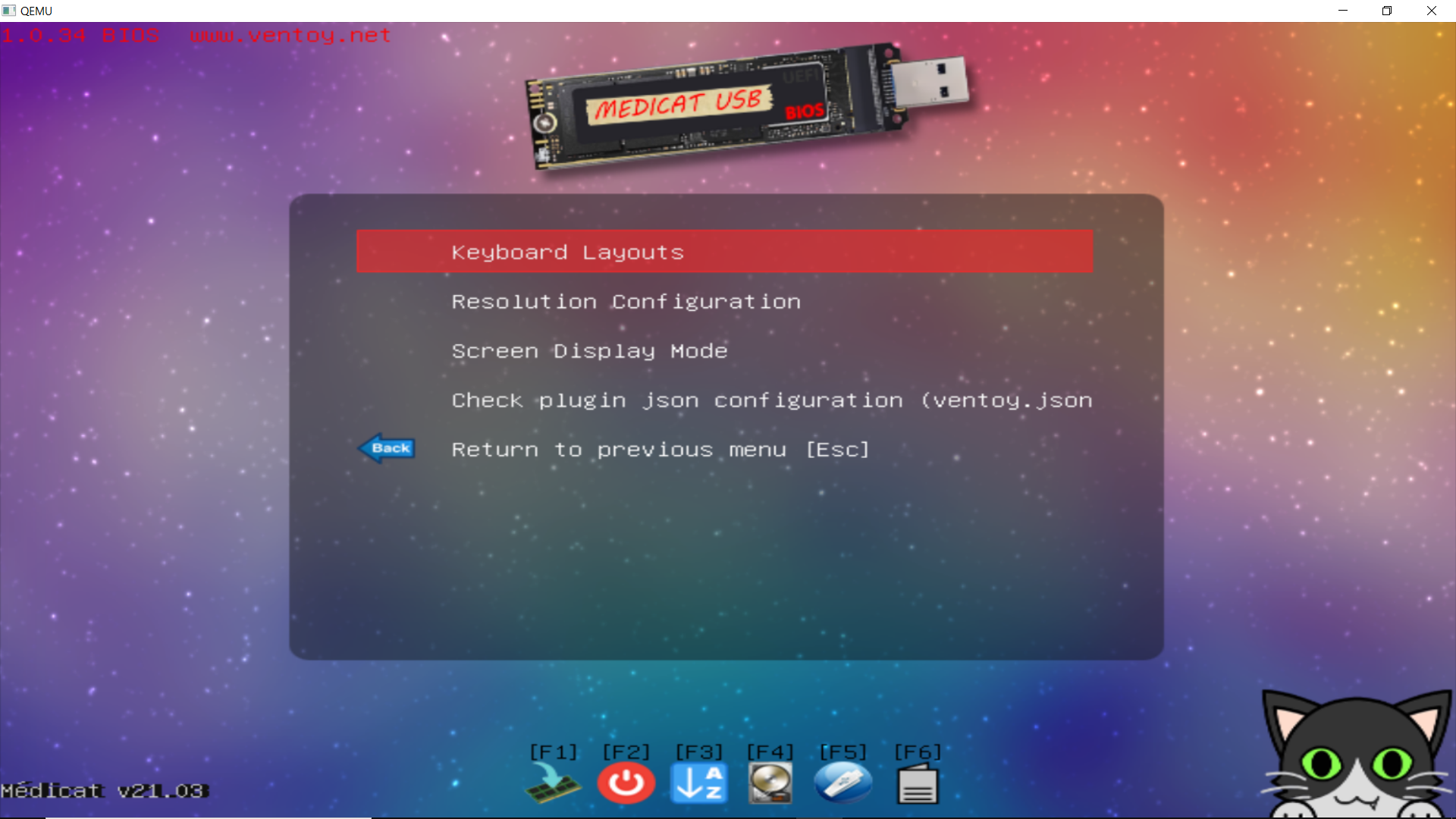

    Avant 003.png
    Submenu F5

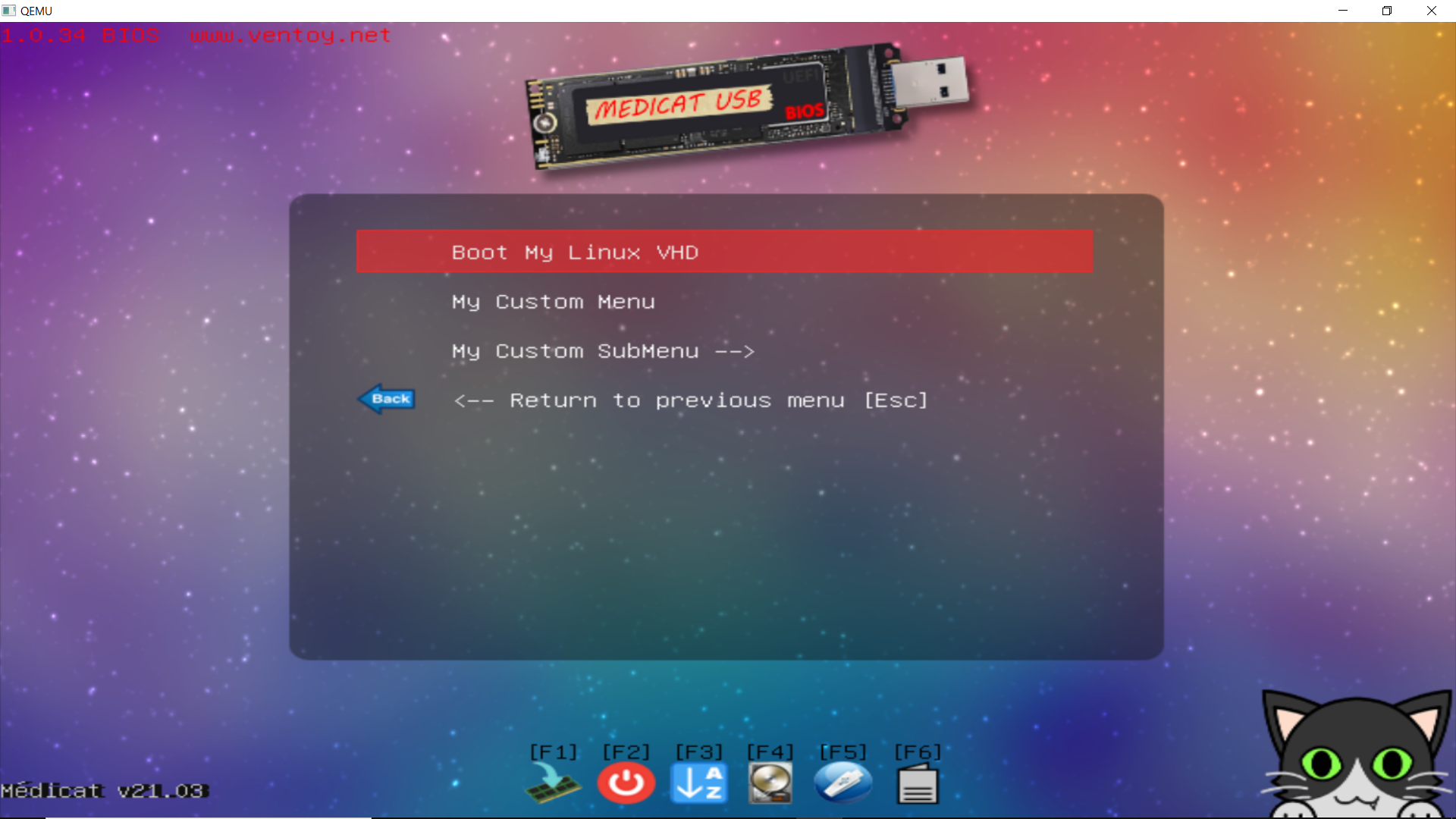

    Avant 004.png
    Submenu F6

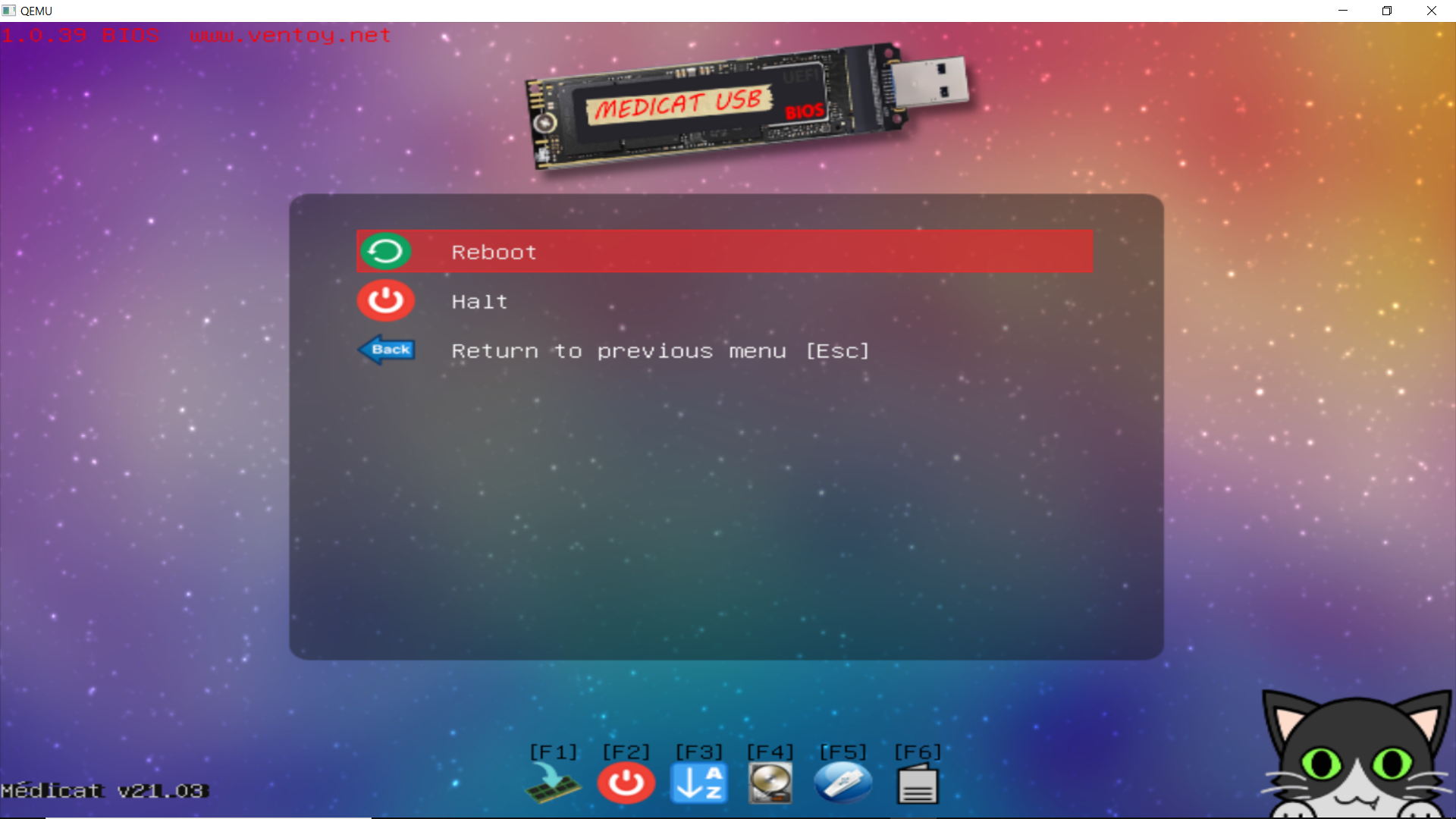

    Submenu F2.png
    Submenu F2

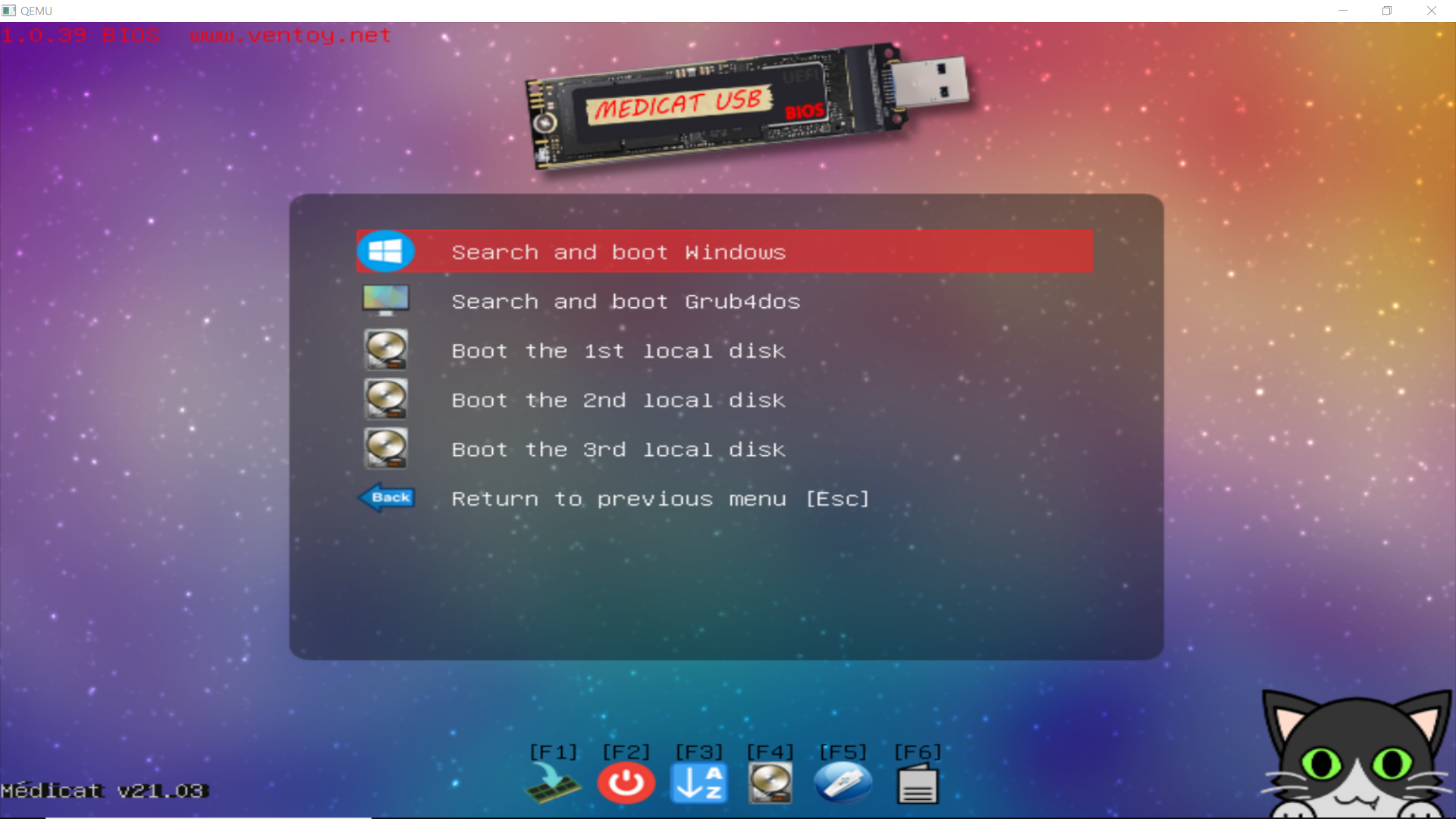

    Submenu F4.png
    Submenu F4

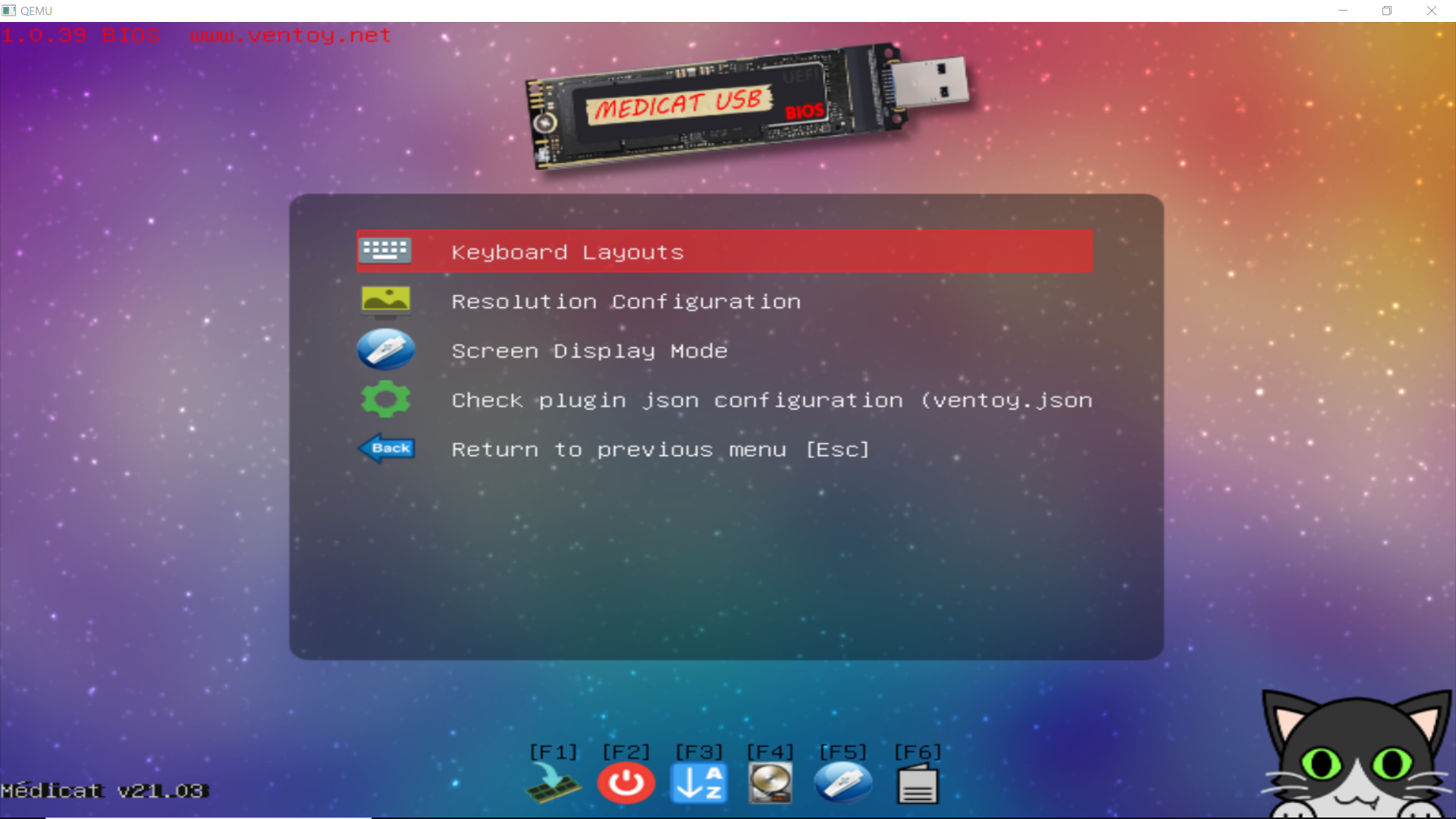

    Submenu F5.png
    Submenu F5

    Submenu F6.png
    Submenu F6

  8. Jayro

    OP Jayro MediCat Dev and Gameboy Modder
    Developer

    Joined:
    Jul 23, 2012
    Messages:
    9,392
    Country:
    United States
    Looks really good my friend. I'm excited to release this in May, alongside the new build of Ventoy.

    nekinhas and wiz2596 like this.
  9. AAA3A

    AAA3A GBAtemp Regular
    Member

    Joined:
    Feb 4, 2021
    Messages:
    122
    Country:
    France
    The last problem is solved: final test of each button and menu with the temporary version of Ventoy. I'll publish next!

  10. Jayro

    OP Jayro MediCat Dev and Gameboy Modder
    Developer

    Joined:
    Jul 23, 2012
    Messages:
    9,392
    Country:
    United States
    You got Mini Windows 10 working under UEFI?

  11. AAA3A

    AAA3A GBAtemp Regular
    Member

    Joined:
    Feb 4, 2021
    Messages:
    122
    Country:
    France
    Yes, the "Boot on ..." buttons work in legacy mode or in uefi mode! If you want, I can save the chancelog (which you will have done for version 21.05) and the tools list (which I complete for each version) in the F6 submenu myself so that you can concentrate on the modifications you know so well for each version of Medicat!

  12. AAA3A

    AAA3A GBAtemp Regular
    Member

    Joined:
    Feb 4, 2021
    Messages:
    122
    Country:
    France
    Finally, here is the F6 sub-menu that I have customised!
    You can look at the pictures to see the result and read the texts given by each option in the Info submenu.
    The "Boot on Mini windows 10" and "Boot on Medicat VHD" buttons work in legacy mode and on UEFI mode.
    Reminder: The "Boot on ..." buttons will only work in about 10 days when your USB sticks have been updated with the next Ventoy update (1.0.41)!

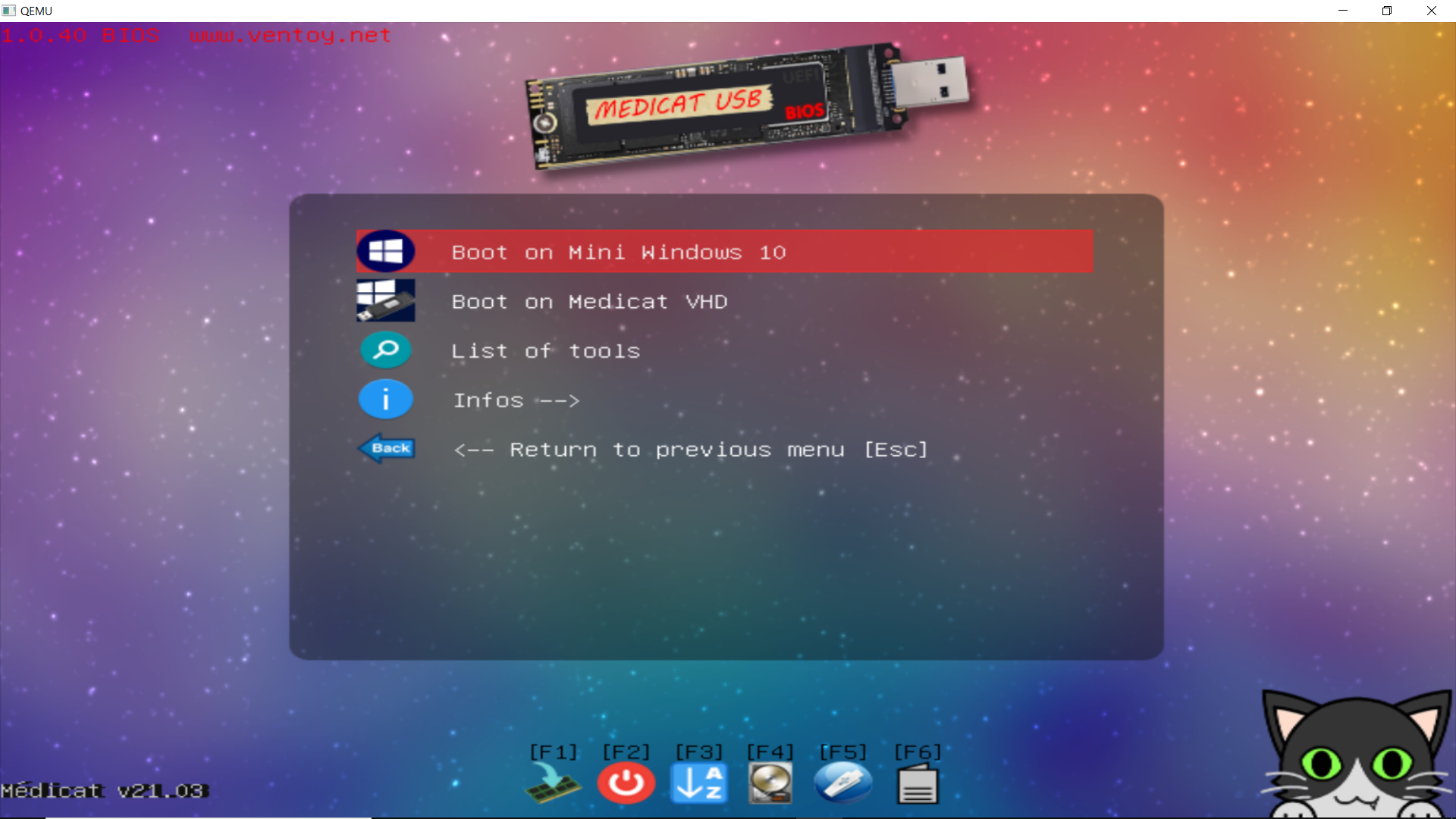

    Submenu F6.png
    Submenu F6

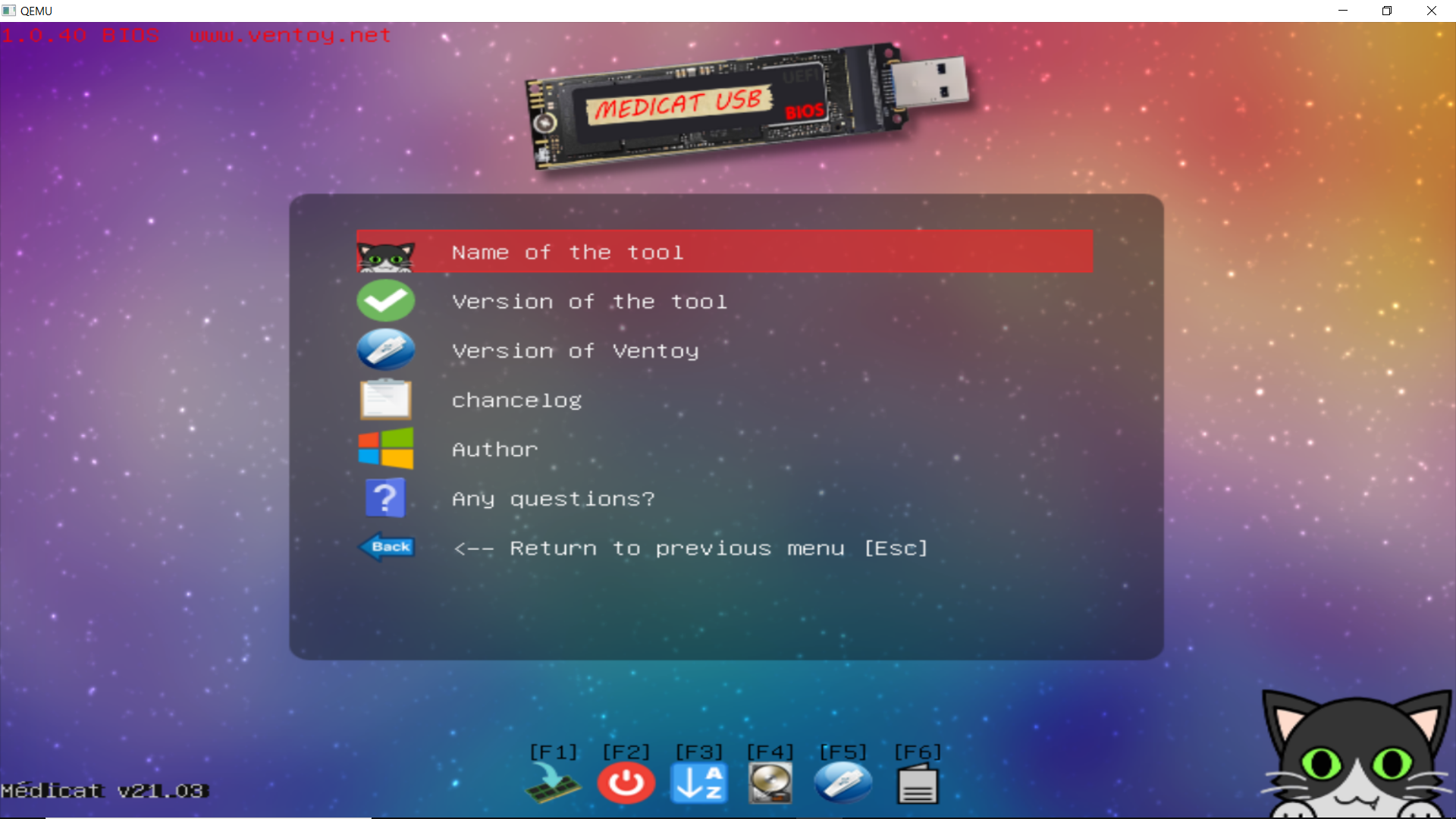

    Submenu Infos.png
    Submenu Infos of Submenu F6


    To install the F6 submenu customization on Medicat, there are three things to do!
    1) Replace the Ventoy_grub.cfg file in the /Ventoy folder with the one attached.
    2) Place the /Submenu_F6 folder in the complete /Ventoy folder.
    3) Place List of softwares.txt dans /PortableApps.
    Information: the .cfg files in the /Submenu_F6 folder allow you to easily and quickly modify the chancelog and the tool list. They are automatically launched by Ventoy_grub.cfg using the default command in grub.cfg (ventoy partition).

    To modify the chancelog or the list of tools, you just have to modify the corresponding .cfg files which are placed in /Ventoy/Submenu_F6!
    Small problem: the following layout must be respected.
    - "============================================================" for line breaks
    - echo ' " just before each line and an apostrophe after
    - no apostrophe in the text to be displayed
    The best way is to replace the lines directly in the text already present in the files.
    + Change tool version in ventoy_grub.cfg.
    If you want, I can do it at least for the 21.5! I'll just need the chancelog of the 21.05.
    And there you go, the changes appear automatically in the Ventoy menu!


    Attached Files:

    • F6.zip
      File size:
      5.7 KB
      Views:
      25
    momosala, gunix and ioann1s like this.
  13. momosala

    momosala Advanced Member
    Newcomer

    Joined:
    Sep 26, 2020
    Messages:
    71
    Country:
    France

    Last edited by momosala, Apr 15, 2021
  14. AAA3A

    AAA3A GBAtemp Regular
    Member

    Joined:
    Feb 4, 2021
    Messages:
    122
    Country:
    France

    Attached Files:

    momosala likes this.
  15. momosala

    momosala Advanced Member
    Newcomer

    Joined:
    Sep 26, 2020
    Messages:
    71
    Country:
    France
    ____________________________________________________________________________________
    OK. Thank you. Goog job !

    — Posts automatically merged - Please don't double post! —

    — Posts automatically merged - Please don't double post! —

    — Posts automatically merged - Please don't double post! —

    Good job !

  16. nekton

    nekton Newbie
    Newcomer

    Joined:
    Apr 15, 2021
    Messages:
    4
    Country:
    United States
    I don't know if this is the right place to post this but I am having a devil of a time getting Medicat VHD to work with Ventoy. After booting the Ventoy USB drive with the latest version of Medicat and Ventoy, I have followed the instructions I have been able to find including those in the torrent download. I get the menu option:

    [UEFI] _Medicat_VHD_&DW.vhd

    When I select that (I have some ISO's on the USB stick), I get the message (in part):

    Windows failed to start. A recent hardware or software change might be the cause.
    ....
    Status 0x000000e
    Info: There is an invalid object in the Boot Configuration Data Store

    Interestingly, Hirens Boot CD ISO is on this same USB stick and it boots fine.

  17. Jayro

    OP Jayro MediCat Dev and Gameboy Modder
    Developer

    Joined:
    Jul 23, 2012
    Messages:
    9,392
    Country:
    United States
    The VHD needs to be booted from UEFI mode (the green menu). If you're trying to boot from BIOS Mode (red menu) it likely won't work. Also, you could try making the ventoy drive in GPT instead of MBR, that may also fix things.

  18. nekton

    nekton Newbie
    Newcomer

    Joined:
    Apr 15, 2021
    Messages:
    4
    Country:
    United States

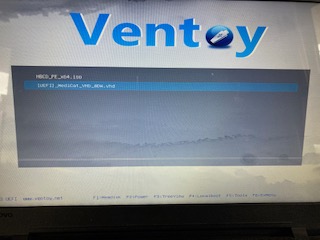

    Thanks for the quick reply @Jayro. I tried GPT instead of MBR; same result. I am not sure what you mean by green menu versus red menu. Here is what the screen looks like that leads to the error with the boot manager. It is all different shades of blue.


    Attached Files:

  19. Jayro

    OP Jayro MediCat Dev and Gameboy Modder
    Developer

    Joined:
    Jul 23, 2012
    Messages:
    9,392
    Country:
    United States
    That's vanilla Ventoy, I thought you were booting this from MediCat USB.

  20. nekton

    nekton Newbie
    Newcomer

    Joined:
    Apr 15, 2021
    Messages:
    4
    Country:
    United States
    I created a Ventoy USB and 7zipped the downloaded 20GB file into per the instructions. I wonder what step I missed to make MediCat USB. Should I look back previous posts for support in how to create the VHD based USB MediCat?
