Luma3ds and the Black Screen of Death

Discussion in '3DS - Flashcards & Custom Firmwares' started by aragorn23, Mar 27, 2017.

  1. aragorn23
    OP

    aragorn23 Member

    Newcomer
    39
    2
    Dec 3, 2008
    United States
    Hi everyone! I posted about a week ago trying to figure out what the problem was with my N3DS XL I bought broken via ebay. As I said previously, the micro sd card on it appears to have Luma3ds on it, but when I press the power button the blue light comes on and then shuts off right away (nothing on the speakers or on the screens).

    After some suggestions, I double-checked all files on the sd card (they were fine). I checked all ribbon cables inside (they all look great). I even replaced the micro sd card reader (it was only $7 on ebay) to ensure that wasn't the problem. I still get nothing.

    So here are two questions

    1) Is it possible for Luma3ds to completely brick a 3ds? Does that happen?

    2) Is there a way to roll-back? Is it possible to install some sort of software on the microsd card that will roll back with a 3ds reboot? I know this sounds silly, but I am grasping at straws here in the hopes something will work. Nothing to lose at this point since it's never worked.

    Any suggestion would be helpful here! :)

  2. GerbilSoft

    GerbilSoft GBAtemp Addict

    Member
    2,116
    2,356
    Mar 8, 2012
    United States
    Are you absolutely sure you have arm9loaderhax.bin on the SD card, and that it doesn't have a .bin.bin extension because Windows hides extensions by default?

  3. dAVID_

    dAVID_ GBAtemp's Official Onion Cricket

    Member
    759
    735
    Oct 23, 2016
    Mexico
    Your basement
    Hmm... do you have arm9loaderhax.bin at the root of your MicroSD?
    Yes? If that's the case, restore a NAND backup via hardmod.
    No NAND backup? Your 3ds is a paper weight.

  4. aragorn23
    OP

    aragorn23 Member

    Newcomer
    39
    2
    Dec 3, 2008
    United States
    Here is what is on it. sd card contents.png

  5. GerbilSoft

    GerbilSoft GBAtemp Addict

    Member
    2,116
    2,356
    Mar 8, 2012
    United States
    Remove the ".bin" from arm9loaderhax.bin and try again. Note that "lumaupdater" isn't showing ".txt"; you have file extensions hidden.

  6. aragorn23
    OP

    aragorn23 Member

    Newcomer
    39
    2
    Dec 3, 2008
    United States
    I bought this on ebay already broken. There was no NAND backup. Would a replacement motherboard fix this?

    — Posts automatically merged - Please don't double post! —

    Removing ".bin" from the arm9loaderhax.bin. Still nothing. I also have file extensions enabled now. Nothing appears to be named oddly.

    — Posts automatically merged - Please don't double post! —

    I also assume a NAND backup file wouldn't be on this micro SD card, correct?

    (Sigh).

    In any case, is there some way to get a fresh copy of all these files and try them out on a different SD card to see if that helps?

  7. Tenshi_Okami

    Tenshi_Okami GBAtemp Maniac

    Member
    1,418
    585
    Nov 3, 2015
    Puerto Rico
    Try updating to the latest Luma3DS .Bin

    And if that does not work, try a different SD card with only the updated arm9loaderhax.bin in it

  8. Yepi69

    Yepi69 Jill-sandwiched

    Member
    2,497
    1,082
    Nov 29, 2010
    Portugal
    Behind you
    My guess is that the person you bought the console from updated his console without updating Luma first, thus the black screen.
    Rename the arm9loaderhax.bin.bak to .bin and see if you can get it to boot, if not then you're gonna need to hardmod it and restore a NAND backup.
    Check the files9 folder and see if you can find a NAND backup there.

  9. aragorn23
    OP

    aragorn23 Member

    Newcomer
    39
    2
    Dec 3, 2008
    United States
    How do I update to the latest luma3ds.bin? I downloaded the 7zip file and don't see such a file in the archive.

  10. Tenshi_Okami

    Tenshi_Okami GBAtemp Maniac

    Member
    1,418
    585
    Nov 3, 2015
    Puerto Rico
    Should be called arm9loaderhax.bin

  11. aragorn23
    OP

    aragorn23 Member

    Newcomer
    39
    2
    Dec 3, 2008
    United States

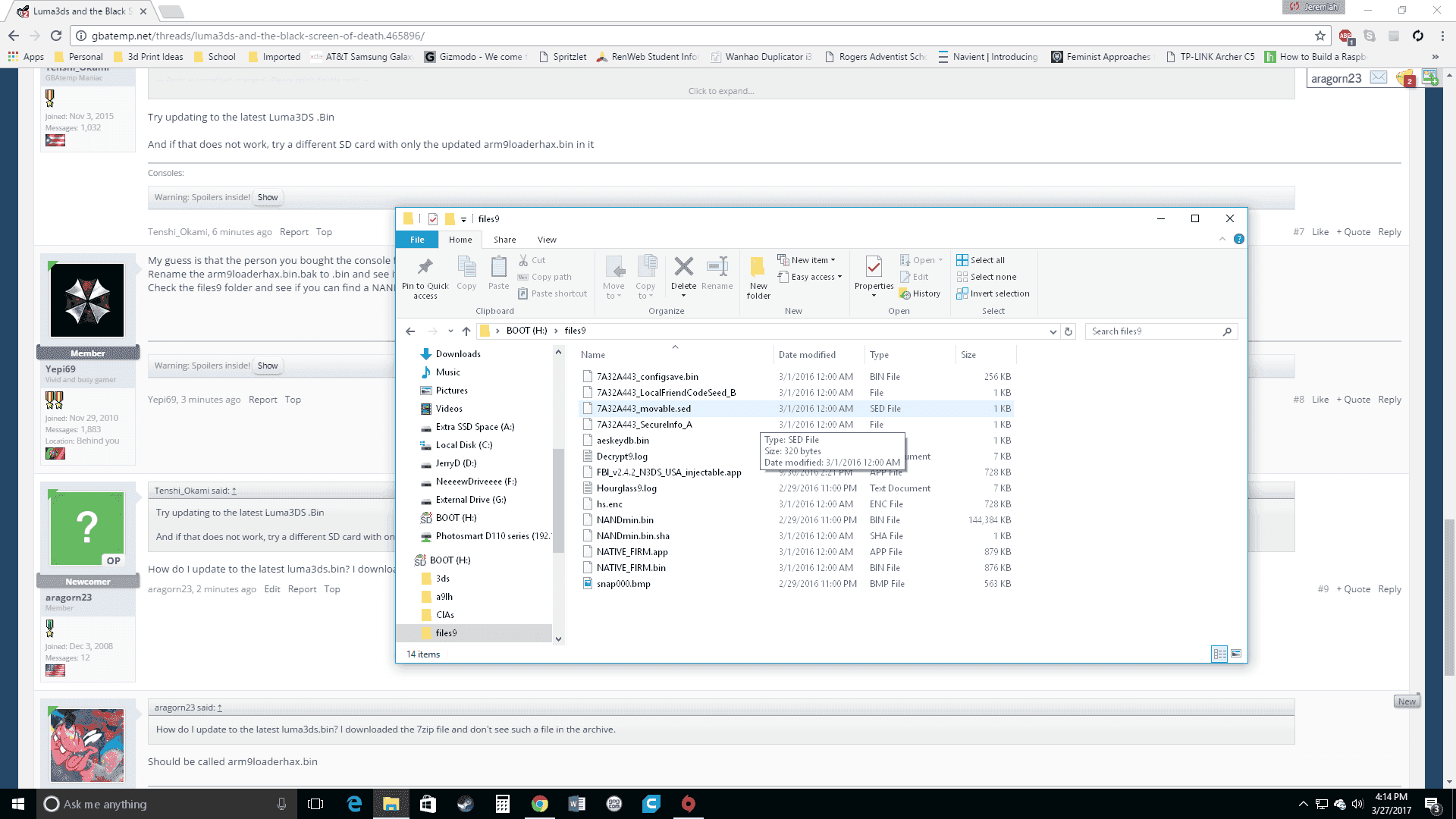

    Okay. Here is what is in the files9 folder. Which one is the backup, and is there a how-to walkthrough of how to restore it?

    By the way, thanks everyone for your help. Even if I don't get this working, I appreciate you all taking time to offer assistance.

  12. Yepi69

    Yepi69 Jill-sandwiched

    Member
    2,497
    1,082
    Nov 29, 2010
    Portugal
    Behind you
    NANDmin.bin
    NANDmin.bin.sha

  13. RHOPKINS13

    RHOPKINS13 Geek

    Member
    332
    156
    Jan 31, 2009
    United States
    It might not be a bad idea to try copying the files to a different microSD card and trying that one instead, just in case.

  14. aragorn23
    OP

    aragorn23 Member

    Newcomer
    39
    2
    Dec 3, 2008
    United States
    Tried that. Didn't work, but thanks for the suggestion!

    I suppose I need to hardmod my n3ds now to throw the old NAND back on the 3ds since nothing happens on the screen, eh?

  15. Tenshi_Okami

    Tenshi_Okami GBAtemp Maniac

    Member
    1,418
    585
    Nov 3, 2015
    Puerto Rico
    It still turns on and off?

  16. aragorn23
    OP

    aragorn23 Member

    Newcomer
    39
    2
    Dec 3, 2008
    United States
    No boot. The blue light comes on briefly and then shuts off. Nothing happens on the screens or on the speakers. Would hardmodding even do anything if it doesn't turn on to begin with?

  17. Tenshi_Okami

    Tenshi_Okami GBAtemp Maniac

    Member
    1,418
    585
    Nov 3, 2015
    Puerto Rico
    I ran out of ideas...

  18. RHOPKINS13

    RHOPKINS13 Geek

    Member
    332
    156
    Jan 31, 2009
    United States
    I had a similar problem with an O3DS, I'm just curious. Does the blue light stay on if you hold down "Home" while turning it on?

  19. aragorn23
    OP

    aragorn23 Member

    Newcomer
    39
    2
    Dec 3, 2008
    United States
    Nope. Nothing changes no matter what I press. It's truely a puzzler.

  20. pixelmasher

    pixelmasher Gaming Gamer

    Member
    1,638
    671
    Dec 12, 2016
    United States
    Near N3DS
    Looks like a fairly recently a9lh'd console by the files in the files9 folder.
    Getting a fresh copy of latest nightly of Luma3DS didn't work?
