Hacking INSTINCT-NX Chip

  • Thread starter HWE
  • Start date
  • Views 167,148
  • Replies 465
  • Likes 2

alecocr20

Active Member
Newcomer
Joined
Jul 21, 2016
Messages
43
Trophies
0
Age
54
XP
291
Country
Canada
Last v6s I received was blinking red and not glitching once in a while. I replaced it with another one and it worked correctly. Where did you get the info that info that v6s are defective? But it makes sense, I have only installed a couple of them so I though it was bad luck


TheStonedModder

Well-Known Member
Member
Joined
Dec 25, 2022
Messages
1,357
Trophies
2
Age
28
XP
2,968
Country
United States
Last v6s I received was blinking red and not glitching once in a while. I replaced it with another one and it worked correctly. Where did you get the info that info that v6s are defective? But it makes sense, I have only installed a couple of them so I though it was bad luck
Oof when did you receive those? I just dropped off a v6 to my local shop who also went on a 3 week vacation…so now I’m kinda worried the v6 I got 2 weeks ago is a dud


alecocr20

Active Member
Newcomer
Joined
Jul 21, 2016
Messages
43
Trophies
0
Age
54
XP
291
Country
Canada
I received them last week. The new order are v6 since I never had issues with those, only need careful with the grounding issues


Tembokbesi

Member
Newcomer
Joined
Aug 14, 2021
Messages
22
Trophies
0
Age
35
XP
111
Country
Indonesia

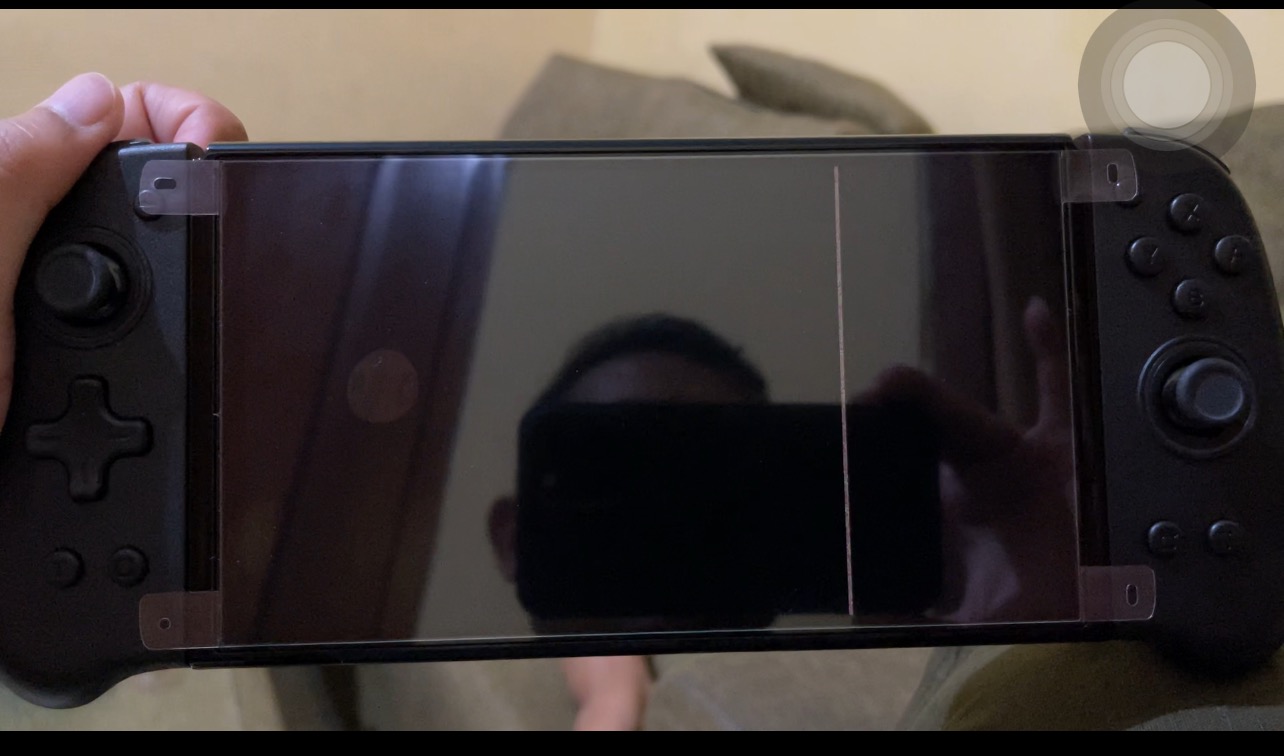

Hi. Im install instinct nx v6 but while booting on hekate it glitch appear on screen. Its normal? What happened? om my other oled with same chip is nothing like that


SudoRoot

Member
Newcomer
Joined
May 7, 2024
Messages
6
Trophies
0
Age
119
XP
60
Country
Germany
Apparently all v6 are only 1.0.

and apparently also, the v6s and I didn't know it, many are arriving defective and with problems and they have been removed from sale. Only v6 works without problems
So that's the reason why V6S are out of stock everywhere. 🤔

Anyway, I got confirmed from my source that there isn't and won't be any firmware update for V6, that means the 1.0.0 is the one and only.
BUT apparently there is 2.0.0 for V6S actually.


BoxNinPlay

Well-Known Member
Member
Joined
Jan 4, 2016
Messages
272
Trophies
0
Age
44
XP
910
Country
United States
Has anyone found documentation on the V6S on how to reset it using the consoles USB-C port? I'm interested in this but have only seen Sthetix's installation and he does not demonstrate that feature in the video (unless he's posted about it since then, haven't looked recently).
In this link: https://www.sthetix.info/updating-and-resetting-the-v6s-modchip/ from sthetix's website there is a video showing how to update and reset the V6S MODCHIP

  • Like
Reactions: w0nd3rb0yfx

lucasidms

New Member
Newbie
Joined
Jul 7, 2024
Messages
2
Trophies
0
Age
30
XP
96
Country
Brazil
Tive o seguinte problema com dois aparelhos: fiz todas as soldas, o chip funcionou, coloquei os arquivos no cartão SD, coloquei os jogos e tudo funcionou perfeitamente. Dois dias depois coloquei os dois para hibernar e algumas horas depois eles deram uma mensagem de erro e não ligaram mais. Ambos estão com uma luz metade verde e metade amarela no chip. Você sabe o que pode ser isso?


BaamAlex

UDE GA NARU ZE!
Member
Joined
Jul 23, 2018
Messages
6,182
Trophies
1
Age
29
Location
Lampukistan
Website
hmpg.net
XP
6,523
Country
Germany
Tive o seguinte problema com dois aparelhos: fiz todas as soldas, o chip funcionou, coloquei os arquivos no cartão SD, coloquei os jogos e tudo funcionou perfeitamente. Dois dias depois coloquei os dois para hibernar e algumas horas depois eles deram uma mensagem de erro e não ligaram mais. Ambos estão com uma luz metade verde e metade amarela no chip. Você sabe o que pode ser isso?
In english pls. This is an englishspeaking forum.


lucasidms

New Member
Newbie
Joined
Jul 7, 2024
Messages
2
Trophies
0
Age
30
XP
96
Country
Brazil
Ohhh sorry

I had the following problem with two devices: I did all the soldering, the chip worked, I put the files on the SD card, I put the games in and everything worked perfectly. Two days later I put them both to sleep and a few hours later they showed an error message and didn't turn back on. Both have a half green and half yellow light on the chip. Do you know what this could be?
In english pls. This is an englishspeaking forum.


linkref

Well-Known Member
Member
Joined
Apr 14, 2019
Messages
161
Trophies
0
Age
44
XP
524
Country
France
Hi all :)
Do we have an explicit error code description ?
I have solid white sometimes, dunno what it is..

Thanks all


randy_w

Well-Known Member
Member
Joined
Feb 27, 2021
Messages
788
Trophies
0
Age
34
XP
1,510
Country
United States
Hi all :)
Do we have an explicit error code description ?
I have solid white sometimes, dunno what it is..

Thanks all
there's no documentation on v6/v6s led error code afaik. based on my experience, solid white could mean anything, from dead emmc to loose wire. You need to connect the chip to your computer and do verbose/diagnostic boots till the problem appears. although i'm 90% sure this random boot failure is caused by bad emmc dat0 connection.

connect the micro usb dongle to the chip, then connect the chip to pc. blue led will light up and a new com port will appear, use any terminal software to connect to the port with default settings (115200, 8n1 iirc). Press h for menu:

> h
# Debug menu keys overview
'v' Show modchip board info
'd' Diagnose single boot
'b' Boot OFW
't' (Re-)train modchip
'c' Show timing configuration table
'r' Reset timing configuration table
'p' Program eMMC with embedded payload
'e' Erase eMMC BOOT0 payload
'x' Jump to bootloader
'h' Show this help text
# ========================
> v
# Board ID: SX Lite, FPGA ID: INSTINCT

press d to do diagnostic boot, repeat till error appears.


linkref

Well-Known Member
Member
Joined
Apr 14, 2019
Messages
161
Trophies
0
Age
44
XP
524
Country
France
there's no documentation on v6/v6s led error code afaik. based on my experience, solid white could mean anything, from dead emmc to loose wire. You need to connect the chip to your computer and do verbose/diagnostic boots till the problem appears. although i'm 90% sure this random boot failure is caused by bad emmc dat0 connection.

connect the micro usb dongle to the chip, then connect the chip to pc. blue led will light up and a new com port will appear, use any terminal software to connect to the port with default settings (115200, 8n1 iirc). Press h for menu:



press d to do diagnostic boot, repeat till error appears.
I need to do that while chip is still connected to the switch? So the chip will be connected to pc and switch at same time?


linkref

Well-Known Member
Member
Joined
Apr 14, 2019
Messages
161
Trophies
0
Age
44
XP
524
Country
France

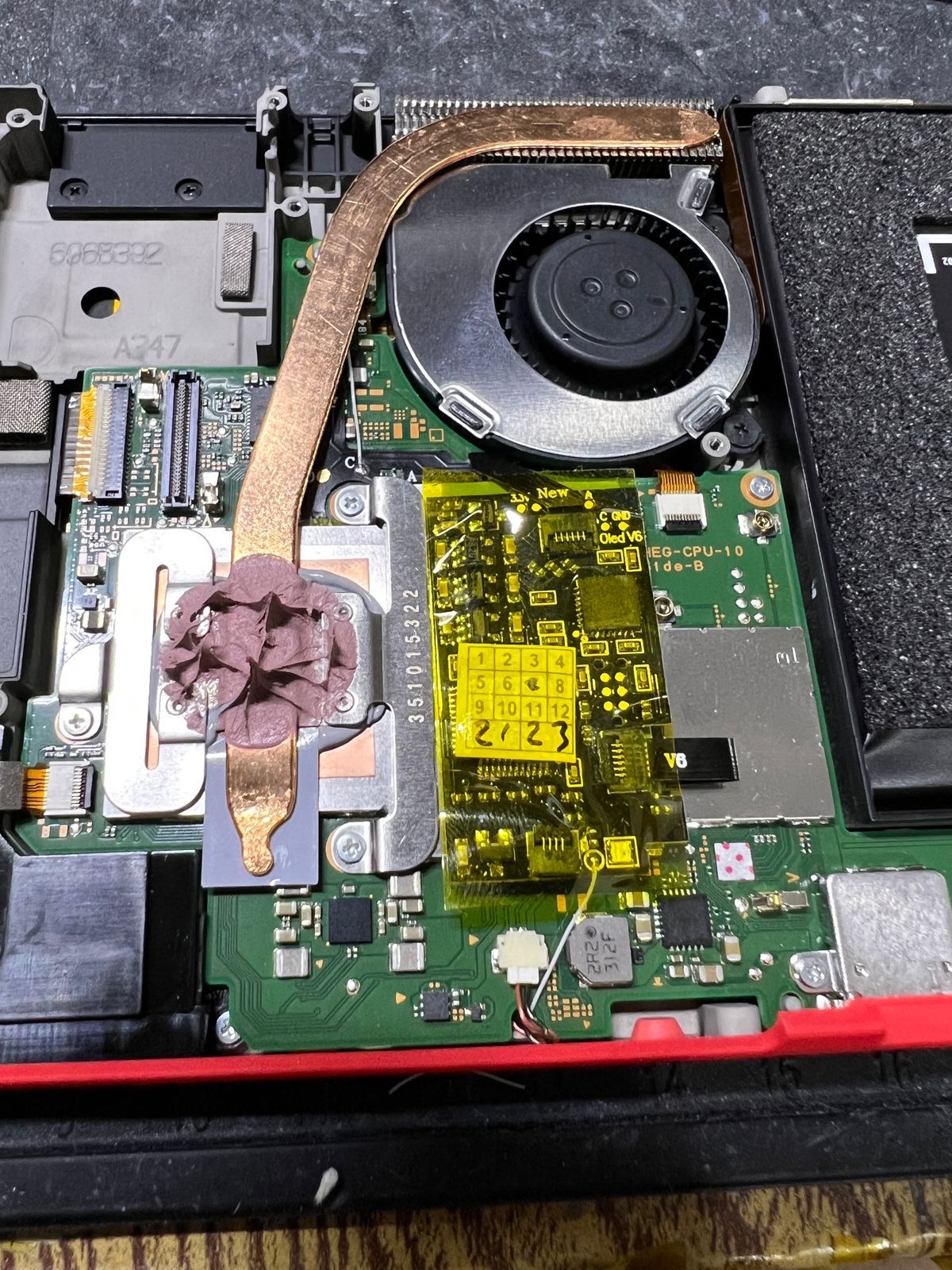

yes with the chip connected to switch
I didn't manage to run the diagnostic. Can we chat together so you can explain me please?

What software do you suggest, putty is pretty bad at displaying informations, there is not break line

Ps my dat0 is kamikazed so pretty sure it does not come from that?


randy_w

Well-Known Member
Member
Joined
Feb 27, 2021
Messages
788
Trophies
0
Age
34
XP
1,510
Country
United States
I didn't manage to run the diagnostic. Can we chat together so you can explain me please?

What software do you suggest, putty is pretty bad at displaying informations, there is not break line

Ps my dat0 is kamikazed so pretty sure it does not come from that?

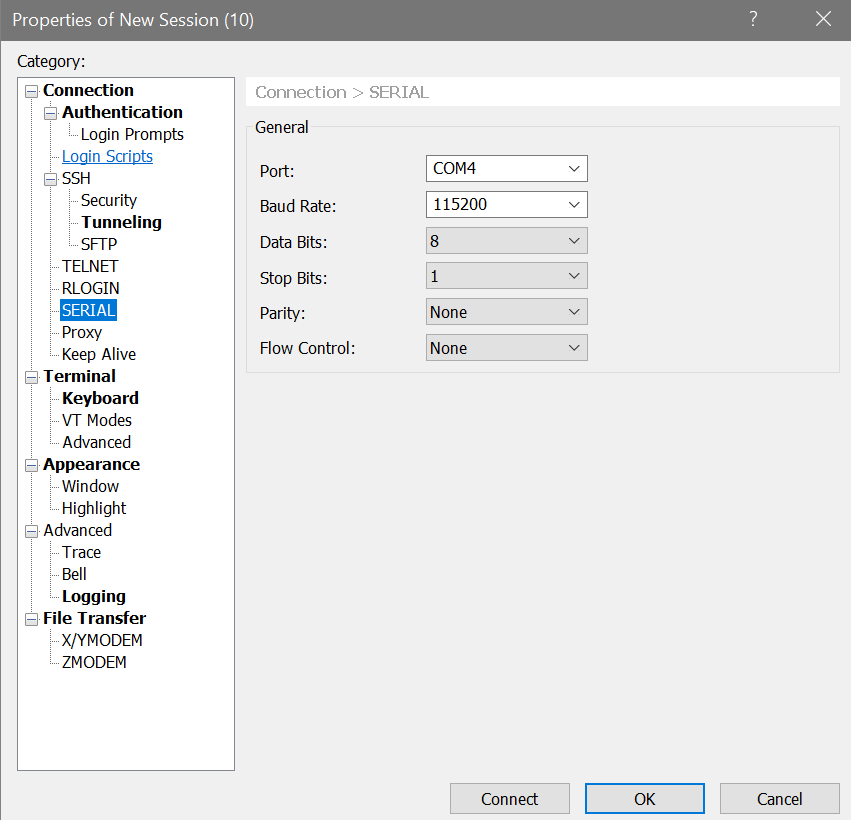

I use xshell as I also need to ssh into some linux vps, just change connection type to serial and change baud rate to 115200 in serial settings:


also the new line symbol instinct sends is different, default cr will cause character to scroll all over the place, using auto fixes the issue:


if it's kamikaze dat0 then idk, never done it before only emmc reball. what does it say when you press d? paste the output here and i'll take a look
