I made a chart for the Mii (wii edition) Hexadecimal Data

Mothiieeo Feb 24, 2019.

  1. Mothiieeo
    OP

    Mothiieeo Newbie

    Newcomer
    1
    Feb 24, 2019
    United States
    I'm not sure how this would be useful, but hopefully it helps someone or is at least interesting. Also please tell me if you know someone else that belongs here or there is something wrong on it

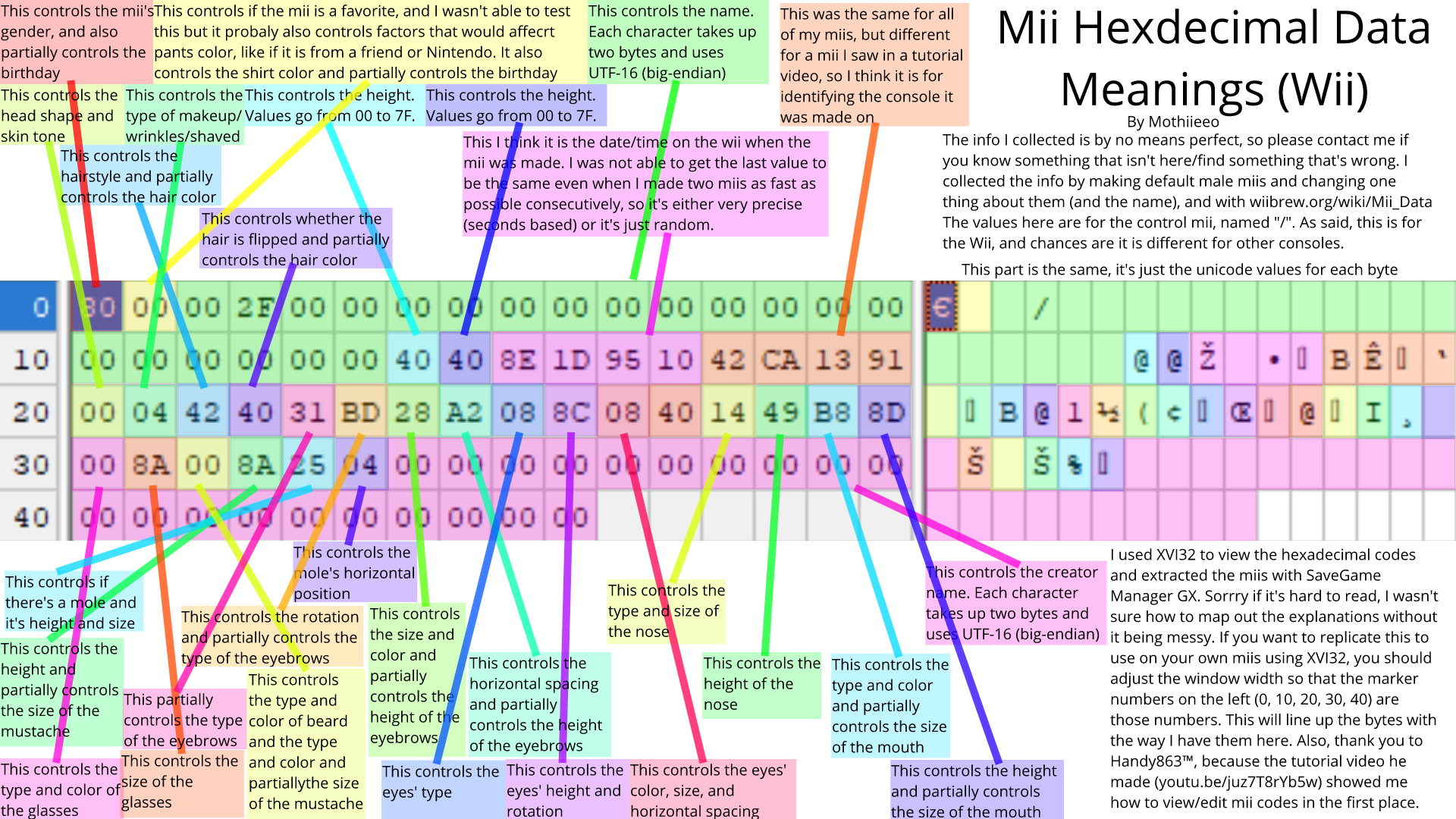

    MiiHexadecimalDataMeaningsWii.

    Brawl345 likes this.
  2. FAST6191

    FAST6191 Techromancer

    pip Reporter
    23
    Nov 21, 2005
    United Kingdom
    Changed the title to add mii to it.

    Anyway I seldom make graphical breakdowns of such things but still nice to see from time to time.

    Though now I have flashbacks to

    Edit.
    Might as well put the second in the series in as well

    Mothiieeo likes this.
  3. Cyan

    Cyan GBATemp's lurking knight

    Global Moderator
    22
    Oct 27, 2002
    France
    Engine room, learning
    I didn't compare yet, but you can also find it as struct format if you want to make an editor program :
    it's more detailed as it also provides bit field addresses, one byte can hold multiple data.
    http://wiibrew.org/wiki/Mii_Data

    I checked the wiibrew struct and your table's color.
    you split elements in 1 byte (8 bits) while it should be 2 bytes (16bits), for example the "birth day" is span over 2 bytes.

    here are the first 2 byte of Mii data:
    00000000 00000000

    isInvalid1 bit (ON/OFF)
    Sex1 bit, 0 MALE, 1 Female
    Month 4 bits (0 to 15)
    Day5 bits (0 to 31)
    FavColor4 bit, 0000 to 1011 (0 - 15, but crashes with values over 11)
    isFavorite1 bit (ON/OFF)

    The "day" value is span over 2 bytes, so your chart is difficult to know where the birthday should be defined.
    you could fix your chart by using the same color for the 2 first bytes, instead of splitting it and saying it's partial in both.

    same for the height bits, etc.

    Last edited by Cyan, Feb 25, 2019
    Mothiieeo likes this.
  4. Mothiieeo
    OP

    Mothiieeo Newbie

    Newcomer
    1
    Feb 24, 2019
    United States
    @Cyan
    Oh, that's interesting. I think I will change the chart to be more specific in spots that hold multiple values or values that span multiple spots sometime. Thank you for the input!
