Tutorial How to import Images onto your Nintendo DSi (Requires DSi and a Windows PC)

TheLegendofMario

Well-Known Member
OP
Member
Joined
May 15, 2016
Messages
179
Trophies
0
Age
24
XP
293
Country
United States
Hello Ever wanted to use your own photos on your DSi, well now you can by using Dsi Signature Tool by MrNbaYoh.

THIS GUIDE IS USA ONLY AT THE MOMENT I WILL ADD OTHER REGION SUPPORT SOON!
Requirements

- Nintendo DSi (XL) Console
- Windows PC

- SD Card

- SD Card Reader

- Microsoft Paint (This is the only "free" photo editor that outputs a compatible Jpeg, that I know of)

- Dsi Jpeg Signature Tool(obviously)


-7-zip or WinRar (so you can extract the DSi Signature Tool archive)

Step One - Take Photo

Open the DSi Camera app on you DSi, click on SD card and then camera.
Picture 2.jpg Picture 4.jpg

Once in camera use the "Normal" lens and take a photo.

Now hold down the power button. and proceed to the next step.


Step Two - Use PC

Remove your SD card from your DSi console and insert it into your Windows PC.

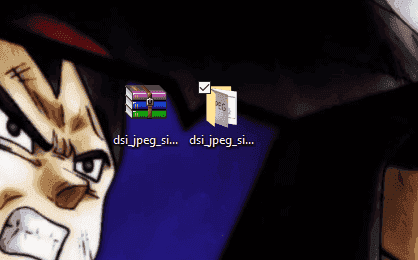

On Your PC, Download and extract the Dsi Signature Tool to a folder on your PC

Step Three - Find an image

Find an Image that you want to import to your DSi, I'm going to use this image

Step Four - Prepare the image

Now that we have our image it's time to resize it and make it compatible with DSi.

Now open the start menu and type "paint"(without the quotation marks).
Now open paint.
Click on "File" in the top left corner and click on "Open" and select the image you want to import.
Next, Click on where it says "Resize"

Now set the setting to this in the window, and then click "OK"

After that go to the "File" menu again and select "Save as" and then "JPEG Picture"
Name it "Import.jpg"
Now save it in the DSi Signature Tool folder
After that Close Paint.

Step Five - The Fun Part

Now that we have a properly sized image it's time to convert it for DSi use

Your DSi's SD Card should be plugged into your PC, if not, do so now

With your SD card plugged in navigate to the DCIM folder on your SD Card
and then to 100NINXX (Choose the folder with the highest numbers)(XX varies depending on the amount of folders)


Now Click on the most recent photo taken and copy it to the DSi Signature Tool directory on your pc and rename it to "DonorImage.jpg"(No quotations).

Next Drag Import.jpg onto "TransferEXIF.cmd"
a command prompt will open and it should look like this
Press the Spacebar, Then drag Import.jpg onto "Sign.cmd"

You'll Then get a window like this
You will now find a file named "out.jpg" in the DSi Signature Tool Directory.

Proceed to next Step

Step Six - Final Step

Now that you have resized and signed the image it's time to put the image on your SD Card, but first head to SD:\private\ds\app\484E494A and Delete pit.bin(This is very important, Do not skip this step).

Now copy out.jpg to SD:/DCIM/100NINXX (Choose the folder with the highest numbers)(XX varies depending on the amount of folders)

Now rename out.jpg according to the Naming scheme of the folder, so if the last photo in the folder is named HNI_0022.JPG then name your picture HNI_0023.JPG and so on.

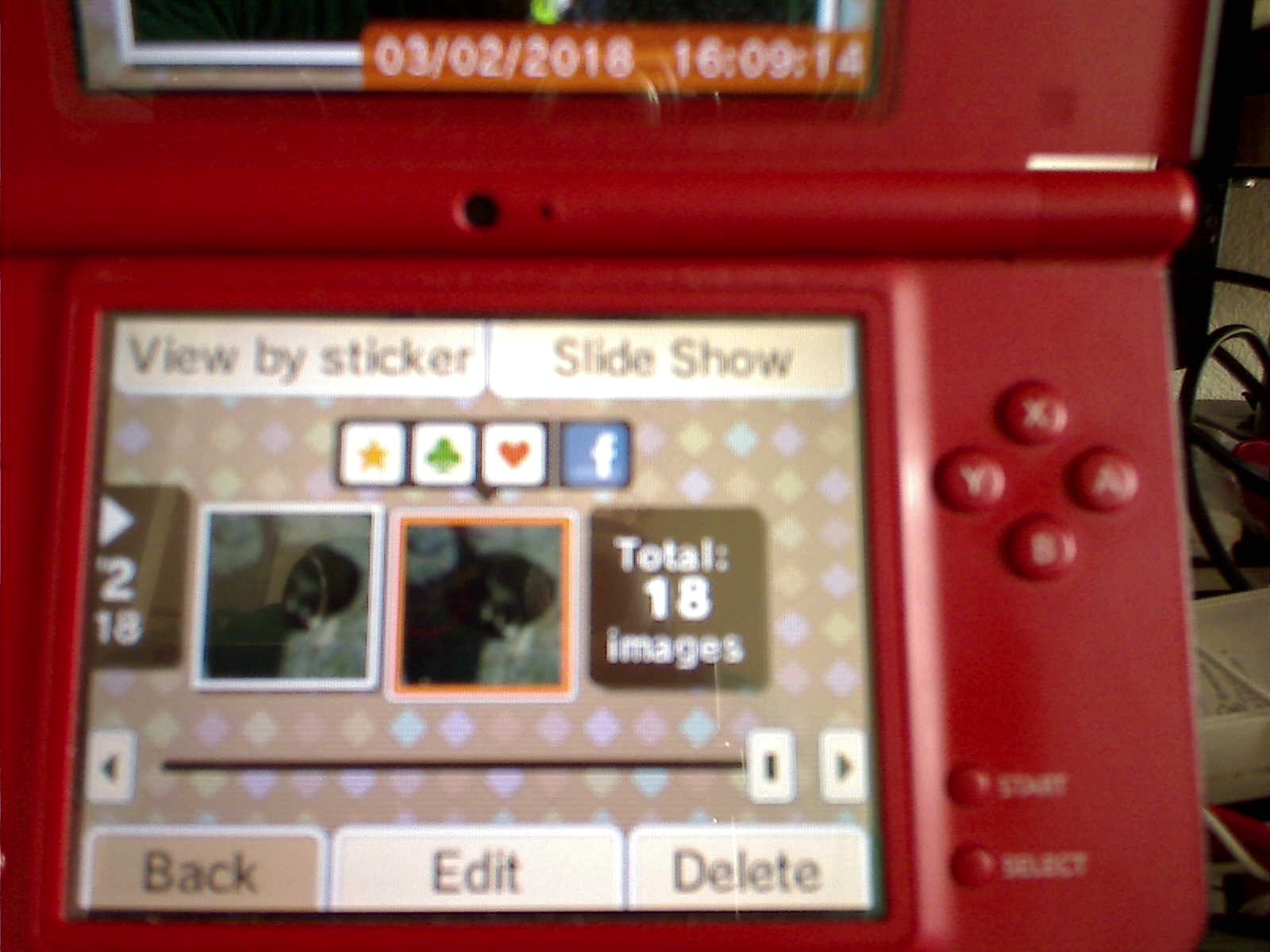

Now put your SD Card back in your DSi and turn it on and open the camera and open the Gallery on the SD card section.
If you did everything correctly, you will see your imported image with the thumbnail of your Donor image. If you see that then you have successfully imported your image, Congrats!
Picture 7.jpg Picture 6.jpg

NOTE: If you would like to show images on your home screen copy the image from SD to System (this is an option in DSi Camera app) and then Star it.

CREDITS

MrNBAYoh- for developing the signing tool.

Apache Thunder and ChampionLeake on the DSi Hacking Server - for helping me figure out how to use the tool.


Attachments

  • Paint.PNG
    5.7 KB · Views: 1,310

Apache Thunder

I have cameras in your head!
Member
Joined
Oct 7, 2007
Messages
4,291
Trophies
2
Age
34
Location
Levelland, Texas
Website
www.mariopc.co.nr
XP
6,056
Country
United States
You should probably mention that the path to "SD:\private\ds\app\484E494A" for the pit.bin file may vary by region. That folder name is the game code in hex of the photo app I believe and the photo app has a slightly different game code for each region of the console thus the path to that file will be different. ;)


Ryccardo

watching Thames TV from London
Member
Joined
Feb 13, 2015
Messages
7,406
Trophies
0
Age
26
Location
Imola
XP
6,344
Country
Italy
Linux/amd64 port with nice packaging and manpage (dsi-photo-converter(1)) you should definitely read :3

And, how to save jpegs in GIMP: Screenshot_2018-03-19_01-42-40.png


Attachments

  • dsi-photo-converter_amd64_1.0.0-1.deb.zip
    55.4 KB · Views: 364
Last edited by Ryccardo,

Gal-axy

New Member
Newbie
Joined
Jul 4, 2018
Messages
1
Trophies
0
Age
40
XP
93
Country
Russia
A little update for this manual. It allows to fix thumbnails and is to be used before signing of jpeg.

Tool is named NConvert and can be downloaded from xnview web-page.

Usage is the same as the other tools included. Cmd-file for drag-n-drop with the following code:
Code:
@echo off
nconvert -overwrite -buildexifthumb %1
pause

Last edited by Gal-axy,
  • Like
Reactions: Tarmfot

Trash_Bandatcoot

Your Local Random Internet Geek
Member
Joined
Jul 14, 2018
Messages
1,171
Trophies
1
XP
3,656
Country
Netherlands
"THIS GUIDE IS USA ONLY AT THE MOMENT I WILL ADD OTHER REGION SUPPORT SOON!"

It worked fine on 1.4.5E with HiyaCFW.
So, as long you have HiyaCFW, it will work on every version.

  • Like
Reactions: Deleted User
