About a year ago I tried my hand at converting an Xbox 360 component cable into one usable on the original Xbox.
My soldering isn't professional-grade by any means, but I've checked my leads with a multimeter and nothing is bridged, and is grounded properly.

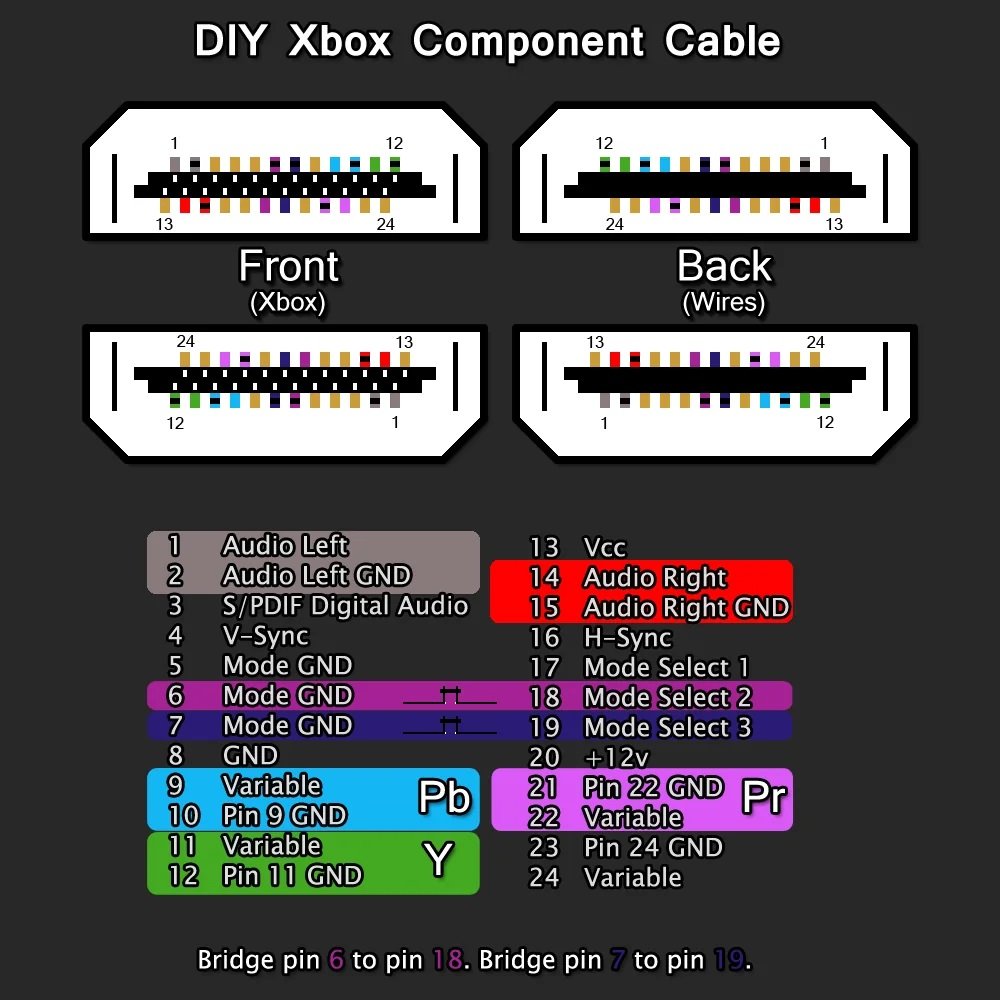

These are the instructions I followed:


Somewhat consistently, a minute or two after turning the Xbox on with this DIY component cable, the Xbox will suddenly reboot on its own, and when it's back on again it's only outputting sound, no video at all. I can hear that it loads into UnleashX fine when using the controller.

Before it reboots, the 720p video output works flawlessly. Turning the Xbox off and on doesn't help.
It's almost as if my cable has a mind of its own. It works, until it doesn't, and works again later.

My Xbox is a PAL v1.1, with video mode set to NTSC using NKPatcher, softmodded with Rocky5's softmod installer.
I can upload some pictures of the cable sometime this weekend, just don't have it on hand right now.

Anyone have a lead on what the issue may be?
Cheers.


miniminx

Well-Known Member
Member
Joined
Jun 27, 2024
Messages
236
Trophies
0
Age
25
XP
491
Country
United States
TBH you are better just getting a Xbox2HDMI v3 adapter, they are cheap as chips.

I made one with wii2hdmi adapter, but that was before I knew that the xbox2hdmi cable was available.



Ridge

1999 Hot Dog Eating Champion
OP
Member
Joined
Sep 10, 2015
Messages
410
Trophies
0
Age
29
Location
Northern Norway
Website
tilde.zone
XP
485
Country
Norway
Are the wires soldered to the correct pinouts?
Aye, at least they seemed to be. Checked them with a multimeter on both ends, nothing crossed. Will have an image up when I get to the cable sometime next week.

TBH you are better just getting a Xbox2HDMI v3 adapter, they are cheap as chips.

I made one with wii2hdmi adapter, but that was before I knew that the xbox2hdmi cable was available.
Is what I'd recommend to most people as well, so I appreciate your pointer. However, it doesn't ship to Norway so getting it cheap as chips is not exactly an option.. =)


miniminx

Well-Known Member
Member
Joined
Jun 27, 2024
Messages
236
Trophies
0
Age
25
XP
491
Country
United States
Aye, at least they seemed to be. Checked them with a multimeter on both ends, nothing crossed. Will have an image up when I get to the cable sometime next week.


Is what I'd recommend to most people as well, so I appreciate your pointer. However, it doesn't ship to Norway so getting it cheap as chips is not exactly an option.. =)
Don't you have any friends in another country that they could ship it to, and then the friend can send you it?


tech3475

Well-Known Member
Member
Joined
Jun 12, 2009
Messages
3,955
Trophies
2
XP
6,591
Country
Just to confirm, do you have any kind of official cables to test with and make sure there isn't a fault with the console?


Ridge

1999 Hot Dog Eating Champion
OP
Member
Joined
Sep 10, 2015
Messages
410
Trophies
0
Age
29
Location
Northern Norway
Website
tilde.zone
XP
485
Country
Norway
Don't you have any friends in another country that they could ship it to, and then the friend can send you it?
I think at that point it's not really "cheap" anymore, and I'd rather keep trying to make this hobby project work. Cheaper, more fun, and I get something useful out of it. Honestly, with my personal finances it's not even cheap to begin with, but I agree it's a good price for what you get.

Just to confirm, do you have any kind of official cables to test with and make sure there isn't a fault with the console?
Ah good catch, composite video out with stereo audio works just fine!
I also have an unmodded 1.6 unit I know has working composite output that I can test with when I have access to it next week.


tech3475

Well-Known Member
Member
Joined
Jun 12, 2009
Messages
3,955
Trophies
2
XP
6,591
Country
Ah good catch, composite video out with stereo audio works just fine!
I also have an unmodded 1.6 unit I know has working composite output that I can test with when I have access to it next week.

Given the timing, I'm wondering if it might be heat related? Does it feel hot when rebooting?


Ridge

1999 Hot Dog Eating Champion
OP
Member
Joined
Sep 10, 2015
Messages
410
Trophies
0
Age
29
Location
Northern Norway
Website
tilde.zone
XP
485
Country
Norway
Given the timing, I'm wondering if it might be heat related? Does it feel hot when rebooting?
I'll definitely make sure to check that when I can! Hell, I really should re-paste both my boxes anyways... I'm sure it's bone-dry under those heatsinks.
Gameplay is stable with composite video. Do you think simply using component output might make the components significantly warmer?
