Hello

New here. I need help. Long story short. I transferred my Wii U to another Wii U. In the process the Wii U formatted. I forgot I had CBHC installed. System is now stuck. Is there hope in unbricking it? I can still boot into Wii menu, by pressing B at boot up, if that helps. Any help is appreciated.
Thanks


xHR

Well-Known Member
Member
Joined
Apr 20, 2013
Messages
118
Trophies
0
Age
34
Website
twitter.com
XP
868
Country
Could someone reapload Nandway-SignalBoosterEdition.hex and NANDway.py files please

UPD. It is the same files thad used for PS3. Easily finds on google and github

Last edited by xHR,

ConZoli

Member
Newcomer
Joined
Oct 28, 2020
Messages
7
Trophies
0
Age
42
XP
39
Country
Bulgaria
Please help! Can anyone give me some advice on how to fix that WiiU console?
I installed Haxchi and I bought a game so I could unlock my console, but it bricked when I tried to complete the process. Currently only shows a black screen and the controller has no connection with the console.
I made a video:

I made a backup of the NAND files, but I realized that the flash procedure is complicated.



I made a backup of the NAND files, but I realized that the flash procedure is complicated.

Can anyone give me some advice on how to fix that WiiU console? I didn't make a full 32GB backup :(


Attachments

  • Screenshot_9.jpg
    85.7 KB · Views: 55

godreborn

Well-Known Member
Member
Joined
Oct 10, 2009
Messages
28,775
Trophies
2
XP
18,622
Country
United States
Please help! Can anyone give me some advice on how to fix that WiiU console?
I installed Haxchi and I bought a game so I could unlock my console, but it bricked when I tried to complete the process. Currently only shows a black screen and the controller has no connection with the console.
I made a video:

I made a backup of the NAND files, but I realized that the flash procedure is complicated.



I made a backup of the NAND files, but I realized that the flash procedure is complicated.

Can anyone give me some advice on how to fix that WiiU console? I didn't make a full 32GB backup :(
I don't recall if that's what it typically does when you brick with cbhc. you'll need to do a hard mod. all you need is the slc partition and the otp.bin. it's okay that you don't have the 32GB partition.

  • Like
Reactions: ConZoli

AQS

Well-Known Member
Newcomer
Joined
Oct 15, 2021
Messages
48
Trophies
0
Age
40
XP
301
Country
Canada
Wow, what an adventure this has been for me. Thanks OP and others for putting this together. I absolutely love my Wiiu (retro gaming mostly) and this guide helped me restore SLC and MLC. It took a few weeks and definitely had some challenges but my beauty is alive again!

Here's what happened. A few weeks ago, I wanted to transfer some games to an SSD and through the process I lost all icons that had been carefully placed in specific folders. Like a dummy I was careless and I used FTPiUeverywhere to restore the entire usr folder on the MLC that I had taken months earlier thinking that the baristaIconDatabase and Account info would put back my icons, and the end result was that the Wiiu would no longer boot past a Black Screen. Gamepad also did not respond to any sort of buttons, and it definitely was not an SD card issue. I suspect I corrupted something in the MLC, perhaps related to "BrainAge Training" and since I had CBHC it could no longer find the title properly or could not certify that the title was legit anymore .. I am only guessing .. I'll never know..


Luckily I had a a full backup from 2017 (Mlc, SLC, Opt.bin, slccmpt)


So I proceeded to just do the MLC hard Mod thinking I could just restore MLC and I'd be back in business. While the MLC flash worked, I learned that since my backup from 2017 was 5.5.1 , and my current SLC on the system was 5.5.5 the system could NOT be repaired just by restoring MLC. I learned that I would have to restore SLC back to 5.5.1 as well to match my MLC 5.5.1 backup , and then hopefully I'd be able to update again naturally to 5.5.5 through the UI.. The main point to share here is that if any of you have backups that were taken years ago on a different System Version than what you have presently, you should probably take another backup as it will make restoring things a lot easier in the future.


Sorry for the long post, but wanted to share some additional tips below in case any of this may help someone else in 2021 :)


Tips for restoring MLC

- I went through about 15 card readers and the only ones that seemed to work were older USB 2.0 card readers. Any USB3 readers either could not detect the MLC, or had a hard time maintaining the connection. Also CMD line seemed to be the most picky for me. Cable length longer than 30cm would not allow me to read the MLC chip so my advice is to stay under 30 cm for your cable length

- When cutting the track for CLK, you can stop cutting once you start getting 43k - 200k ohms. With the trace completely cut I was still getting some very very minor resistance, probably from the board itself so I would advise people not to cut too deep.

- I used Female Dupont cables for the wiiu board, and male dupont cables for the SD card. This made things easier to disconnect/reconnect/troubleshoot. After you flash your MLC, make sure to physically remove the SD card from your card reader as the Wiiu wont boot with it still in the reader.

- MLC and SLC need to be the same version .. For example I had a back of my wiiu from when it was on 5.5.1 .. So I tried restoring just MLC and the Wiiu would not boot past the error 160-0103 , which forced me to look into restoring SLC back to 5.5.1 as well


Tips for Teensy

- You will definitely need to use a voltage regulator. I have a Samsung SLC chip so not sure if it's just me but any type of external voltage did not work for me. The Chip was being detected as being 2MB in size when I was using 3.3v external voltage. Do yourself a favor and use a voltage regulator according to the original OP guide. While external voltage may work for PS3 mods, I don't believe it will work with the Wiiu.

- There are a lot of different versions of the Singnal Booster HEX files on the net, don't just randomly download the first one you google. For example, there's a "NANDway_SignalBoosterEdition.hex" version out there with a file size of 29KB which will not work with the Wiiu. It will give you an SLC size of 134 MB. The proper HEX and PY files are as follows:

NANDway_SignalBoosterEdition.hex = link here
NANDway.py = Line 430 in the PY should say VERSION_MINOR = 65 , link here

If the 2 links above don't work, you can get both of the files by googling "NandWay Repository Github"


- I used Windows 10 X64 and as such Windows10 already installs serial drivers for the Teensy so you don't need to download any additional drivers.
- I only got a COM port showing in Device Manager after I performed all of my Teensy prep Soldering along with Flashing the correct HEX file. Only then I was able to get a COM Port showing in Device Manager
- I flashed the Hex file after performing the Teensy Prep steps, but before hooking it up to the Wiiu
- Despite others saying you only need to disconnect GND to test your SLC flash that did not work for me at all. I had to Disconnect everything with the exception of a few IO lines to get it to boot after SLC flash.. Maybe it's just a Samsung Chip thing. If you can, use Dupont cables as it will make connecting/disconnecting much easier instead of desoldering each time
- When flashing SLC, you will get the Drive Spinning up + Blue light , but when you are flashing slccmpt.bin only the blue light will come on, no Drive spinning up will happen .. this is normal
- Something that is missing from the guide is that you will need to install pyserial along with python otherwise you will get an error "could not open serial"

These are the 2 files you'll need (Newer versions of Python/PySerial did not work for me, only the 2 noted below seemed to work )
python-2.7.2.msi - link here , if the direct link doesn't work, you can look here
pyserial-2.5.win32.exe - link here , if the direct link doesn't work, you can look here


Tips for restoring SLC

- The solder pads on the board are pretty small. Remember to tin your iron tip, otherwise you will completely suck up the solder pad the first time you touch it. There are 2 solder pads for each connection so if you mess up on one you could use the other adjacent pad for the connection.
- It made things a lot easier for me if I used a little bit of hot glue to hold the cable in place after each solder.. Hot glue is your friend so long as don't add too much otherwise it will be hard to add back the IO shield casing if you plan on leaving the cables behind
- You can reattach the heatsink to the CPU after you remove the backplate shielding. If you're like me you'll need to leave the unit running for hours and the Wiiu CPU will overheat or crash your teensy flash if the CPU is left with no cooling in place. (there's a tiny bracket you can unclip from the IO shield which you can use to secure the heatsink.)


Soldering tips

Everything everyone else mentioned on this forum was very useful. I would also add that you should try and use a magnifying glass soldering kit , or in my case I just used a simple Cell Phone Holder attached to my working desk and I just used the Flash On light from my phone + Magnify 8x from the phone to do all my soldering. It worked wonderfully and I also have some momento videos of soldering now:) On Amazon just search for "Phone Stand Phone Holder" if you're interested. Also, make sure to use a small tip for soldering. There are a ton of different Temperature controlled Kits around the $40-50 range on Amazon . Also practicing soldering ahead of time really helped on an old component around the house.. I am a beginner when it comes to soldering.



.. and lastly don't give up.. I found myself in a corner when I was trying to do do too many things at once (like figuring out teensy for the first time, while troubleshooting Cable length issues, while dealing with Windows Python install issues for the first time .. ) .. My recommendation would be to tackle one item at a time rather than trying to do the whole guide/procedure in one shot!


I hope some of this helps someone.






Last edited by AQS,

Jediweirdo

Well-Known Member
Newcomer
Joined
Aug 3, 2021
Messages
60
Trophies
0
Age
15
XP
237
Country
United States
Hey, where can I buy a teensy 2.0 board, and does the newer 3.2 board work OK? The original link leads to a site where its no longer sold and is "discontinued"


AQS

Well-Known Member
Newcomer
Joined
Oct 15, 2021
Messages
48
Trophies
0
Age
40
XP
301
Country
Canada
Hey, where can I buy a teensy 2.0 board, and does the newer 3.2 board work OK? The original link leads to a site where its no longer sold and is "discontinued"

It seems like most places don't sell the Teensy ++ 2.0 anymore .. Your best bet now would be ebay or aliexpress ... You may end up with a clone though, but it was mentioned earlier in this thread that clones should work too - you just had to make an extra modification...

I don't believe the 3.2 will work.. Perhaps others with more experience could comment but I think the specific Hex file required for this (NANDway_SignalBoosterEdition.hex ) along with the specific solder points requires that you use the Teensy ++ 2.0 specifically..


Dust2dust

Well-Known Member
Member
Joined
Jun 17, 2010
Messages
1,778
Trophies
1
XP
2,831
Country
Canada
The proper HEX and PY files are as follows:

NANDway_SignalBoosterEdition.hex = 24,136 bytes
NANDway.py = Line 430 in the PY should say VERSION_MINOR = 65 , and file size is 19,251 bytes




These are the files you'll need (Newer versions of Python will not work)
python-2.7.2.msi
pyserial-2.5.win32.exe

Nice of you to have shared your experience! The one thing I would suggest is to post MD5 or SHA1 hashes of the files I quoted, so people would be sure they have the right files for the job.


CrisMod

Well-Known Member
Member
Joined
May 4, 2020
Messages
368
Trophies
0
Age
37
XP
869
Country
Italy
Wow, what an adventure this has been for me. Thanks OP and others for putting this together. I absolutely love my Wiiu (retro gaming mostly) and this guide helped me restore SLC and MLC. It took a few weeks and definitely had some challenges but my beauty is alive again!

Here's what happened. A few weeks ago, I wanted to transfer some games to an SSD and through the process I lost all icons that had been carefully placed in specific folders. Like a dummy I was careless and I used FTPiUeverywhere to restore the entire usr folder on the MLC that I had taken months earlier thinking that the baristaIconDatabase and Account info would put back my icons, and the end result was that the Wiiu would no longer boot past a Black Screen. Gamepad also did not respond to any sort of buttons, and it definitely was not an SD card issue. I suspect I corrupted something in the MLC, perhaps related to "BrainAge Training" and since I had CBHC it could no longer find the title properly or could not certify that the title was legit anymore .. I am only guessing .. I'll never know..


Luckily I had a a full backup from 2017 (Mlc, SLC, Opt.bin, slccmpt)


So I proceeded to just do the MLC hard Mod thinking I could just restore MLC and I'd be back in business. While the MLC flash worked, I learned that since my backup from 2017 was 5.5.1 , and my current SLC on the system was 5.5.5 the system could NOT be repaired just by restoring MLC. I learned that I would have to restore SLC back to 5.5.1 as well to match my MLC 5.5.1 backup , and then hopefully I'd be able to update again naturally to 5.5.5 through the UI.. The main point to share here is that if any of you have backups that were taken years ago on a different System Version than what you have presently, you should probably take another backup as it will make restoring things a lot easier in the future.


Sorry for the long post, but wanted to share some additional tips below in case any of this may help someone else in 2021 :)


Tips for restoring MLC

- I went through about 15 card readers and the only ones that seemed to work were older USB 2.0 card readers. Any USB3 readers either could not detect the MLC, or had a hard time maintaining the connection. Also CMD line seemed to be the most picky for me. Cable length longer than 30cm would not allow me to read the MLC chip so my advice is to stay under 30 cm for your cable length

- When cutting the track for CLK, you can stop cutting once you start getting 43k - 200k ohms. With the trace completely cut I was still getting some very very minor resistance, probably from the board itself so I would advise people not to cut too deep.

- I used Female Dupont cables for the wiiu board, and male dupont cables for the SD card. This made things easier to disconnect/reconnect/troubleshoot. After you flash your MLC, make sure to physically remove the SD card from your card reader as the Wiiu wont boot with it still in the reader.

- MLC and SLC need to be the same version .. For example I had a back of my wiiu from when it was on 5.5.1 .. So I tried restoring just MLC and the Wiiu would not boot past the error 160-0103 , which forced me to look into restoring SLC back to 5.5.1 as well


Tips for Teensy

- You will definitely need to use a voltage regulator. I have a Samsung SLC chip so not sure if it's just me but any type of external voltage did not work for me. The Chip was being detected as being 2MB in size when I was using 3.3v external voltage. Do yourself a favor and use a voltage regulator according to the original OP guide. While external voltage may work for PS3 mods, I don't believe it will work with the Wiiu.

- There are a lot of different versions of the Singnal Booster HEX files on the net, don't just randomly download the first one you google. For example, there's a "NANDway_SignalBoosterEdition.hex" version out there with a file size of 29KB which will not work with the Wiiu. It will give you an SLC size of 134 MB. The proper HEX and PY files are as follows:

NANDway_SignalBoosterEdition.hex = 24,136 bytes
NANDway.py = Line 430 in the PY should say VERSION_MINOR = 65 , and file size is 19,251 bytes


You can get both of the files by googling "NandWay Repository Github"


- I used Windows 10 X64 and as such Windows10 already installs serial drivers for the Teensy so you don't need to download any additional drivers.
- I only got a COM port showing in Device Manager after I performed all of my Teensy prep Soldering along with Flashing the correct HEX file. Only then I was able to get a COM Port showing in Device Manager
- I flashed the Hex file after performing the Teensy Prep steps, but before hooking it up to the Wiiu
- Despite others saying you only need to disconnect GND to test your SLC flash that did not work for me at all. I had to Disconnect everything with the exception of a few IO lines to get it to boot after SLC flash.. Maybe it's just a Samsung Chip thing. If you can, use Dupont cables as it will make connecting/disconnecting much easier instead of desoldering each time
- When flashing SLC, you will get the Drive Spinning up + Blue light , but when you are flashing slccmpt.bin only the blue light will come on, no Drive spinning up will happen .. this is normal
- Something that is missing from the guide is that you will need to install pyserial along with python otherwise you will get an error "could not open serial"

These are the files you'll need (Newer versions of Python will not work)
python-2.7.2.msi
pyserial-2.5.win32.exe



Tips for restoring SLC

- The solder pads on the board are pretty small. Remember to tin your iron tip, otherwise you will completely suck up the solder pad the first time you touch it. There are 2 solder pads for each connection so if you mess up on one you could use the other adjacent pad for the connection.
- It made things a lot easier for me if I used a little bit of hot glue to hold the cable in place after each solder.. Hot glue is your friend so long as don't add too much otherwise it will be hard to add back the IO shield casing if you plan on leaving the cables behind
- You can reattach the heatsink to the CPU after you remove the backplate shielding. If you're like me you'll need to leave the unit running for hours and the Wiiu CPU will overheat or crash your teensy flash if the CPU is left with no cooling in place. (there's a tiny bracket you can unclip from the IO shield which you can use to secure the heatsink.)


Soldering tips

Everything everyone else mentioned on this forum was very useful. I would also add that you should try and use a magnifying glass soldering kit , or in my case I just used a simple Cell Phone Holder attached to my working desk and I just used the Flash On light from my phone + Magnify 8x from the phone to do all my soldering. It worked wonderfully and I also have some momento videos of soldering now:) On Amazon just search for "Phone Stand Phone Holder" if you're interested. Also, make sure to use a small tip for soldering. There are a ton of different Temperature controlled Kits around the $40-50 range on Amazon . Also practicing soldering ahead of time really helped on an old component around the house.. I am a beginner when it comes to soldering.



.. and lastly don't give up.. I found myself in a corner when I was trying to do do too many things at once (like figuring out teensy for the first time, while troubleshooting Cable length issues, while dealing with Windows Python install issues for the first time .. ) .. My recommendation would be to tackle one item at a time rather than trying to do the whole guide/procedure in one shot!


I hope some of this helps someone.

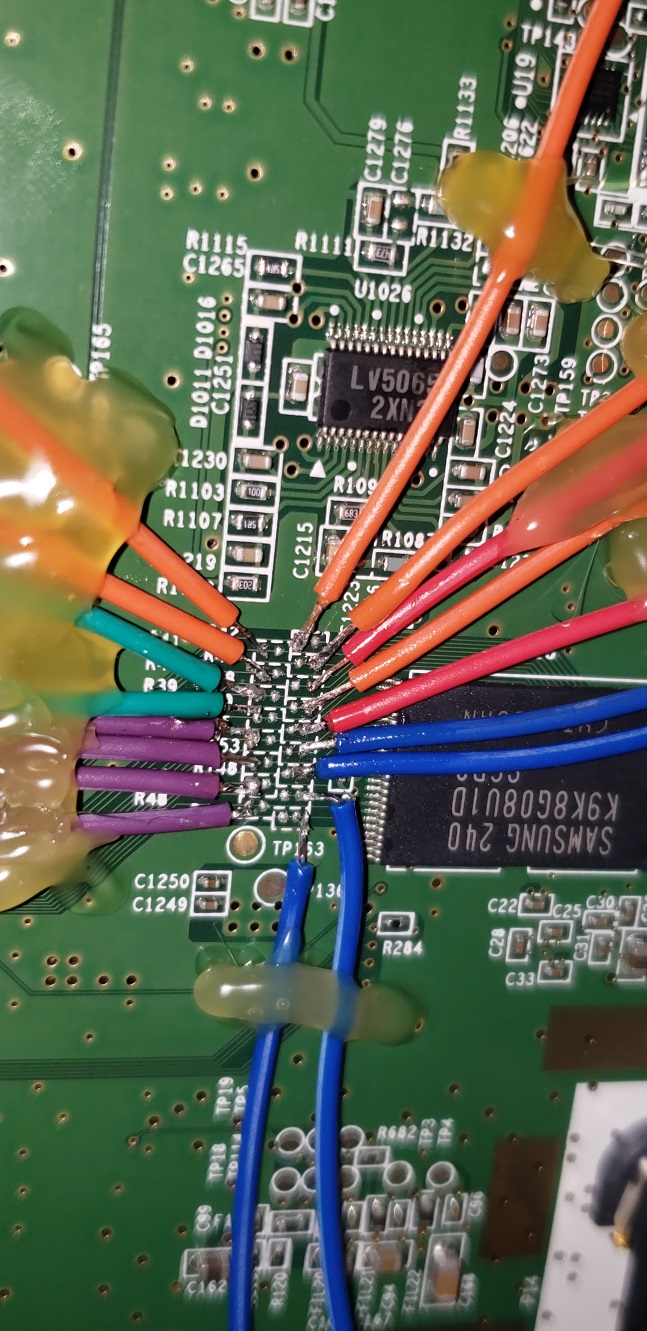

View attachment 282971
This I love :D, Thanks to share man, this it's usefull informations because there are tone of topics how to backup; but so rear (if not unique) experience how to restore (to restore in Hardware way I mean). Good JOB:yayu:

  • Like
Reactions: Kopimist and AQS

strnadik

Member
Newcomer
Joined
Oct 23, 2021
Messages
15
Trophies
0
Age
25
XP
91
Country
Czech Republic
Wow, what an adventure this has been for me. Thanks OP and others for putting this together. I absolutely love my Wiiu (retro gaming mostly) and this guide helped me restore SLC and MLC. It took a few weeks and definitely had some challenges but my beauty is alive again!

Here's what happened. A few weeks ago, I wanted to transfer some games to an SSD and through the process I lost all icons that had been carefully placed in specific folders. Like a dummy I was careless and I used FTPiUeverywhere to restore the entire usr folder on the MLC that I had taken months earlier thinking that the baristaIconDatabase and Account info would put back my icons, and the end result was that the Wiiu would no longer boot past a Black Screen. Gamepad also did not respond to any sort of buttons, and it definitely was not an SD card issue. I suspect I corrupted something in the MLC, perhaps related to "BrainAge Training" and since I had CBHC it could no longer find the title properly or could not certify that the title was legit anymore .. I am only guessing .. I'll never know..


Luckily I had a a full backup from 2017 (Mlc, SLC, Opt.bin, slccmpt)


So I proceeded to just do the MLC hard Mod thinking I could just restore MLC and I'd be back in business. While the MLC flash worked, I learned that since my backup from 2017 was 5.5.1 , and my current SLC on the system was 5.5.5 the system could NOT be repaired just by restoring MLC. I learned that I would have to restore SLC back to 5.5.1 as well to match my MLC 5.5.1 backup , and then hopefully I'd be able to update again naturally to 5.5.5 through the UI.. The main point to share here is that if any of you have backups that were taken years ago on a different System Version than what you have presently, you should probably take another backup as it will make restoring things a lot easier in the future.


Sorry for the long post, but wanted to share some additional tips below in case any of this may help someone else in 2021 :)


Tips for restoring MLC

- I went through about 15 card readers and the only ones that seemed to work were older USB 2.0 card readers. Any USB3 readers either could not detect the MLC, or had a hard time maintaining the connection. Also CMD line seemed to be the most picky for me. Cable length longer than 30cm would not allow me to read the MLC chip so my advice is to stay under 30 cm for your cable length

- When cutting the track for CLK, you can stop cutting once you start getting 43k - 200k ohms. With the trace completely cut I was still getting some very very minor resistance, probably from the board itself so I would advise people not to cut too deep.

- I used Female Dupont cables for the wiiu board, and male dupont cables for the SD card. This made things easier to disconnect/reconnect/troubleshoot. After you flash your MLC, make sure to physically remove the SD card from your card reader as the Wiiu wont boot with it still in the reader.

- MLC and SLC need to be the same version .. For example I had a back of my wiiu from when it was on 5.5.1 .. So I tried restoring just MLC and the Wiiu would not boot past the error 160-0103 , which forced me to look into restoring SLC back to 5.5.1 as well


Tips for Teensy

- You will definitely need to use a voltage regulator. I have a Samsung SLC chip so not sure if it's just me but any type of external voltage did not work for me. The Chip was being detected as being 2MB in size when I was using 3.3v external voltage. Do yourself a favor and use a voltage regulator according to the original OP guide. While external voltage may work for PS3 mods, I don't believe it will work with the Wiiu.

- There are a lot of different versions of the Singnal Booster HEX files on the net, don't just randomly download the first one you google. For example, there's a "NANDway_SignalBoosterEdition.hex" version out there with a file size of 29KB which will not work with the Wiiu. It will give you an SLC size of 134 MB. The proper HEX and PY files are as follows:

NANDway_SignalBoosterEdition.hex = 24,136 bytes
NANDway.py = Line 430 in the PY should say VERSION_MINOR = 65 , and file size is 19,251 bytes


You can get both of the files by googling "NandWay Repository Github"


- I used Windows 10 X64 and as such Windows10 already installs serial drivers for the Teensy so you don't need to download any additional drivers.
- I only got a COM port showing in Device Manager after I performed all of my Teensy prep Soldering along with Flashing the correct HEX file. Only then I was able to get a COM Port showing in Device Manager
- I flashed the Hex file after performing the Teensy Prep steps, but before hooking it up to the Wiiu
- Despite others saying you only need to disconnect GND to test your SLC flash that did not work for me at all. I had to Disconnect everything with the exception of a few IO lines to get it to boot after SLC flash.. Maybe it's just a Samsung Chip thing. If you can, use Dupont cables as it will make connecting/disconnecting much easier instead of desoldering each time
- When flashing SLC, you will get the Drive Spinning up + Blue light , but when you are flashing slccmpt.bin only the blue light will come on, no Drive spinning up will happen .. this is normal
- Something that is missing from the guide is that you will need to install pyserial along with python otherwise you will get an error "could not open serial"

These are the files you'll need (Newer versions of Python will not work)
python-2.7.2.msi
pyserial-2.5.win32.exe



Tips for restoring SLC

- The solder pads on the board are pretty small. Remember to tin your iron tip, otherwise you will completely suck up the solder pad the first time you touch it. There are 2 solder pads for each connection so if you mess up on one you could use the other adjacent pad for the connection.
- It made things a lot easier for me if I used a little bit of hot glue to hold the cable in place after each solder.. Hot glue is your friend so long as don't add too much otherwise it will be hard to add back the IO shield casing if you plan on leaving the cables behind
- You can reattach the heatsink to the CPU after you remove the backplate shielding. If you're like me you'll need to leave the unit running for hours and the Wiiu CPU will overheat or crash your teensy flash if the CPU is left with no cooling in place. (there's a tiny bracket you can unclip from the IO shield which you can use to secure the heatsink.)


Soldering tips

Everything everyone else mentioned on this forum was very useful. I would also add that you should try and use a magnifying glass soldering kit , or in my case I just used a simple Cell Phone Holder attached to my working desk and I just used the Flash On light from my phone + Magnify 8x from the phone to do all my soldering. It worked wonderfully and I also have some momento videos of soldering now:) On Amazon just search for "Phone Stand Phone Holder" if you're interested. Also, make sure to use a small tip for soldering. There are a ton of different Temperature controlled Kits around the $40-50 range on Amazon . Also practicing soldering ahead of time really helped on an old component around the house.. I am a beginner when it comes to soldering.



.. and lastly don't give up.. I found myself in a corner when I was trying to do do too many things at once (like figuring out teensy for the first time, while troubleshooting Cable length issues, while dealing with Windows Python install issues for the first time .. ) .. My recommendation would be to tackle one item at a time rather than trying to do the whole guide/procedure in one shot!


I hope some of this helps someone.





View attachment 282971
I am about to embark on the journey to restore my Wii U, and this motivated me so much. Thank you.
I do have one question though, and probably a stupid one. The guide states that I should solder many groups of 5 points on the Teensy together. But I thought, especially with the Dupont cables, it should always be 1 to 1 relation, and I should just stick the dupont cables to each corresponding pin. How do I connect multiple dupont cables in and then solder them all together?

  • Like
Reactions: AQS

AQS

Well-Known Member
Newcomer
Joined
Oct 15, 2021
Messages
48
Trophies
0
Age
40
XP
301
Country
Canada
I am about to embark on the journey to restore my Wii U, and this motivated me so much. Thank you.
I do have one question though, and probably a stupid one. The guide states that I should solder many groups of 5 points on the Teensy together. But I thought, especially with the Dupont cables, it should always be 1 to 1 relation, and I should just stick the dupont cables to each corresponding pin. How do I connect multiple dupont cables in and then solder them all together?
I ended up inserting just 1 dupont cable on the last or first of the multi-solder points, and then just soldered the rest of connections together. This way 1 dupont cable is needed for each of the multi-soldered locations.

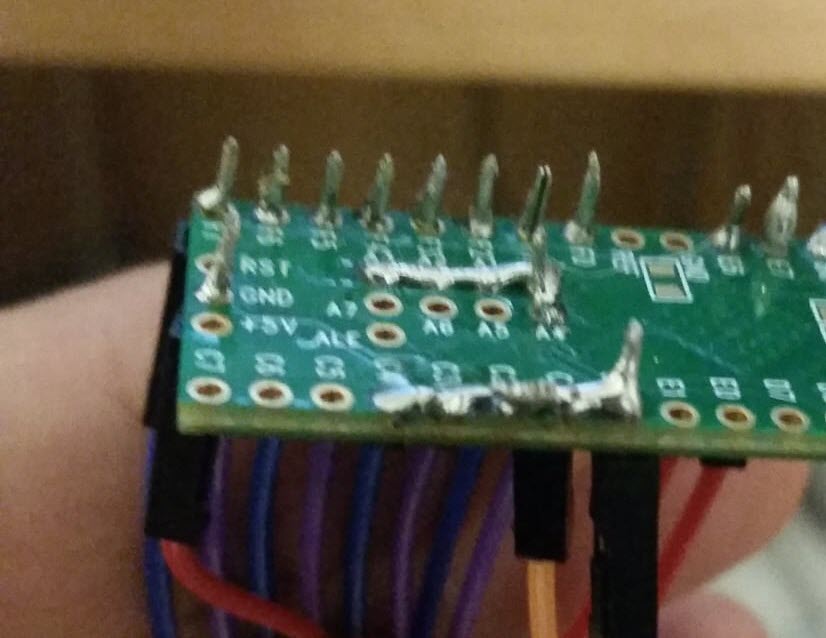

Sorry for the grainy pic, but have a look at my teensy and see if it makes sense.


Attachments

  • Dupont.jpeg
    51.3 KB · Views: 31

strnadik

Member
Newcomer
Joined
Oct 23, 2021
Messages
15
Trophies
0
Age
25
XP
91
Country
Czech Republic
I ended up inserting just 1 dupont cable on the last or first of the multi-solder points, and then just soldered the rest of connections together. This way 1 dupont cable is needed for each of the multi-soldered locations.

Sorry for the grainy pic, but have a look at my teensy and see if it makes sense.
Understood it clearly, thank you very much!

  • Like
Reactions: AQS

strnadik

Member
Newcomer
Joined
Oct 23, 2021
Messages
15
Trophies
0
Age
25
XP
91
Country
Czech Republic
I just found out I only have the OTP.bin and SLC.bin, not the MLC. Am I still able to unbrick my Wii U? I bought it off a guy who JUST bought it as flashed, and the FIRST thing he did was he connected Wii U to the internet and updated it... So then it only threw the infamous error code and now it's like that. I am stuck in the menu on the controller, and whatever I click on, it just errors again. So I assume the system has been succesfully updated. Do I also need old mlc or am I good to go with SLC and OTP?


godreborn

Well-Known Member
Member
Joined
Oct 10, 2009
Messages
28,775
Trophies
2
XP
18,622
Country
United States
I just found out I only have the OTP.bin and SLC.bin, not the MLC. Am I still able to unbrick my Wii U? I bought it off a guy who JUST bought it as flashed, and the FIRST thing he did was he connected Wii U to the internet and updated it... So then it only threw the infamous error code and now it's like that. I am stuck in the menu on the controller, and whatever I click on, it just errors again. So I assume the system has been succesfully updated. Do I also need old mlc or am I good to go with SLC and OTP?
the otp is all you need, but if it's any error really, good luck finding the culprit without a backup from before the issue happened. the otp decrypts all three partitions, so you can dump them, then use the otp to decrypt 'em to get at the files, but I don't know what you can do if you don't know what the problem is. I think all system apps, including the home menu, are on the mlc, but making the system function at all is on the slc.


strnadik

Member
Newcomer
Joined
Oct 23, 2021
Messages
15
Trophies
0
Age
25
XP
91
Country
Czech Republic
the otp is all you need, but if it's any error really, good luck finding the culprit without a backup from before the issue happened. the otp decrypts all three partitions, so you can dump them, then use the otp to decrypt 'em to get at the files, but I don't know what you can do if you don't know what the problem is. I think all system apps, including the home menu, are on the mlc, but making the system function at all is on the slc.
If it's any error? I just assumed I'd use the otp.bin combined with the slc.bin, pop the whole image into the chip, and I'd be set. But as @AQS mentioned, the MLC might also be needed as the previous user "softbricked" it because he updated. So the SLC and MLC will not check out.


godreborn

Well-Known Member
Member
Joined
Oct 10, 2009
Messages
28,775
Trophies
2
XP
18,622
Country
United States
can't say, I didn't read that post. it's possible to fix, but I don't know what the problem could be on your end. I also don't really know how to fix an mlc issue or slc other than cbhc due to the fact of how do you reencrypt the dump after all is fixed?


strnadik

Member
Newcomer
Joined
Oct 23, 2021
Messages
15
Trophies
0
Age
25
XP
91
Country
Czech Republic
can't say, I didn't read that post. it's possible to fix, but I don't know what the problem could be on your end. I also don't really know how to fix an mlc issue or slc other than cbhc due to the fact of how do you reencrypt the dump after all is fixed?
My knowledge is limited so I assumed I would not have to decrypt anything. As the SLC.bin has been made years ago when everything was OK. So I'd just put the encrypted slc.bin onto the NAND chip aand I'd be set. Of course, that was my "best case" imagining.


godreborn

Well-Known Member
Member
Joined
Oct 10, 2009
Messages
28,775
Trophies
2
XP
18,622
Country
United States
yes, you can flash just the slc.bin when everything worked. can't say what will happen with the mlc.bin if that's the problem or what happens if you flash a different firmware version of files with the slc than the mlc. that may be what he was talking about.


strnadik

Member
Newcomer
Joined
Oct 23, 2021
Messages
15
Trophies
0
Age
25
XP
91
Country
Czech Republic
yes, you can flash just the slc.bin when everything worked. can't say what will happen with the mlc.bin if that's the problem or what happens if you flash a different firmware version of files with the slc than the mlc. that may be what he was talking about.
Actually yes, I have no way to restore the mlc.bin. So I see where you were going. I would have to rip the mlc.bin with the otp.bin, then modify whatever would be wrong (if I can), and then encrypt and put back. I'm gonna wait if anyone else comes up with something ^^

  • Like
Reactions: godreborn

godreborn

Well-Known Member
Member
Joined
Oct 10, 2009
Messages
28,775
Trophies
2
XP
18,622
Country
United States
sorry, don't really know how to reencrypt anything but cbhc, since it has a remover to fix the problem, then you simply delete and reinstall the game.

General chit-chat
Help Users
    KamenRiderV3 @ KamenRiderV3: noooooooooooooooooooo
