[Guide] Kafluke's HardMod CBHC Unbrick guide

Discussion in 'Wii U - Hacking & Backup Loaders' started by Kafluke, Jul 7, 2017.

  1. SundayWarrior

    SundayWarrior GBAtemp Regular

    Member
    4
    Jul 1, 2018
    Russia
    Only otp.bin needed. Without - rip wiiu

    Carlos_DobleC likes this.
  2. Carlos_DobleC

    Carlos_DobleC GBAtemp Regular

    Member
    5
    Sep 22, 2016
    Spain
    I have the otp.bin, just need the microsoldering work to extract the nand and inject it repaired

  3. BaamAlex

    BaamAlex (*(vu64 *)0x1FF81100)

    Member
    6
    Jul 23, 2018
    Germany
    You create a nand backup before you mod your console...

  4. SundayWarrior

    SundayWarrior GBAtemp Regular

    Member
    4
    Jul 1, 2018
    Russia
    If you have otp.bin but no slc.bin = fixable. Teensy2.0++->dump bad slc.bin->cbhc remover->get back fixed nand-> profit
    If cbhc remover cant find backup system.xml try my mod prog (on previos pages with manual)

    Last edited by SundayWarrior, Aug 22, 2019
    Leeful likes this.
  5. Carlos_DobleC

    Carlos_DobleC GBAtemp Regular

    Member
    5
    Sep 22, 2016
    Spain
    Bro, even if I had a fucking backup of the nand it wouldn't help me if I can't inject it, and for that I need soldering.
    Stop commenting on when or how backups should be made, I have everything I need except microsoldering ability.

    I know that it can be repaired, I know how it is done and I also know your mod, but I dont know how to solder and where I live (Spain) the Wii U didnt have any success in sales to find someone to repair them.

  6. SundayWarrior

    SundayWarrior GBAtemp Regular

    Member
    4
    Jul 1, 2018
    Russia
    Buy flux, tiny wires, teensy2.0++, soldering iron and solder.
    Solder point is big, if you be careful - you can done all work yourself

    Carlos_DobleC likes this.
  7. Leeful

    Leeful GBAtemp Member

    pip Developer
    9
    Sep 4, 2015
    United Kingdom
    @Carlos_DobleC I completly understand what you mean. If you have no soldering experience, soldering the points on the wiiU can be very difficult.

    This is what I suggest:
    If you cant find anyone who specifically does WiiU repairs, try and find a local shop in your area that repairs other electronic equiptment like TV's e.t.c

    Remove the WiiU board yourself, get the teensy yourself and take in some detailed pictures and detailed info of the wiring that needs to be done.
    If you explain your situation to them and they understand exactly what need to be done they might do the job for you.
    They might not want to do it but there is no harm in asking around. It's worth a shot if you don't want to try it yourself.

    If you do want to try it yourself, here are some tips:

    Make sure you use single core KYNAR wire. just search on ebay for "360 mod wire" and you will easily find some.
    If you try and use regular muliti core wire you will find it more difficult.
    Make sure you use some flux on the board when you are soldering, this will also make it a lot easier.
    Get the finest needle tip soldering iron you can find the smaller the better and also use fine gauge solder.
    Use a good magnifying glass or magnifying glasses.
    Use a multimeter to test the connections.

    When it comes down to the soldering itself, look online for soldering tutorials.
    Before you attempt to solder to the WiiU practice first on some old electronics circuit boards first.
    It can be anything. If you dont have anything around you want to sacrifice just look online for an old broken phone or something electronic thats cheap.

    Good Luck.:)

    Carlos_DobleC likes this.
  8. ten2029

    ten2029 Newbie

    Newcomer
    1
    Oct 9, 2019
    Thailand
    Can the technique you mention be able to fix cbhc bricks? (Error : 160-0101)

    I backed up some data before the brick, that is
    - top.bin (1 KB)
    - seeprom.bin (1 KB)
    - slc.bin (540,672 KB)
    - slccmpt.bin (540,672 KB)
    - keys.bin (1 KB)
    - nand.bin (540,673 KB)

    Is this information sufficient for recovery?
    I don't know how to start. I only have soldering techniques.
    Please help recommend a solution. Thank You
    16-10-2562 14-17-53.

  9. SundayWarrior

    SundayWarrior GBAtemp Regular

    Member
    4
    Jul 1, 2018
    Russia
    If slc in working condition - just solder teensy and restore slc.bin

    Leeful likes this.
  10. ten2029

    ten2029 Newbie

    Newcomer
    1
    Oct 9, 2019
    Thailand
    1-2.



    What's the difference ?
    I'm looking for a way to fix bricks with Teensy ++ 2.0 but I found 2 types of soldering and I don't know which type to choose.

    Last edited by ten2029, Oct 17, 2019 at 10:28 AM
  11. SundayWarrior

    SundayWarrior GBAtemp Regular

    Member
    4
    Jul 1, 2018
    Russia
    Slc.bin = wiiu

  12. ten2029

    ten2029 Newbie

    Newcomer
    1
    Oct 9, 2019
    Thailand
    1-2.

    What kind of debugging should be done?
    Type 1 or Type 2

    Last edited by ten2029, Oct 17, 2019 at 9:52 AM
  13. SundayWarrior

    SundayWarrior GBAtemp Regular

    Member
    4
    Jul 1, 2018
    Russia

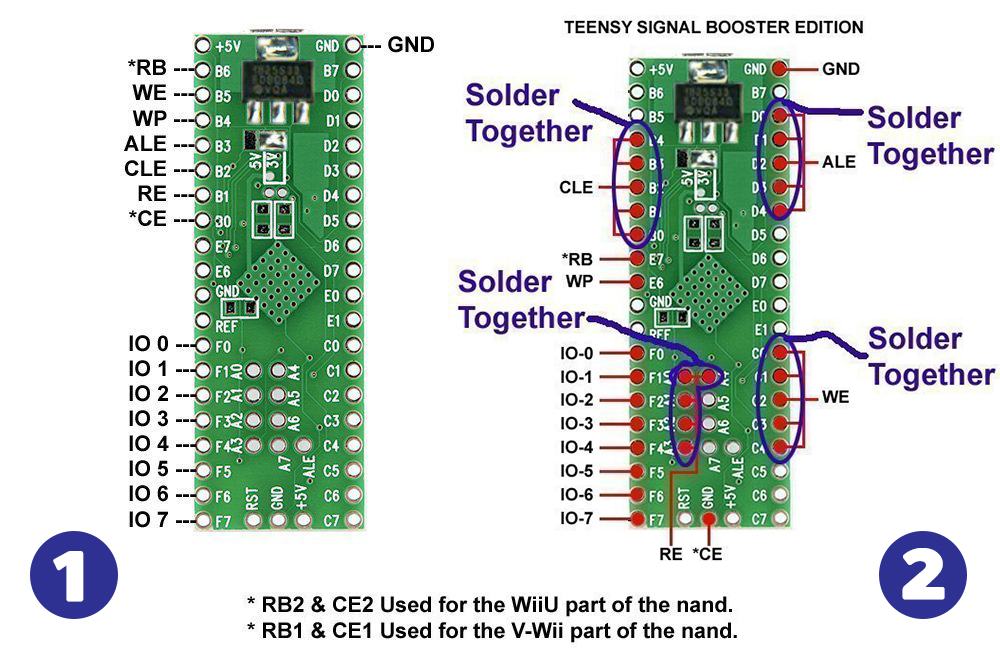

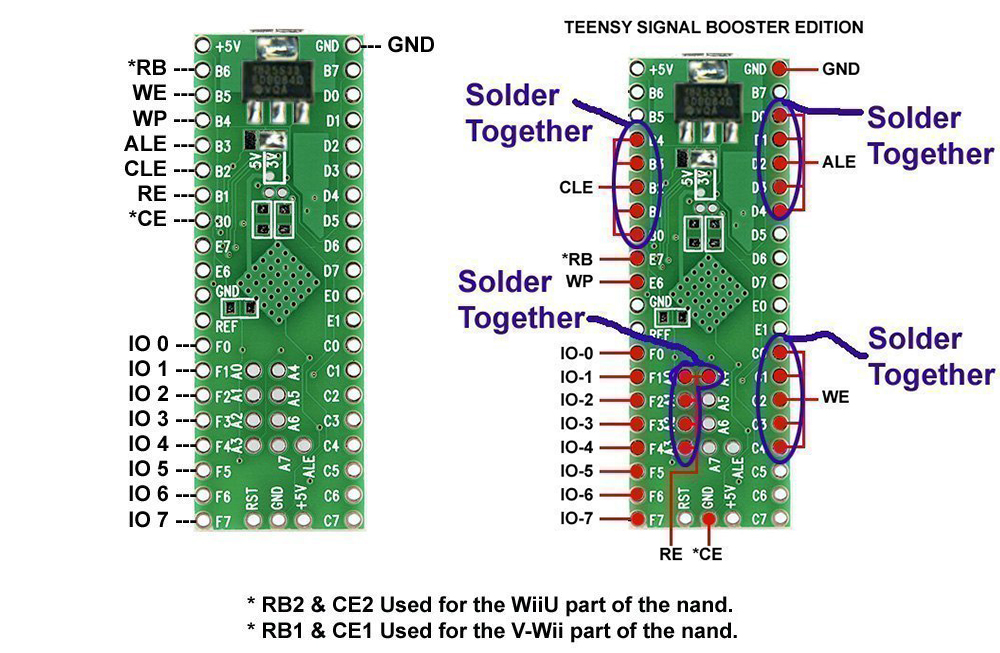

    Hmm, to hard? On image all wrote - "RB2 & CE2 Used for the WiiU part of the nand"

    — Posts automatically merged - Please don't double post! —

    Type 1 - naked teensy2.0++
    Type 2 - used points

    — Posts automatically merged - Please don't double post! —

    Lol

    ten2029 likes this.
  14. ten2029

    ten2029 Newbie

    Newcomer
    1
    Oct 9, 2019
    Thailand
    I want to fix the cbhc brick. (error:160-0101) Should I choose Type 1 or Type 2?

    I'm looking for a way to fix bricks with Teensy ++ 2.0 but I found 2 types of soldering and I don't know which type to choose.

    Last edited by ten2029, Oct 17, 2019 at 10:27 AM
  15. BaamAlex

    BaamAlex (*(vu64 *)0x1FF81100)

    Member
    6
    Jul 23, 2018
    Germany
    Is someone from Germany doing such a hardmod? My Wii U is not bricked. But then having such a hardmod already installed is nice. Or can you not use the Wii U if the Hardmod is installed?
