    Hey Guys,

    I wonder if it may be possible to extract/rebuild the .dat-files inside the romFS of Fire Emblem: Three Houses.

    I'd like to extract/edit Ingame Models of that game, if possible.

  2. masagrator

    masagrator The developper
    Member

    Joined:
    Oct 14, 2018
    Messages:
    3,514
    Country:
    Poland
    QuickBMS + arslan.bms script will unpack files without correct filenames. It can't replace files in archives.

    Last edited by masagrator, Aug 5, 2019
  3. xXDungeon_CrawlerXx

    OP xXDungeon_CrawlerXx GBAtemp Addict
    Member

    Joined:
    Jul 29, 2015
    Messages:
    2,041
    Country:
    Tried it

    Where can I find the IDX File for it?


    EDIT:
    Using the filecutter.bms gives me two 2048kb files

    but renaming them to DATA.idx and use the arslan.bms doesn't work either. (DATA1.bin and DATA1.idx are in the same folder)

    Mind explaining how to extract the bin files and sharing the bms files you use?

    Last edited by xXDungeon_CrawlerXx, Aug 5, 2019
  4. masagrator

    masagrator The developper
    Member

    Joined:
    Oct 14, 2018
    Messages:
    3,514
    Country:
    Poland
    you need to rename data0.bin to linkdata.idx and data1.bin to linkdata.bin
    And you use script on linkdata.idx

    xXDungeon_CrawlerXx likes this.
  5. xXDungeon_CrawlerXx

    OP xXDungeon_CrawlerXx GBAtemp Addict
    Member

    Joined:
    Jul 29, 2015
    Messages:
    2,041
    Country:
    Well, renaming DATA0.bin to DATA1.idx seems to be enough. It's extracting now.
    Is there a way to find out which file does what?

  6. masagrator

    masagrator The developper
    Member

    Joined:
    Oct 14, 2018
    Messages:
    3,514
    Country:
    Poland
    Nope, if you don't know hex structure of each file you want to search.

  7. Ranford

    Ranford Member
    Newcomer

    Joined:
    Mar 30, 2017
    Messages:
    29
    Country:
    Russia
    All text files have a header:
    0x1 0x1 0x20 0x10

    Starting at file 30776, begin the SARC archives.

    File 70, 71, 72, 73, 74, 537 are font graphics.

    Compressed archives have a structure:

    uint32 size uncompressed chunk
    uint32 chunk count
    uint32 uncompressed file size

    For I to chunk count
    uint32 compressed chunk size with meta

    chunk:
    uint32 $size
    [$size]: zlib data

    Maybe someone else knows information.

    Last edited by Ranford, Aug 7, 2019
    xXDungeon_CrawlerXx likes this.
  8. masagrator

    masagrator The developper
    Member

    Joined:
    Oct 14, 2018
    Messages:
    3,514
    Country:
    Poland
    Hmm, arcording to quickbms script SARC archives are between 65a3-65d6.

    They contain some textures (bntx) like profile images of students, cursors, loading parts when game is booting, chapter background, etc + 2D layouts (bflyt) for them, animation data (bflan) + sometimes shaders (bnsh+bushvt).

    Edit: Now I understand you are using custom tool from other topic. But in this case has some issues.

    So for now we have
    - SARC archives (contains BNTX textures, BFLYT layouts, BFLAN animations, BNSH+BUSHVT shaders) - can be opened with Switch Toolbox
    - KTSR files (probably sound files)
    - GT1 textures (they can containt many texture files and contains also mipmaps) - Can be opened with Switch Toolbox (some of them are crashing because of mipmap error)

    Some files after decompressing with quickbms (f.e. 8e3) and linkdata tool are still compressed with zlib. After uncompressing they are not readable.

    Pretty messed up thing. :D

    Last edited by masagrator, Aug 11, 2019
  9. Ranford

    Ranford Member
    Newcomer

    Joined:
    Mar 30, 2017
    Messages:
    29
    Country:
    Russia
    I found only 1 .g1tg file (GT1G0600 magic). The rest are either inside the zlib archives, or I made a mistake in unpacking.

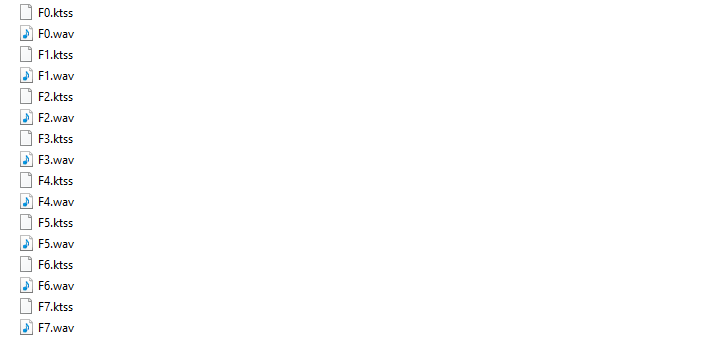

    Edit: I write a tool that gets .ktss from .ktsl2stbin and converts to .wav using vgmstream.


    Last edited by Ranford, Aug 18, 2019
    phaie likes this.
  10. phaie

    phaie Member
    Newcomer

    Joined:
    Aug 3, 2018
    Messages:
    17
    Country:
    Brazil
    Thank for your tool, but it shows file not not found. idk what is wrong

  11. Ranford

    Ranford Member
    Newcomer

    Joined:
    Mar 30, 2017
    Messages:
    29
    Country:
    Russia
    Double click to exe. Drag and drop your file in console.

  12. phaie

    phaie Member
    Newcomer

    Joined:
    Aug 3, 2018
    Messages:
    17
    Country:
    Brazil
    [​IMG]
    I tried it as you say, but it didn't work.

    Last edited by phaie, Aug 22, 2019
  13. masagrator

    masagrator The developper
    Member

    Joined:
    Oct 14, 2018
    Messages:
    3,514
    Country:
    Poland
    Maybe it doesn't like spaces. :P

  14. phaie

    phaie Member
    Newcomer

    Joined:
    Aug 3, 2018
    Messages:
    17
    Country:
    Brazil
    Thanks, is there any way to convert KTSR files? I think maybe they are the battle voice.

  15. Ranford

    Ranford Member
    Newcomer

    Joined:
    Mar 30, 2017
    Messages:
    29
    Country:
    Russia

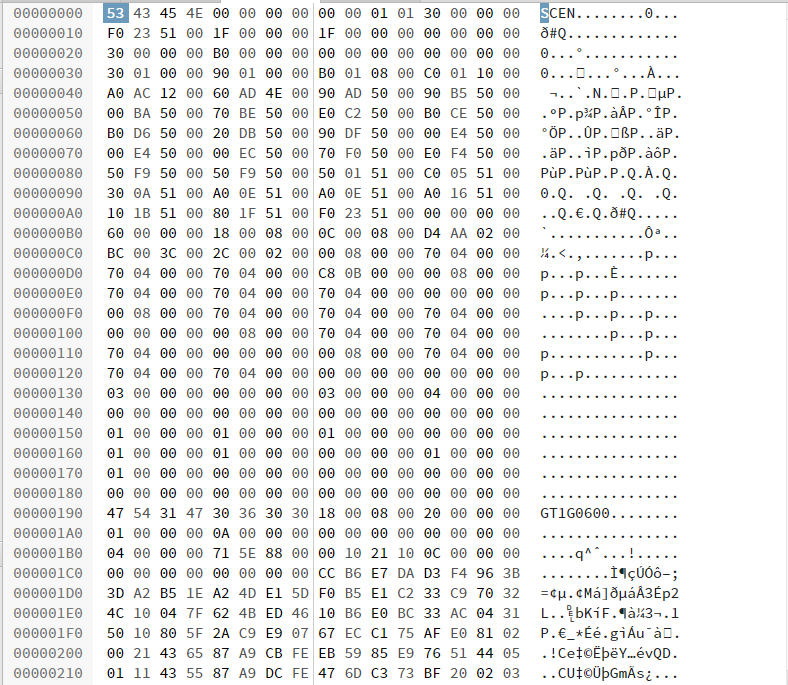

    So, in general, I wrote a simple deflate unpacker. With the help of it, I also dug up such a file format. Not sure what SCEN is?

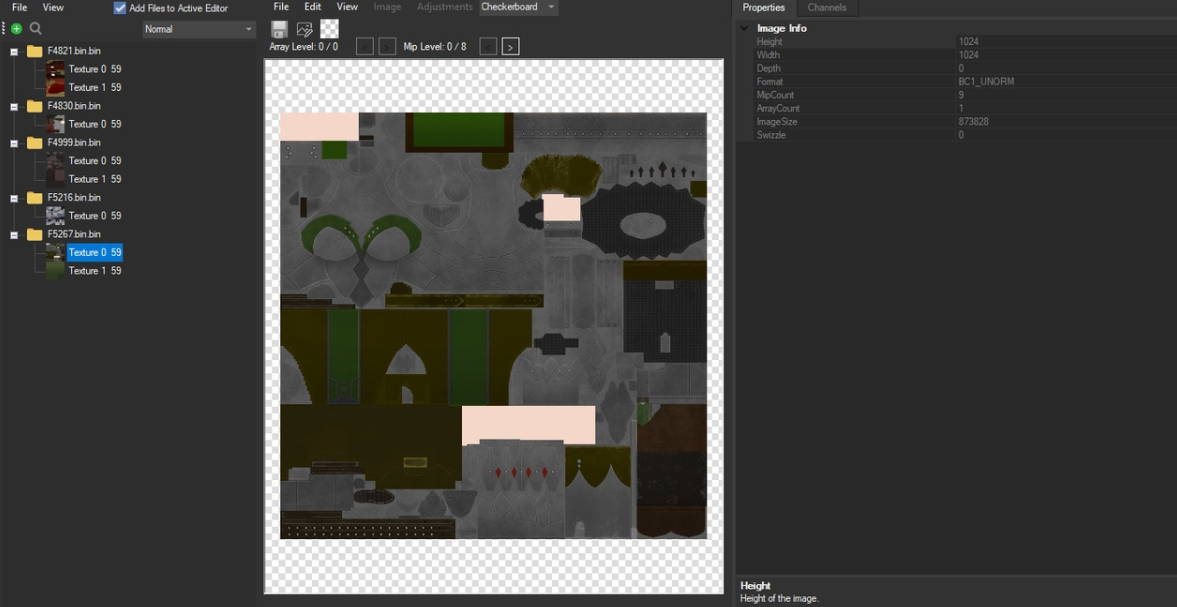

    As well as textures:


    More details: https://github.com/bqio/fethdeflateformat

    Last edited by Ranford, Aug 24, 2019
    BennyXCross likes this.
  16. Yanda

    Yanda GBAtemp Regular
    Member

    Joined:
    Aug 26, 2015
    Messages:
    123
    Country:
  17. Ranford

    Ranford Member
    Newcomer

    Joined:
    Mar 30, 2017
    Messages:
    29
    Country:
    Russia
    go to release page in github.

    Yanda likes this.
  18. Yanda

    Yanda GBAtemp Regular
    Member

    Joined:
    Aug 26, 2015
    Messages:
    123
    Country:
    Thank you gentleman.

  19. Nevermore

    Nevermore GBAtemp Fan
    Member

    Joined:
    Jun 16, 2014
    Messages:
    336
    Country:
    United States
    So for the Updates, is it something we can extract as files, or is it diffs instead?

    I'm really curious as to what they've added/changed.
