Many thanks for your feedback!
I did all the measurements while my lab power supply was connected to the board at 12V and 0.5A. I only carried out the measurements below the Ethernet connection in diode mode, all others in DC mode. I am aware that the F7002 area should not generate 1.8V, but actually 3.3V. I just don't know why this might be the case in this instance.

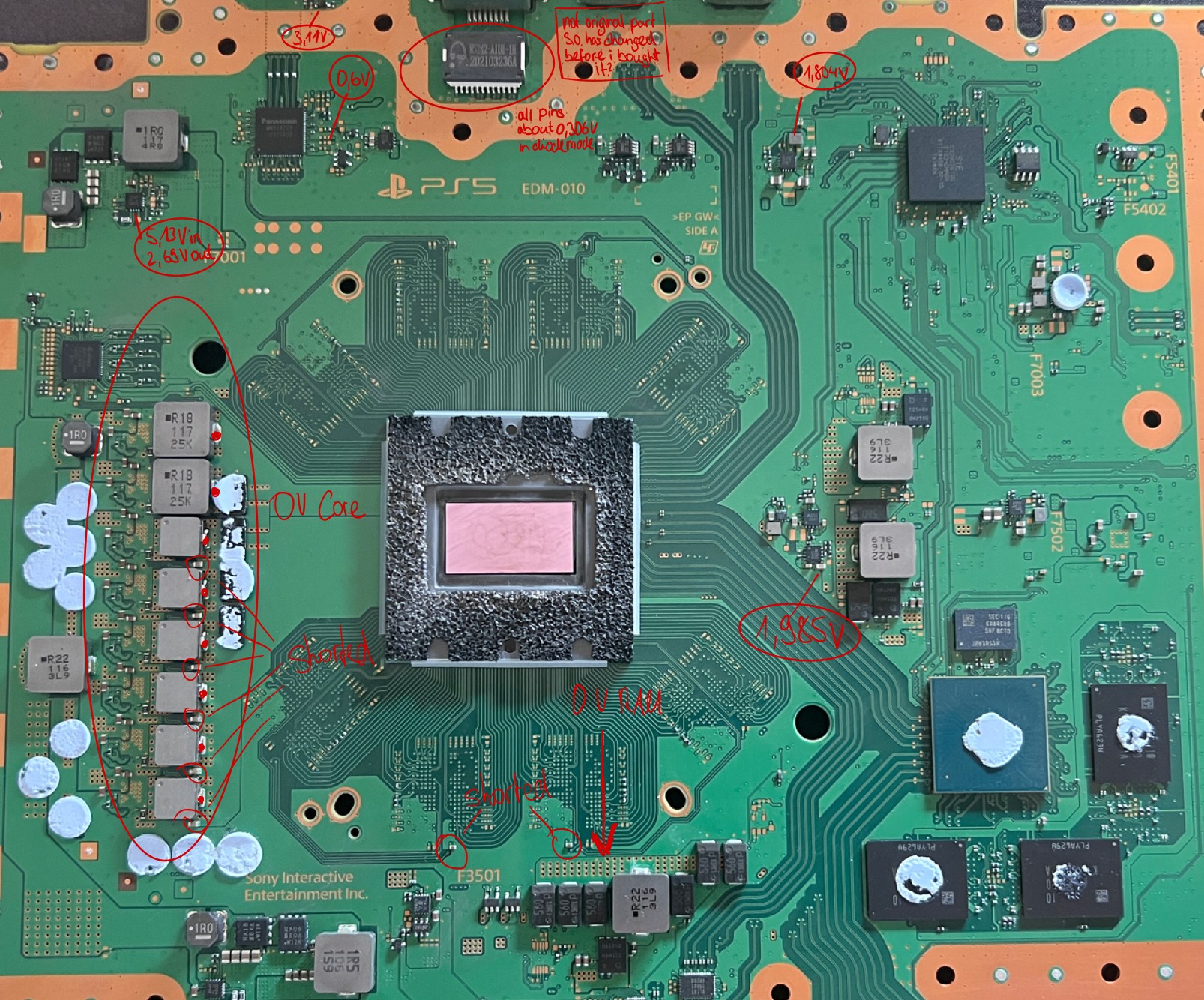

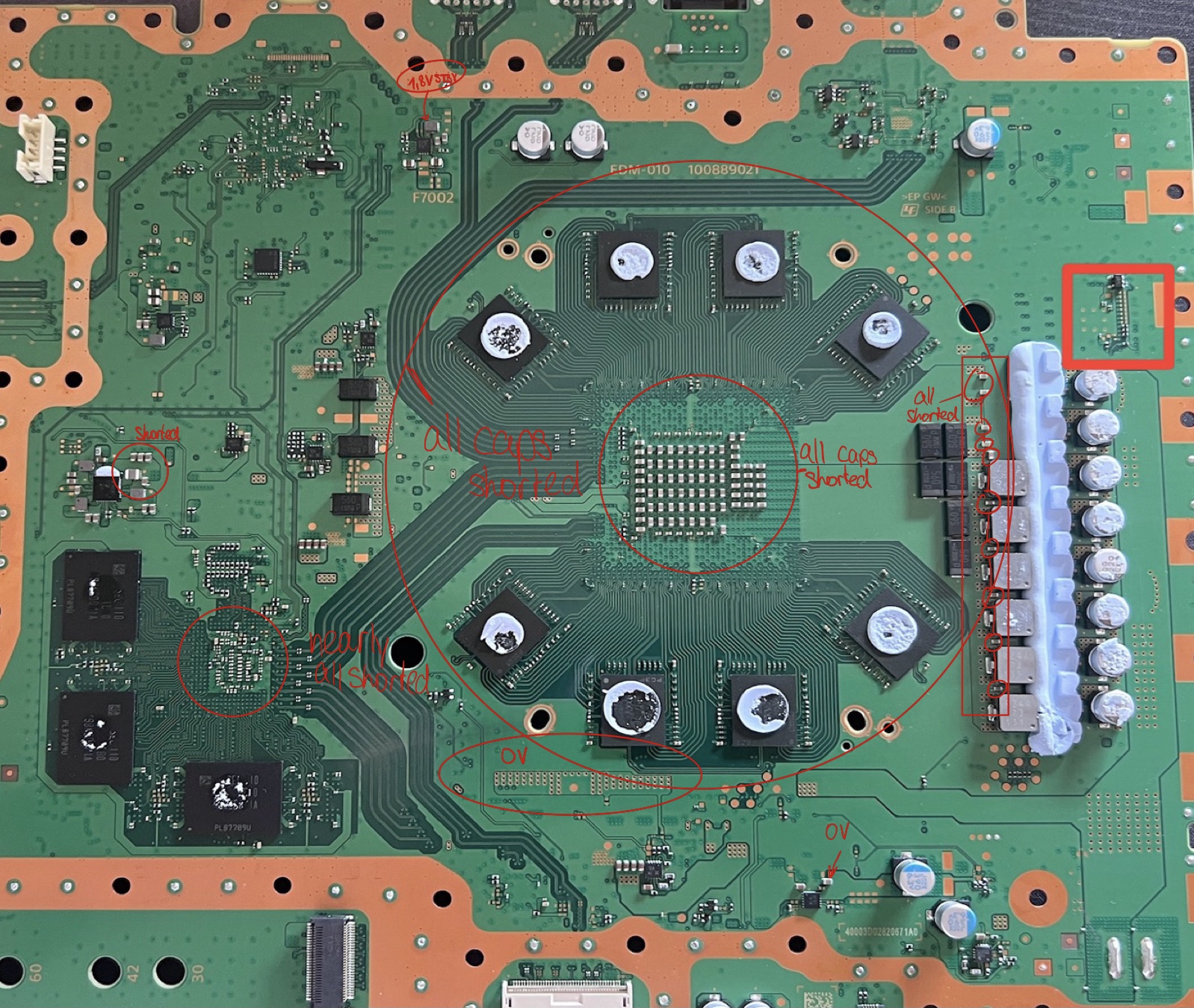

Regarding my pictures: I have only drawn in all the deviations from the standard, hence the 1.8V at the F7002 point.
Do you have any ideas about what I could do next?
One other thing I have noticed is that the console only just reaches 300mA in the first stage of the standby boot sequence and then drops to a value of 3-5mA in the second stage and holds this value permanently. (As far as I know, 321mA should be normal in the first stage and 7-10mA in the second stage).
And do you have any idea what could be the reason why I have 0V on the 1.35V rail? Do you think it's a short circuit in a capacitor? And if so, how do I find out which one? Unfortunately, I don't have a thermal imaging camera ...
