Components used on the Switch (mostly the motherboard and main console)

Discussion in 'Switch - Console, Accessories & Hardware' started by WadsRUs, Dec 2, 2018.

  1. Pintglass

    Pintglass Member

    Newcomer
    2
    Jan 28, 2019
    United Kingdom
  2. Irepairphl

    Irepairphl Newbie

    Newcomer
    1
    Apr 11, 2019
    United States

    Hey mattytrog,

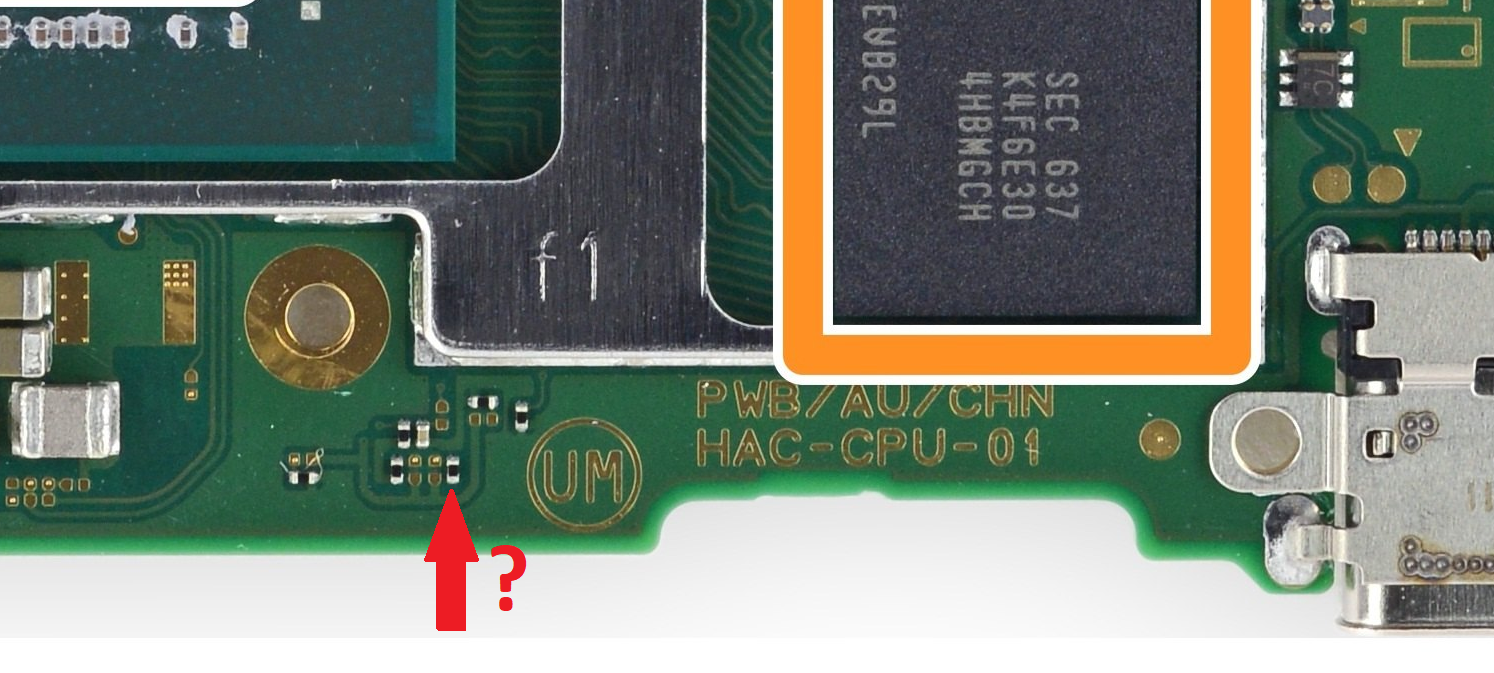

    Would you be able to test and find the values of the cap circled below? Thanks!


    Attached Files:

  3. Pintglass

    Pintglass Member

    Newcomer
    2
    Jan 28, 2019
    United Kingdom
    He's already labelled it in the second post of this thread.

  4. Irepairphl

    Irepairphl Newbie

    Newcomer
    1
    Apr 11, 2019
    United States
    Oh there it is. Thanks for pointing it out.

  5. JacksonS

    JacksonS GBAtemp Fan

    Member
    5
    Feb 13, 2016
    United States
    Georgia
  6. mattytrog

    mattytrog You don`t want to listen to anything I say.

    Member
    12
    Apr 27, 2018
    United Kingdom

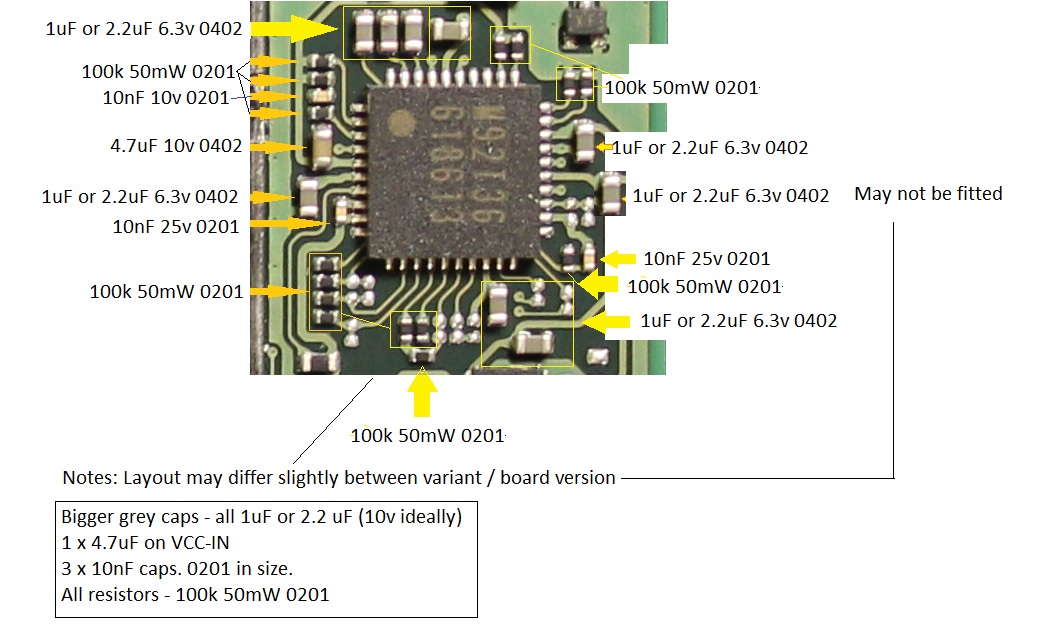

    M92T36 area... You can use either 1uF or 2.2uF caps. Whichever you can get the easiest,

    m92t36 components.

    Last edited by mattytrog, Apr 27, 2019
    peteruk and npavlovici like this.
  7. npavlovici

    npavlovici Member

    Newcomer
    3
    Oct 28, 2009
    Romania

    Attached Files:

  8. mattytrog

    mattytrog You don`t want to listen to anything I say.

    Member
    12
    Apr 27, 2018
    United Kingdom
    npavlovici likes this.
  9. spirity

    spirity Member

    Newcomer
    1
    Mar 13, 2008
    Brazil
    Any one knows this on the red circle, to the joycon?
    [​IMG]

    Last edited by spirity, Apr 29, 2019
  10. npavlovici

    npavlovici Member

    Newcomer
    3
    Oct 28, 2009
    Romania
  11. lpoolm

    lpoolm GBAtemp Regular

    Member
    4
    Jun 20, 2017
    United Kingdom

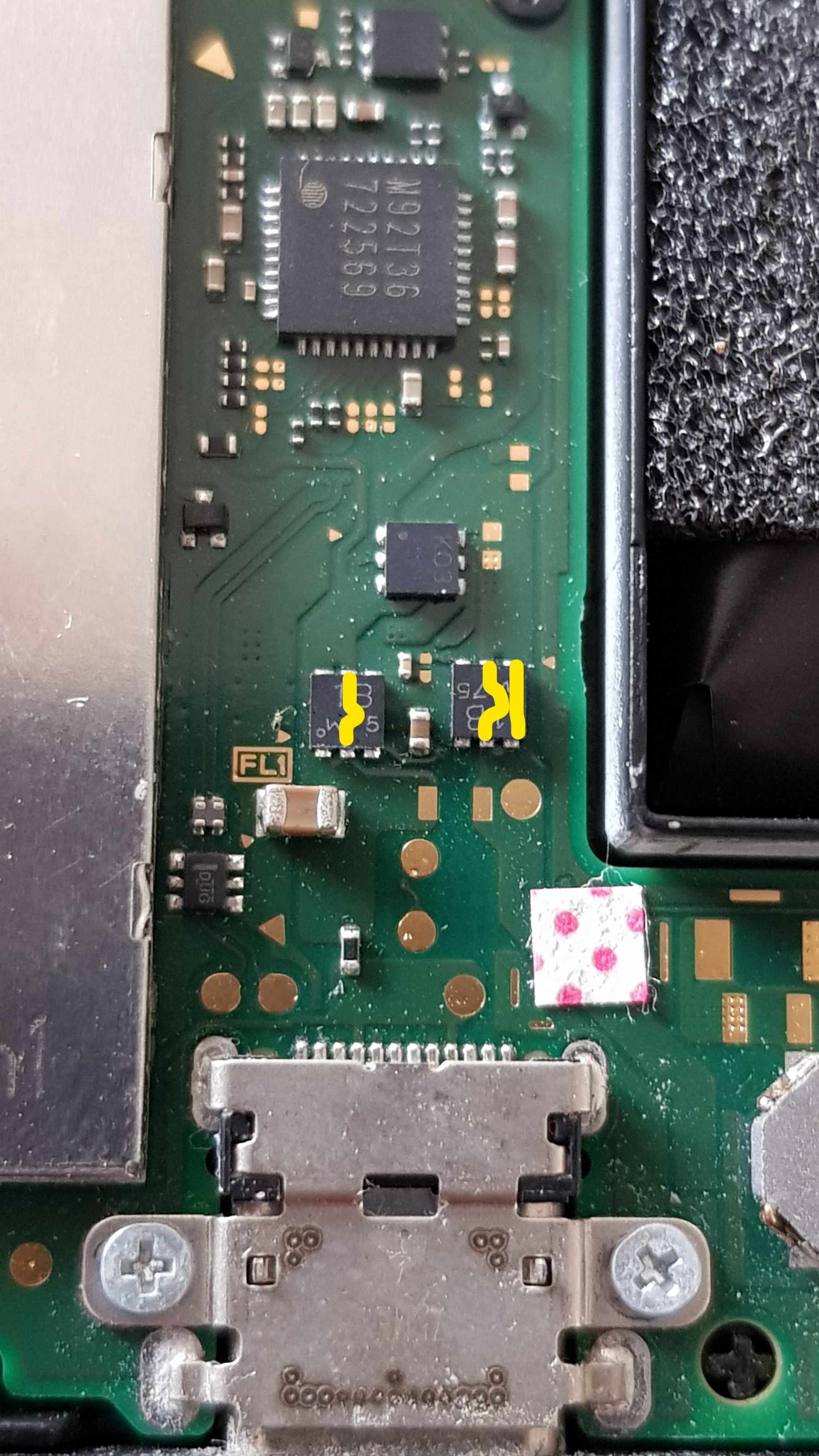

    I have a problem with my switch works perfect in handheld but will not dock, just black screen. the tv output settings only show 480p.
    I have used my multimeter around the usb c port and on the following pic i seem to have continuity on the pins marked (sorry for wobbly lines)? I checked the 3 in the pic and seem to have continuity on the lower 2.
    I am new to this testing like this so learning as i go a long, would love some input from others who have a working board to hand to tell me if this is normal?
    I know my dock works, my tv is fine so it is the switch, changing the usb c port is do-able but a big job, wanted to do that as last resort!
    thanks
    Inked20190506_104445_LI.

  12. xs4all

    xs4all GBAtemp Fan

    Member
    6
    Jun 9, 2008
    Australia
    Is that picture of your actual board? If so, unless my eyes are playing up on me, around the USB C connector looks as though it has some corrosion? the water indicator sticker doesn't look like it's been tripped.
    Did you happen to have any water damage around that area?

  13. lpoolm

    lpoolm GBAtemp Regular

    Member
    4
    Jun 20, 2017
    United Kingdom
    yes thats the board, i haven't spilt anything but possible previous owner?
    i will take a closer look, might have to swap the usb c after all!
    thanks for a second set of eyes

  14. xs4all

    xs4all GBAtemp Fan

    Member
    6
    Jun 9, 2008
    Australia
    Another suggestion is to get one of those circuit board cleaners that comes in a can, they come in many brands but pretty much do all the same thing. Spray in and around that area and use a small toothbrush and just do a general clean around the usb-c area to clean that white corrosion off and let it sit to dry, these cleaners dries pretty quick.
    A can shouldn't cost you more than $10 AUD, not sure how much is that in your currency, I got some at my local electronics store.

    Worth a shot because I seen videos on how to change those usb-c ports, if your a noob, it's going to be hard but if your good with your soldering skills it shouldn't be a problem.

    My first switch was a second hand one with no history, when I opened it up, it looks like it has some sort of water damage at some stage, I used the cleaner to clean up as much as I can see, not sure if it made any difference but it did looks heaps better than before :)

    lpoolm likes this.
  15. Pintglass

    Pintglass Member

    Newcomer
    2
    Jan 28, 2019
    United Kingdom
    You need to check the PI3USB IC on the back of the board where the signal lines come in from the USB-C port, just above the port are 5 filters check all these for continuity also check the lines for any shorts to ground.
    Aslo look inside the usb port to check all the pins are OK

    Last edited by Pintglass, May 6, 2019
  16. lpoolm

    lpoolm GBAtemp Regular

    Member
    4
    Jun 20, 2017
    United Kingdom
    Thanks, I will take apart again tomorrow and test them next.

  17. xs4all

    xs4all GBAtemp Fan

    Member
    6
    Jun 9, 2008
    Australia
    I might as well ask in this thread.

    As stated in my previous reply, my hacked switch I got a while ago was second hand with no history, it only worked in docked mode, figured it was a faulty screen, replaced that and all is working.
    I did notice it has some water damage at some stage, the water indicators didn't trip so it could have been some light water damage, had green corrosion on some solder points, connectors, etc.. Did my best to clean it all up and everything works as it should.

    Now comes the weird part, I have those usb-c voltage monitors that monitors the charge/volts, the Switch charges with no issues either by the dock or directly connecting the OEM Switch charger as far as I can tell since it charges pretty quickly.

    I purchased a portable battery bank/pack to charge the Switch on the go, I noticed that the Switch charges very slowly, checked the usb-c voltage monitor, it's only charging at around 0.12A. I tested the same power bank on my second Switch which I got brand new back in the day and it's charging at 1.87A.

    Could the charging IC be causing this?

    OEM charger is fine but using any other power bank/packs, not good, do the same on my good Switch, I have no issues.

  18. king-arthur

    king-arthur Newbie

    Newcomer
    1
    Oct 10, 2009
    Gambia, The
    While cleaning a water damaged switch, I ripped of one small SMD component. It flew away and I couldn't find it anywhere.
    Can someone name me this component and the correct value? Best regards, arth !!!


    Attached Files:

  19. Pintglass

    Pintglass Member

    Newcomer
    2
    Jan 28, 2019
    United Kingdom

    Its a resistor 100K

    Last edited by Pintglass, May 7, 2019
  20. king-arthur

    king-arthur Newbie

    Newcomer
    1
    Oct 10, 2009
    Gambia, The
    is "100k 50 mW 0201" the right naming/ code?

  21. Pintglass

    Pintglass Member

    Newcomer
    2
    Jan 28, 2019
    United Kingdom
    Size is OK not sure on power rating 0201 are typically 50 mW

    king-arthur likes this.
