Components used on the Switch (mostly the motherboard and main console)

WadsRUs Dec 2, 2018.

  1. WadsRUs
    OP

    WadsRUs GBAtemp Regular

    Member
    5
    Jun 12, 2009
    United Kingdom
    Thanks, now to find some at a reasonable price and a small quantity. :)

  2. npavlovici

    npavlovici Advanced Member

    Newcomer
    4
    Oct 28, 2009
    Romania
    But what is wrong with the tdk I tested? @mattytrog

    Until you order i will say that you can use some wire to conect the points for testing.@wadsRus
    Probably mattytrog will say no,no :)

  3. Tumoche

    Tumoche GBAtemp Regular

    Member
    5
    Apr 30, 2017
    Spain
    Nice to see what part the lcd connector is. Sadly I overpayed shipping for that ebay listing about a month ago (i had to pay 10€ for shipping)

  4. mattytrog

    mattytrog You don`t want to listen to anything I say.

    Member
    13
    Apr 27, 2018
    United Kingdom
    Thats why I put "or equivalent" ;)

    — Posts automatically merged - Please don't double post! —

    I purchased some. They are all good.

    npavlovici likes this.
  5. Frexxos

    Frexxos GBAtemp Fan

    Member
    7
    Apr 27, 2015
    Germany
    Warning: Spoilers inside!
    [​IMG]

    WadsRUs and mattytrog like this.
  6. npavlovici

    npavlovici Advanced Member

    Newcomer
    4
    Oct 28, 2009
    Romania
    Thank's for reconfirmation. :)

    mattytrog likes this.
  7. nerirififi

    nerirififi Advanced Member

    Newcomer
    3
    Nov 18, 2015
    France
    i think this product is not in stock everywhere, minimum order 12000 !
    Equivalent, do you have another reference please ?


    For filter panasonic EXC24CS there is 2 reference , both work ?

    https://www.mouser.fr/Search/Refine?Keyword=Panasonic+EXC24CS

    Last edited by nerirififi, Mar 11, 2019
  8. Pintglass

    Pintglass GBAtemp Regular

    Member
    3
    Jan 28, 2019
    United Kingdom
    @mattytrog

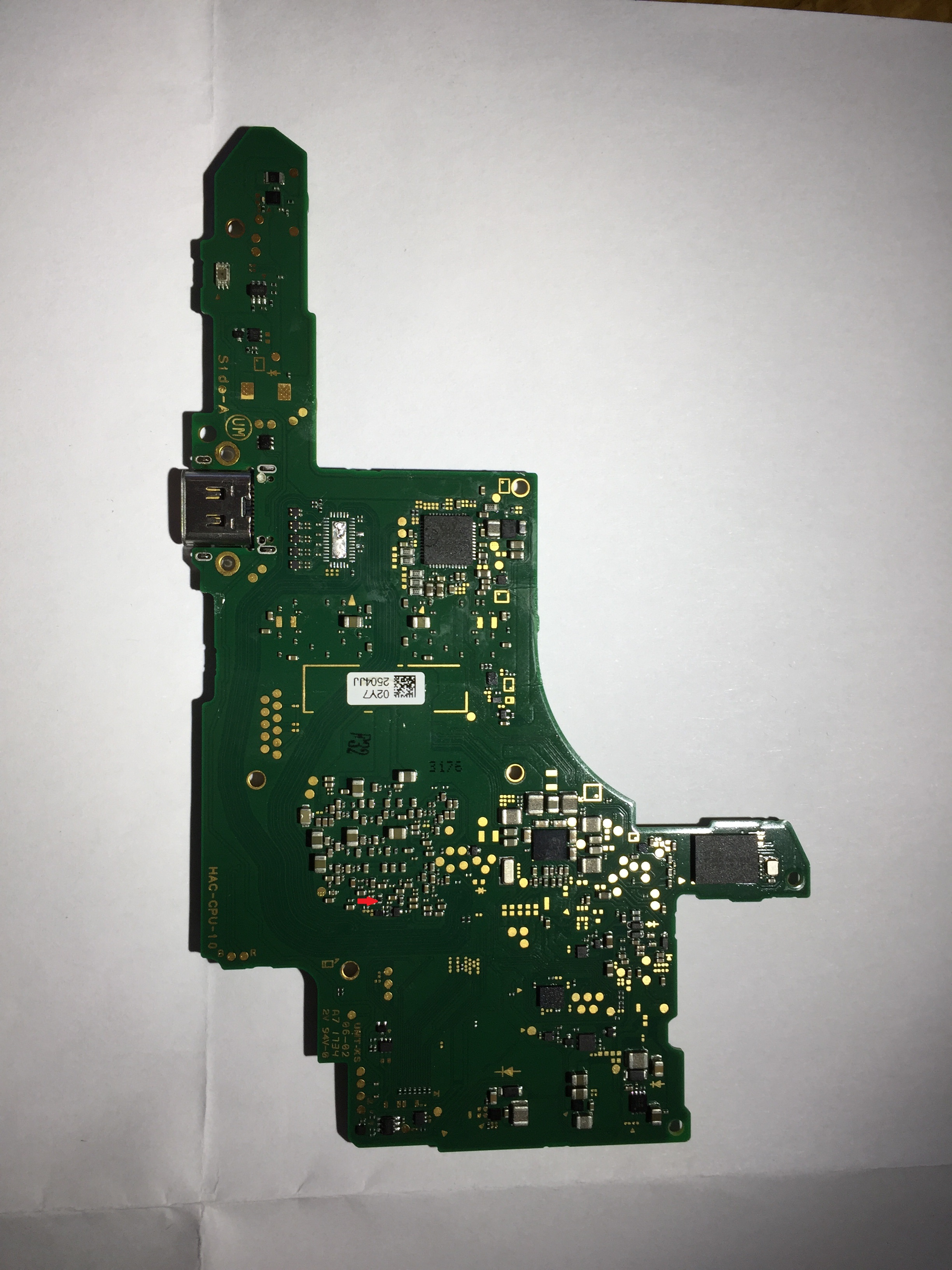

    Have you any idea what the value of the component that I've highlighted in the attached photo is. I'm assuming its a common mode choke but no idea what to order.

    switch.

  9. mattytrog

    mattytrog You don`t want to listen to anything I say.

    Member
    13
    Apr 27, 2018
    United Kingdom
    Yes. It is a Murata DLP series.
    DLP11S 90 ohm choke.

  10. Pintglass

    Pintglass GBAtemp Regular

    Member
    3
    Jan 28, 2019
    United Kingdom
    @mattytrog is the usb 3 controller on the soc

  11. mattytrog

    mattytrog You don`t want to listen to anything I say.

    Member
    13
    Apr 27, 2018
    United Kingdom
    Yes sir! Its a SoC

    However power & voltage levels for USB is controlled by M92T36.
    PI3USB multiplexes the signals (ie switches the lines to do different things etc)

  12. Pintglass

    Pintglass GBAtemp Regular

    Member
    3
    Jan 28, 2019
    United Kingdom
    @mattytrog
    can you test a few things for me
    Most test are on the usb 2 lines d+ and d- where you connect you modchip lines

    1 Do you get continuity between the 2 lines on the top side of the choke just above the usb port

    2 Do you get continuity from either d+ or d- to the 3v3 line

    lastly do these lines just come straight from the usb port then to the 2 test points just below the audio ic then goto the system on chip?

  13. nerirififi

    nerirififi Advanced Member

    Newcomer
    3
    Nov 18, 2015
    France
    Someone know the value of this resistor and condensator ?

    [​IMG]

    Last edited by nerirififi, Mar 18, 2019
  14. Pintglass

    Pintglass GBAtemp Regular

    Member
    3
    Jan 28, 2019
    United Kingdom
    @mattytrog

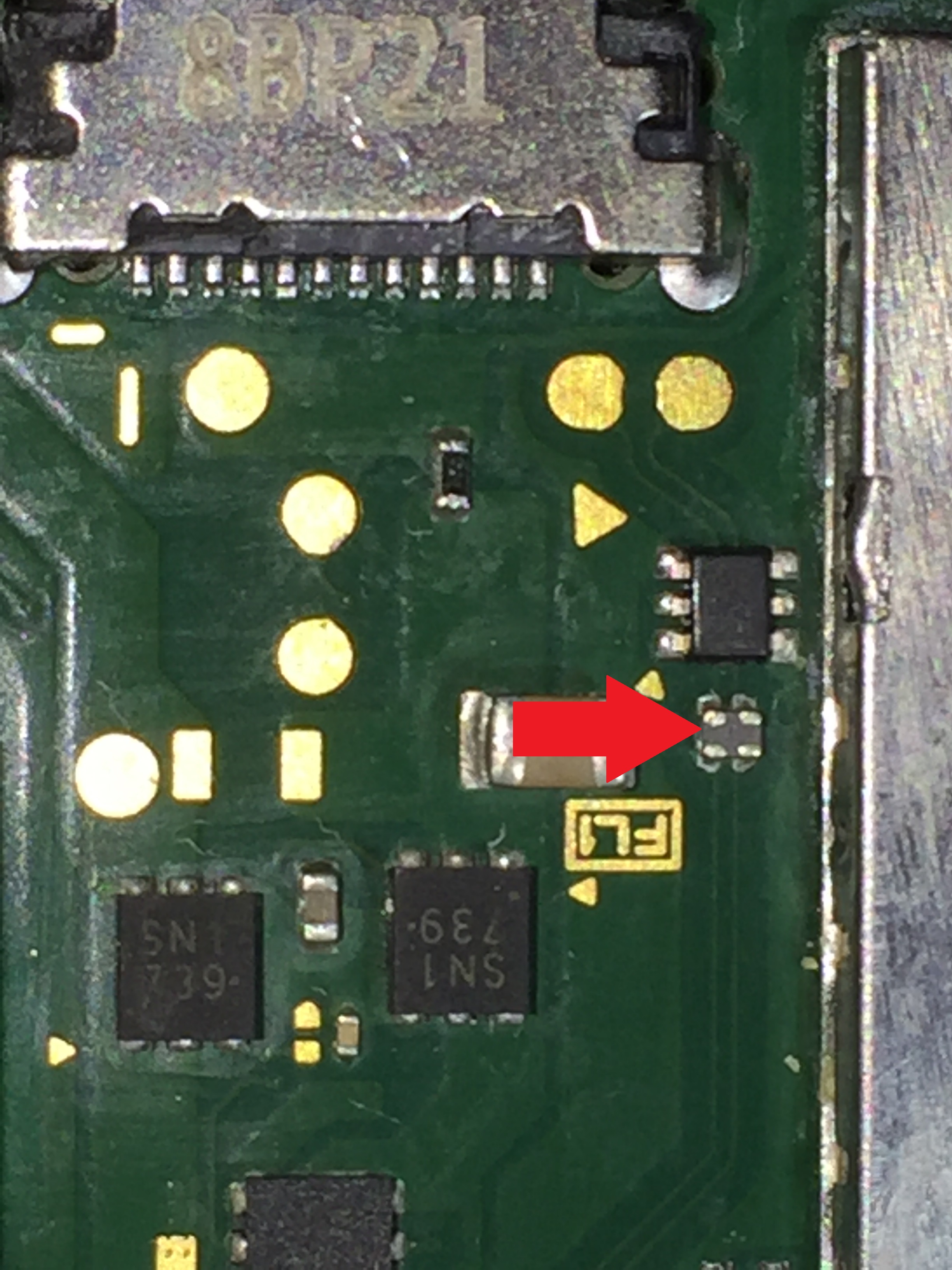

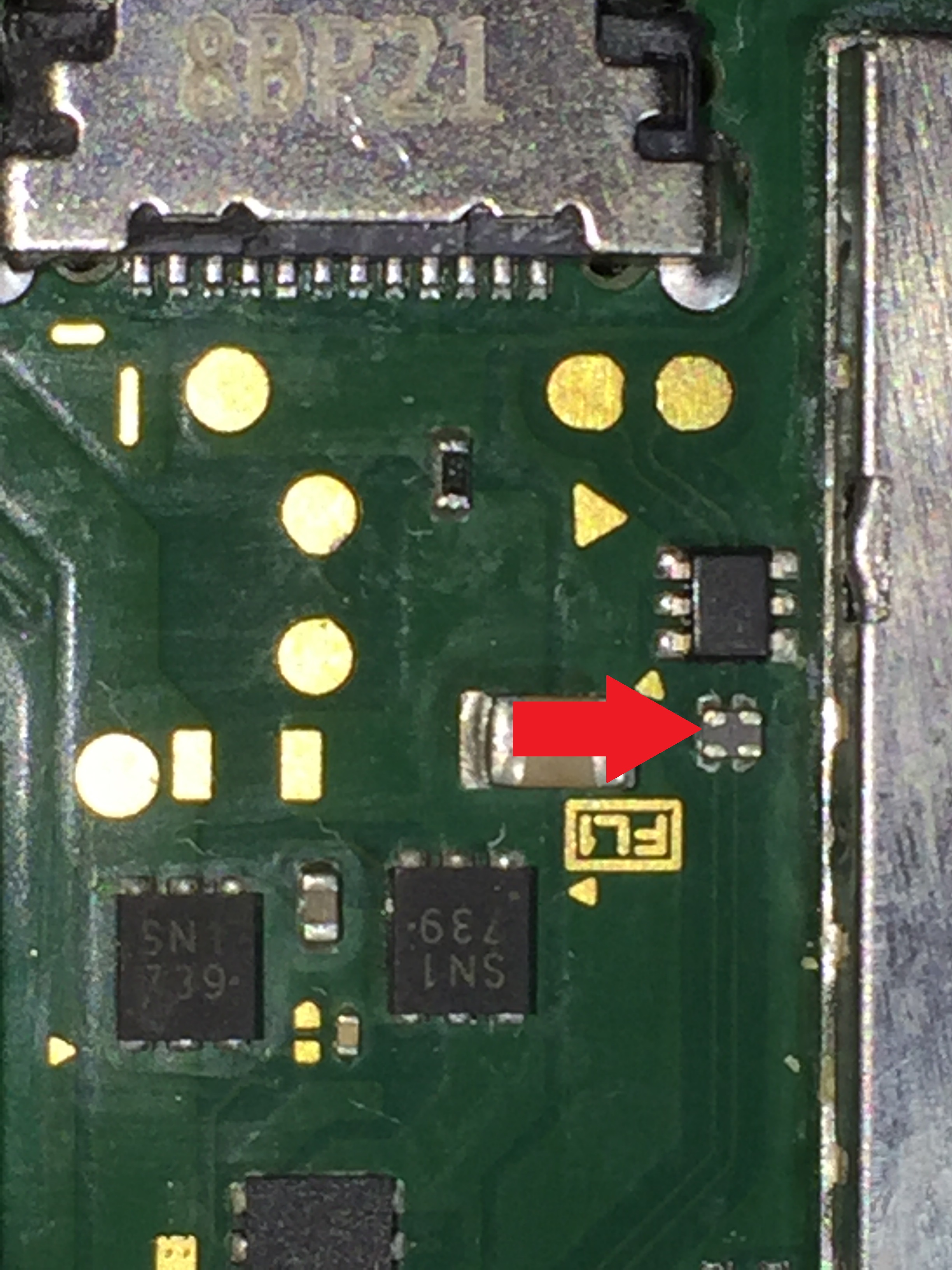

    Can you tell me what this component is?
    switch1.

  15. mattytrog

    mattytrog You don`t want to listen to anything I say.

    Member
    13
    Apr 27, 2018
    United Kingdom
  16. Pintglass

    Pintglass GBAtemp Regular

    Member
    3
    Jan 28, 2019
    United Kingdom
    @mattytrog
    Are there any other components on the usb 2.0 data lines other than the 2 near to the usb port?

  17. Pintglass

    Pintglass GBAtemp Regular

    Member
    3
    Jan 28, 2019
    United Kingdom
    @mattytrog

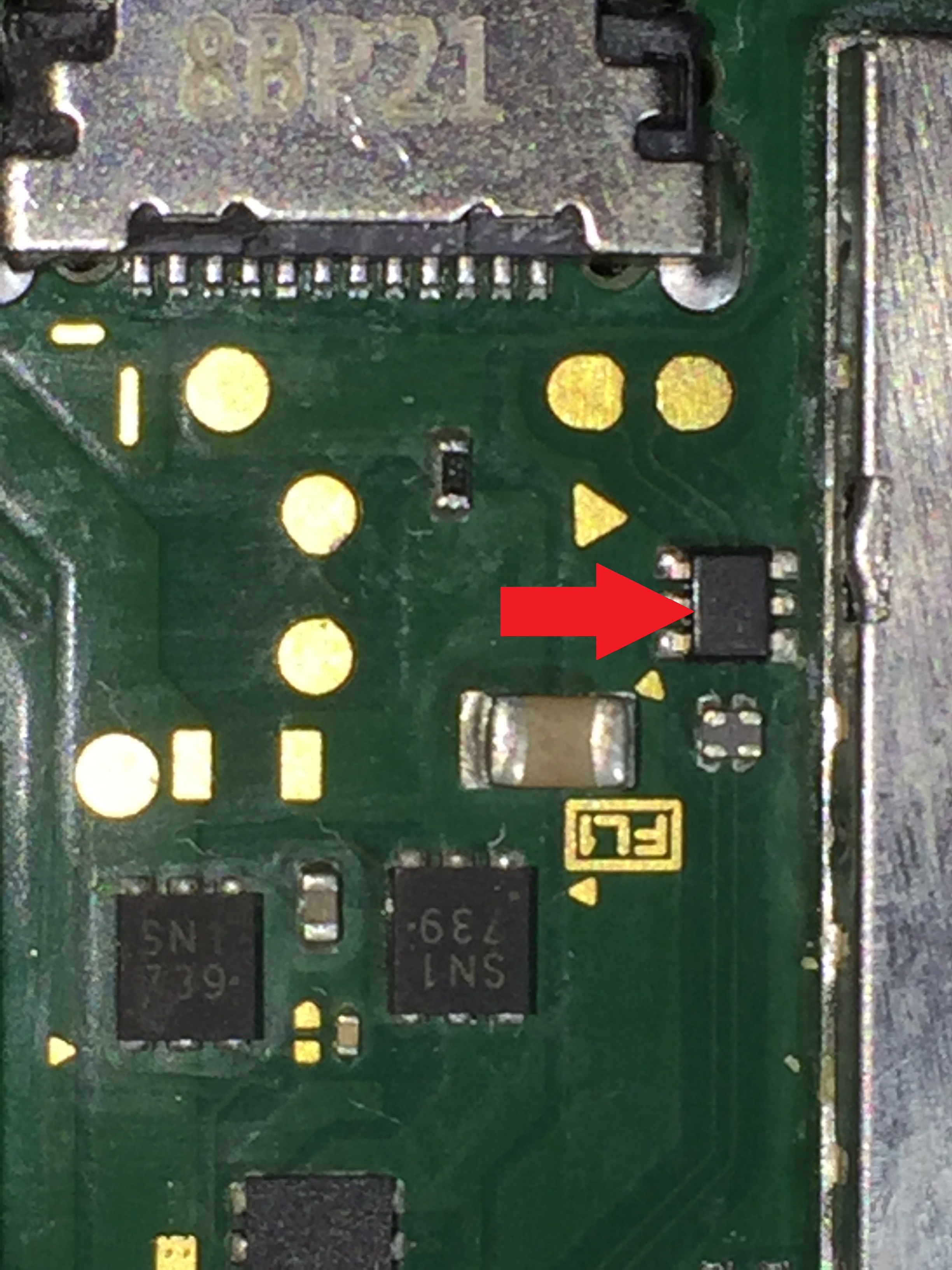

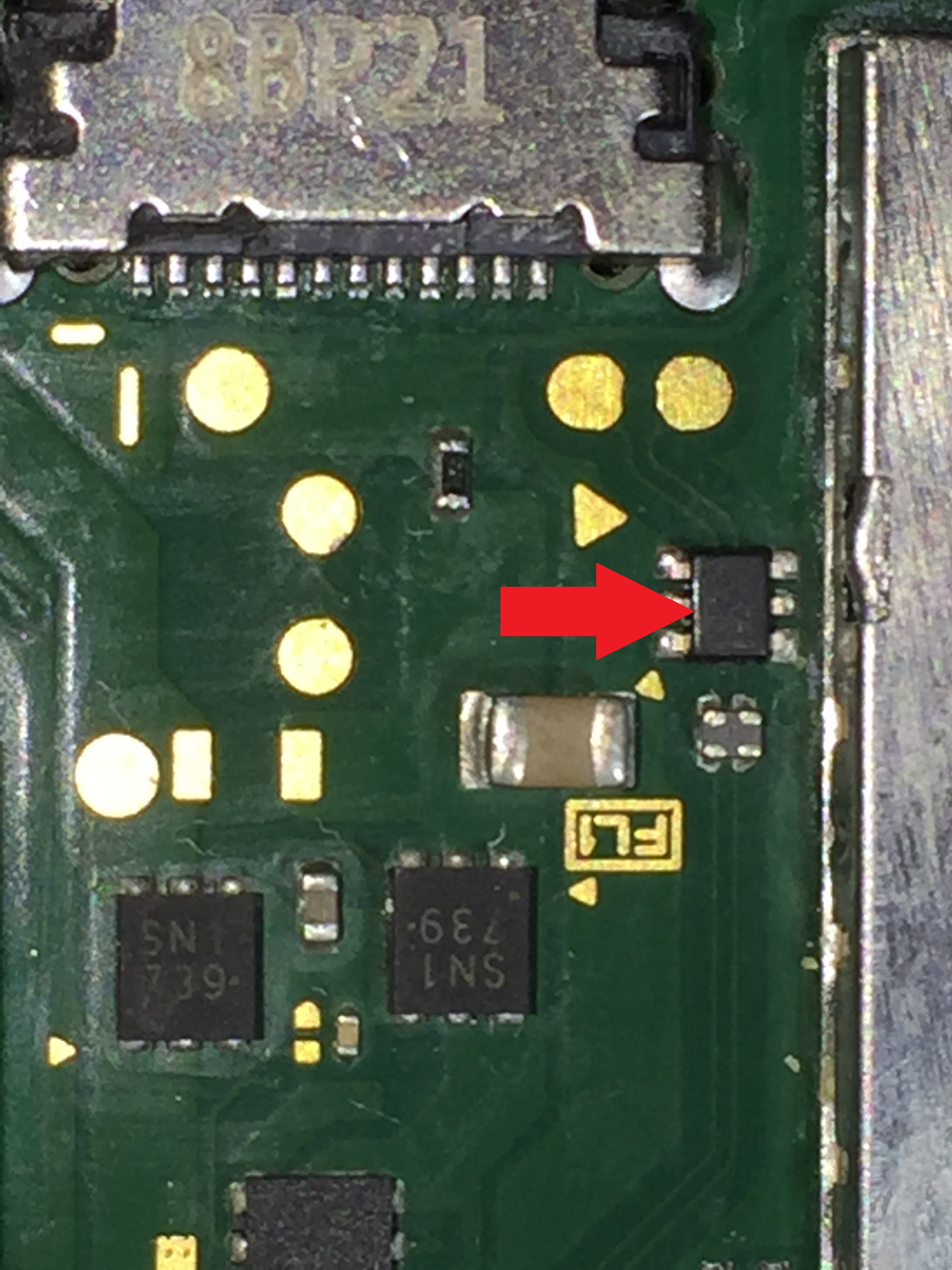

    Can you tell me the value of the component highlighted in the image
    sorry to be a pain but i dont have another switch at moment to test values on.

    switch4.

  18. mattytrog

    mattytrog You don`t want to listen to anything I say.

    Member
    13
    Apr 27, 2018
    United Kingdom
    Sorry! Not near a console! Give me till this evening. Not much switch play time today :(

  19. Pintglass

    Pintglass GBAtemp Regular

    Member
    3
    Jan 28, 2019
    United Kingdom
    @mattytrog
    Sorry to mither you again, did you get chance to test the above component for me.
    would be very grateful if you can.

  20. consolex

    consolex GBAtemp Regular

    Member
    3
    Feb 22, 2016
    France
