Hardware Components used on the Switch (mostly the motherboard and main console)

[Vigintiduo]

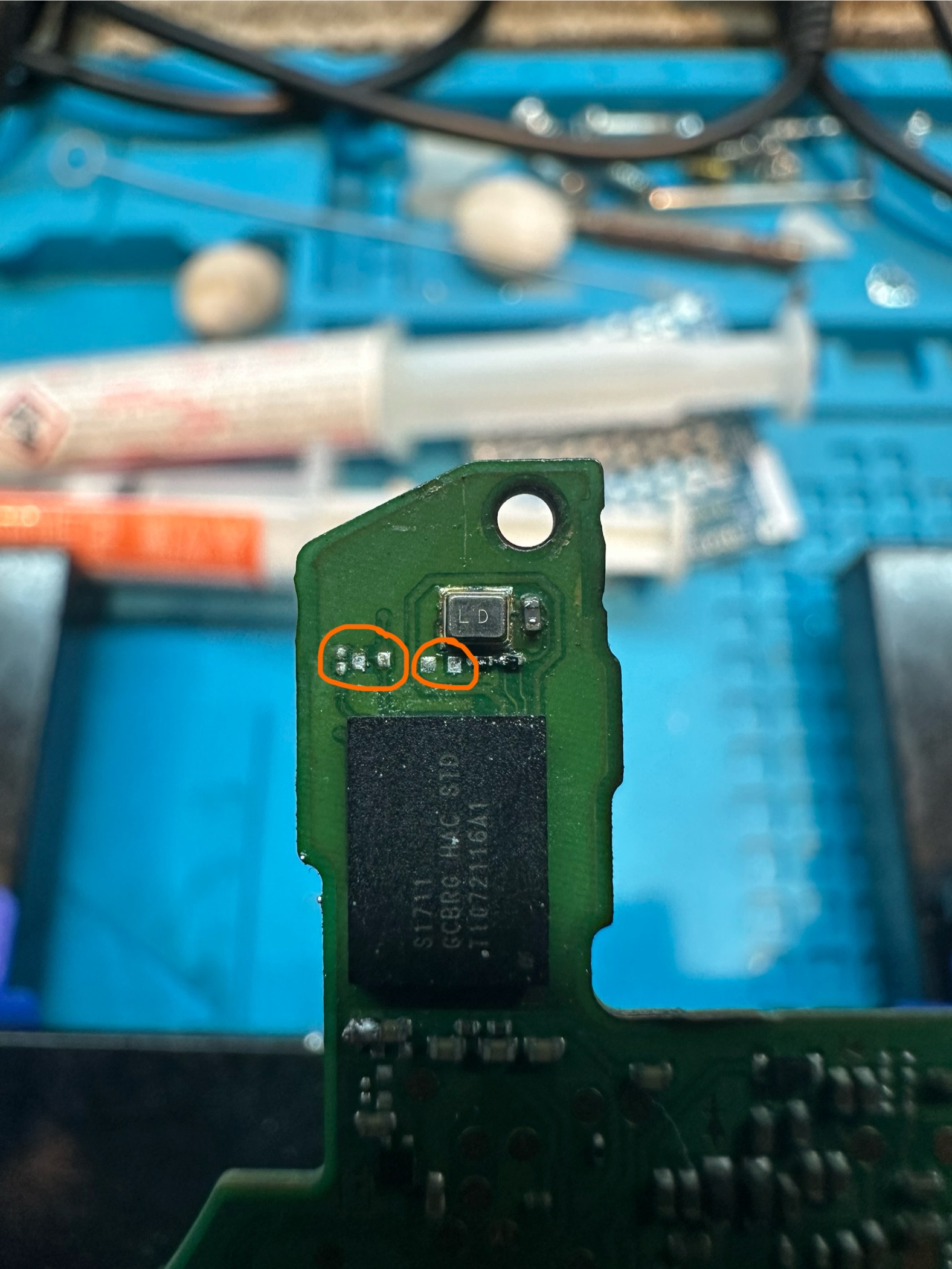

Hi guys, I'm missing a 1uH 0805 inductor on an oled Switch. I've got a donor v1 Switch, can I find the same component in there?



[Oring2011]

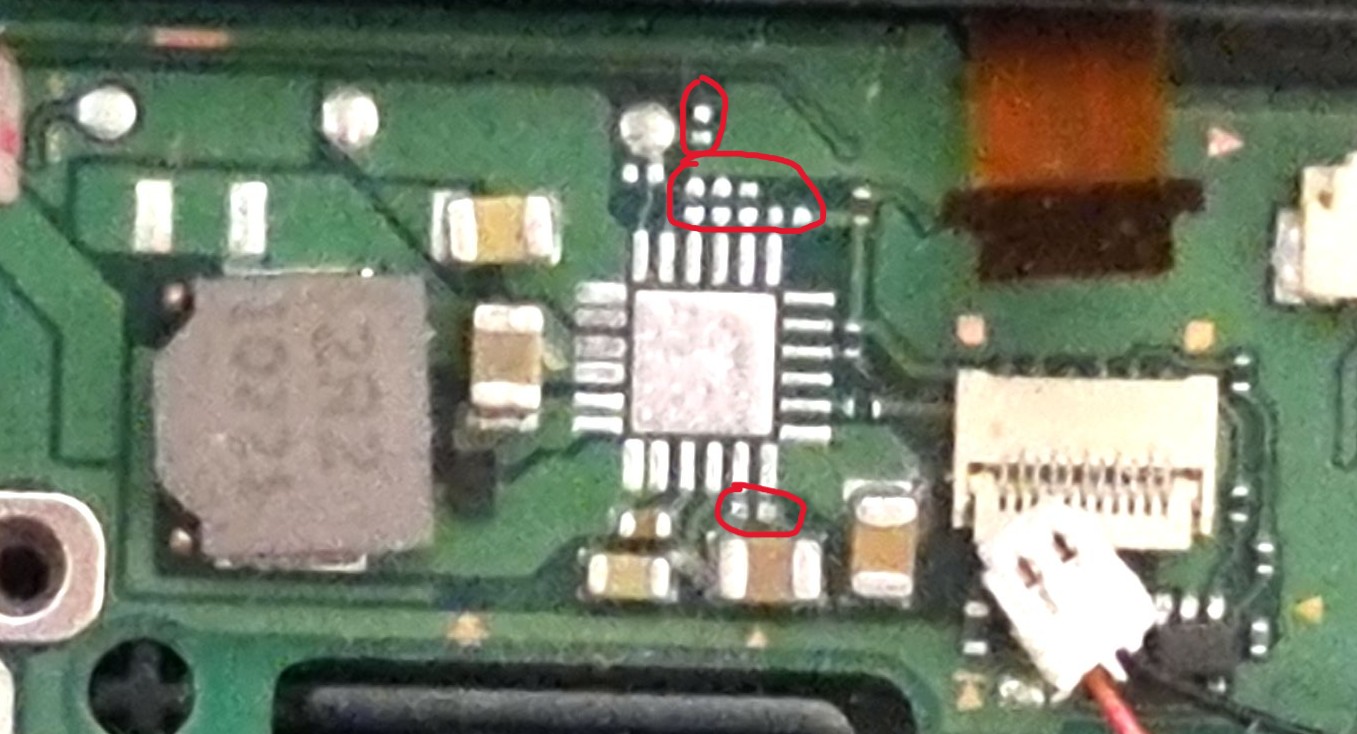

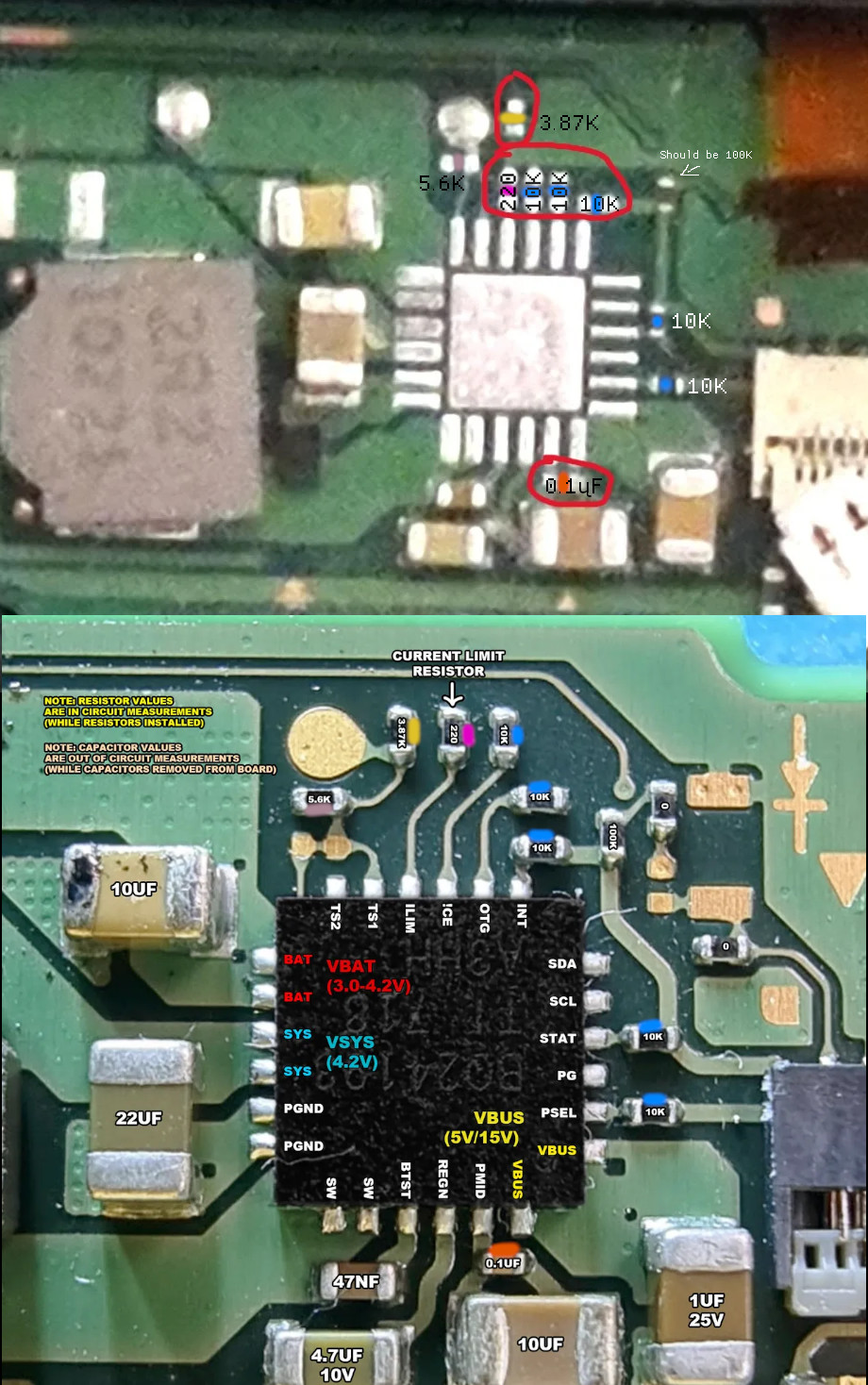

Who know about the value of these Components ?

I’m missing the components when soldiering
The components like resistor,

Post automatically merged: Jul 12, 2024

View attachment 321106

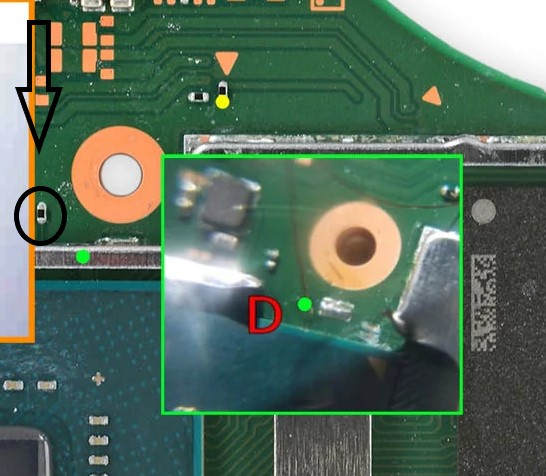

Looking for help please to identify this circled resistor in the area near point D on the oled switch, and also function/importance if anyone knows. Have unfortunately killed it installing the Hwfly 4.1

Hi, do u knows this resistor value,
I have same situation with u
Thanks~



[jkyoho]

Who know about the value of these Components ?

I’m missing the components when soldiering
The components like resistor,

Post automatically merged: Jul 12, 2024

Hi, do u knows this resistor value,
I have same situation with u
Thanks~

100 ohm for v2 board



[Oring2011]

hi, jkyoho
I appreciate your message.
the resistor 100ohm size is 0201?



[jkyoho]

hi, jkyoho
I appreciate your message.
the resistor 100ohm size is 0201?

YES



[Dueiriel]

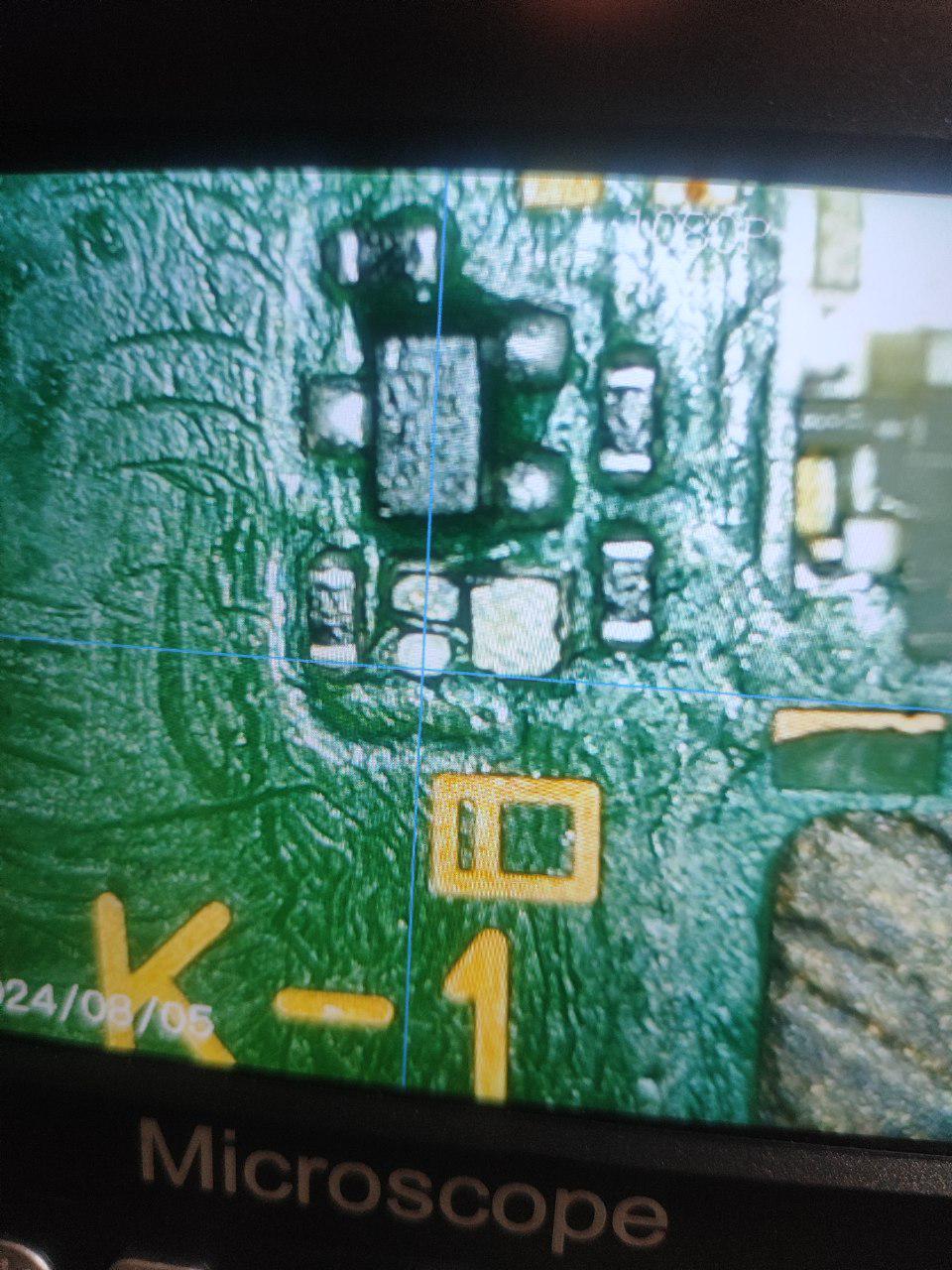

Does anyone know the value of this "sbi/sdi" on the switch oled? I was changing my display connector since it had a few broken pins and my board holder removed the component. Unfortunately the component was damaged. It lost the big pad that it had, luckily the pads on the board are fine.

Post automatically merged: Aug 5, 2024

Does anyone know the value of this "sbi/sdi" on the switch oled? I was changing my display connector since it had a few broken pins and my board holder removed the component. Unfortunately the component was damaged. It lost the big pad that it had, luckily the pads on the board are fine.

Found an answer in a page here:

Marking code S D / not yet found

Marking code RY / ROHM RV2C002U
https://www.mouser.co.uk/ProductDetail/755-RV2C002UNT2L

Marking code SA / Nexperia PMZ600UNE
https://www.mouser.co.uk/ProductDetail/771-PMZ600UNEZ

They are interchangeable right? Mine was SD and I found the SA to buy.



[jkyoho]

Does anyone know the value of this "sbi/sdi" on the switch oled? I was changing my display connector since it had a few broken pins and my board holder removed the component. Unfortunately the component was damaged. It lost the big pad that it had, luckily the pads on the board are fine.
View attachment 451161View attachment 451162

Post automatically merged: Aug 5, 2024

Found an answer in a page here:

Marking code S D / not yet found

Marking code RY / ROHM RV2C002U
https://www.mouser.co.uk/ProductDetail/755-RV2C002UNT2L

Marking code SA / Nexperia PMZ600UNE
https://www.mouser.co.uk/ProductDetail/771-PMZ600UNEZ

They are interchangeable right? Mine was SD and I found the SA to buy.

label "SD" goes for "SSM3K35CT" Toshiba

Post automatically merged: Aug 5, 2024

update on the post above:

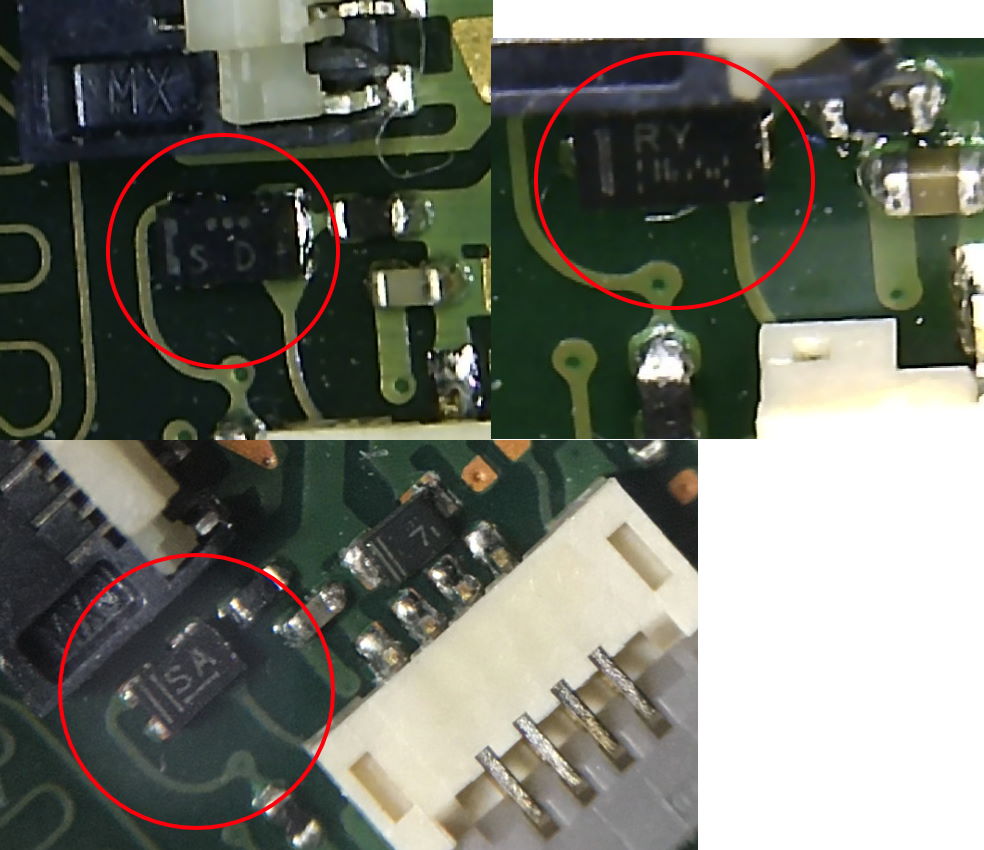

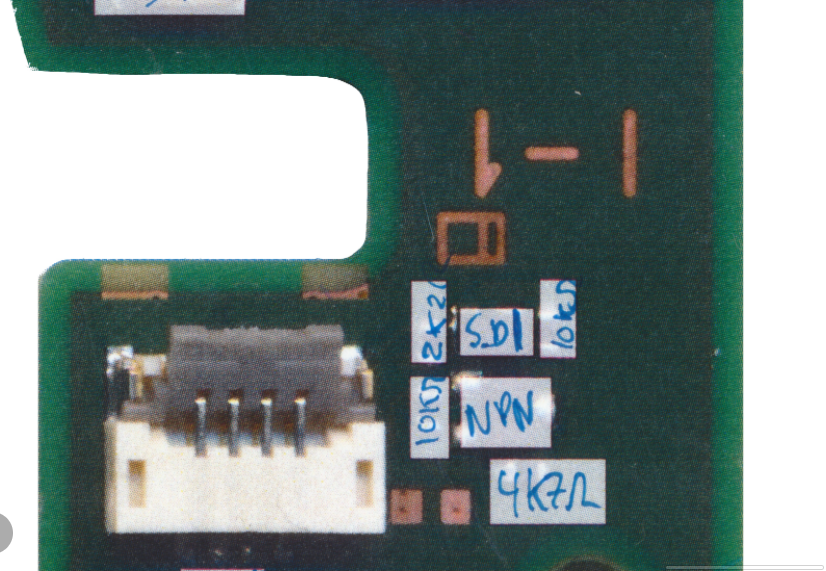

Mosfet near the fan connector. i've seen 3 different marking codes.

Marking code S D / not yet found

Marking code RY / ROHM RV2C002U
https://www.mouser.co.uk/ProductDetail/755-RV2C002UNT2L

Marking code SA / Nexperia PMZ600UNE
https://www.mouser.co.uk/ProductDetail/771-PMZ600UNEZ


View attachment 262079

Found S D, SSM3K35CT Toshiba



[Dueiriel]

label "SD" goes for "SSM3K35CT" Toshiba

Post automatically merged: Aug 5, 2024

Found S D, SSM3K35CT Toshiba

Thank you, I only found to buy the SA on Aliexpress. Mine was SD but I can use the SA, right? Read the documentation of the 3 nd they all are 20v mosfets.



[jkyoho]

YEs, all 3 are interchangable



[BlackGauna]

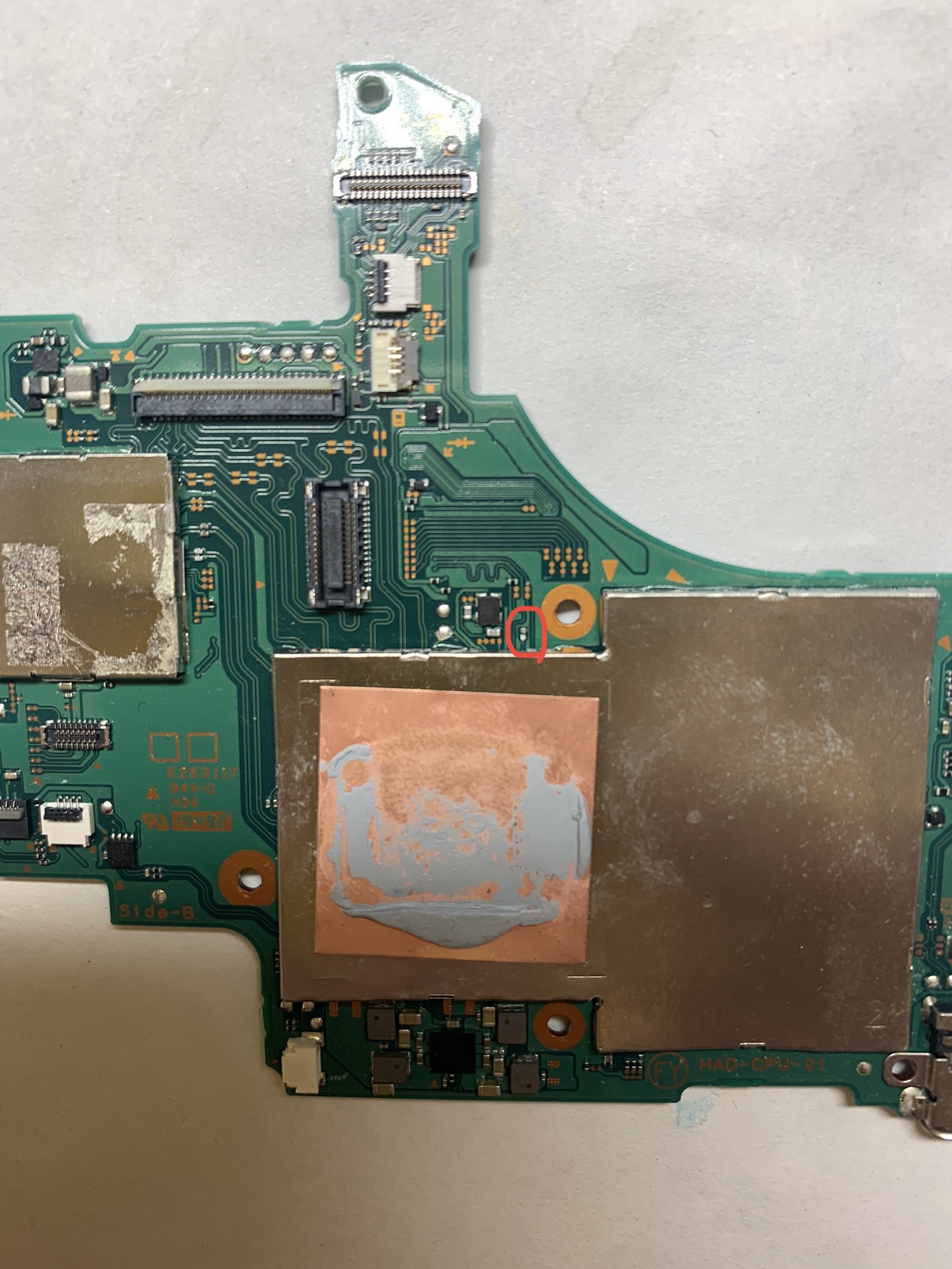

Hi, when I tried to open the shield of the CPU on an OLED model, a component broke off. It could be the same as @Leoxama:

My switch has the component next to the BGA chip blown. Could you please help me identify it?
View attachment 291226

...but mine is next to the ALJ 226 chip. The pads of the component broke off, but I still tried to solder it to the board again. I reversed parts of my picofly installation and now it boots to a blue screen.

@doom95 answered this, but I am not sure, if this is a direct answer to the question.

It's a 2uH inductor.

If anybody knows the part number of a working component, I would greatly appreciate it. Or at least confirm that it is an inductor.

​



[jkyoho]

Hi, when I tried to open the shield of the CPU on an OLED model, a component broke off. It could be the same as @Leoxama:


...but mine is next to the ALJ 226 chip. The pads of the component broke off, but I still tried to solder it to the board again. I reversed parts of my picofly installation and now it boots to a blue screen.

View attachment 452917

@doom95 answered this, but I am not sure, if this is a direct answer to the question.


If anybody knows the part number of a working component, I would greatly appreciate it. Or at least confirm that it is an inductor.

​

Its the 1uH 0806 size inductor. ALJ chip spec requires 1A current and max at 2.6A limit. So you could pick any 1uH 0806 from 1A to 2.6A I belive.
Example: DFE201612PD-1R0M=P2
