Hardware Components used on the Switch (mostly the motherboard and main console)

mvmiranda

Well-Known Member
Member
Joined
Oct 29, 2013
Messages
1,432
Trophies
0
Age
40
Location
Brazil, Sao Paulo
Website
www.gamemod.com.br
XP
1,371
Country
Brazil
Hello!
I received a Switch OLED someone tried to do the modchip install and removed the CMD resistor!

Does anyone happen to know this resistor value?

Thanks!


heinrich_frei

Active Member
Newcomer
Joined
Dec 5, 2021
Messages
26
Trophies
0
Age
21
XP
88
Country
Russia
Hello! I need help to identify the missing capacitor near emmc. Switch Oled. Would somebody be so kind to measure the capacitor from their own switch if possible.


Attachments

  • IMG_20211205_193519.jpg
    653.2 KB · Views: 12

heinrich_frei

Active Member
Newcomer
Joined
Dec 5, 2021
Messages
26
Trophies
0
Age
21
XP
88
Country
Russia
I compared emmc switch 1-2V and switch oled. The number of capacitors is the same between revisions, and the arrangement according to the scheme is similar. Is it possible to replace the capacitor from the 1-2V?


Attachments

  • IMG_20211207_100337.png
    1.3 MB · Views: 18
  • IMG_20211207_100354.jpg
    923.9 KB · Views: 17

Ottoclav

Well-Known Member
Member
Joined
May 27, 2020
Messages
131
Trophies
0
Age
41
XP
265
Country
United States
I compared emmc switch 1-2V and switch oled. The number of capacitors is the same between revisions, and the arrangement according to the scheme is similar. Is it possible to replace the capacitor from the 1-2V?
yyyyes? are you talking about the capacitor in the orange "circle" ? It's possible to replace most anything if you have the parts, tools and skills. the problem arises with pre-programmed chips, since they have to be programmed back at the factory, unless someone has found a software loading work-around.


studioai

Member
Newcomer
Joined
Sep 12, 2021
Messages
10
Trophies
0
Age
41
XP
49
Country
Japan

Does anyone knows this resistor's ohm? I have a wifi broken switch board.
I found out the resistor was missing due to cold joint.
I have another board but the resistor was located too narrow point.
So I desoldered the resistor from working board to measure its ohm.
and the resistor popped away when I try to measure it.
I have two wifi broken Switch and I hate 0201 components.


doom95

Well-Known Member
Member
Joined
Aug 12, 2019
Messages
115
Trophies
0
Age
21
XP
173
Country
Netherlands
This side of the wifi ic is all about bluetooth. Does really not work anymore, or is bluetooth malfunctioning?
It's quite possible that wifi is not impacted by the absence of this resistor.


studioai

Member
Newcomer
Joined
Sep 12, 2021
Messages
10
Trophies
0
Age
41
XP
49
Country
Japan
This side of the wifi ic is all about bluetooth. Does really not work anymore, or is bluetooth malfunctioning?
It's quite possible that wifi is not impacted by the absence of this resistor.
Is there any schematic or datasheet about this? Please let me know.
I also plan to replace BCM IC but I want to try the resistor before I do that.


doom95

Well-Known Member
Member
Joined
Aug 12, 2019
Messages
115
Trophies
0
Age
21
XP
173
Country
Netherlands
They're well-hidden. I don't think we have access to reference schematics unfortunately. I will try to measure the value for you in the weekend.

  • Like
Reactions: studioai

doom95

Well-Known Member
Member
Joined
Aug 12, 2019
Messages
115
Trophies
0
Age
21
XP
173
Country
Netherlands

Does anyone knows this resistor's ohm? I have a wifi broken switch board.
I found out the resistor was missing due to cold joint.
I have another board but the resistor was located too narrow point.
So I desoldered the resistor from working board to measure its ohm.
and the resistor popped away when I try to measure it.
I have two wifi broken Switch and I hate 0201 components.

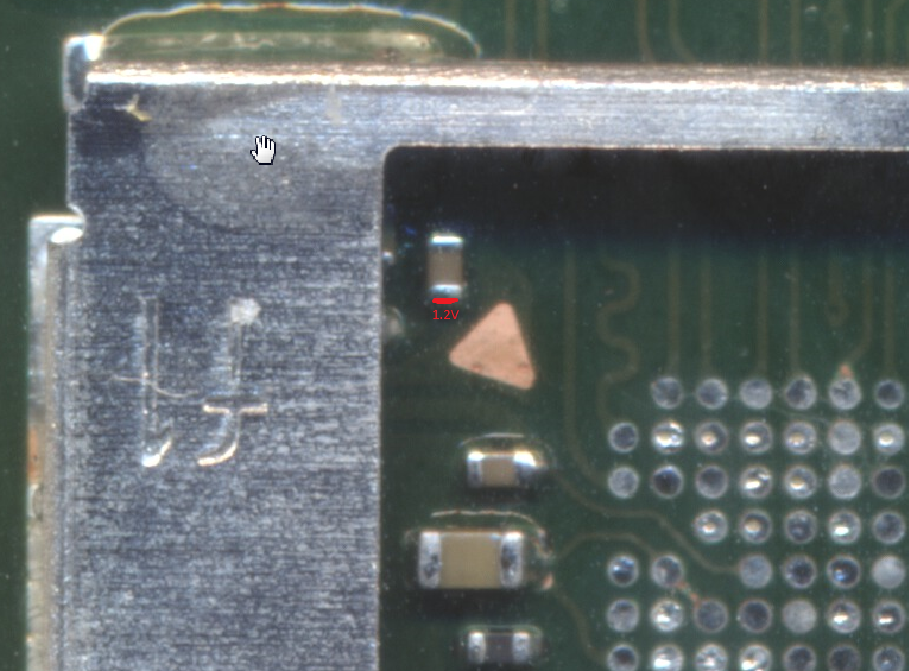

It's about 1-2 Ohms resistor. Possibly inductor.

It will be important that you have 1.2V at the marked capacitor. It is indeed a power supply line to BCM4356.


Attachments

  • Untitled.png
    883.1 KB · Views: 8
Last edited by doom95,
  • Like
Reactions: studioai

WALK323

New Member
Newbie
Joined
Dec 24, 2021
Messages
3
Trophies
0
Age
31
XP
18
Country
Russia

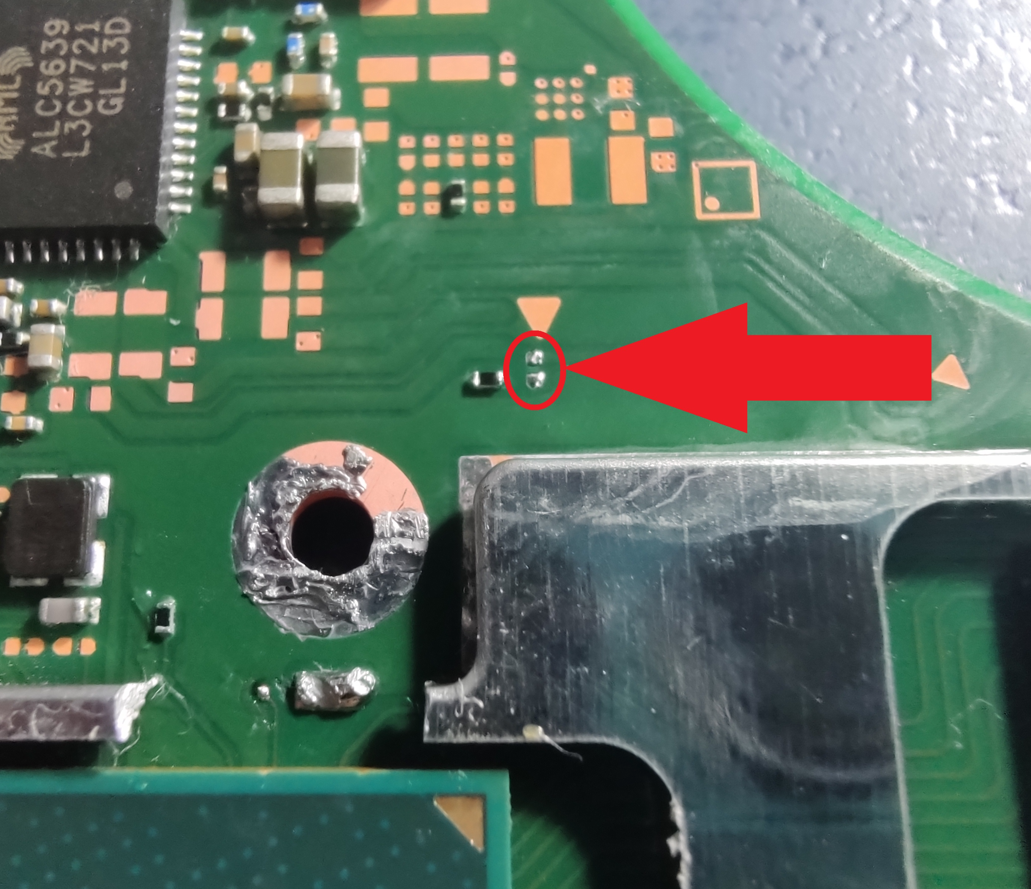

Hello, can anyone help identify this resistor in oled switch? Thank you in advance


Attachments

  • IMG_20220114_200932.jpg
    775.9 KB · Views: 2
