1. jkyoho

    jkyoho Advanced Member
    Newcomer

    Joined:
    Sep 2, 2020
    Messages:
    75
    Country:
    Canada
    I use mcz for the v1 board as well. v2 board has way smaller size than v1. And I found out NFG0QHB372HS2D fit well for the right1/last(sbu1/2) filter and the 4 other TX/RX filter for v2 I pick DLM0NSM900HY2D


    And for v2 board hdmi common mode choke filter alternative(Panasonic)
    4x left TX/RX can use -- EXC-14CT900U
    right1/last 1(sbu1/2) can use -- EXC-X4CT900X

    Last edited by jkyoho, Jan 30, 2021
    orporp and de9ed like this.
  2. Alfixes

    Alfixes Member
    Newcomer

    Joined:
    Jan 12, 2021
    Messages:
    17
    Country:
    United Kingdom


    Attached Files:

  3. Bino

    Bino Newbie
    Newcomer

    Joined:
    Feb 6, 2021
    Messages:
    2
    Country:
    United States
    Hey gang, happy to see this kinda thread exists. Anyone able to tell me what these two might be? It's right above where the micro SD car clips in.

    Got this is a repair from a bad shop, hoping i can get it working again.


    Attached Files:

  4. jkyoho

    jkyoho Advanced Member
    Newcomer

    Joined:
    Sep 2, 2020
    Messages:
    75
    Country:
    Canada
    THOSE are two caps
    from top to bottom measured:
    5uf
    250nf
    (10k ohm)
    try slight larger value since I measure from a crappy donor board, cap value may shift

  5. Desalvation

    Desalvation Newbie
    Newcomer

    Joined:
    Feb 8, 2021
    Messages:
    1
    Country:
    Russia
    Good afternoon, I have a problem with the left joycon, when it is installed in the switch, it only shows charging, but in the portable mode the console does not see it, it shows that it is connected only via bluetooth. What could be the problem?

  6. Bino

    Bino Newbie
    Newcomer

    Joined:
    Feb 6, 2021
    Messages:
    2
    Country:
    United States
    Thanks! Really appreciate it.

  7. RedViking

    RedViking Newbie
    Newcomer

    Joined:
    Feb 20, 2021
    Messages:
    1
    Country:
    United States

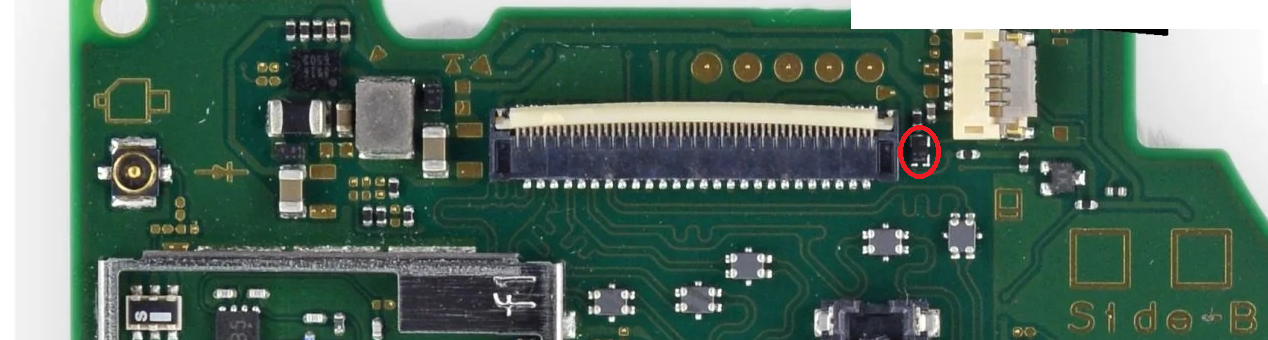

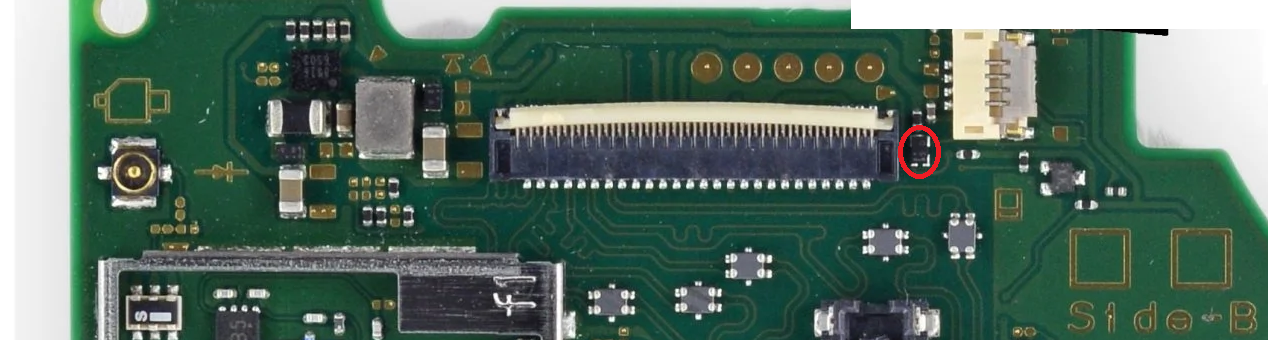

    I'm working on fixing my switch (managed to knock loose a part and can't find it). The port is circled, Without it my fan runs wide open anytime the screen is on. Does anyone know what it is? LookingComponent.png

  8. MeoWStraY

    MeoWStraY Newbie
    Newcomer

    Joined:
    Feb 22, 2021
    Messages:
    1
    Country:
    Russia

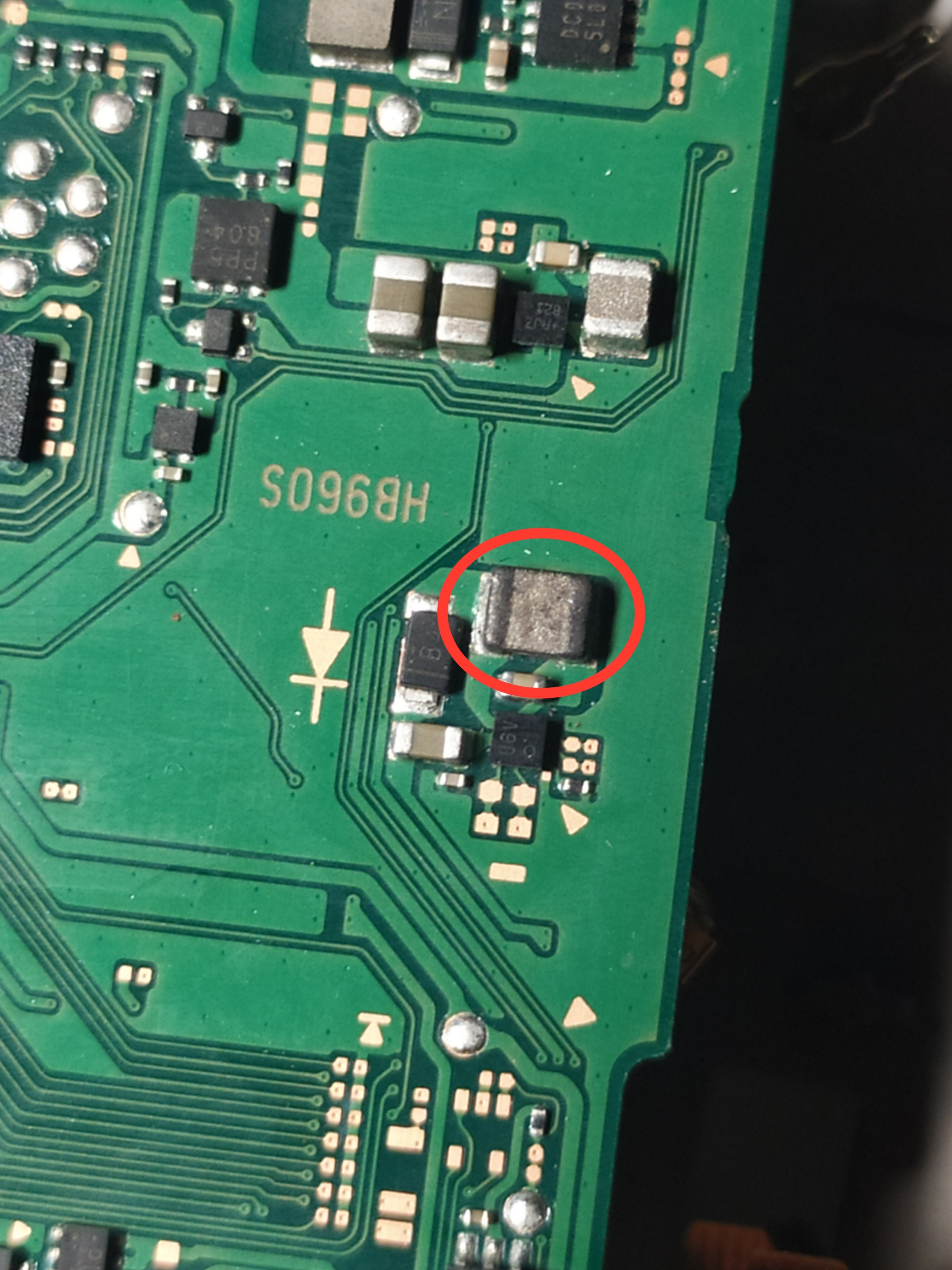

    Hi, I am currently trying to fix my switch after it fell in water. For now the tablet itself works fine, but has no backlignt and some troubles with toutch screen. After checking the board we found one component that is not working at all, if I understood correctly it is in the backlight circut, but I have no idea what it is. If someone can provide me links where I can buy a replacment or just info to feagure what that component is that it would be very nice.


    Attached Files:

    • 1.jpg
      File size:
      984.3 KB
      Views:
      72
    • 2.jpg
      File size:
      770.8 KB
      Views:
      75
    Last edited by MeoWStraY, Feb 22, 2021
  9. Alfixes

    Alfixes Member
    Newcomer

    Joined:
    Jan 12, 2021
    Messages:
    17
    Country:
    United Kingdom
    Hi, it's inductor and should have continuity. I dont know exact value but you can possibly have problem with nearby diode too of inductor gone.

    Last edited by Alfixes, Mar 4, 2021
  10. Scottedontknow

    Newcomer

    Joined:
    Feb 11, 2021
    Messages:
    13
    Country:
    United States
    Here's one for you all! So I bought a lot of broken switches..... most of them are the usual issues (usb port, shorted chip somewhere) but this one..... is kicking my ass lol. When docked it works perfectly zero issues but...… when in handheld mode ZERO on screen, i swapped out the board into a known good one and still zero. any ideas?

  11. Alfixes

    Alfixes Member
    Newcomer

    Joined:
    Jan 12, 2021
    Messages:
    17
    Country:
    United Kingdom
    Hi, I have same issue on one of my fixes. Haven't found solution yet but narrowing down to either components around screen connector area (diode or lcd bga 8316) i dont have time atm but will eventually get to it and will let you know if find solution.

    Scottedontknow likes this.
  12. KCVW

    KCVW Newbie
    Newcomer

    Joined:
    Mar 29, 2021
    Messages:
    1
    Country:
    Netherlands

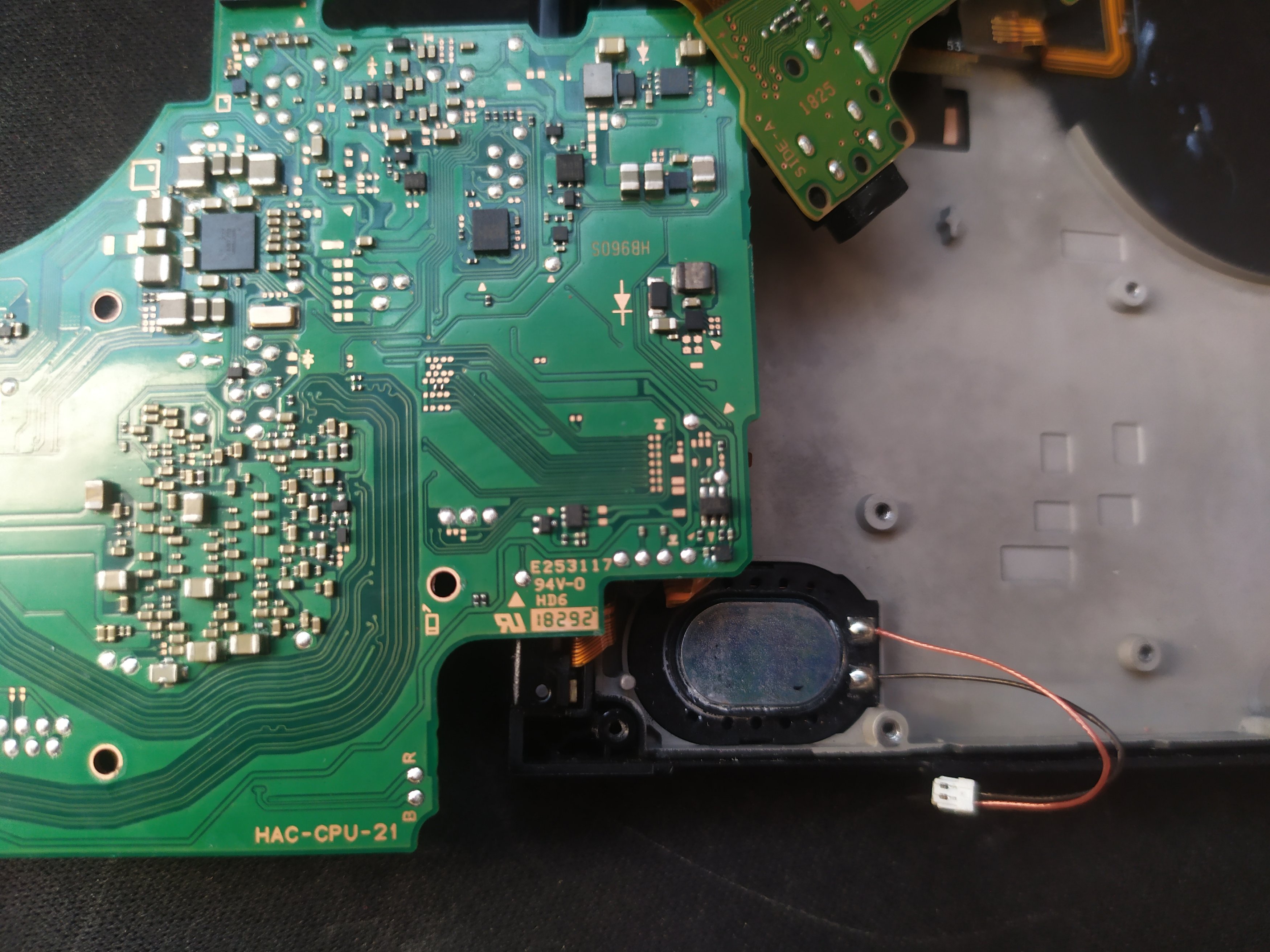

    Can someone ID this diode please. (i've got a short on it)
    It's next to the LCD connector.
    The BGA IC in that circuit is a BD8316GWL according to a previous post.
    Is it always the same on different hardware revisions of the board ??
    My problem is that my switch works in docked mode but not in handheld mode.
    Backlight and sound is ok, but no picture.
    Obviously on a different board and not the one in the picure.


    Attached Files:

  13. Pintglass

    Pintglass GBAtemp Fan
    Member

    Joined:
    Jan 28, 2019
    Messages:
    364
    Country:
    United Kingdom
    Maybe RSX101VA-30 or equivalent

  14. bakerbotten

    bakerbotten Newbie
    Newcomer

    Joined:
    Apr 3, 2021
    Messages:
    6
    Country:
    Algeria
    You have the basics covered. I was going to come in and say a hard shell carrying case. I have the blue BotW one that comes with a couple game cases. I can't imagine just throwing the tablet itself into a backpack unprotected.









    Tutuapp 9Apps Showbox

    Last edited by bakerbotten, Apr 13, 2021
  15. emuboarding

    emuboarding Member
    Newcomer

    Joined:
    May 15, 2008
    Messages:
    26
    Country:
    Brazil

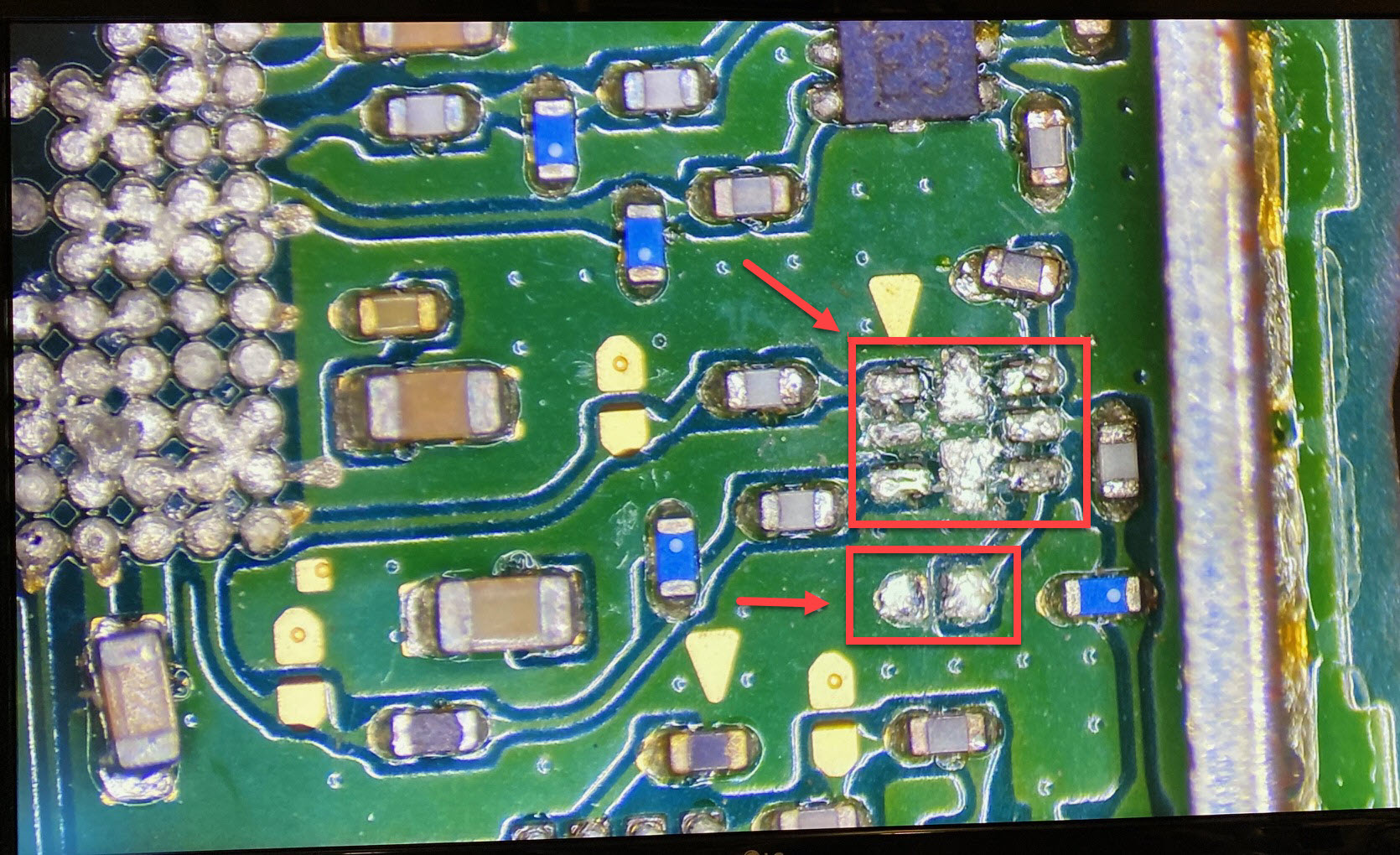

    please... in Nintendo Switch Lite motherboard...
    what is the value of this capacitor in this photos.

    on the left side of the FT9CJ chip

    [​IMG]

    [​IMG]

  16. jkyoho

    jkyoho Advanced Member
    Newcomer

    Joined:
    Sep 2, 2020
    Messages:
    75
    Country:
    Canada
    20nF On standard NS sub-board

    NVM, I thought was the cap above

    Last edited by jkyoho, Apr 20, 2021
  17. Titmando

    Titmando Newbie
    Newcomer

    Joined:
    Apr 21, 2021
    Messages:
    1
    Country:
    United Kingdom
    Can I get help identifying these parts please as I require replacements for my Nintendo switch lite.

    ApplicationFrameHost_2021-04-16_20-17-54.jpg 2021-04-25_15-15-12.jpg 2021-04-25_15-12-28.jpg 2021-04-25_15-13-24.jpg

    I need replacement parts: (Ignore the 8kohms box that was something I was diagnosing over on TronicFixs with a guy called Severance he pointed me to this forum.

    Diode by the inductor coil underneath the BQ and M92 ic's
    Replacement inductor coil
    FPC connectors for the backlight, LCD, daughter board.
    Power connector and various other components that are marked red in the thumbnails, new to the forums so I hope you can see the red boxes.

    I just need replacement parts and ideas on where to buy them from thanks

    Thanks in advanced for any help.

    Kind Regards

    Mike

  18. golu18

    golu18 Newbie
    Newcomer

    Joined:
    Apr 27, 2021
    Messages:
    1
    Country:
    United Kingdom

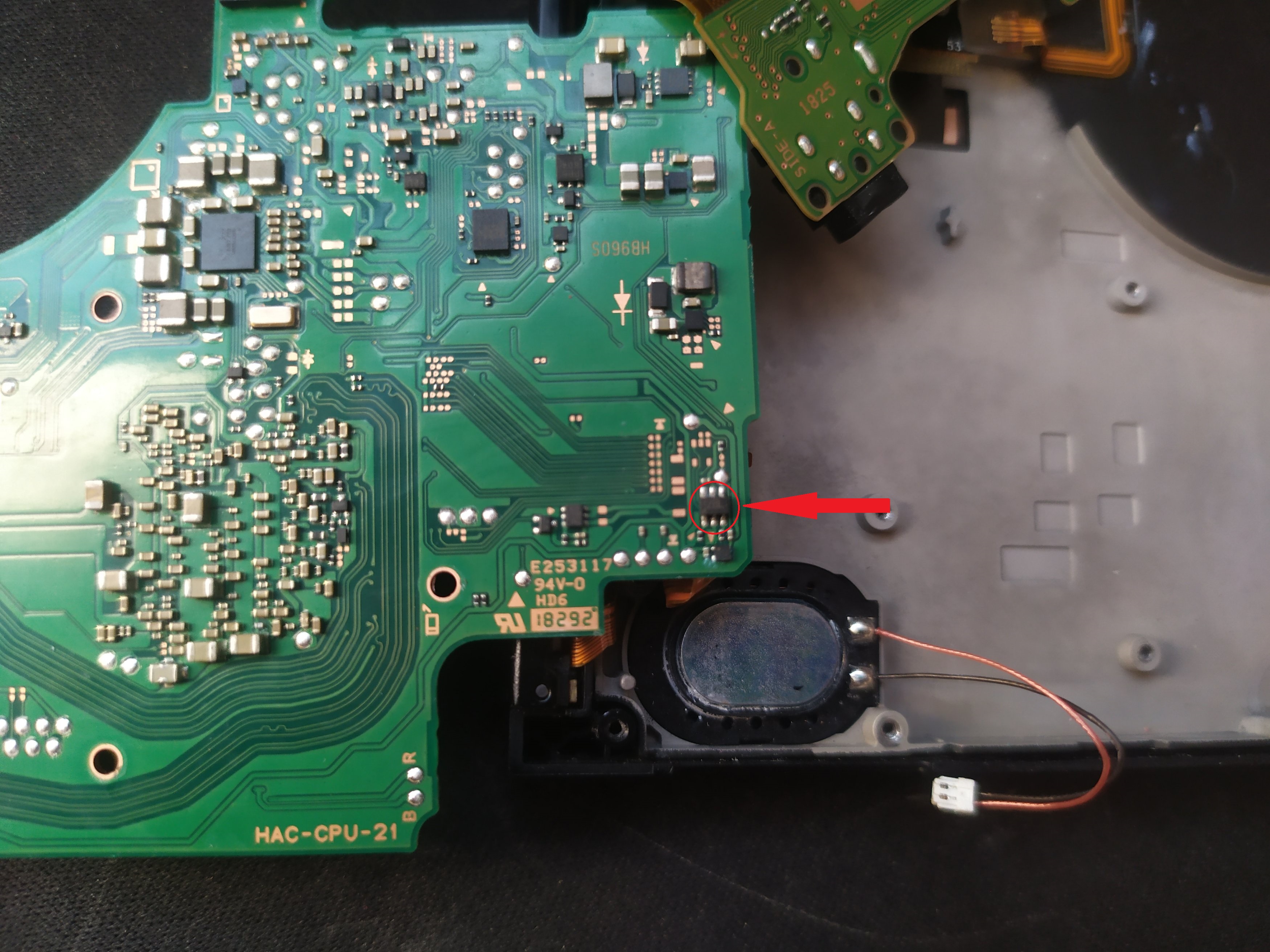

    Hi everyone, I need some help trying to identify this part circled in the pic for my nintendo. I blew it away during the replacement of the ribbon connector at the back of the board and now I can't find it... Only thing I can read on it is ZBL 628 but no luck so far searching on the internet. So you guys are my last hope. Many thanks in advance! 1.jpg

    Last edited by golu18, Apr 27, 2021
  19. note9

    note9 Newbie
    Newcomer

    Joined:
    Sep 13, 2020
    Messages:
    6
    Country:
    United Kingdom

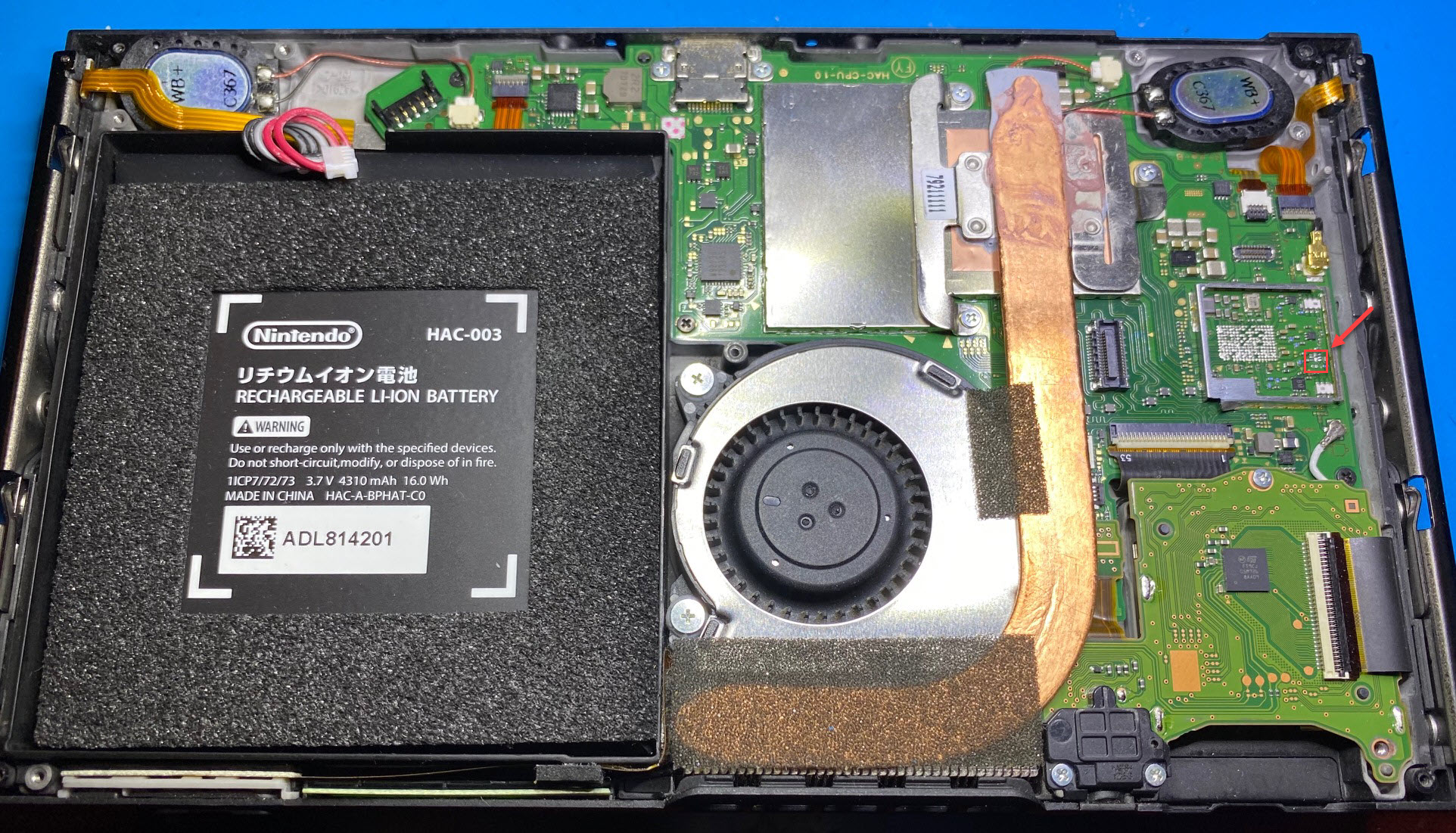

    also looking for the part. trying to repair a switch with a no spinning fan and that component was soldered opposite way.


    Last edited by note9, Apr 27, 2021
  20. note9

    note9 Newbie
    Newcomer

    Joined:
    Sep 13, 2020
    Messages:
    6
    Country:
    United Kingdom
    jkyoho, Lightyose and de9ed like this.
