1. Modificatorul

    Modificatorul GBAtemp Regular
    Member

    Joined:
    Oct 28, 2009
    Messages:
    253
    Country:
    Russia
    @Krost

    https://www2.mouser.com/ProductDetail/ROHM-Semiconductor/PMR03EZPJU10L?qs=493kPxzlxfJgoYu/LbQxew==

    Maybe Current Sense Resistors - SMD 10 mOhms, If i read corectly the max 17050 pdf https://www.maximintegrated.com/en/products/power/battery-management/MAX17050.html

    Also the max 17050 looks damaged in one corner ?



    i never removed to test, but any ceramic cap,10 uf 0402 , 10 v should by ok.

    Last edited by Modificatorul, Oct 29, 2020
  2. White_Raven_X

    White_Raven_X Hack everything, hack the world!
    Member

    Joined:
    Sep 23, 2019
    Messages:
    348
    Country:
    United States
    It could be a resistor, though the number would be turned 90 degrees...
    I also think it's a resistor, but cant seem to find this specific one anywhere.

    Last edited by White_Raven_X, Oct 28, 2020
    Modificatorul likes this.
  3. Krost

    Krost Newbie
    Newcomer

    Joined:
    Oct 23, 2020
    Messages:
    3
    Country:
    Italy
    Thanks man, i'll try it.

    Yea I think it's damaged

  4. digipimp75

    digipimp75 GBAtemp Advanced Fan
    Member

    Joined:
    Jan 16, 2014
    Messages:
    598
    Country:
    United States

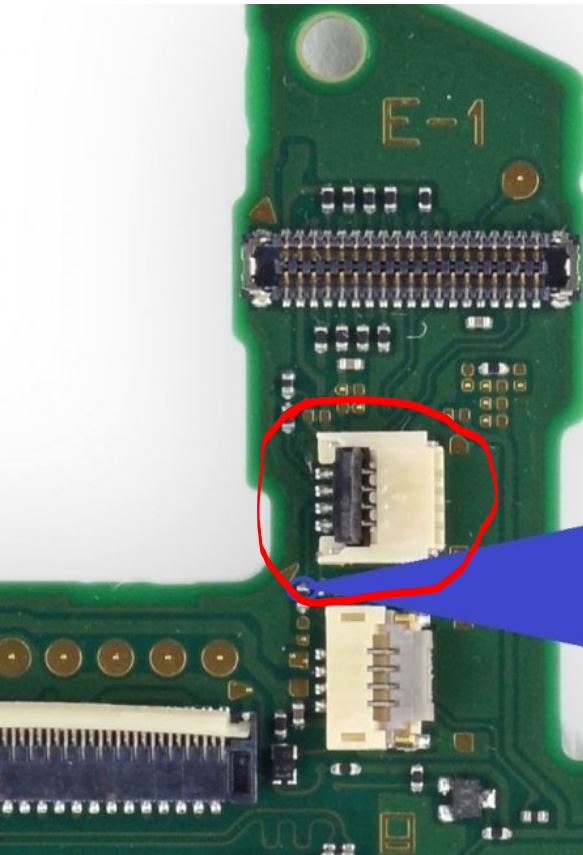

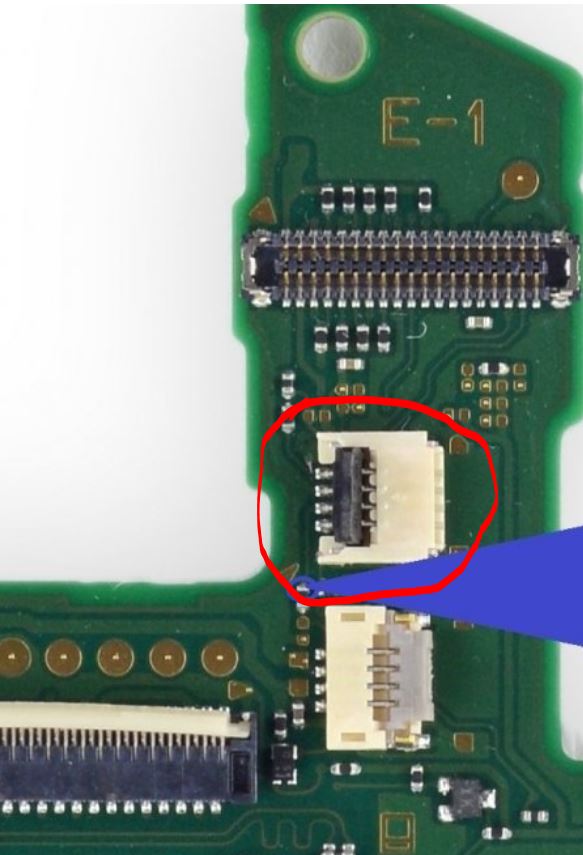

    Hey all. Does anybody know where to find a replacement connector for the power/vol flex cable? (circled in red) Mine is botched and I don't have a donor board to pull from. Thanks Capture.JPG

  5. Modificatorul

    Modificatorul GBAtemp Regular
    Member

    Joined:
    Oct 28, 2009
    Messages:
    253
    Country:
    Russia
    Lightyose and digipimp75 like this.
  6. youtiaojun

    youtiaojun Newbie
    Newcomer

    Joined:
    Oct 10, 2019
    Messages:
    7
    Country:
    China
    寻求帮助,谢谢图片中的芯片名称


    Attached Files:

  7. White_Raven_X

    White_Raven_X Hack everything, hack the world!
    Member

    Joined:
    Sep 23, 2019
    Messages:
    348
    Country:
    United States
    Are you sharing a part number or something? ? ? or is that just a joycon pcb?

  8. youtiaojun

    youtiaojun Newbie
    Newcomer

    Joined:
    Oct 10, 2019
    Messages:
    7
    Country:
    China
    [QUOTE =“ White_Raven_X,post:9251156,member:505427”]您要共享零件号或其他零件吗???还是仅仅是一个Joycon PCB?[/ QUOTE]
    谢谢您的回复
    我想知道镊子在PCB上指代的零件的名称

  9. White_Raven_X

    White_Raven_X Hack everything, hack the world!
    Member

    Joined:
    Sep 23, 2019
    Messages:
    348
    Country:
    United States
    youtiaojun is asking what this component is. Can anyone help him please? I believe it is the right joycon.

    @youtiaojun 有人會在這裡幫助您。


    Attached Files:

  10. Modificatorul

    Modificatorul GBAtemp Regular
    Member

    Joined:
    Oct 28, 2009
    Messages:
    253
    Country:
    Russia
    I have no ideea what part is this but maybe a better picture helps. 9L 6P.jpg

    Last edited by Modificatorul, Nov 2, 2020
    White_Raven_X likes this.
  11. youtiaojun

    youtiaojun Newbie
    Newcomer

    Joined:
    Oct 10, 2019
    Messages:
    7
    Country:
    China
    [QUOTE =“ Modificatorul,帖子:9252043,成员:225456”]我不知道这是什么部分,但是更好的图片可能会有所帮助。[ATTACH = full] 232351 [/ ATTACH] [/ QUOTE]
    非常感谢您的照片

    Modificatorul likes this.
  12. White_Raven_X

    White_Raven_X Hack everything, hack the world!
    Member

    Joined:
    Sep 23, 2019
    Messages:
    348
    Country:
    United States

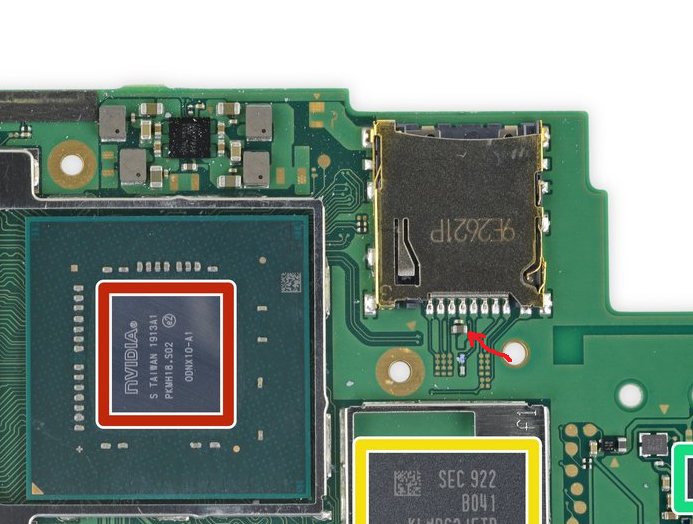

    Does anyone have the info/data for the micro sd pcb connector to the motherboard? Thinking of making my own wire to go up into the card reader and use a regular SD card. 1tb is alot cheaper in a SD then a micro sd.

  13. dacamel

    dacamel Newbie
    Newcomer

    Joined:
    May 20, 2020
    Messages:
    7
    Country:
    Germany
    [​IMG]

    Missing part. Somehow the part itself is connected to the M92T36 on the backside, because i dont geht 3,3V

    Last edited by dacamel, Nov 5, 2020
  14. Nana8

    Nana8 Newbie
    Newcomer

    Joined:
    Nov 9, 2020
    Messages:
    1
    Country:
    Canada
    Good evening all.This part has broken and i dont know what it is or where to find it. Reading the entire thread I've learned its the ribbon and chip that connects to the Molex 503566-1100 and not sure what its for but the ribbon ripped off the non Molex end

  15. White_Raven_X

    White_Raven_X Hack everything, hack the world!
    Member

    Joined:
    Sep 23, 2019
    Messages:
    348
    Country:
    United States
    A picture could be more helpful

    Nana8 likes this.
  16. k1ng_f1sh

    k1ng_f1sh Member
    Newcomer

    Joined:
    Nov 12, 2020
    Messages:
    19
    Country:
    Australia

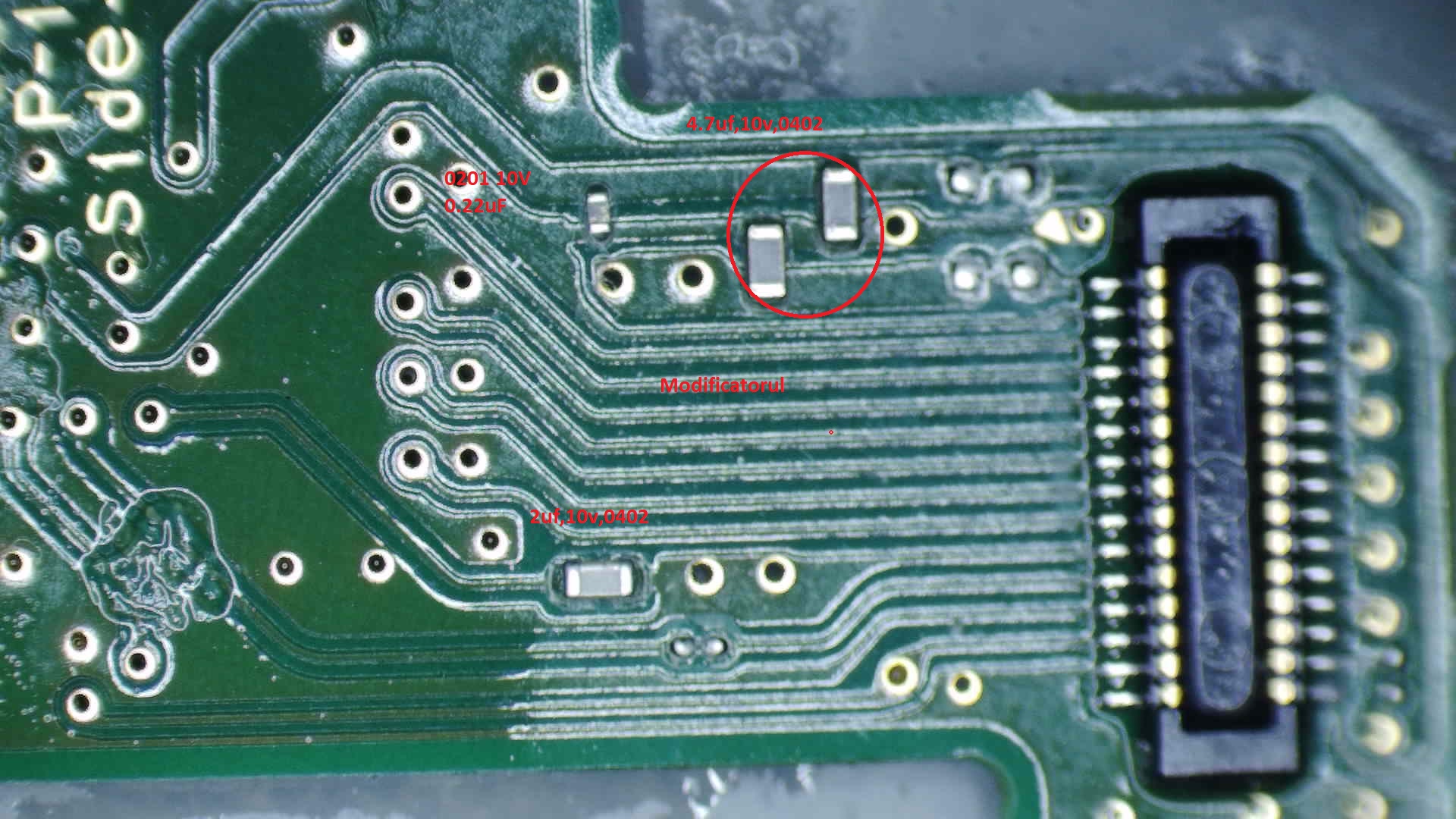

    Would anyone by any chance know what these values these resistors are on the underside of the EMMC (red box)? I accidentally broke the resistors off while I was removing the EMMC from the shield.


    Attached Files:

  17. Modificatorul

    Modificatorul GBAtemp Regular
    Member

    Joined:
    Oct 28, 2009
    Messages:
    253
    Country:
    Russia
  18. Astur_torque

    Astur_torque GBAtemp Regular
    Member

    Joined:
    May 19, 2020
    Messages:
    204
    Country:
    Spain
    Anyone this?

    — Posts automatically merged - Please don't double post! —


    I'm looking for this too

  19. desert0707

    desert0707 Newbie
    Newcomer

    Joined:
    Nov 24, 2020
    Messages:
    1
    Country:
    Germany
    Hello guys, cane someone explain what are the specs of the marked component near the t451 and what are used for?
    Ty

    Edit: it's a cap 10nF explain the data sheet from the 451 for Voltage stability


    Attached Files:

    Last edited by desert0707, Nov 25, 2020
  20. rokko

    rokko Member
    Newcomer

    Joined:
    Sep 1, 2016
    Messages:
    14
    Country:
    i never removed to test, but any ceramic cap,10 uf 0402 , 10 v should by ok.
    this is the response i got from Modificatorul
