1. dbbmoafc

    dbbmoafc Newbie
    Newcomer

    Joined:
    Aug 4, 2020
    Messages:
    1
    Country:
    United States
    I just repaired a Switch Lite, it uses the same LCD driver IC, and the Rohm part number BD8316GWL you found is correct. It is laid out in a 4x3 grid with one ball being notably smaller than the rest, giving it the 11 pins.


    Modificatorul likes this.
  2. laotoulyh

    laotoulyh Member
    Newcomer

    Joined:
    Jul 8, 2020
    Messages:
    21
    Country:
    China

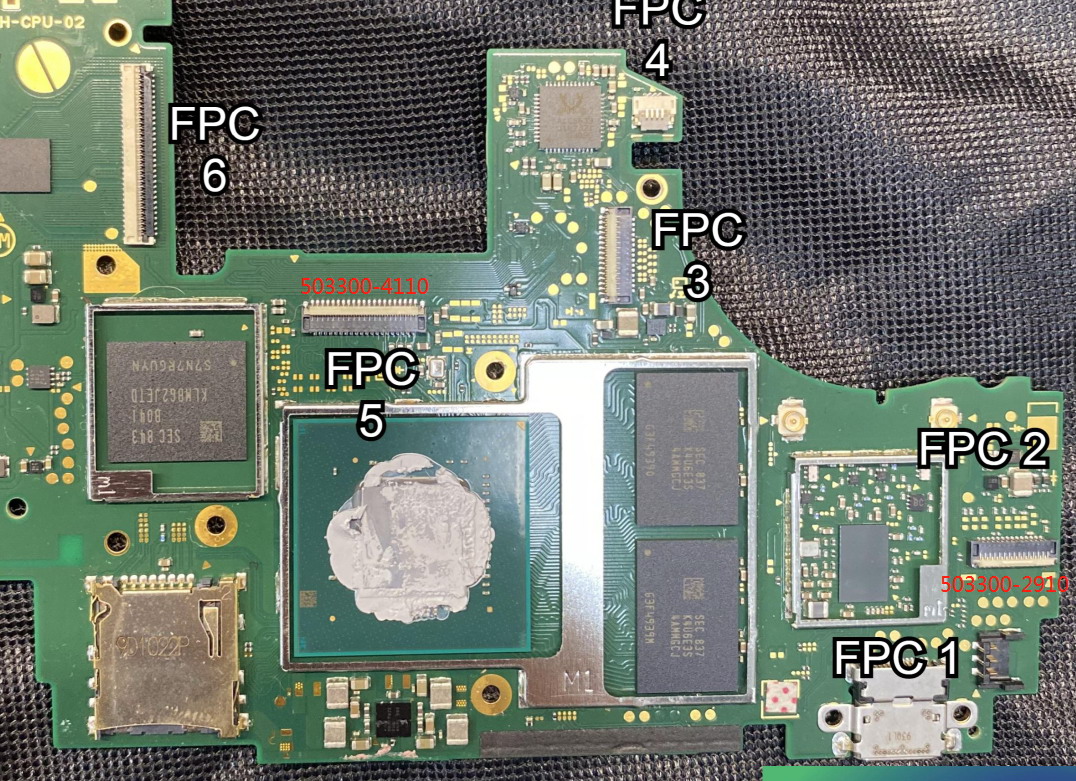

    Test OK!
    LCD is 503300-4110
    FPC2 is 503300-2910

    Modificatorul likes this.
  3. rokko

    rokko Member
    Newcomer

    Joined:
    Sep 1, 2016
    Messages:
    12
    Country:
    Hi

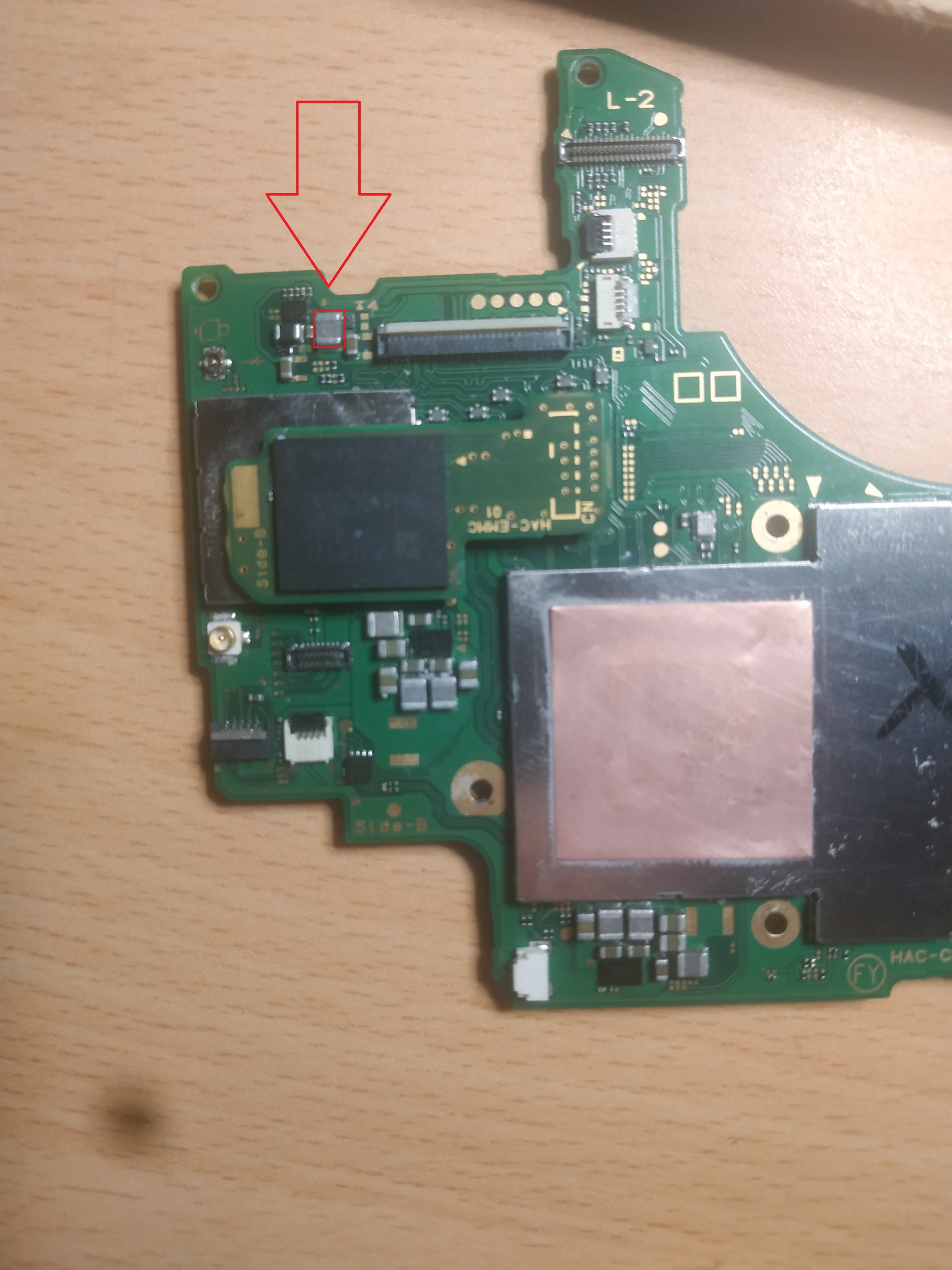

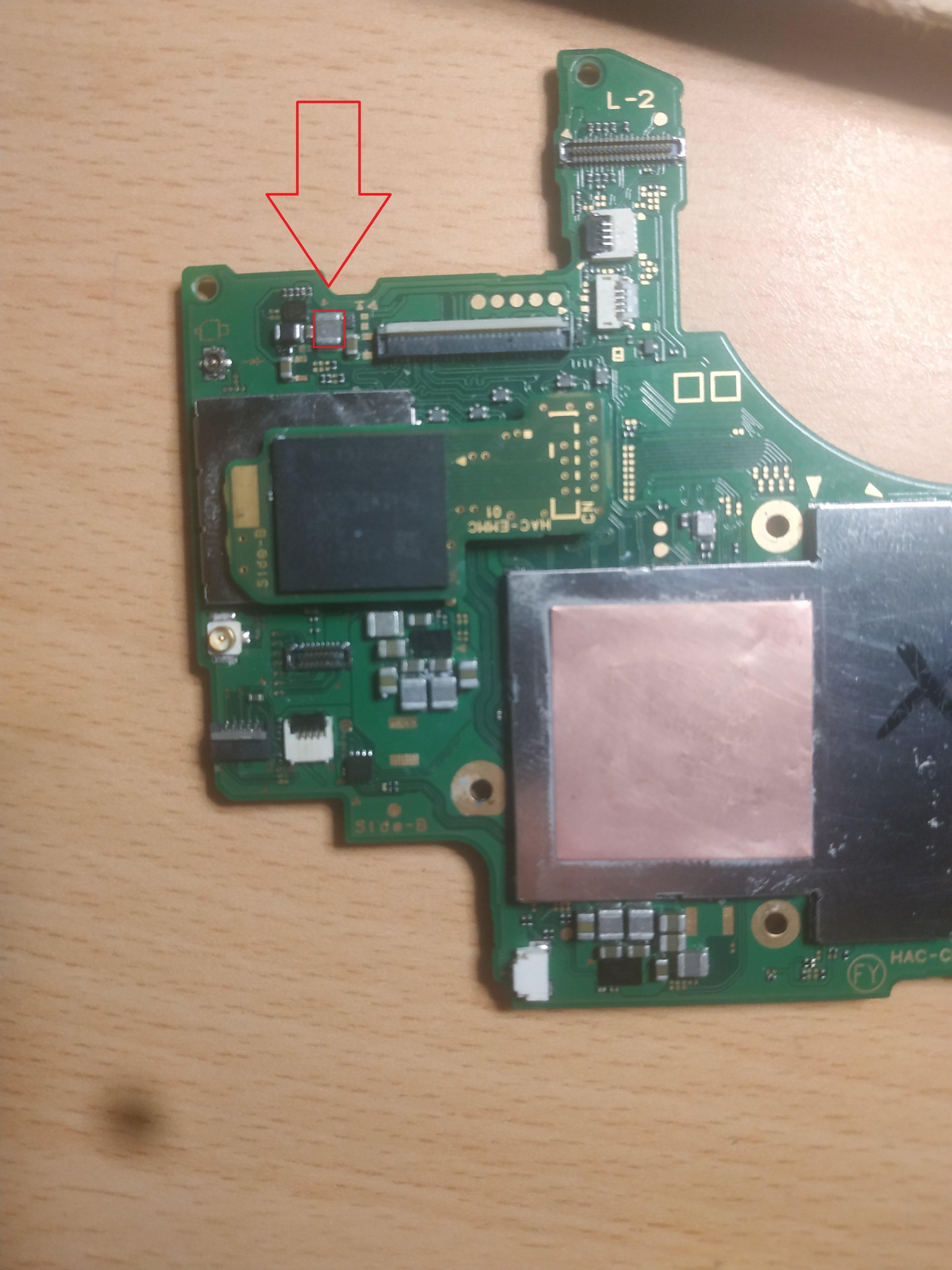

    Anyone know the value of the cap in the pic please


    Attached Files:

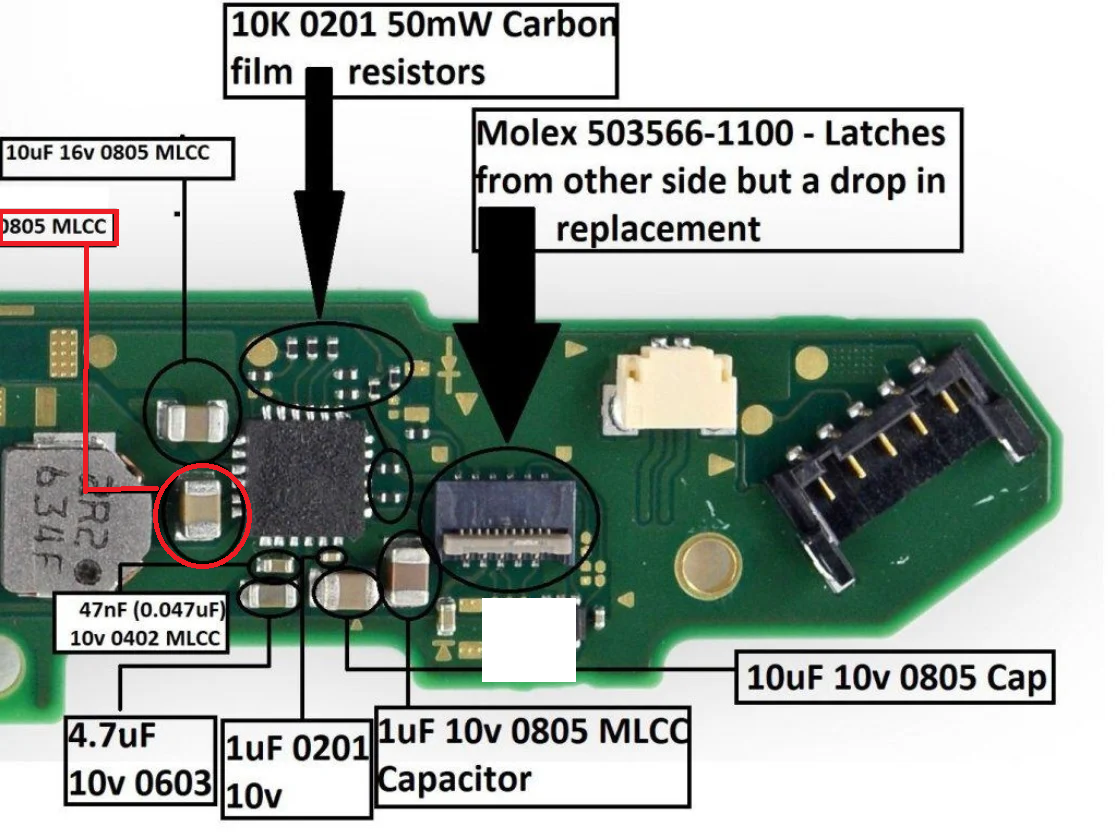

  4. Modificatorul

    Modificatorul GBAtemp Regular
    Member

    Joined:
    Oct 28, 2009
    Messages:
    252
    Country:
    Romania
  5. rokko

    rokko Member
    Newcomer

    Joined:
    Sep 1, 2016
    Messages:
    12
    Country:
    Modificatorul likes this.
  6. fan2k20

    fan2k20 Newbie
    Newcomer

    Joined:
    Sep 20, 2020
    Messages:
    5
    Country:
    Spain

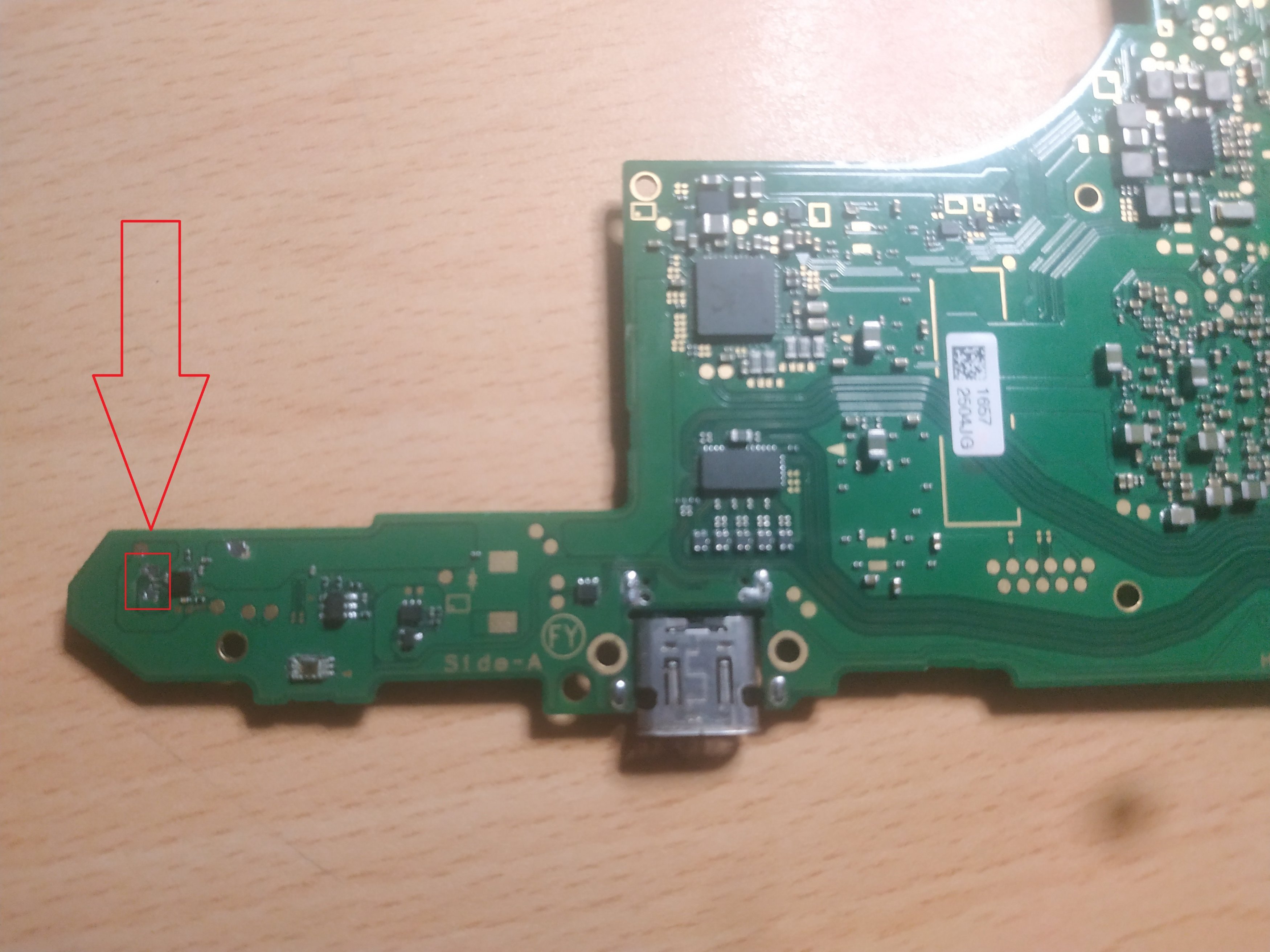

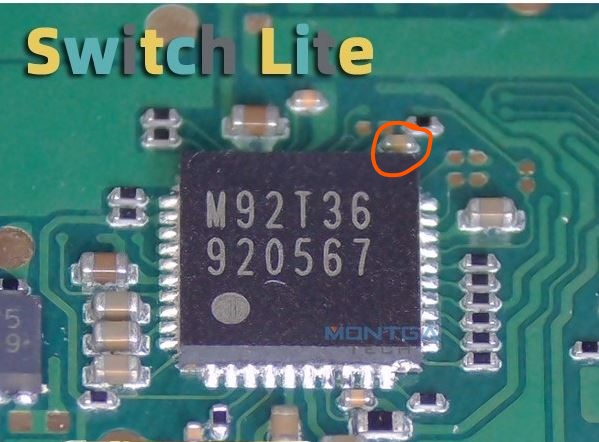

    anybody knows this capacitor?


    Attached Files:

  7. ntinovs

    ntinovs Newbie
    Newcomer

    Joined:
    Sep 10, 2020
    Messages:
    4
    Country:
    United Kingdom
    Hi guys! The capacitor circled in red shorts. I'm suspecting that the pcb is shorting given that I removed both, the capacitor and the bq24193 and it's still shorted. I removed the solder from the rails as well but didn't work. Is there any other component that might be responsible for shorting the capacitor?


    Attached Files:

  8. rokko

    rokko Member
    Newcomer

    Joined:
    Sep 1, 2016
    Messages:
    12
    Country:
    Hi
    There are 2 caps just above the sd card reader anyone know the info on the larger of the 2


    Attached Files:

  9. RascalJack

    RascalJack Newbie
    Newcomer

    Joined:
    Oct 15, 2020
    Messages:
    1
    Country:
    United States

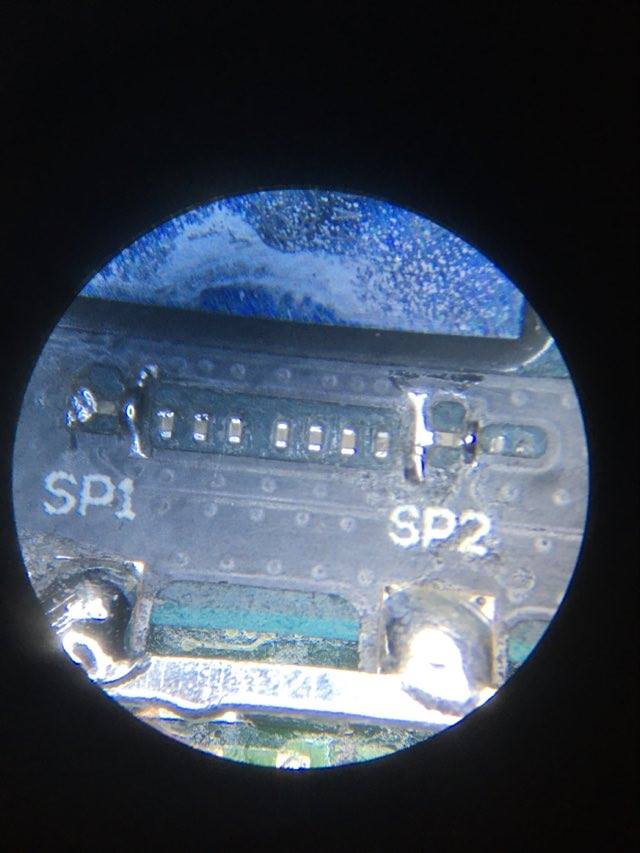

    Hello for the Switch V2, what would the purpose of the missing cap right of SP2 be? When installing the SX core ribbon cable, the pad on the cap to the right of SP2 was damaged. The system does not power on even though the battery is measuring proper voltage and rest of caps are in place correctly.


    vastrolorde likes this.
  10. Ttm3

    Ttm3 GBAtemp Regular
    Member

    Joined:
    May 16, 2020
    Messages:
    208
    Country:
    United States
    Anyone know what size or where to get the filters under the p13 on a v2? They are significantly smaller than the v1 filters.

  11. Ottoclav

    Ottoclav Advanced Member
    Newcomer

    Joined:
    May 27, 2020
    Messages:
    54
    Country:
    United States
  12. Ttm3

    Ttm3 GBAtemp Regular
    Member

    Joined:
    May 16, 2020
    Messages:
    208
    Country:
    United States

    Attached Files:

    Last edited by Ttm3, Oct 22, 2020
    Modificatorul likes this.
  13. Krost

    Krost Newbie
    Newcomer

    Joined:
    Oct 23, 2020
    Messages:
    3
    Country:
    Italy

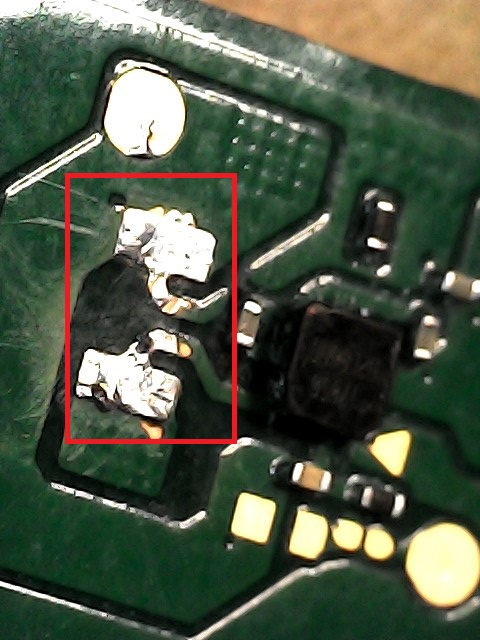

    Hi guys, i need help identifying these two components:

    1 - Missing
    1 - Missing.jpg 1.1 - Missing.jpg

    2 - Short

    2 - Short.jpg

    Anyone? Thanks!

  14. White_Raven_X

    White_Raven_X Hack everything, hack the world!
    Member

    Joined:
    Sep 23, 2019
    Messages:
    172
    Country:
    Canada

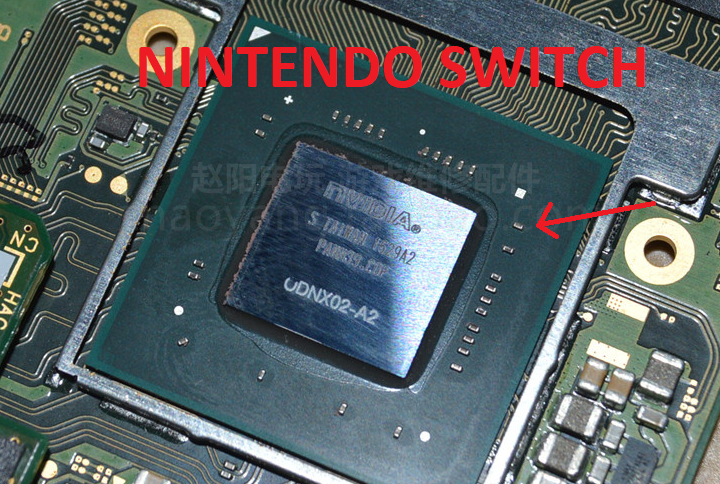

    Would anyone be able to help me identify these two small components to the left of the cpu on a HAC-CPU-10


    Attached Files:

  15. de9ed

    de9ed Member
    Newcomer

    Joined:
    Oct 22, 2020
    Messages:
    17
    Country:
    Canada

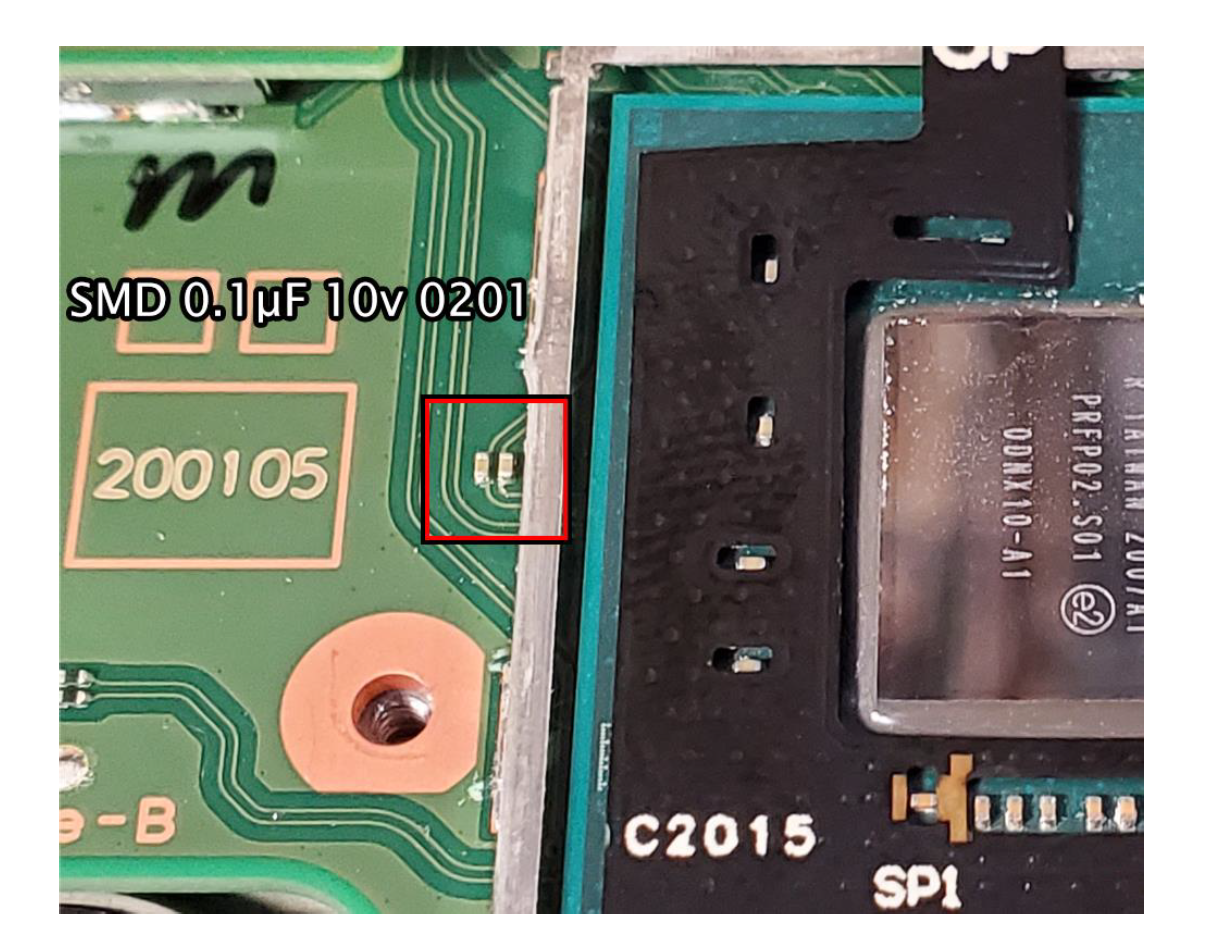

    [​IMG]


    Attached Files:

    White_Raven_X likes this.
  16. White_Raven_X

    White_Raven_X Hack everything, hack the world!
    Member

    Joined:
    Sep 23, 2019
    Messages:
    172
    Country:
    Canada
    thank you! life saver

  17. White_Raven_X

    White_Raven_X Hack everything, hack the world!
    Member

    Joined:
    Sep 23, 2019
    Messages:
    172
    Country:
    Canada
    i found cap cer 0.1uf 10v x6s 0201 part number LMK063C6104KP-F. Is that the same?

  18. de9ed

    de9ed Member
    Newcomer

    Joined:
    Oct 22, 2020
    Messages:
    17
    Country:
    Canada
    Sorry, I would not know. i'll wait for someone with more experience to help you

    White_Raven_X likes this.
  19. White_Raven_X

    White_Raven_X Hack everything, hack the world!
    Member

    Joined:
    Sep 23, 2019
    Messages:
    172
    Country:
    Canada

    Attached Files:

  20. Krost

    Krost Newbie
    Newcomer

    Joined:
    Oct 23, 2020
    Messages:
    3
    Country:
    Italy
    Thanks man, that's a start!
    With that "05" it might be a Zener Diode EDZ10B 150mW 10V
    Can someone with experience confirm?


    Edit: Ok, I don't think that that's it :\
    Is it maybe just a 0.5pF capacitor?

    Last edited by Krost, Oct 28, 2020
