    I just updated the thread with new info, i dont have nothing for you yet, sorry

    JaRocker likes this.
  3. JaRocker

    JaRocker GBAtemp Regular
    Member

    Joined:
    May 3, 2018
    Messages:
    263
    Country:
    Jamaica
    ok thanks keep up the good work

    Modificatorul likes this.
  4. Modificatorul

    Modificatorul GBAtemp Regular
    Member

    Joined:
    Oct 28, 2009
    Messages:
    253
    Country:
    Russia
    Fcc 2 Conector next to the battery conector

    Edit tested [email protected]laotoulyh is not the wright part wrong pitch.

    You only need to buy 18000 pcs to test :)) or see if molex wants to send a sample.

    or buy a broken board on ebay and remove the port with heat under the board not on top

    or ask sellers form aliexpress for the connector.
    Thei have already the lcd and touch conectors for Lite.

    Last edited by Modificatorul, Aug 9, 2020
  5. JaRocker

    JaRocker GBAtemp Regular
    Member

    Joined:
    May 3, 2018
    Messages:
    263
    Country:
    Jamaica
    is this the same as the one on the 3ds ? https://www.ebay.com/itm/273996608730

    Modificatorul likes this.
  6. Modificatorul

    Modificatorul GBAtemp Regular
    Member

    Joined:
    Oct 28, 2009
    Messages:
    253
    Country:
    Russia

    Attached Files:

    Last edited by Modificatorul, Jul 27, 2020
  7. JaRocker

    JaRocker GBAtemp Regular
    Member

    Joined:
    May 3, 2018
    Messages:
    263
    Country:
    Jamaica
    Thanks I already found that seller was looking for one in the us but maybe I’ll just have to get it but they wait is my problem

    Modificatorul likes this.
  8. laotoulyh

    laotoulyh Member
    Newcomer

    Joined:
    Jul 8, 2020
    Messages:
    24
    Country:
    China

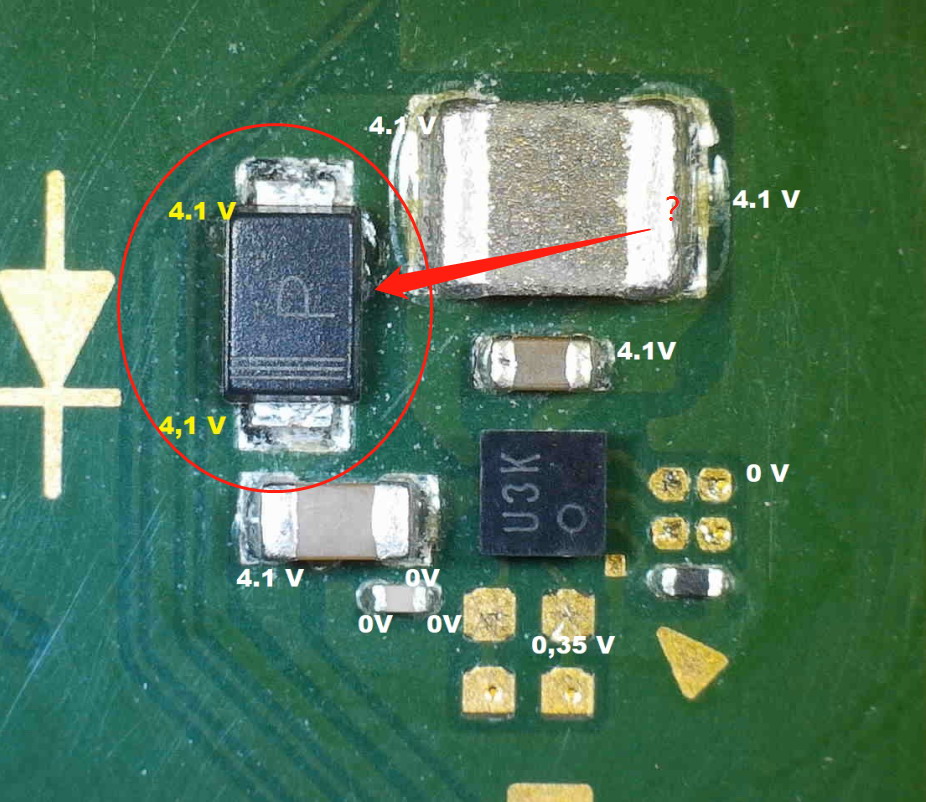

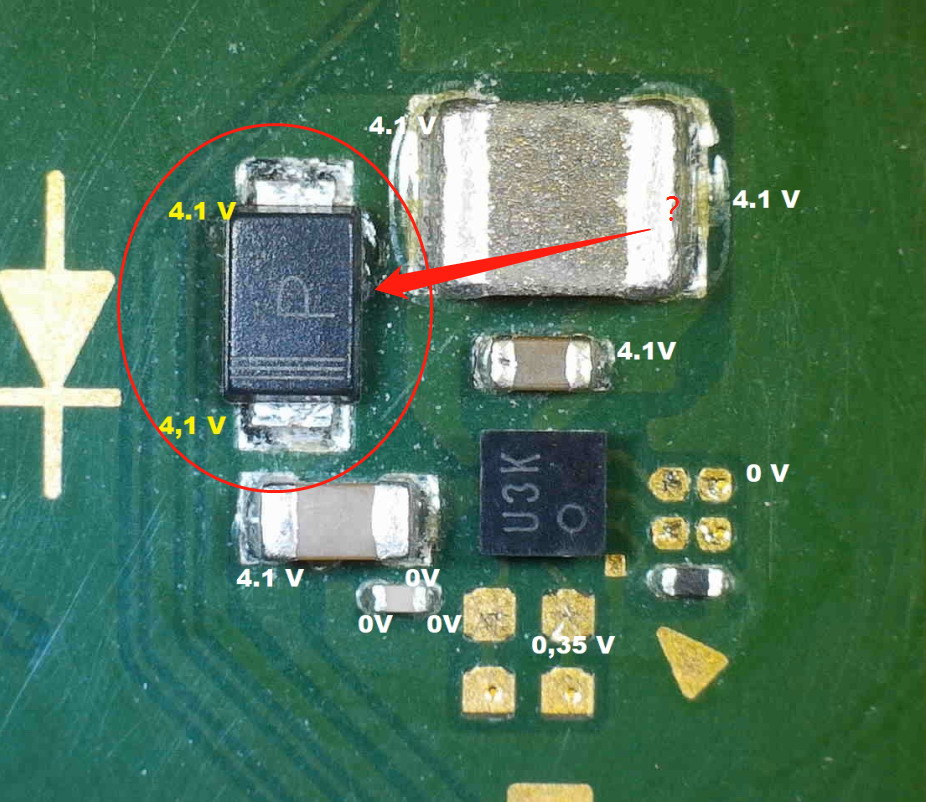

    Does anyone know this?
    After I took it apart, I lost it.

    CactusMan likes this.
  9. Modificatorul

    Modificatorul GBAtemp Regular
    Member

    Joined:
    Oct 28, 2009
    Messages:
    253
    Country:
    Russia
    Diode ,value i don't now , yet.

  10. SheriffBuck

    SheriffBuck Advanced Member
    Newcomer

    Joined:
    Jan 6, 2020
    Messages:
    96
    Country:
    United Kingdom
    This is the backlight subsystem. The BGA IC can be replaced with a TI TPS61163A. I recommend getting the datasheet and seeing what spec of diode to use from the reference circuit provided within.

    Sent from my SM-G975F using Tapatalk

    Last edited by SheriffBuck, Aug 1, 2020
    Modificatorul likes this.
  11. laotoulyh

    laotoulyh Member
    Newcomer

    Joined:
    Jul 8, 2020
    Messages:
    24
    Country:
    China
    TPS61163A does work, I bought 10 of them, and already used 2
    But there is a switch I dropped a diode, I don't know what model to replace it.

  12. laotoulyh

    laotoulyh Member
    Newcomer

    Joined:
    Jul 8, 2020
    Messages:
    24
    Country:
    China

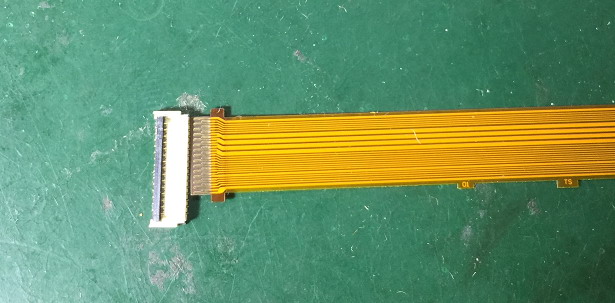

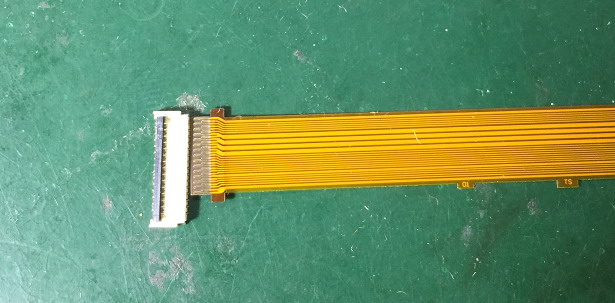

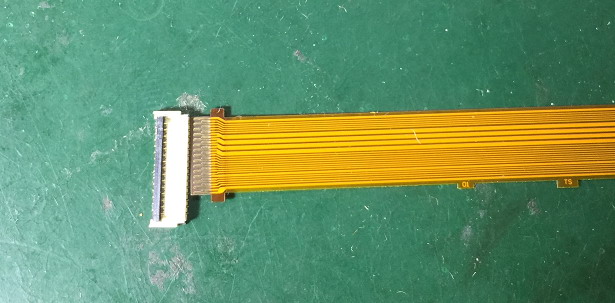

    I bought 10 pieces of 502598-2993, but unfortunately they cannot be used. The size is bigger.


    Attached Files:

    • lite.JPG
      File size:
      57.5 KB
      Views:
      125
  13. CactusMan

    CactusMan GBAtemp Regular
    Member

    Joined:
    Nov 18, 2019
    Messages:
    134
    Country:
    Netherlands
    I did that that too, call Nintendo custumur suport they have spare parts. Theyĺl charge a reasonable fee.

  14. Modificatorul

    Modificatorul GBAtemp Regular
    Member

    Joined:
    Oct 28, 2009
    Messages:
    253
    Country:
    Russia
    Way did you buy that , 100 % just molex the rest was an assumption, speculation basted on nr of pins, i didnt't have time to check everityhing , use the top lcd connector 3ds, 3ds xl on aliexpress 29 contacts, thanks for testing, how much did you pay , send pm if you consider i made you bought the wrong part.

  15. laotoulyh

    laotoulyh Member
    Newcomer

    Joined:
    Jul 8, 2020
    Messages:
    24
    Country:
    China
    It's okay, I can apply for a return, only a small amount of shipping fee is required.

    — Posts automatically merged - Please don't double post! —

    I searched 502598-2993 directly on the shopping website and it was available.

    Modificatorul likes this.
  16. Modificatorul

    Modificatorul GBAtemp Regular
    Member

    Joined:
    Oct 28, 2009
    Messages:
    253
    Country:
    Russia
    ok, see the test i made with n3dxl top lcd conector, if i fiind the right part number i will let you now, , now i have to edit the post, thank you.

    CactusMan likes this.
  17. laotoulyh

    laotoulyh Member
    Newcomer

    Joined:
    Jul 8, 2020
    Messages:
    24
    Country:
    China
    OK

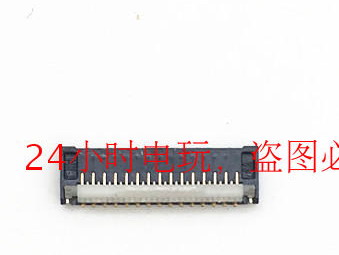

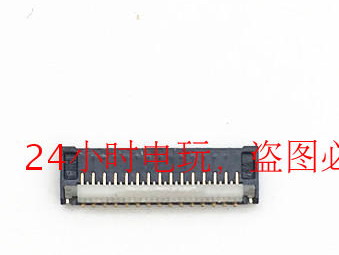

    I found a 3DS LCD socket, it should be ok.

    Modificatorul likes this.
  18. Modificatorul

    Modificatorul GBAtemp Regular
    Member

    Joined:
    Oct 28, 2009
    Messages:
    253
    Country:
    Russia
    https://www.ti.com/lit/ds/symlink/tps61163a.pdf?ts=1596368110446&ref_url=https%3A%2F%2Fwww.ti.com%2Fproduct%2FTPS61163A%2Fdatasheet
    8.2.2.2 Schottky Diode Selection The TPS61162A, TPS61163A demands a low forward-voltage, high-speed and low-capacitance Schottky diode for optimum efficiency. Ensure that the diode average and peak current rating exceeds the average output current and peak inductor current. In addition, the diode’s reverse breakdown voltage must exceed the open LED protection voltage. ONSemi MBR0540 and NSR05F40, and Vishay MSS1P4 are recommended for the TPS61162A, TPS61163A.

    https://www.mouser.com/datasheet/2/149/MBR0540-889522.pdf
    https://www.vishay.com/docs/89019/mss1p4.pdf
    check the size ,mesure the pads see pdf.

    P.S.
    i'm not responsable for any damage occurred by using what i posted.

    Great job @SheriffBuck

    @laotoulyh

    Last edited by Modificatorul, Aug 3, 2020
    SheriffBuck likes this.
  19. Modificatorul

    Modificatorul GBAtemp Regular
    Member

    Joined:
    Oct 28, 2009
    Messages:
    253
    Country:
    Russia
    Last edited by Modificatorul, Aug 3, 2020
  20. laotoulyh

    laotoulyh Member
    Newcomer

    Joined:
    Jul 8, 2020
    Messages:
    24
    Country:
    China
    Modificatorul likes this.
