1. Crossfader

    Crossfader Member
    Newcomer

    Joined:
    Jul 22, 2019
    Messages:
    28
    Country:
    Germany

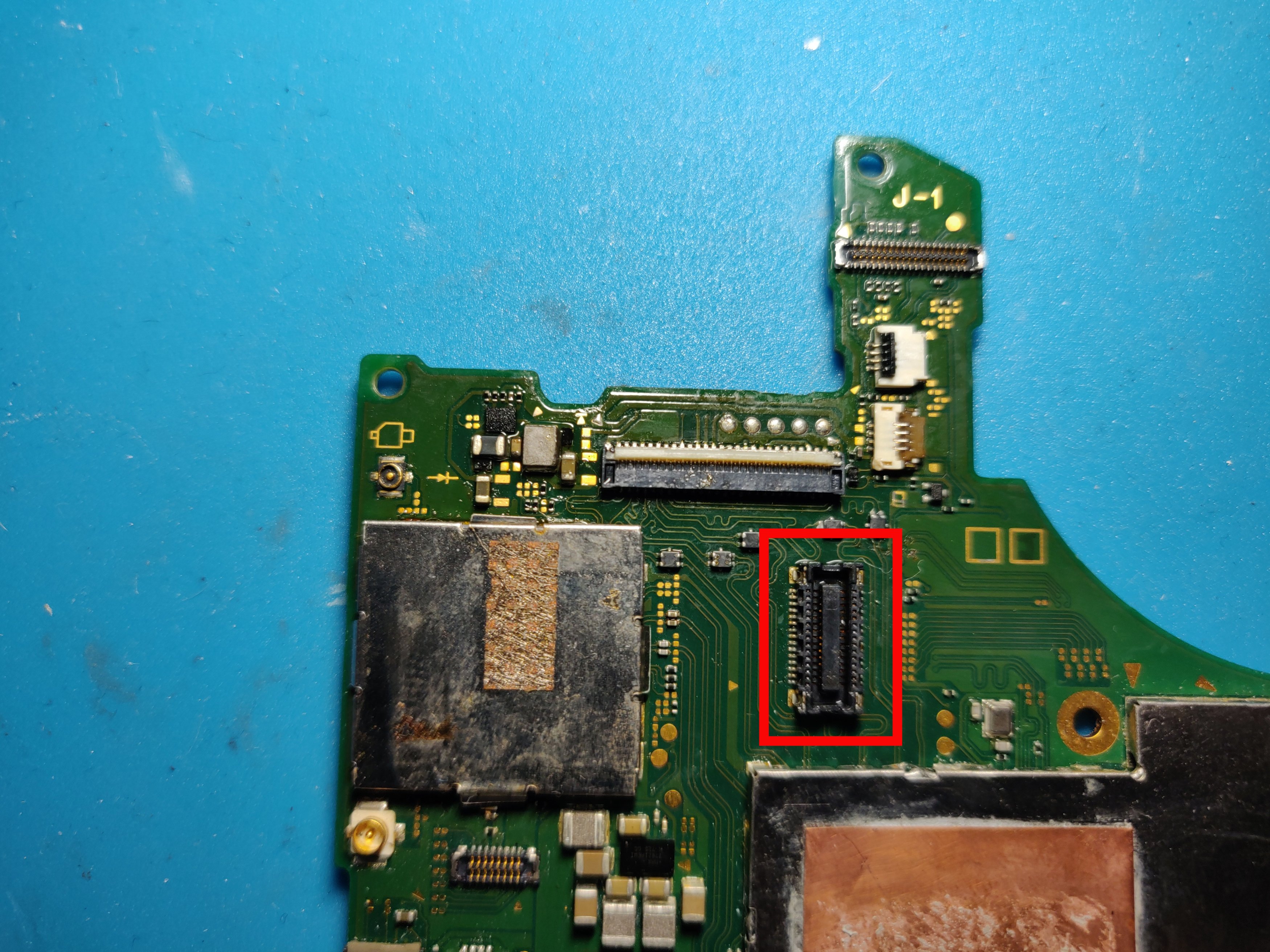

    I need the EMMC FPC Connector, but i cant find it on the web.


    Attached Files:

  2. Theorem

    Theorem Member
    Newcomer

    Joined:
    Dec 19, 2018
    Messages:
    48
    Country:
    Czech Republic
    Can anyone help me identify this capacitor value (back side ALC5639 Area) which is missing on my recently bought (broken) switch ? The one circled in yellow


  3. Rda94

    Rda94 Newbie
    Newcomer

    Joined:
    May 11, 2020
    Messages:
    1
    Country:
    France
    hello
    someone could tell me the component circled in red
    I think it's a TC7PZ17FU, LJ (CT but not on
    can someone confirm


    Attached Files:

  4. THplusplus

    THplusplus Newbie
    Newcomer

    Joined:
    May 13, 2020
    Messages:
    1
    Country:
    Germany

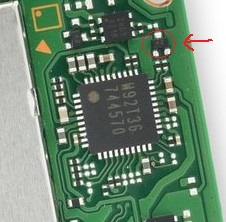

    Hi, I'm missing three parts in the W92T36 area. Thanks to the amazing people in this thread I could already identify two of them. Part 3 might be obvious, but I'm a total amateur in electronics and I haven't found it mentioned anywhere.
    If anyone could identify this part for me (see attached picture), I'd be ever so grateful.
    The board says HAC-CPU-10 on the bottom of the front side.


    Attached Files:

  5. leo_brio

    leo_brio Newbie
    Newcomer

    Joined:
    May 27, 2020
    Messages:
    1
    Country:
    Portugal
    In post #11 of this thread Matty said this interesting thing quoted above.

    I happened to short out a bunch of capacitors on my switch pro controller trying to mod it and I've been looking all over the net to find out what the values of them are but unfortunately I havn't found anything even close. In fact this thread on the Switch console is the closest.

    So when I read that Matty was telling wadsrus to use this formula to find the values it really piqued my interest. I wouldn't mind being able to reverse engineer and be able to calculate how much the value of each capcitor in each place is supposed to be without having to take pics and keep asking ppl what it is. So how do you actually do that? Is it possible using that formula?!?!? that seems so confusing to me ... does anyone know how to actually do it and explain it simply?

  6. Kyle90

    Kyle90 Newbie
    Newcomer

    Joined:
    Jun 3, 2020
    Messages:
    2
    Country:
    United States
    Can anyone advise me which parts short circuit ? I am confused about this SD card connector.

    -I've try replace working good SD card slot & mirco sd card But still can read mirco SD card.
    -Have check near capacitor or diode no short.
    -Also have check connector no short
    -May I know is it have any ic chip problem?


    Attached Files:

    h8177 likes this.
  7. ttarik

    ttarik Newbie
    Newcomer

    Joined:
    Jun 6, 2020
    Messages:
    4
    Country:
    Australia

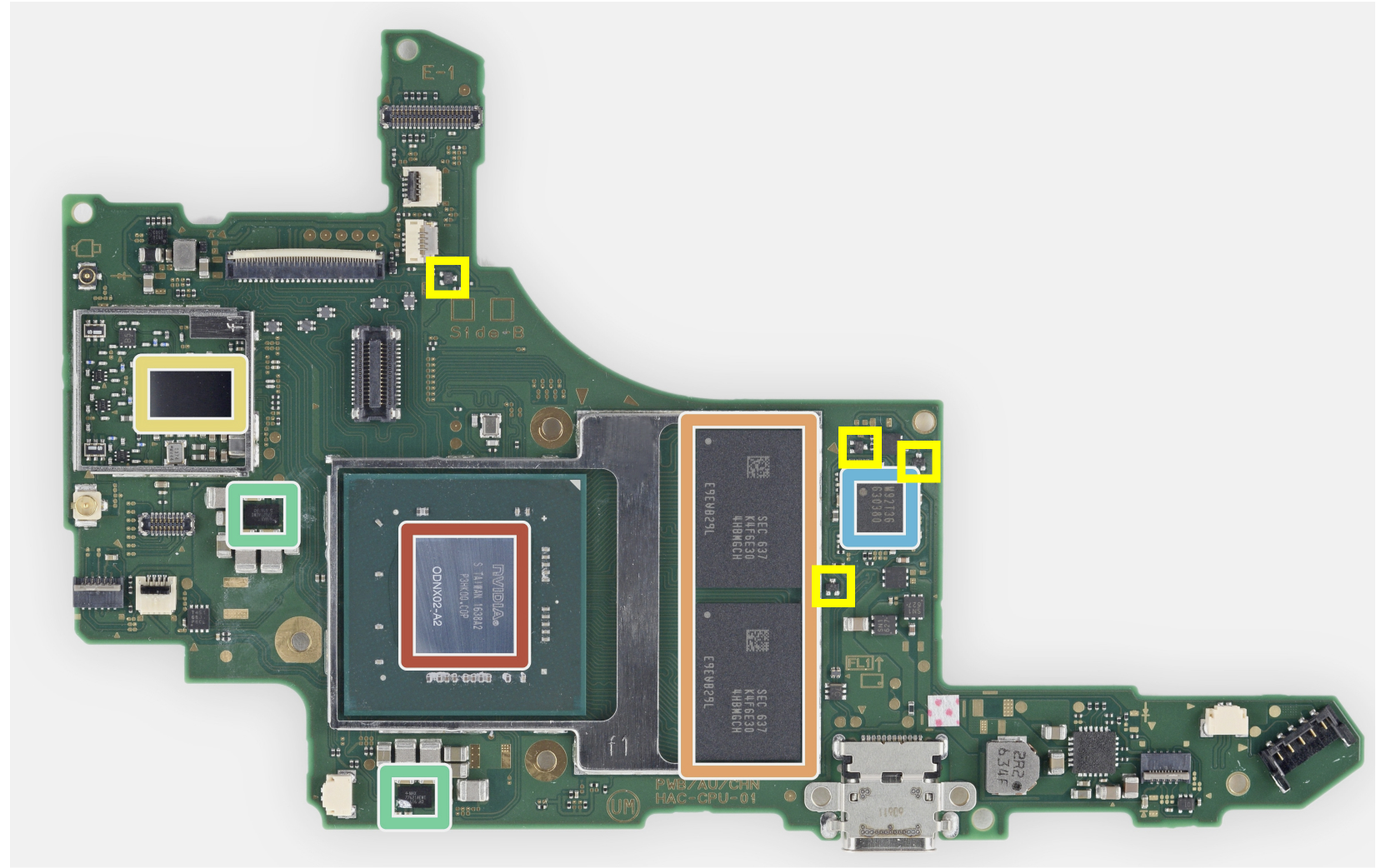

    Hi, I'm also looking for the same component as THplusplus above. Highlighted in yellow in photo.

    3 x marked "42", 1 x marked "XK".


    Attached Files:

  8. ttarik

    ttarik Newbie
    Newcomer

    Joined:
    Jun 6, 2020
    Messages:
    4
    Country:
    Australia
    Hours of searching through datasheets later, I think I've identified them. They're all transistors (SOT-723 package).

    "42" marking = DTC043ZMT2L
    "XK" marking = RN1110MFV

    There are some others on the joy-con boards marked "49" and "69".

    "49" marking = DTC043TMT2L
    "69" marking = DTC024XMT2L

    Whoops, I'm a new member so I can't post links :( A quick search of the part numbers will bring up their data sheets.

    Ttm3 likes this.
  9. lpoolm

    lpoolm GBAtemp Fan
    Member

    Joined:
    Jun 20, 2017
    Messages:
    354
    Country:
    United Kingdom
  10. h8177

    h8177 Newbie
    Newcomer

    Joined:
    Feb 18, 2006
    Messages:
    4
    Country:
    I'm on the same boat, short of replacing the microsd lego slot on motherboard side, trying to figure out if one of the components is bad.

  11. cornl05

    cornl05 Newbie
    Newcomer

    Joined:
    Jun 16, 2020
    Messages:
    1
    Country:
    Belgium
    Hi guys, so i bought this switch which doesn't light up when switched on & with cable, i tested the voltage and it stays at 5V but no amps on the multimeter. i opened it and see this, someone tried to do something on it before.. i guess i need to replace the missing capacitor. my motherboard card ref is HAC-CPU-10, you will find attached a pic of my mobo and another one with the same ref i found in this post. Maybe you can tell me which cap is missing ? thanks a lot.

    my mobo : ibb.co/ sskpGRX
    the good one : ibb.co/ g6BKkkp

    (still cant post pics)

    Last edited by cornl05, Jun 16, 2020
  12. mohamedxp

    mohamedxp Newbie
    Newcomer

    Joined:
    Apr 20, 2020
    Messages:
    7
    Country:
    Algeria
    hello,

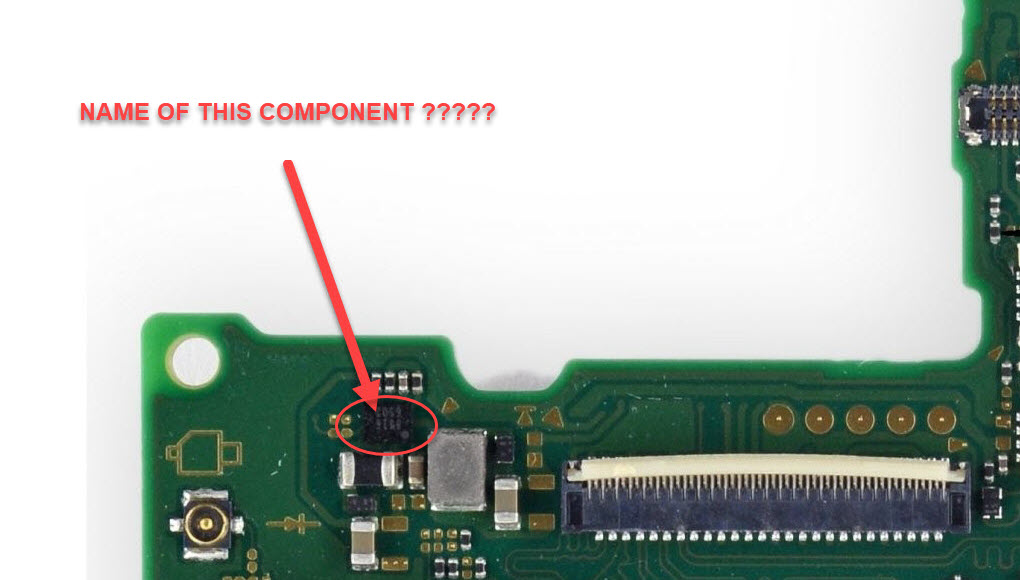

    need name of this component

    thank you


    Attached Files:

  13. flabbaba

    flabbaba Member
    Newcomer

    Joined:
    Jun 27, 2020
    Messages:
    24
    Country:
    Norway

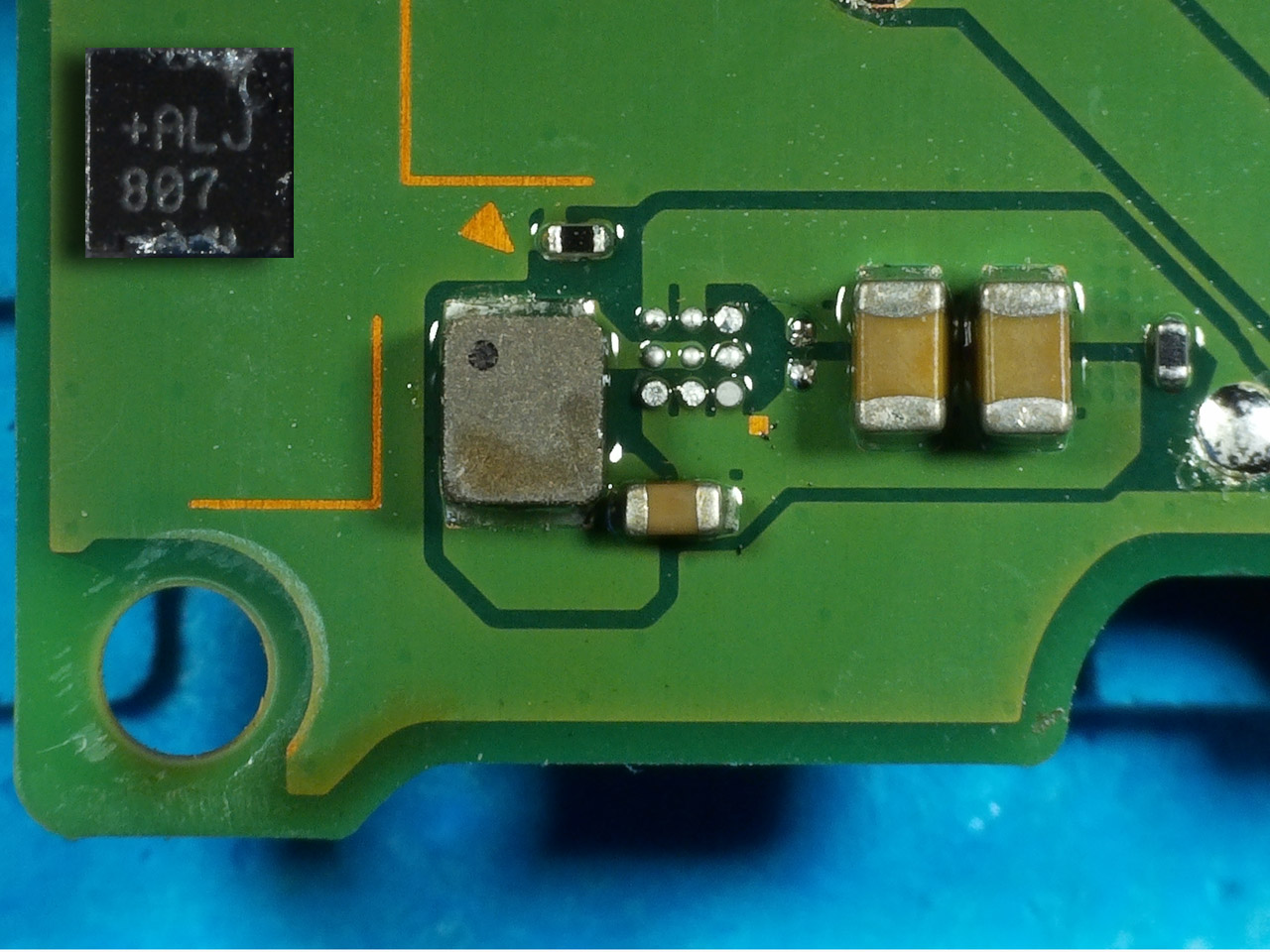

    Anyone got an idea as to what this 3*3 BGA chip is?
    Pulled from the site you see here on a HAD-CPU-01 board, and with the markings +ALJ 807
    shorted component..jpg

  14. kxis

    kxis Newbie
    Newcomer

    Joined:
    Jul 2, 2020
    Messages:
    2
    Country:
    Russia

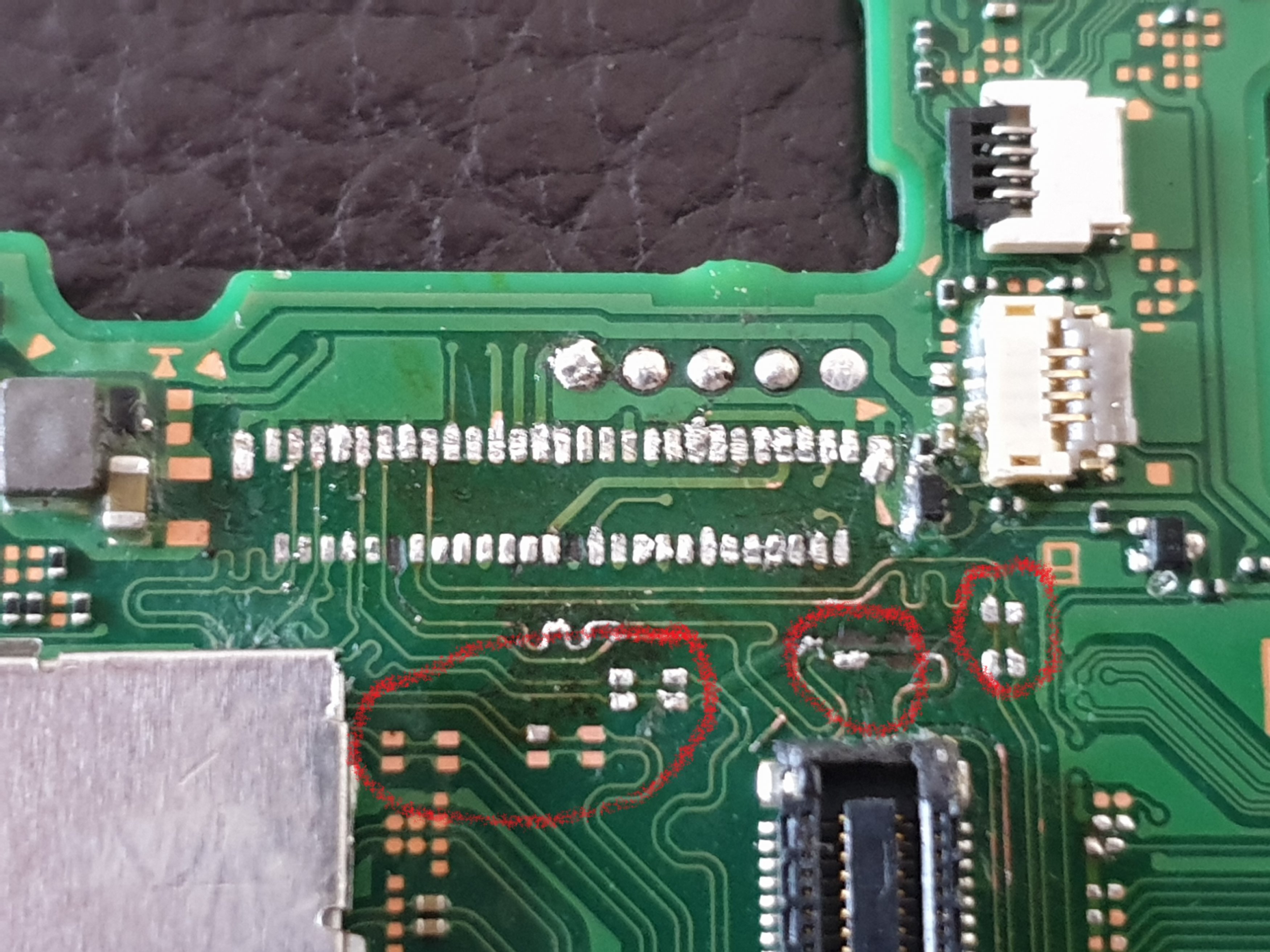

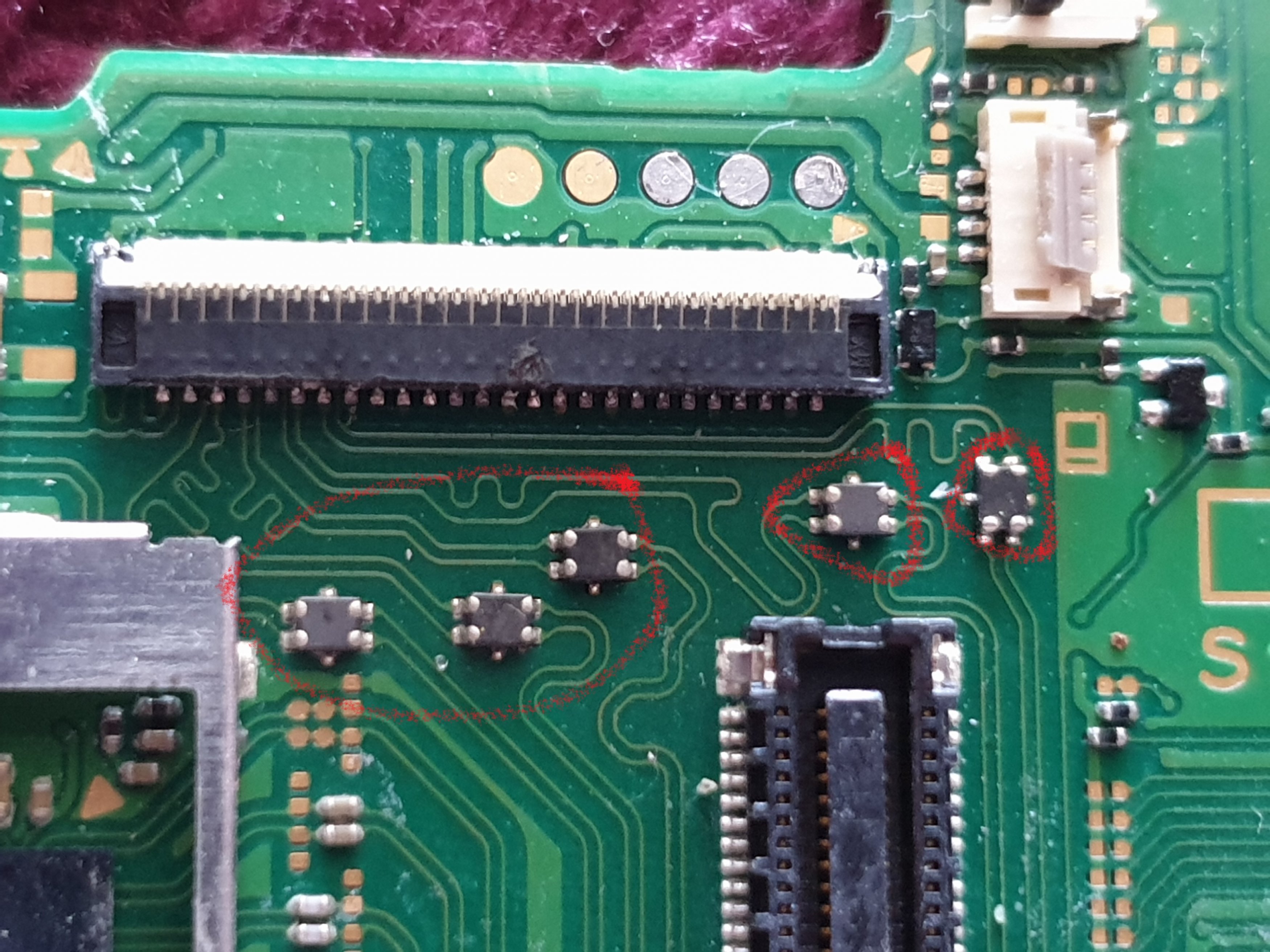

    Hi guys, thanks for amazing job this community has done! I learned a lot reading the whole thread but, unfortunately, couldn't find the label to the component of my interest (shown on the pic in red circle)

    can anyone help identify the name of this component(s)?

    On some schemes it marked as SN1 627- but no relation to actual label.


    Attached Files:

    Last edited by kxis, Jul 2, 2020
  15. flabbaba

    flabbaba Member
    Newcomer

    Joined:
    Jun 27, 2020
    Messages:
    24
    Country:
    Norway
    I think they are some kind of mosfets. Are they getting warm?

  16. kxis

    kxis Newbie
    Newcomer

    Joined:
    Jul 2, 2020
    Messages:
    2
    Country:
    Russia
    Thanks for the idea, flabbaba. Unfortunately, this exact component(s) is dead in my board, so I can't know until I replace them :(
    hence the quest for its name. My next attempt is to interrogate (:D) the local repair shops, so If I manage to find one, I'll keep you posted

  17. Modificatorul

    Modificatorul GBAtemp Regular
    Member

    Joined:
    Oct 28, 2009
    Messages:
    253
    Country:
    Russia
  18. AshC95

    AshC95 Newbie
    Newcomer

    Joined:
    Jul 6, 2020
    Messages:
    5
    Country:
    United Kingdom
    Did you ever find out what they were? I'm in need of some for the SMDs at the bottom of the SoC.

  19. Modificatorul

    Modificatorul GBAtemp Regular
    Member

    Joined:
    Oct 28, 2009
    Messages:
    253
    Country:
    Russia
    0.1 µF, 10 V, 0201 should work.
    Did you try to install sx core ?


    @squee666 recommends 1uf , size 0201 ( removed and mesured)

    Last edited by Modificatorul, Jul 15, 2020
  20. AshC95

    AshC95 Newbie
    Newcomer

    Joined:
    Jul 6, 2020
    Messages:
    5
    Country:
    United Kingdom
    Thanks, really appreciate it. And yeah my brother came running into my room and my door swung into me and just messed the whole installation up. *sad face*

    Modificatorul likes this.
