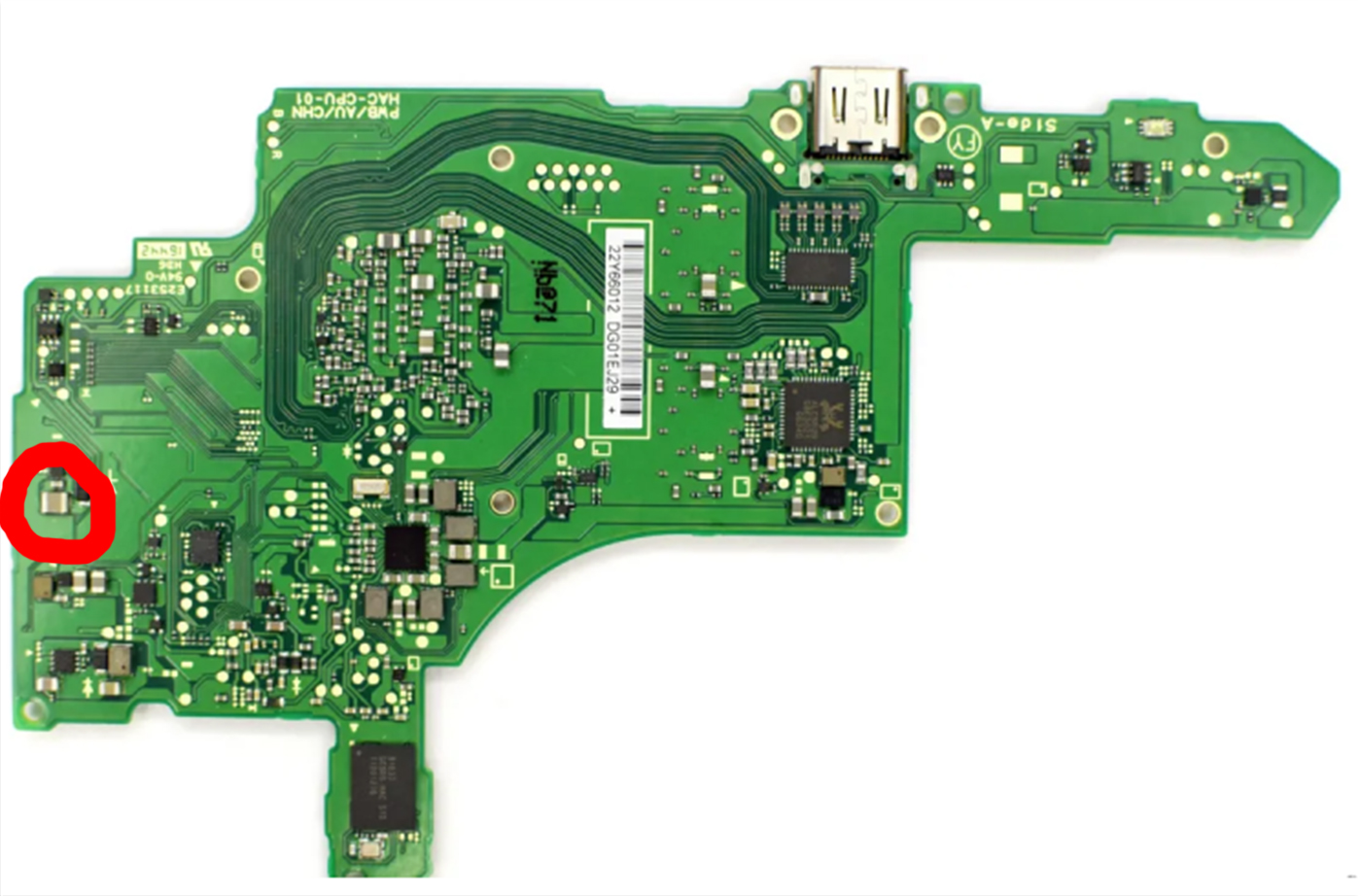

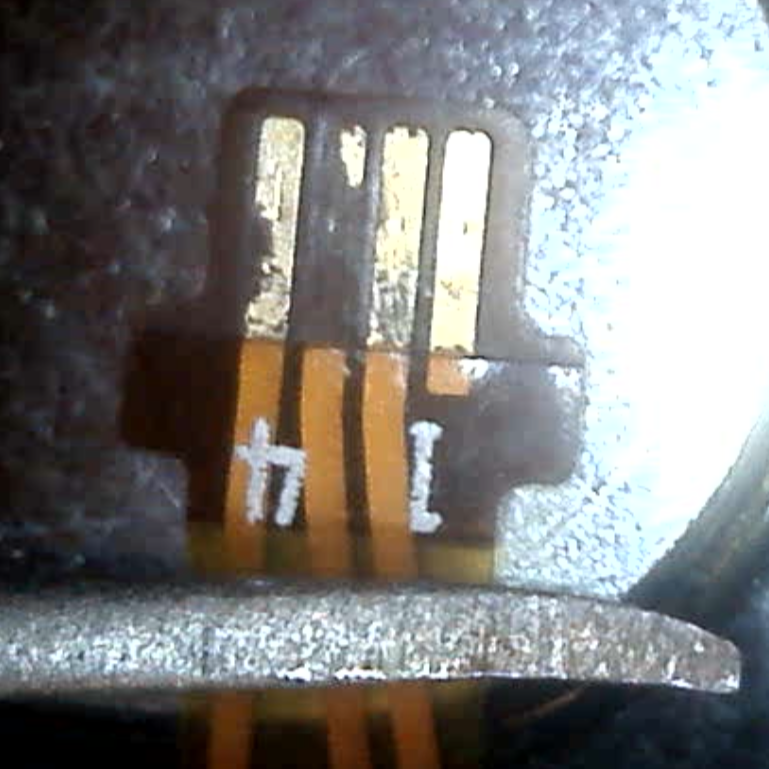

    Hi! I'm hoping someone might be able to help. So I've search through the forum and the internet and I'm trying to track down the connector on the Switch motherboard that the Game Card Slot/HeadPhone PCB ribbon connects down into. I've attached a picture with the connector in question circled in blue. To give you some background, I have a Nintendo Switch where parts of the touchscreen do not respond to touch. I've replaced the Digitizer, so I don't believe it's that. I've also swapped out the Game Card Slow/Headphone PCB. If you look closely at the picture of the connector, you can see on the left side that the metal end cap of the connector is missing. I thought I could try jumping a wire across, but I believe that connection makes a connection on the Game Card/Headphone Jack PCB ribbon which in turn connects through to the Digitizer. So if anyone has any ideas on where I can get that connector or other possible ideas on fixing the issue without replacing the connector, I'd appreciate it. :-) Thank you!


    Attached Files:

  2. SolidSnakeUk89

    SolidSnakeUk89 Advanced Member
    Newcomer

    Joined:
    Jul 20, 2019
    Messages:
    94
    Country:
    United Kingdom
  3. andersabra

    andersabra Newbie
    Newcomer

    Joined:
    Jul 21, 2019
    Messages:
    3
    Country:
    Denmark

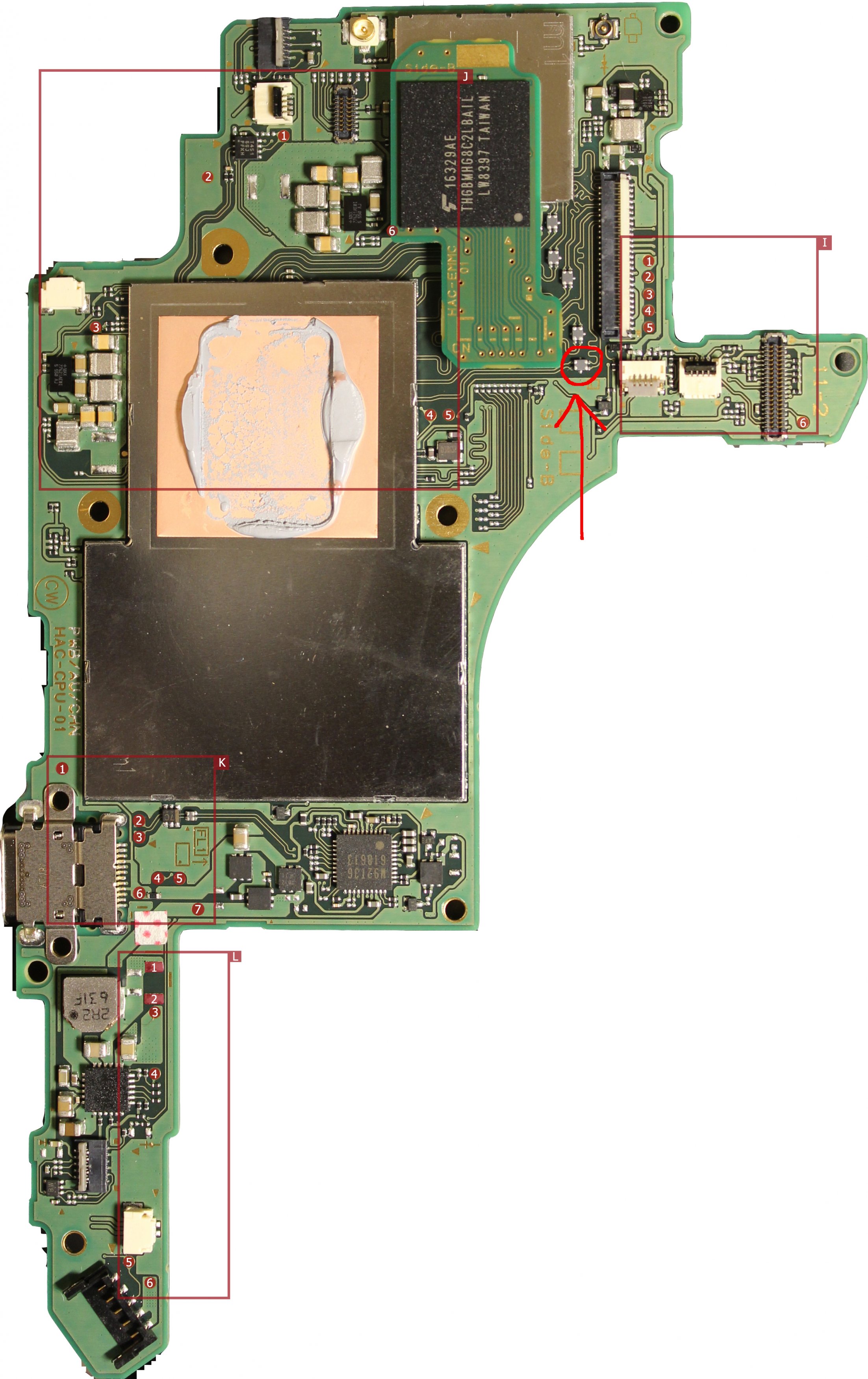

    Would anybody be able to ID this in the red square for me please?


    Attached Files:

    Last edited by andersabra, Jan 8, 2020
  4. RocknRola

    RocknRola Newbie
    Newcomer

    Joined:
    Nov 2, 2019
    Messages:
    6
    Country:
    Germany
    Hey Guys,
    i need ur help.

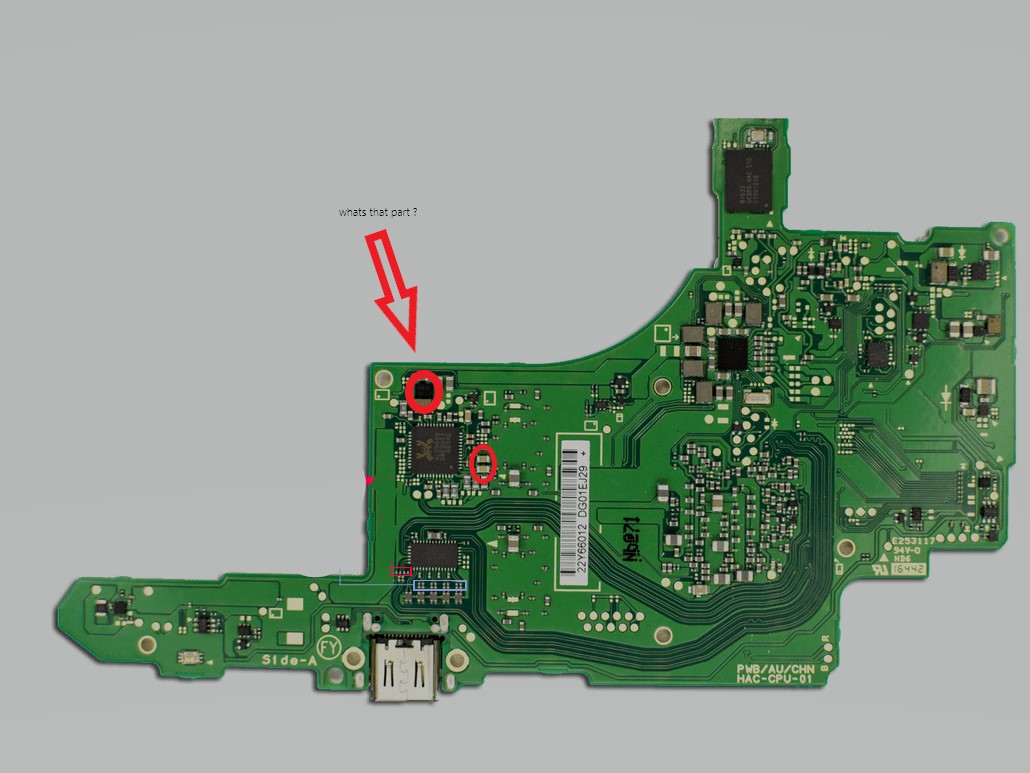

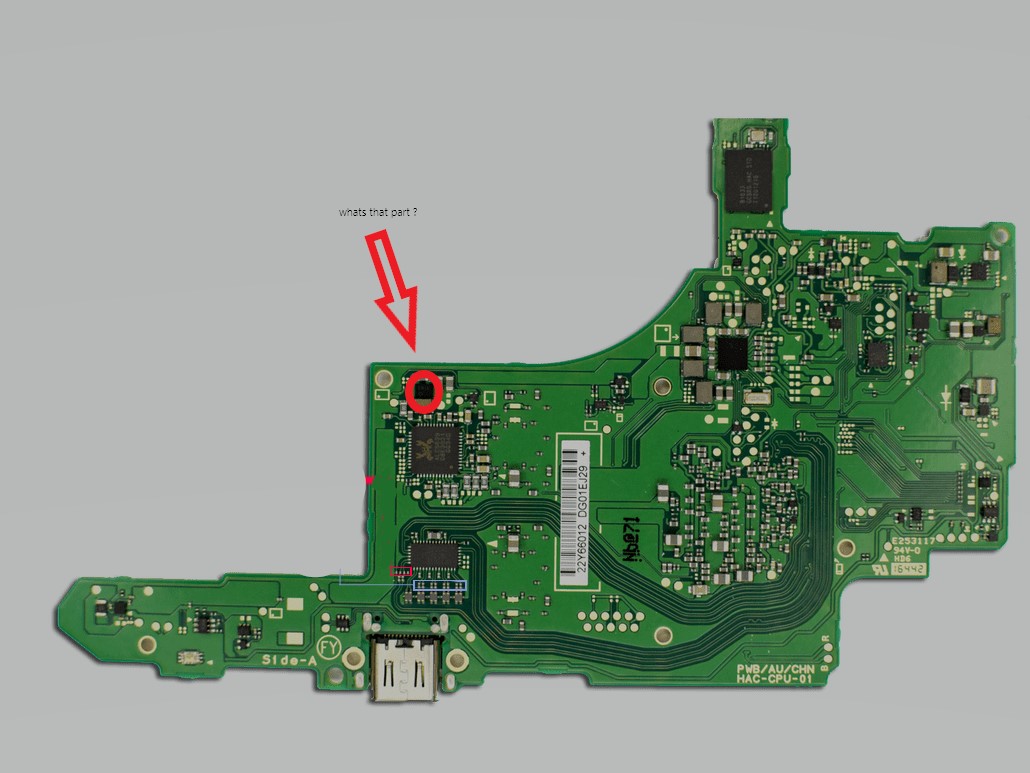

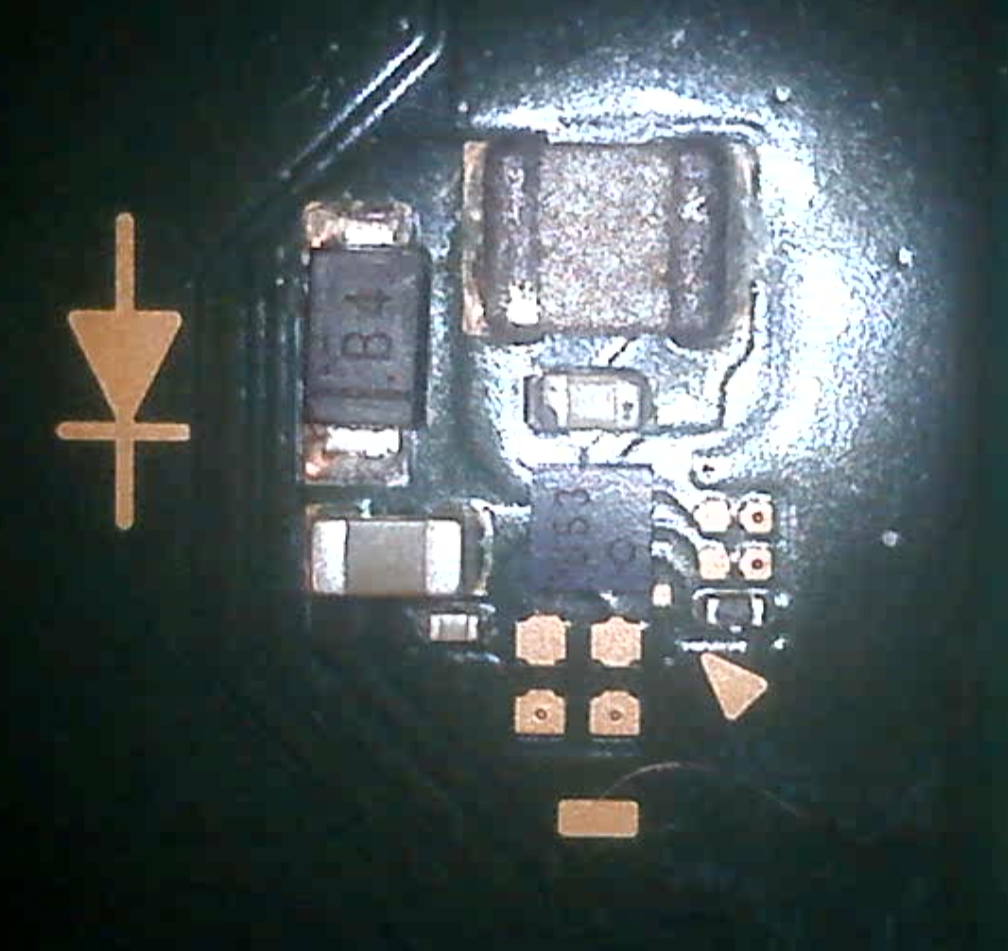

    Can u tell me what that part is ?
    Its burned , and the 2 marked capacitors are shorted (Still without IC)


    Attached Files:

    Last edited by RocknRola, Jan 8, 2020
  5. Adrill

    Adrill Member
    Newcomer

    Joined:
    Apr 17, 2018
    Messages:
    13
    Country:
    France

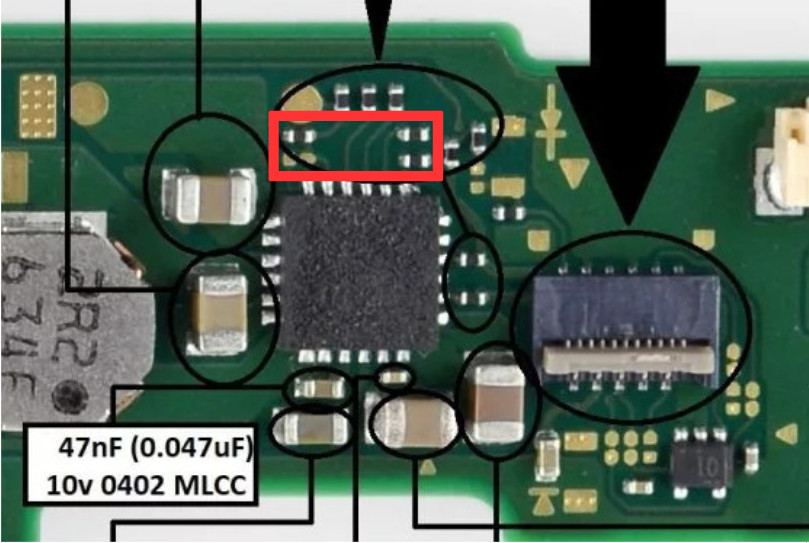

    Hello, is it confirmed that all the resistors around the BQ24193 are 10K ohms?
    I managed to blew some off with the hot air gun when I changed the BQ :angry:
    When I checked their values on another Switch, some were 10K, but not all of them.

  6. Pintglass

    Pintglass GBAtemp Regular
    Member

    Joined:
    Jan 28, 2019
    Messages:
    286
    Country:
    United Kingdom
    No there's different sizes, post an image of where you've blown them of

  7. Adrill

    Adrill Member
    Newcomer

    Joined:
    Apr 17, 2018
    Messages:
    13
    Country:
    France
    It's those three:

  8. RocknRola

    RocknRola Newbie
    Newcomer

    Joined:
    Nov 2, 2019
    Messages:
    6
    Country:
    Germany
    Answered it myself,
    Its a 20Ball BGA with the Label EN56.
    reversed the lines on PCB and found out it has something to do with the Audio Codec Chip.

    Last edited by RocknRola, Jan 17, 2020
    FXDX likes this.
  9. Crossfader

    Crossfader Newbie
    Newcomer

    Joined:
    Jul 22, 2019
    Messages:
    9
    Country:
    Germany
    Hi, is this the same Panasonic Filter as on the back by the PI13USB?


    Attached Files:

  10. psi_lizard

    psi_lizard Newbie
    Newcomer

    Joined:
    Jan 23, 2020
    Messages:
    1
    Country:
    Canada

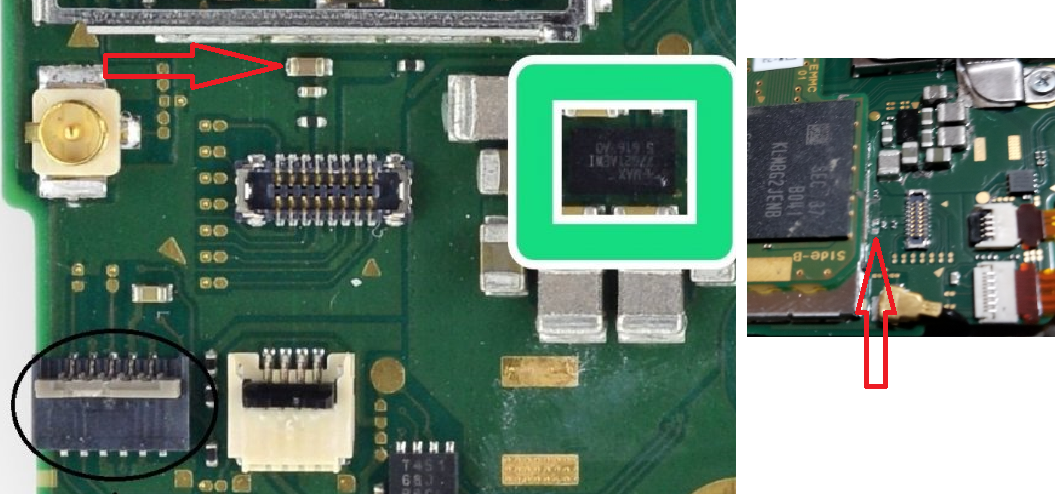

    Hi everyone! Could any of you please help me with the values for this cap that is missing next to the MicroSD card reader connection?

    Update: I ended up buying another broken switch to harvest the cap off of after I didn't get any hits on the forums that I posted. I tested it and it seems to be 4.7µF if anyone in the future stumbles across this post.


    Attached Files:

    Last edited by psi_lizard, Feb 7, 2020
  11. PuntoMovil

    PuntoMovil Newbie
    Newcomer

    Joined:
    Jan 27, 2020
    Messages:
    1
    Country:
    Spain
    Anyone know the value of this component? Thanks in advance


    Attached Files:

    FXDX likes this.
  12. FXDX

    FXDX GBAtemp Regular
    Member

    Joined:
    Sep 15, 2019
    Messages:
    178
    Country:
    Dominican Republic
    Last edited by FXDX, Jan 27, 2020
  13. Atomical

    Atomical Newbie
    Newcomer

    Joined:
    Feb 7, 2020
    Messages:
    5
    Country:
    United Kingdom
    Does anyone know the value or what type of component this is? Presume Capacitor.

    History of the switch, Daughter dropped it in to the dogs water bowl last night while turned on. Saw the screen fade as I was wiping away the water. Stripped down today and cleaned the board with isopropanol in areas that looked corroded (only a few small spots, but board was dry all over), but noticed this chip circled was scorched,

    The switch is modded with Atmosphere and has to be RCM with a payload to boot, can detect in windows and seen in TegraRcmGUI. With no payload and with payload injected. So hopefully just that component stopping it from booting.

    Thanks in advance


    Attached Files:

  14. Atomical

    Atomical Newbie
    Newcomer

    Joined:
    Feb 7, 2020
    Messages:
    5
    Country:
    United Kingdom
    Here's a pic of the actual board area.

    Meter confirms short on this.


    Attached Files:

  15. Pintglass

    Pintglass GBAtemp Regular
    Member

    Joined:
    Jan 28, 2019
    Messages:
    286
    Country:
    United Kingdom
    Are you talking aboult the large component, if so this should be shorted as its an inductor.

    Atomical likes this.
  16. Atomical

    Atomical Newbie
    Newcomer

    Joined:
    Feb 7, 2020
    Messages:
    5
    Country:
    United Kingdom
    I wasn't sure what it was but thanks for confirming.

    Found an issue with the backlight ribbon (Think its that) one of the traces is gone. Must have been when i washed with IPA. :(

    I guess there is no fix for this apart from a new screen? or is somthing like wire glue good enough?


    Attached Files:

  17. Pintglass

    Pintglass GBAtemp Regular
    Member

    Joined:
    Jan 28, 2019
    Messages:
    286
    Country:
    United Kingdom
    I did manage to fix a ribbon cable like yours by using a piece of copper foil soldered across the break but it wasn't as bad as yours, you've only got a small bit of the trace left at the end. If you've got some copper foil it would't do any harm to try it.

  18. Liorsh

    Liorsh Newbie
    Newcomer

    Joined:
    Dec 24, 2019
    Messages:
    9
    Country:
    United States
    Hello
    I appreciate if someone can assist me
    this switch first edition

    have been connected to AliExpress cheep rock that made it stop working.

    It doesn’t turn on the battery is full and all the electronics rotes to the common problems of can’t find shortage with my fluke near theme.
    The only shortage I found is what I marked in the pictures in yello market left side all the electronics there have shortage.
    I couldn’t find information on line regarding this problem.

    anyone have any ideas?


    Attached Files:

    Last edited by Liorsh, Feb 9, 2020
  19. mixelpixx

    mixelpixx hardware monkey
    Member

    Joined:
    Aug 10, 2014
    Messages:
    125
    Country:
    United States

    Looks like that ceramic cap and the diode possibly should be replaced..

  20. Pintglass

    Pintglass GBAtemp Regular
    Member

    Joined:
    Jan 28, 2019
    Messages:
    286
    Country:
    United Kingdom
    When you say there shorted which components do you mean theirs a lot in the image you've posted highlighted in yellow
