Cannot install Dashlaunch

Ferris1000

Well-Known Member
Member
Joined
Mar 10, 2017
Messages
152
Trophies
0
Age
30
XP
1,400
Country
Germany
1.Download Simple 360 NAND Flasher V1.2
2.Copy the the contents to an USB Stick
3.Execute Simple 360 Nand Flasher on your xbox360.
4.Dump the Nand by clicking X on your Controller.
5.Wait until the Dump is completed
6.Shutdown your XBox360 and Turn it on with the Drive Eject Button.
7.Xell will boot and show your CPU Key, write it Down because it's required in the next Step.

Now you chould have a Dump of your Nand and the CPU Key of your Xbox360.

8.Download JRunner and download the latest Kernel.
9.Click on Load Source and select the Nand Dump.
10.Enter the CPU Key and click Re-init

If you've done everything right then Jrunner will display all the details of your NAND.

11.Check if the right explot is selected (JTAG, RGH or RGH2)
12.Check that the newest Kernel is selected.
13.click on "Create XeBuild Image" to create a new (updated) NAND Image.

If everything went right you should have a file called "updflash.bin"

14.Copy "updflash.bin" directly to your USB Stick.
15.Plug the USB Stick back into your Xbox360 and boot into Xell by pressing eject while the Xbox360 is turned of.

Xell should detect the updflash.bin and flash your xbox with the New Updated (ONLY FOR YOUR XBOX360) created XeBuild Image.

If in any circumstances xell won't flash it and keep looking for an Update than use Simple 360 NAND Flasher V1.2 to flash the Image by clicking A on your Controller.


After that your Xbox is Updated with the Newest Kernel and you can proceed with Dashlaunch.

Good Luck and thank me later ;)

  • Like
Reactions: E1ite007

godreborn

Well-Known Member
Member
Joined
Oct 10, 2009
Messages
22,259
Trophies
1
XP
13,928
Country
United States
if you want to install avatar stuff, once you get an hdd, make sure you install the official update from 17511, or whatever dash you're on. an hdd is required for avatar, media, kinect, and xbox emulator stuff.

  • Like
Reactions: E1ite007

E1ite007

Weird avatar guy
OP
Member
Joined
Nov 19, 2016
Messages
919
Trophies
0
Website
ughax.tk
XP
1,782
Country
Mexico
1.Download Simple 360 NAND Flasher V1.2
2.Copy the the contents to an USB Stick
3.Execute Simple 360 Nand Flasher on your xbox360.
4.Dump the Nand by clicking X on your Controller.
5.Wait until the Dump is completed
6.Shutdown your XBox360 and Turn it on with the Drive Eject Button.
7.Xell will boot and show your CPU Key, write it Down because it's required in the next Step.

Now you chould have a Dump of your Nand and the CPU Key of your Xbox360.

8.Download JRunner and download the latest Kernel.
9.Click on Load Source and select the Nand Dump.
10.Enter the CPU Key and click Re-init

If you've done everything right then Jrunner will display all the details of your NAND.

11.Check if the right explot is selected (JTAG, RGH or RGH2)
12.Check that the newest Kernel is selected.
13.click on "Create XeBuild Image" to create a new (updated) NAND Image.

If everything went right you should have a file called "updflash.bin"

14.Copy "updflash.bin" directly to your USB Stick.
15.Plug the USB Stick back into your Xbox360 and boot into Xell by pressing eject while the Xbox360 is turned of.

Xell should detect the updflash.bin and flash your xbox with the New Updated (ONLY FOR YOUR XBOX360) created XeBuild Image.

If in any circumstances xell won't flash it and keep looking for an Update than use Simple 360 NAND Flasher V1.2 to flash the Image by clicking A on your Controller.


After that your Xbox is Updated with the Newest Kernel and you can proceed with Dashlaunch.

Good Luck and thank me later ;)
Would try it, if the last time I tried to flash the NAND didn't brick my console.
If I had the proper hardware to flash the NAND, I definitely do it, but I'm not in a rush for that since the KV is banned and I would have to get another one (via dumping my other Xbox's NAND, or buying one) to get online capabilities. Afak, updating the kernel doesn't have any other use in RGH, but I may be wrong.

if you want to install avatar stuff, once you get an hdd, make sure you install the official update from 17511, or whatever dash you're on. an hdd is required for avatar, media, kinect, and xbox emulator stuff.
Done it.
Got a case for a 2.5 HDD I had laying around and it works now.
Thanks for the reminder.


godreborn

Well-Known Member
Member
Joined
Oct 10, 2009
Messages
22,259
Trophies
1
XP
13,928
Country
United States
you're on late enough dash kernel to where playing games shouldn't be any issue. that kernel may only be a tos as with the kernel above it. looks like there's only a few dash kernels in between that and the latest:



not a big deal. the last good dash kernel was 16xxx, since it unlocked 2TB external hdd. mostly good for dlc, which I think can't be done with an rgh otherwise afaik. xbla can be and possibly xblig, but not dlc. if you want to install the hacked compatibility files, you need to unlock hddx first. that's the xbox partition. they won't transfer otherwise even if it says it's okay.


godreborn

Well-Known Member
Member
Joined
Oct 10, 2009
Messages
22,259
Trophies
1
XP
13,928
Country
United States
there's an option for that in fsd and aurora, to unlock access to hddx. then, all you do is copy and paste the compatibility files. that's all there is to it. the newest allow the guide to work in xbox mode as well, so if that works, you know it's working.

  • Like
Reactions: brickmii82

E1ite007

Weird avatar guy
OP
Member
Joined
Nov 19, 2016
Messages
919
Trophies
0
Website
ughax.tk
XP
1,782
Country
Mexico
you're on late enough dash kernel to where playing games shouldn't be any issue. that kernel may only be a tos as with the kernel above it. looks like there's only a few dash kernels in between that and the latest:

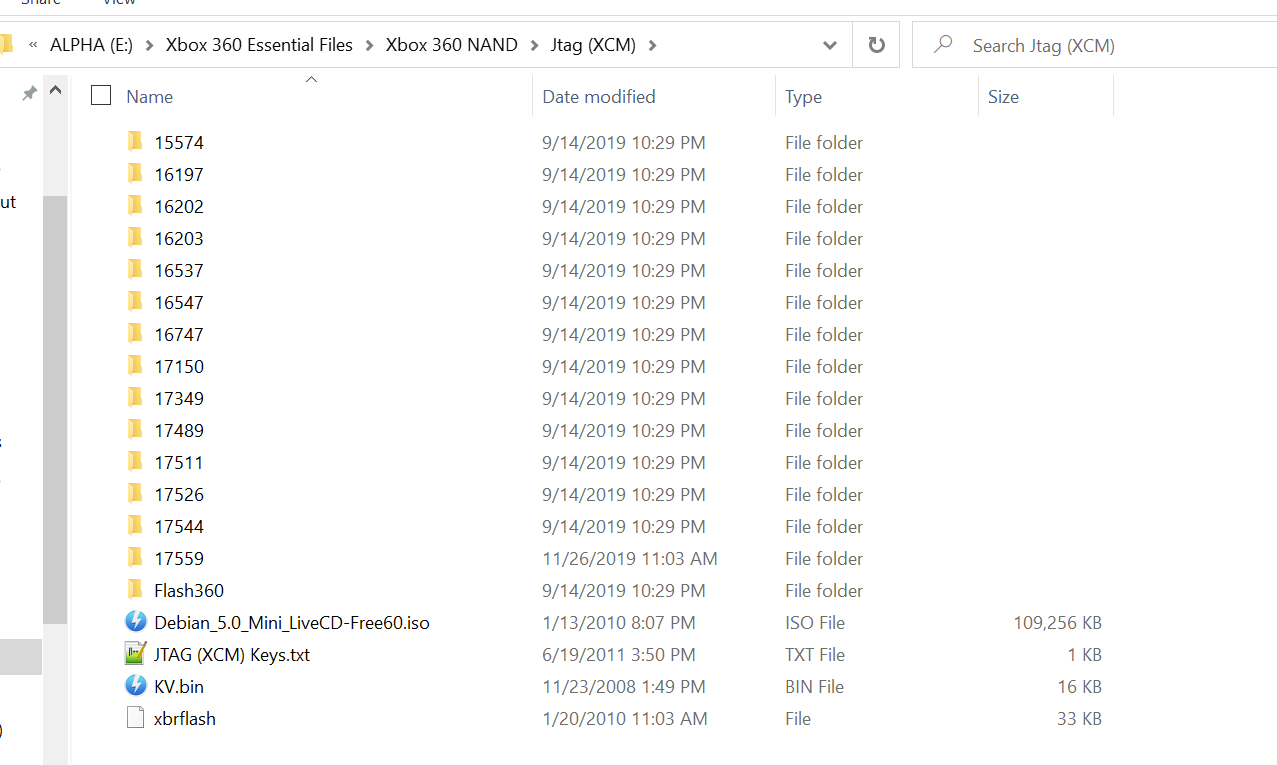

View attachment 277266

not a big deal. the last good dash kernel was 16xxx, since it unlocked 2TB external hdd. mostly good for dlc, which I think can't be done with an rgh otherwise afaik. xbla can be and possibly xblig, but not dlc. if you want to install the hacked compatibility files, you need to unlock hddx first. that's the xbox partition. they won't transfer otherwise even if it says it's okay.
Well, maybe the modder unlocked HDDx, since yesterday I installed DLC for WWE Smackdown vs RAW 2011 and it worked.
And yeah, I would like to update the kernel to the latest, but since I doubt it would work correctly based on the last experience I had, I would like to wait for the proper hardware.

  • Like
Reactions: godreborn

godreborn

Well-Known Member
Member
Joined
Oct 10, 2009
Messages
22,259
Trophies
1
XP
13,928
Country
United States
here you can see it working: the xbox emulator is on the hdd, so possibly not by the modder. you just have to allow access, which is what I mean by unlock. it's disabled by default to prevent someone from messing something up, because at least with fsd, the flash is included with hddx. I can't remember if it is with aurora. that's what I used to send over the hacked files
g:


mydough

Member
Newcomer
Joined
Oct 20, 2021
Messages
22
Trophies
0
Age
15
XP
31
Country
Algeria
ok so basically i have the same xell reloaded thing (auto dumper) and when i disabled live block i accidentally updated my xbox and it wont send display signal when i boot normally but it can boot to the auto dumper so i got help from someone on discord and using j runner rawflash's xenon.elf i just get two red screen flashes where i cant read anything from then and then it tries rebooting to the dash which doesnt work because the dash is just gone for some reason
edit: also sorry for the reviving an old thread


godreborn

Well-Known Member
Member
Joined
Oct 10, 2009
Messages
22,259
Trophies
1
XP
13,928
Country
United States
if you updated online while using an rgh or jtag, I think you'll have to manually reflash the system with a nand programmer. I forgot what happens if you update normally though.


mydough

Member
Newcomer
Joined
Oct 20, 2021
Messages
22
Trophies
0
Age
15
XP
31
Country
Algeria
if you updated online while using an rgh or jtag, I think you'll have to manually reflash the system with a nand programmer. I forgot what happens if you update normally though.
it was the update prompt on the normal dash is using a nand programmer the only way?


godreborn

Well-Known Member
Member
Joined
Oct 10, 2009
Messages
22,259
Trophies
1
XP
13,928
Country
United States
I'm not sure. I think so. the way that jtag rgh work is by sending the hypervisor from 4xxx kernel in place of the one from the firmware installed. since the system uses efuses, it won't allow downgrading, so I think that's what causes the brick.


mydough

Member
Newcomer
Joined
Oct 20, 2021
Messages
22
Trophies
0
Age
15
XP
31
Country
Algeria
I'm not sure. I think so. the way that jtag rgh work is by sending the hypervisor from 4xxx kernel in place of the one from the firmware installed. since the system uses efuses, it won't allow downgrading, so I think that's what causes the brick.
i see quick question tho do you have any idea why it would red screen if a usb device is inserted (no matter whats inside the usb)


godreborn

Well-Known Member
Member
Joined
Oct 10, 2009
Messages
22,259
Trophies
1
XP
13,928
Country
United States
I don't remember the instructions as it's been 10 years or so, but I once had a bad flash somehow, and I was able to fix it with the debian disc. I think it makes a wireless link between the system and the pc. all you need is to be able to boot into xell. can't say it will work, and I can't find a tutorial for it, but I have the live cd on my computer.
