Hi to all!

I´ve a NSW oled, that won´t charge.

I´ve remove the fuse, to see if is the charging port, and put 5v to the nearby capacitor in Vbus line, it have a very low consumption, 0.11A.

I´ve have a nsw lite, to compare, an it don´t have consumption, without the battery both, only board. I´ve replace mt and bq, with same result...

Pin one of bq, it´s onle 0.18v

Can somebody guide me please?


xiran64

Active Member
OP
Newcomer
Joined
Apr 22, 2023
Messages
33
Trophies
0
Age
40
XP
179
Country
Mexico
Thx for answer thesjaakspoiler!

I´ve see that page, but i´ll check again.

UPDATE:

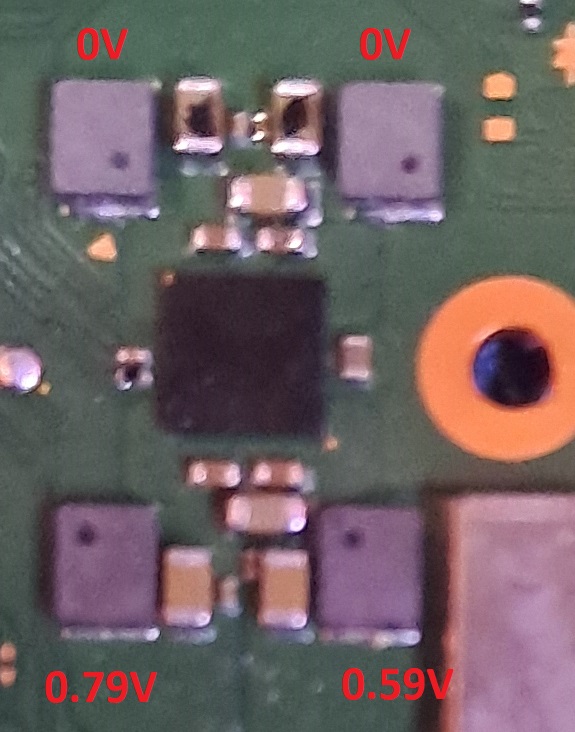

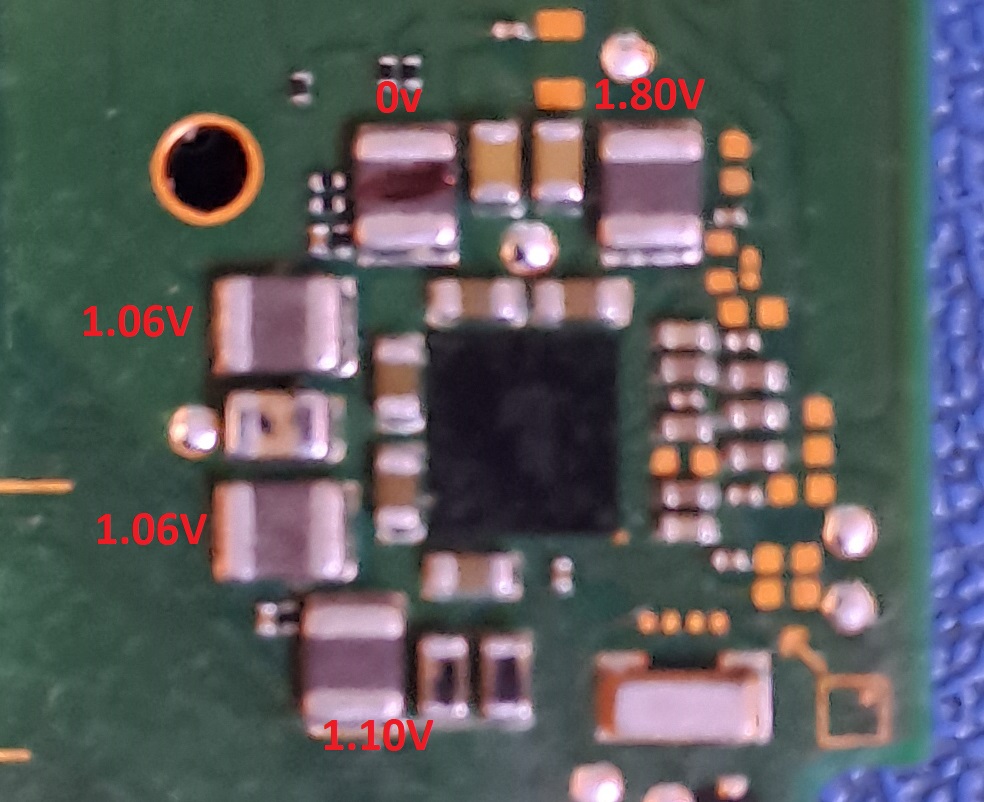

I´ve check the MAX77620 & MAX77812, and have this voltages:


MAX77620.jpg MAX77812.jpg


UPDATE2:
Voltages in BQ24193:

Last edited by xiran64,

xiran64

Active Member
OP
Newcomer
Joined
Apr 22, 2023
Messages
33
Trophies
0
Age
40
XP
179
Country
Mexico
missing 1.3v from MAX77620H is likely tend to be EMMC or CPU related, unless you are powering the board from external DC supply not from battery

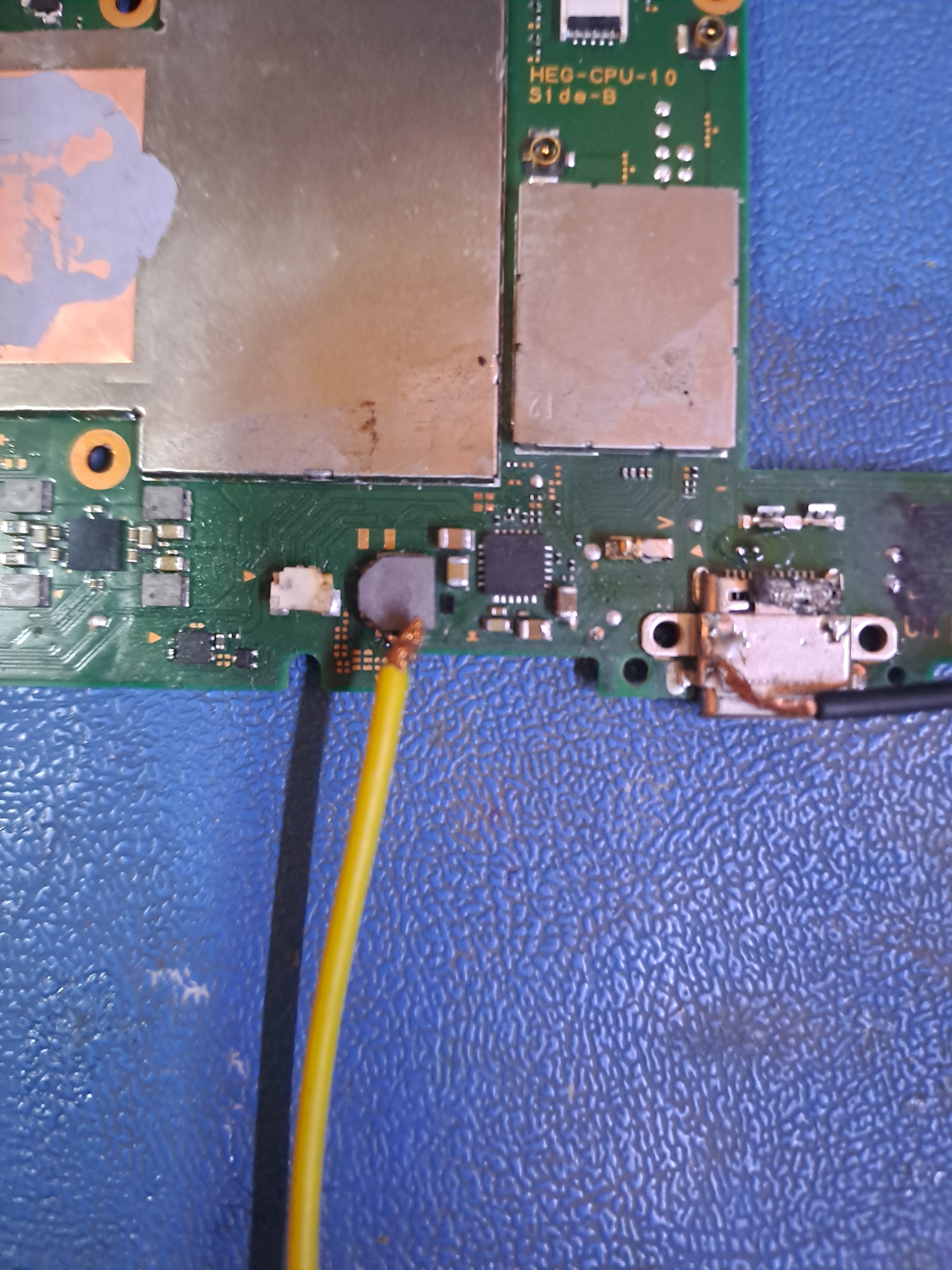

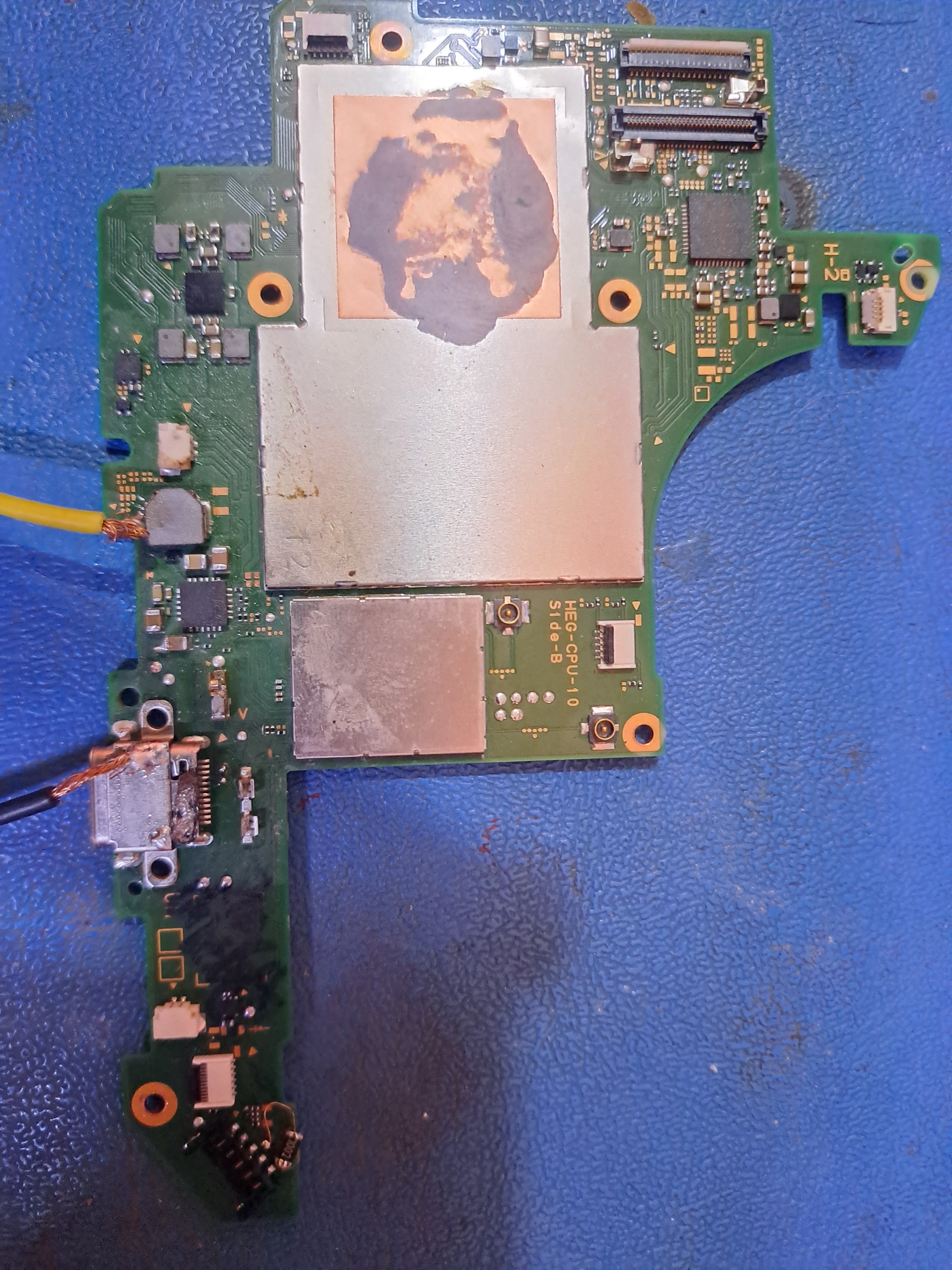

Thx for answer jkyoho, i´am injecting voltage from an external power source, 4.2V to the coil

Last edited by xiran64,

xiran64

Active Member
OP
Newcomer
Joined
Apr 22, 2023
Messages
33
Trophies
0
Age
40
XP
179
Country
Mexico
No, I mean how much the board draws when you trigger power on
Ok, first try, with 4.2@1A, consumption of 0.188A, stables ( stuck between 100 and 300mA).
Uploaded to 2A:
1st try: Consumption variable, and voltage in battery pin, of 4.2V.
2nd try: Stable consumption of 0.188A
3nd try: same as 2nd


xiran64

Active Member
OP
Newcomer
Joined
Apr 22, 2023
Messages
33
Trophies
0
Age
40
XP
179
Country
Mexico

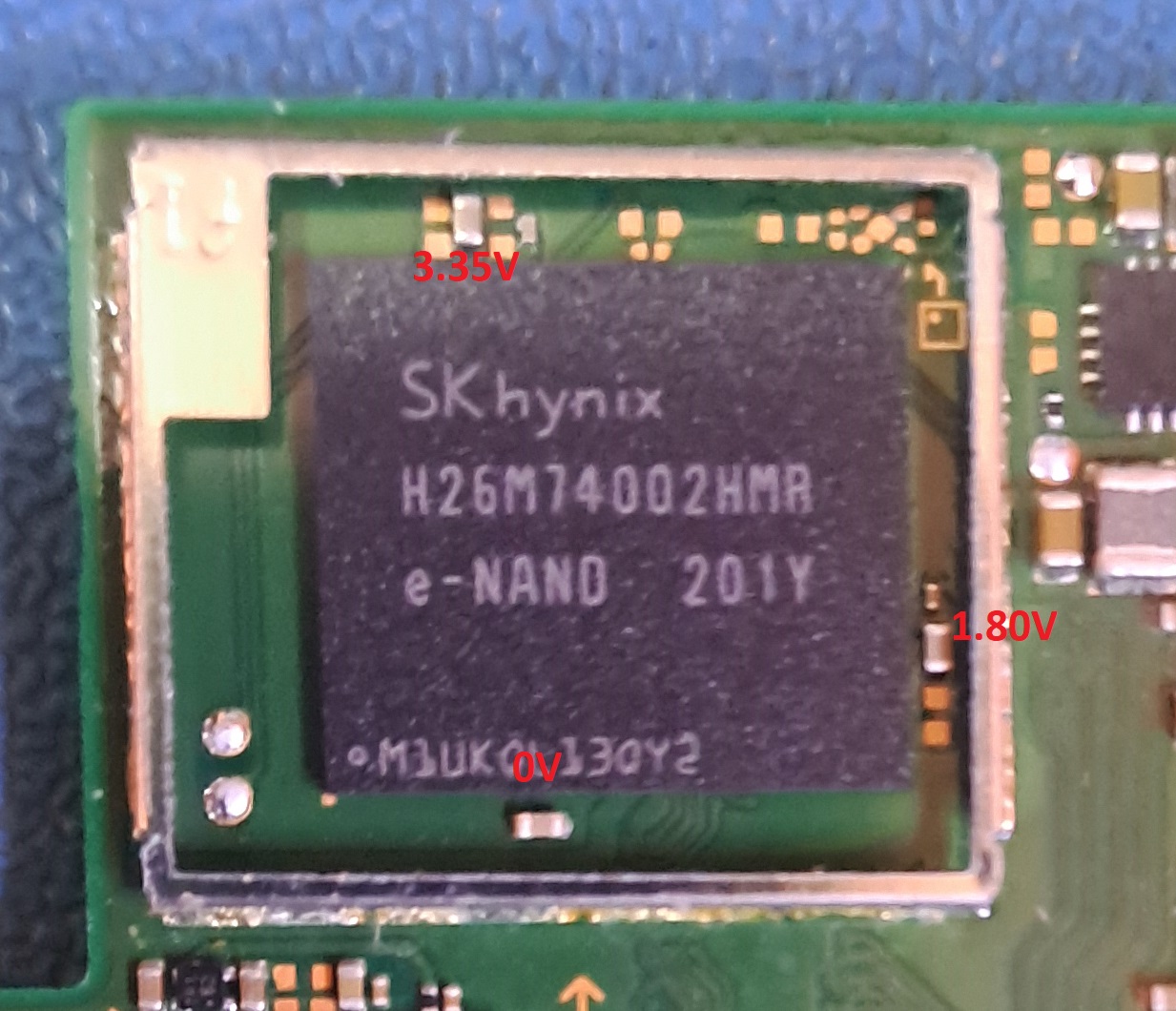

take a picture on emmc, any attempt sign?
Here you have it, Voltage included in surrounding capacitors, one is 0v
Post automatically merged:

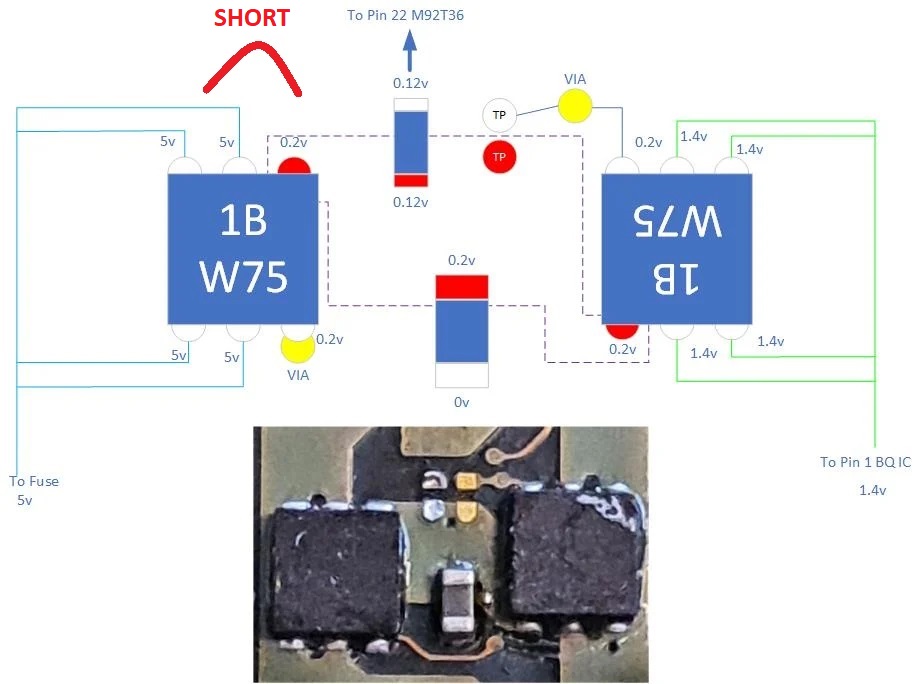

Checking the mosffet at the begin, near usb c, i´ve found a short in the first mosffet, so, i´ve exchange it, from another nsw lite, and the suspicious mosffet, works in the lite...

Short removed, and same... I´ll exchange one ics, with the nsw lite


Attachments

  • Emmc.jpg
    352.3 KB · Views: 4
  • corto.jpg
    94.5 KB · Views: 3
Last edited by xiran64,

xiran64

Active Member
OP
Newcomer
Joined
Apr 22, 2023
Messages
33
Trophies
0
Age
40
XP
179
Country
Mexico
Ok, I replaced the m92t36, and now it charges the battery.

Maybe, that short in the mosfet, burn the second m92t36.

We are going to wait for the battery voltage to rise, because before, if I charged the battery separately, it would turn on, but it would not charge. made false charge

UPDATE:
These are the current voltages

UPDATE2:
No video =(, i´ll check

UPDATE3:
Ok, now, it works fine, no video was be, for a bent pin.

My conclusion is:
The nsw oled works, but do false charge, replacing the related ic charge, but it burns, by a mosfet in short.

Thx to all for your help!!!


Attachments

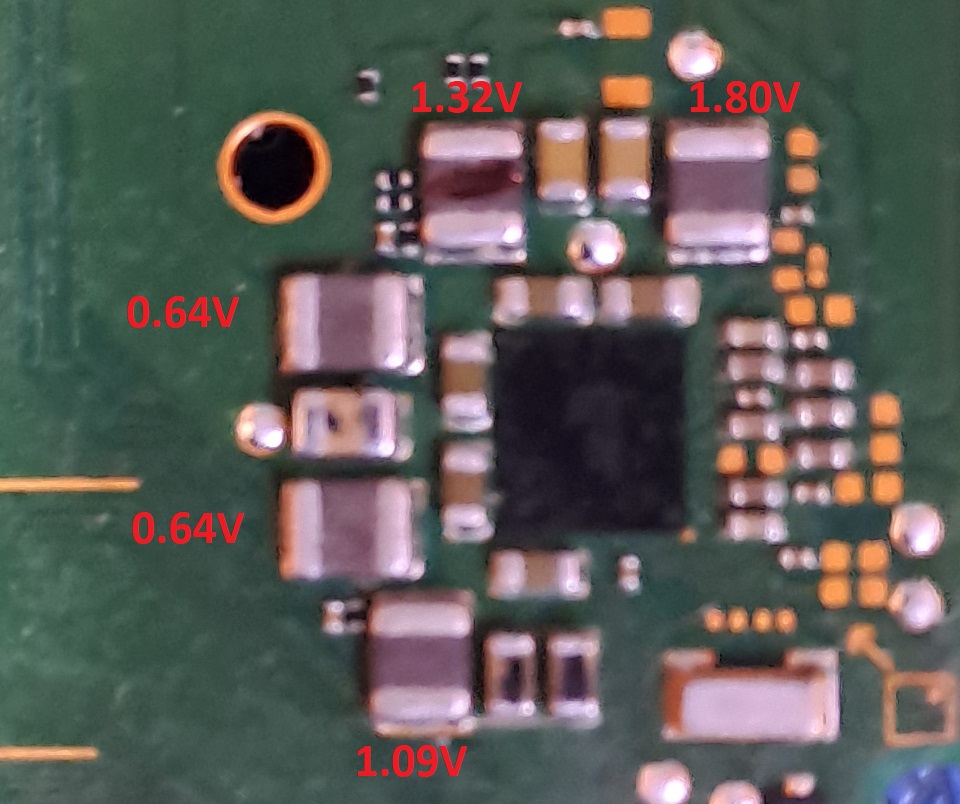

  • BQ24193 - new.jpg
