Hardware 1-bit mode on Hekate

WilsonChin

Member
OP
Newcomer
Joined
Apr 7, 2021
Messages
9
Trophies
0
Age
25
XP
50
Country
Malaysia

This is from hekate, but when I tries to boot through SD card,
it always show me: Failed to initialize the SD Card
I have tested some other new SD card though, same issues appear.
Now my EMUNAND runs super slow!!

Today, I opened up the casing after searching online trying to locate the missing pins, turns out everything was good. But I still get these error.



Should I replace the SD card slot though?

Last edited by WilsonChin,

thesjaakspoiler

Well-Known Member
Member
Joined
Nov 20, 2018
Messages
481
Trophies
0
Age
121
XP
633
Country
Afghanistan
Those connectors look good, no missing pins.
If you regularly switch your SD card, it might be that some pins inside the sd card reader itself broke off or got bent.
Some people report that the pins that are connecting the reader to the board had to be soldered again.
Somehow they weren't soldered properly to the board.
Replacing the board will most likely fix the problem but if you have the tools, you could try to resolder the sd card reader first.


Hayato213

( -_・) ︻デ═一' * (/❛o❛)/
Member
Joined
Dec 26, 2015
Messages
10,751
Trophies
1
Location
Vector Industry
XP
5,734
Country
United States

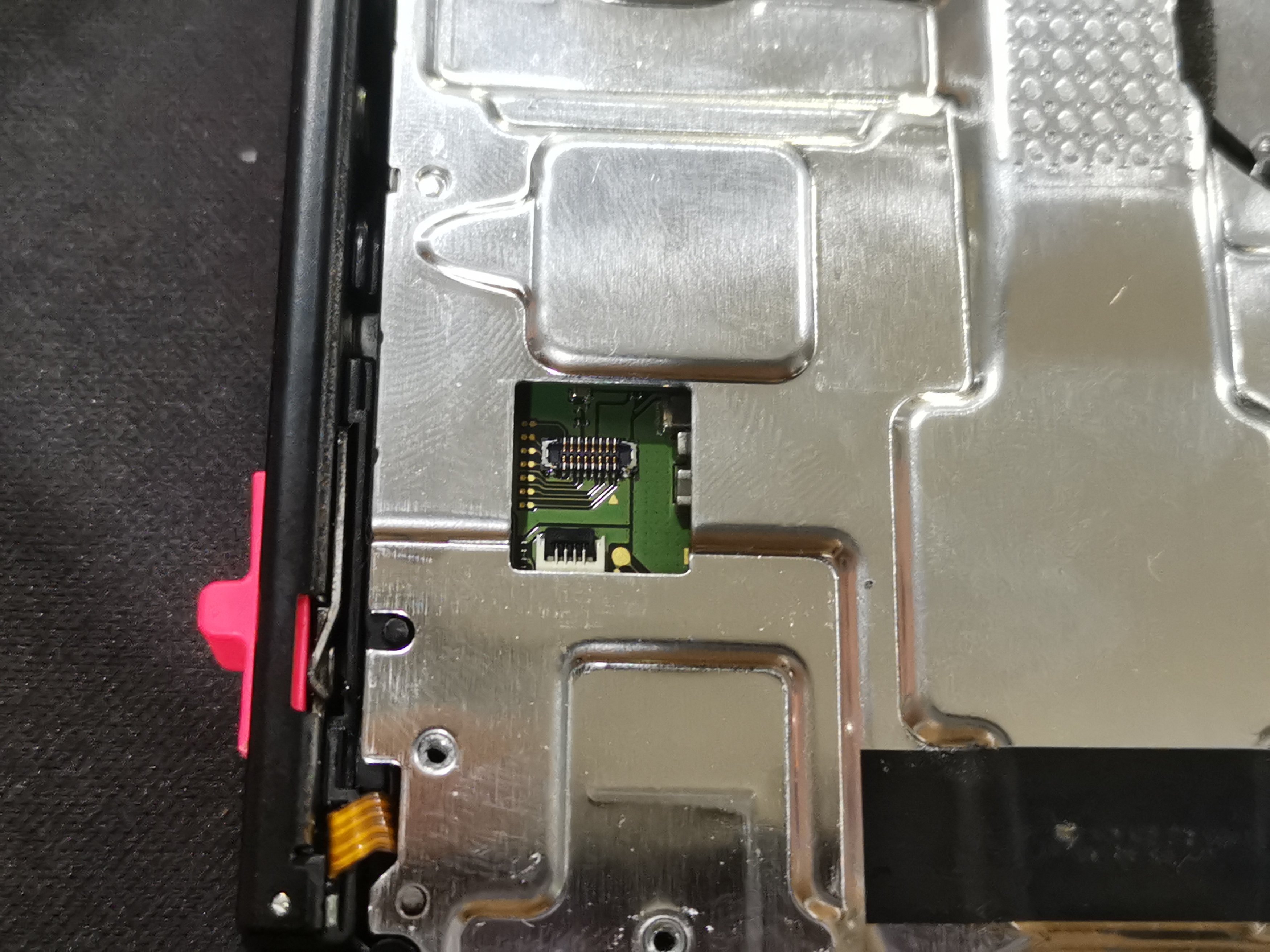

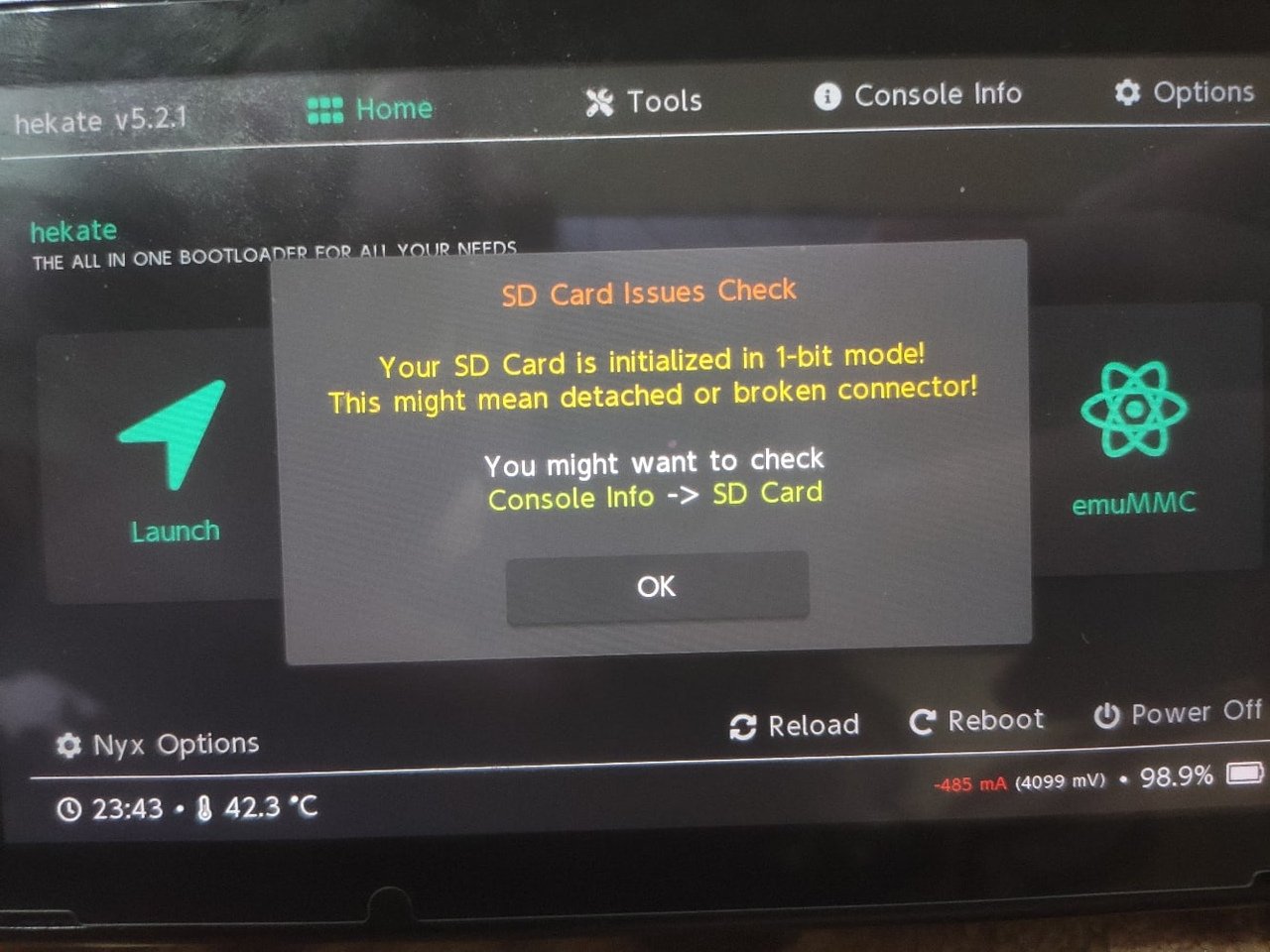

View attachment 260591
This is from hekate, but when I tries to boot through SD card,
it always show me: Failed to initialize the SD Card
I have tested some other new SD card though, same issues appear.
Now my EMUNAND runs super slow!!

Today, I opened up the casing after searching online trying to locate the missing pins, turns out everything was good. But I still get these error.

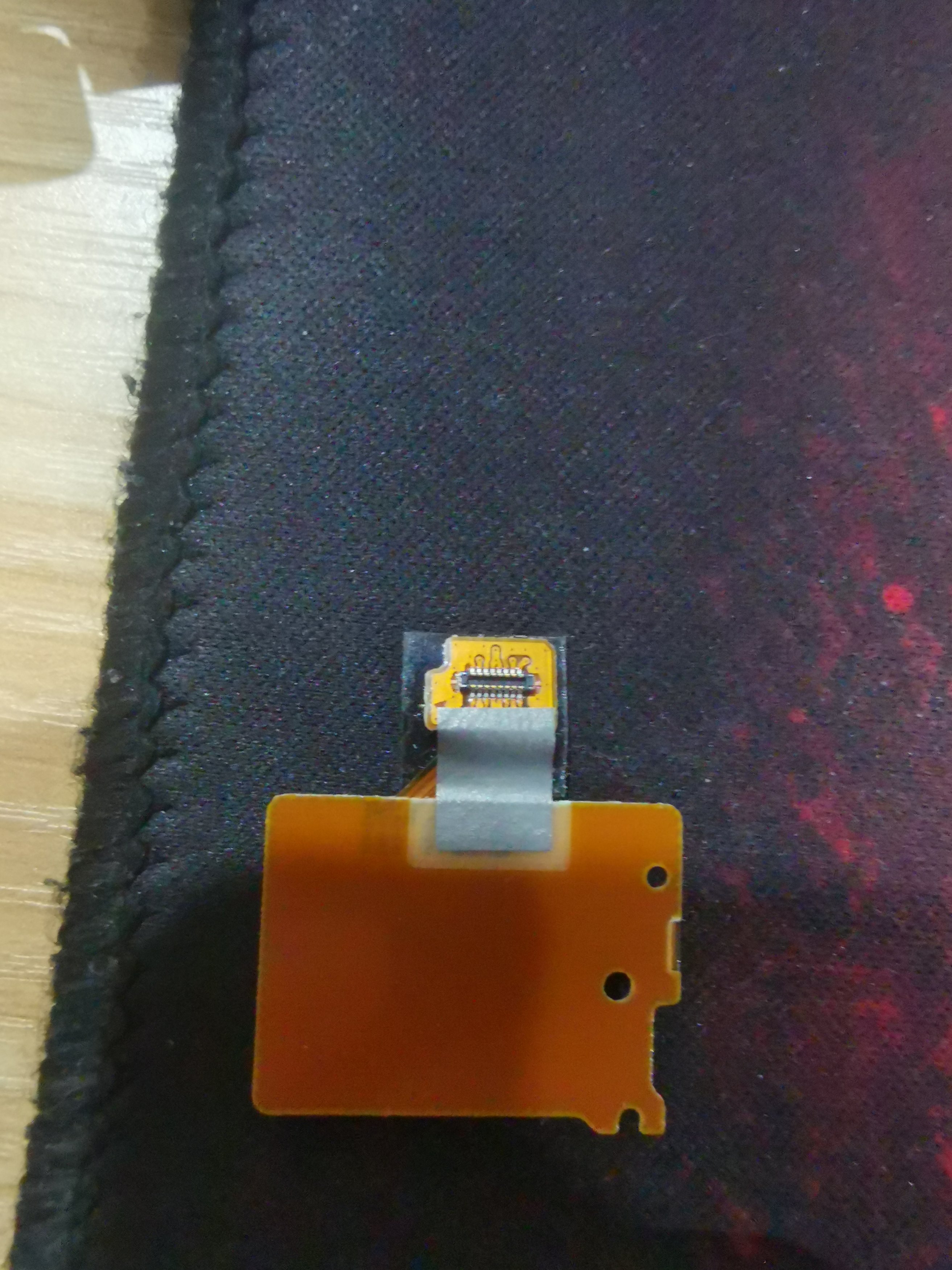

View attachment 260592
View attachment 260593
Should I replace the SD card slot though?

You need a multimeter to test if any of the point on the motherboard are dead or not, if the connection on the motherboard is good you can get a replacement SD card flex. 1 bit mode meaning it is not picking up one or more of the gold pins.


  • Like
Reactions: KiiWii

Sora Takihawa

Well-Known Member
Member
Joined
Oct 11, 2015
Messages
3,666
Trophies
1
Age
26
Location
Hamburg
XP
2,443
Country
Germany
same problem but i cant repair my switch byself (i got a replacement slot......it worked but only if i put pressure wit my finger on it if i release finger it dont read the sd anymore)


thesjaakspoiler

Well-Known Member
Member
Joined
Nov 20, 2018
Messages
481
Trophies
0
Age
121
XP
633
Country
Afghanistan
.....it worked but only if i put pressure wit my finger on it if i release finger it dont read the sd anymore)
Assuming the replacement board is good, that would mean that the connector on the motherboard has some loose pins.
There are more people reporting such issues.
Maybe due to the internal heat the moderboard slightly expands and contracts,causing the pins to come loose.
A good repair guy with the right tools can fix that for you easily.

When the sd card runs in 1 bit mode, it only uses DAT0.
Either DAT1,DAT2 or DAT3 can be disconnector.

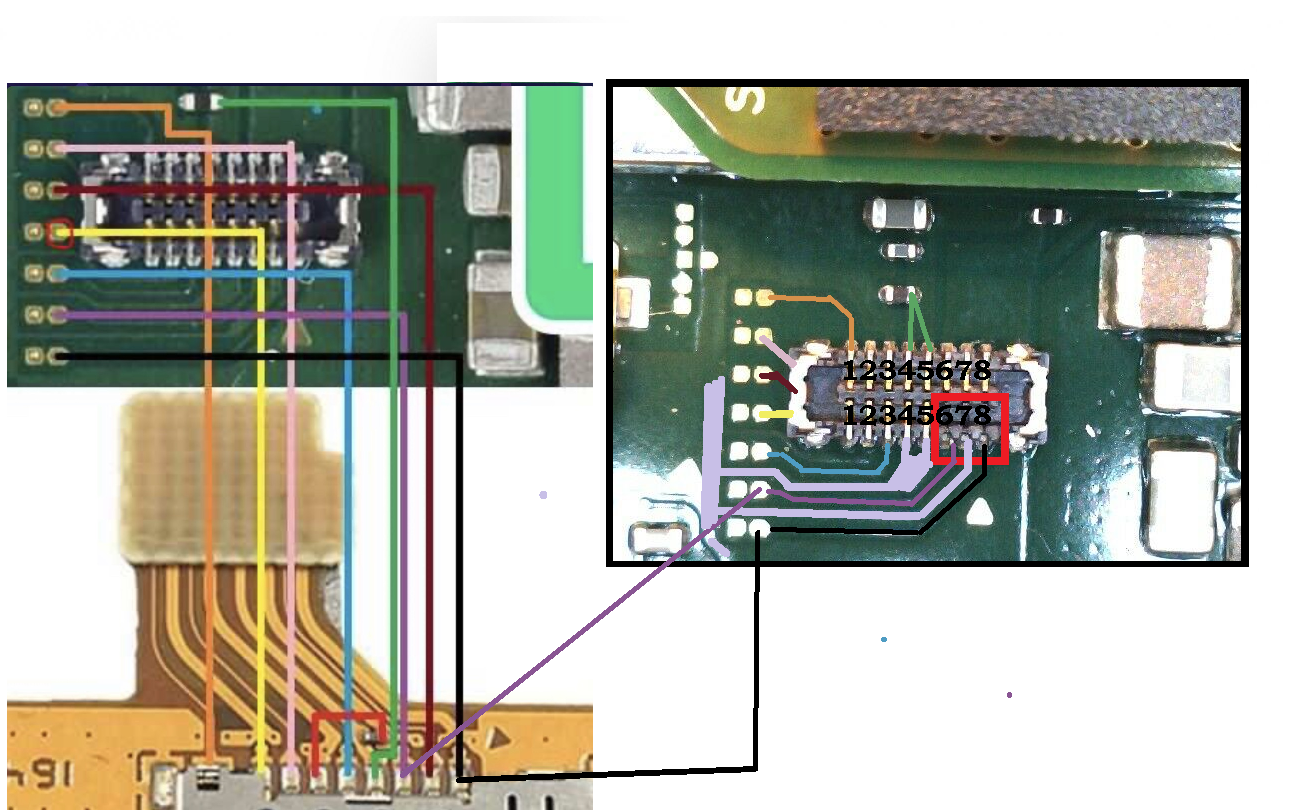

Someone posted this image in case you want to check with a multimeter which pin(s) might be causing the problem :
sd-png.240129


Sora Takihawa

Well-Known Member
Member
Joined
Oct 11, 2015
Messages
3,666
Trophies
1
Age
26
Location
Hamburg
XP
2,443
Country
Germany
I am from Germany..... Do you know someone who does such repair?

--------------------- MERGED ---------------------------

Thing is I send it in to mattytrog when he installed a trinkt in it... But since last month it stopped to. Read sd

--------------------- MERGED ---------------------------

I go in hospital for 5 weeks starting end may.... I guess I can forget my switch*


Saey_AZE

New Member
Newbie
Joined
Apr 27, 2017
Messages
4
Trophies
0
Age
25
XP
234
Country
Mexico
You need a multimeter to test if any of the point on the motherboard are dead or not, if the connection on the motherboard is good you can get a replacement SD card flex. 1 bit mode meaning it is not picking up one or more of the gold pins.

View attachment 260698
You need a multimeter to test if any of the point on the motherboard are dead or not, if the connection on the motherboard is good you can get a replacement SD card flex. 1 bit mode meaning it is not picking up one or more of the gold pins.

View attachment 260698
Hello, I have been presenting the same problem and I wanted to encourage myself to do the soldering of the image and I wanted to ask you what type of cable I would use and more or less how can I get it here in Mexico, if it is not a nuisance?


Attachments

  • IMG_20211014_115358.jpg
    1,015.2 KB · Views: 17

Saey_AZE

New Member
Newbie
Joined
Apr 27, 2017
Messages
4
Trophies
0
Age
25
XP
234
Country
Mexico
Thanks for replying, I was also thinking of changing the slot, but I don't know if cell phone repairers will do that job, being a small piece. What do you recommend?


Hayato213

( -_・) ︻デ═一' * (/❛o❛)/
Member
Joined
Dec 26, 2015
Messages
10,751
Trophies
1
Location
Vector Industry
XP
5,734
Country
United States
Thanks for replying, I was also thinking of changing the slot, but I don't know if cell phone repairers will do that job, being a small piece. What do you recommend?

Well first check with a multi-meter if it all the contact point is working fine on the board, you just need a new flex not soldering.

  • Like
Reactions: Saey_AZE
