Tutorial for 3000mah battery mod for PSP 2000 & 3000

Discussion in 'PSP - Tutorials' started by Bubsy, Sep 19, 2017.

  1. Bubsy
    OP

    Bubsy Newbie

    Newcomer
    2
    5
    Apr 12, 2004
    If anyone is interested I have made a battery mod for PSP 2000 & 3000 models that is pretty simple and straight forward. Also included items you made need for the process in the description of the link. All the best gang! :)


  2. DinohScene

    DinohScene Feed Dino to the Sharks

    Member
    GBAtemp Patron
    DinohScene is a Patron of GBAtemp and is helping us stay independent!

    Our Patreon
    16,599
    13,263
    Oct 11, 2011
    Antarctica
    В небо
    Pictures?
    Description?
    Text source!?

    Dun want to be rude but cba wasting 45 mins on a video.
    I'm interested in the process and learn from it, not being a mindless noob that needs spoonfeeding...

    wormdood likes this.
  3. Bubsy
    OP

    Bubsy Newbie

    Newcomer
    2
    5
    Apr 12, 2004
    I figured it might of been helpful to give a video tutorial on how its done.
    I don't know whats the problem with that?
    Besides I also included items you may need on the video description.


    But its no issue I could post pics with text on how the process is done later on.

    siamese likes this.
  4. elBenyo

    elBenyo Wad of meat.

    Member
    401
    71
    Jan 2, 2016
    United States
    I want to use an old lypo from a broken phone, does it need the PCM for that battery in-between the original PSP PCM and the battery? Or can I just solder the two positive pins to the PSP battery PCM, it's a 3 pin battery.

  5. Ryccardo

    Ryccardo WiiUaboo

    Member
    3,565
    1,699
    Feb 13, 2015
    Italy
    Imola
    I kept the original regulators of both batteries, each knows what it's best for the cells and the system

    (PSP street batteries actually don't have electronics outside of the thermometer, iirc)

    elBenyo likes this.
  6. elBenyo

    elBenyo Wad of meat.

    Member
    401
    71
    Jan 2, 2016
    United States
    Oh! Then I'm totally leaving out the phones PCM. Phone batteries have overcharge protection inside so I shouldn't have a problem. Also do you think AA batteries would fit once the UMD is removed? I have rechargable Energizers that are 2500mah each and 3 would be 3.75v, so they would work I imagine.

  7. LameNobody

    LameNobody Weighted Companion Cube Enthusiast

    Member
    461
    234
    Jan 23, 2015
    Canada
    127.0.0.1

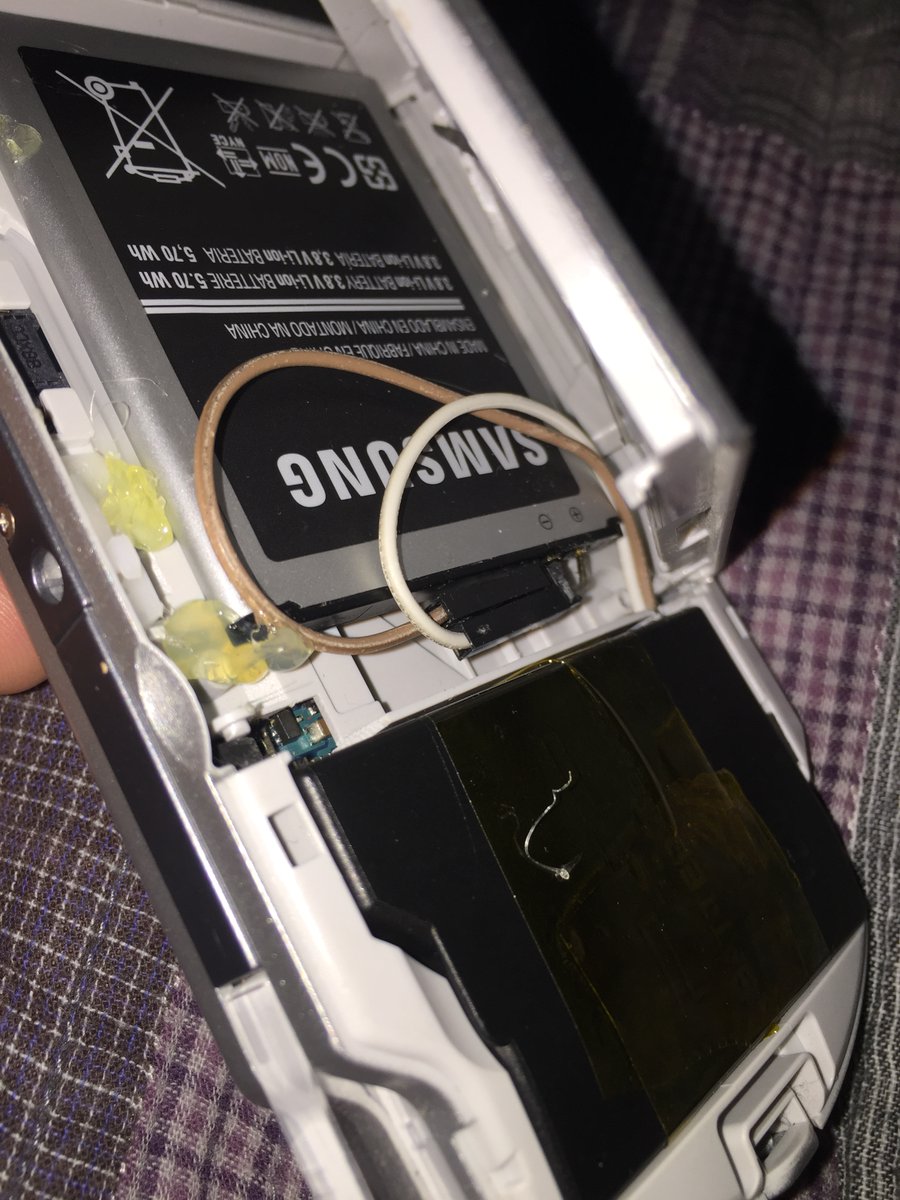

    I did this a couple months ago with my $10 psp, i was told the umd reader was broken... so i pulled it out and decided to shove a battery in..
    I know it being held in with hot glue looks awful, but i didn't care enough to remove the UMD door and glue it properly
    and i used 2.5mm headers and jumpers to make it easily detachable.


    Ryccardo likes this.
  8. elBenyo

    elBenyo Wad of meat.

    Member
    401
    71
    Jan 2, 2016
    United States
    That looks hella good. So you have 3 pins on that battery right?

  9. LameNobody

    LameNobody Weighted Companion Cube Enthusiast

    Member
    461
    234
    Jan 23, 2015
    Canada
    127.0.0.1
    There are three pins on that samsung battery, but i only used the pos and neg pins.
    I wired it directly to the psp cell within it's battery, so it should use the protection circuitry of the psp battery/psp

    elBenyo likes this.
  10. Ryccardo

    Ryccardo WiiUaboo

    Member
    3,565
    1,699
    Feb 13, 2015
    Italy
    Imola
    Most phone batteries have 3 (+, -, thermometer), some Samsungs have a 4th one for external NFC antenna

    — Posts automatically merged - Please don't double post! —

    If you are using the regular pins of the phone battery (instead of smaller round ones under a sticker, if they exist at all), you're also using the regulator of the phone battery

    elBenyo likes this.
  11. elBenyo

    elBenyo Wad of meat.

    Member
    401
    71
    Jan 2, 2016
    United States
    Thanks for the tips, both of you. I am planning to do my 3000 in a bit. I'm swamped with projects I'm finishing today and fixing my PSP has been on that list for years.

  12. elBenyo

    elBenyo Wad of meat.

    Member
    401
    71
    Jan 2, 2016
    United States
    I just realized my PSP is a 1001 but that shouldn't matter, right?

  13. kristianity77

    kristianity77 GBATemp old fogey

    Member
    1,431
    378
    Jul 10, 2003
    Bewdley, UK
    Why is that only giving 6 hours I wonder? I have a PSP3000 that has the official extended battery which can give 9 hours play time on only a 2200mah battery?

  14. the_googling_watcher

    the_googling_watcher Member

    Newcomer
    17
    1
    Sep 30, 2017
    Philippines
    is that the endurance batt. pack sony released?

  15. kristianity77

    kristianity77 GBATemp old fogey

    Member
    1,431
    378
    Jul 10, 2003
    Bewdley, UK
    Yeah that's the one. The official Sony extended battery.

  16. the_googling_watcher

    the_googling_watcher Member

    Newcomer
    17
    1
    Sep 30, 2017
    Philippines
    where did you buy it?

  17. kristianity77

    kristianity77 GBATemp old fogey

    Member
    1,431
    378
    Jul 10, 2003
    Bewdley, UK
    eBay. Got lucky. Someone sold one that had barely been used and it still held a complete charge. This was about a year ago or so. Still works fine now. You can still find them occasionally. And yeah you can get 9 hours play out of a single charge easily enough.

  18. the_googling_watcher

    the_googling_watcher Member

    Newcomer
    17
    1
    Sep 30, 2017
    Philippines
    at ebay? how much?

  19. kristianity77

    kristianity77 GBATemp old fogey

    Member
    1,431
    378
    Jul 10, 2003
    Bewdley, UK
    I paid about £20 for it when I got mine

  20. the_googling_watcher

    the_googling_watcher Member

    Newcomer
    17
    1
    Sep 30, 2017
    Philippines
    its hard to be broke ;-;
