Hacking Semi Bricked Wii

[Nevernever]

This is the place I get all my info from, so I thought I would see if someone has a solution to my problem, before I throw the Wii away.

2008 Wii.

D2C Mod Chip not being used, but is still installed, now soft modded.

4.2U System Menu.

Bootmii as boot2v3.

Homebrew Channel installed and working 1.1.2 ios58v24.32.

Network not initialized, and I'm not able to connect to wifi.

I have know remotes sync’d, I am using a wireless game cube controller to do everything.

Priiloader installed and working v0.9.

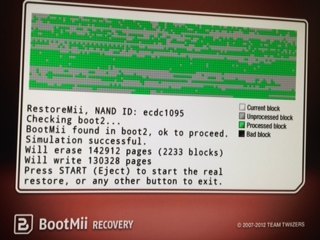

I have a nand backup from 06/25/2010, Wii still not working after a successful restore.

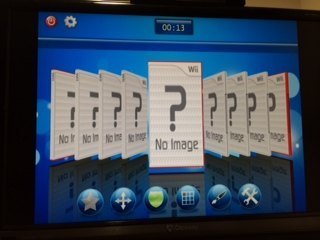

cfg_usbloader v70 loads and tries to load the game, but get black screen.

Used ModMii v6.3.1 by XFlak to re-hack, this should have fixed it, even if I had a bad nand rip. It didn't.

I use ModMii all the time and have successfully hacked a few Wii's, I don't think I did anything wrong, but then again I still have a brick.

Tried 4.1u nand formatter and Setting editor, did not work, still a black screen as before.


Could it be a bad nand rip, bad wifi module, or a bad Bluetooth module? How can you tell which one?



[Leo Alves]

Can you post a syscheck ?

Here's how to post a system check:
http://gbatemp.net/threads/posting-a-system-check.300279/


If your remotes are syncing, I doubt that the problem is the Bluetooth Module, it can be your wi-fi module or even the modchip is dead.

Do you remember the last thing you did on your wii before the brick ?



[Nevernever]

I'm not able to sync my wii remote since all I get is the black screen. The controller I'm using is a wireless game cube controller that sync's to a dongle attached to the 1 port.
I bricked it a long time ago and don't remember what I did to cause the brick.
If the modchip is dead how can I test it, or since I'm not using the modchip how hard is it to remove it?

Here is my SysCheck:

Spoiler

sysCheck v2.1.0b19 by Double_A and R2-D2199, Nano
...runs on IOS58 (rev 6176).
Region: NTSC-U
System Menu 4.2U (v481)
Priiloader installed
Drive date: 0207.02.13
Homebrew Channel 1.1.2 running on IOS58
HomebrewFilter ist nicht installiert
Hollywood v0x11
Console ID: 56614994
Boot2 v3
Found 158 titles.
Found 48 IOS on this console. 3 of them are stub.
IOS4 (rev 3): Stub
IOS9 (rev 1034): No Patches
IOS11 (rev 16174): Trucha Bug, NAND Access
IOS12 (rev 526): No Patches
IOS13 (rev 1032): No Patches
IOS14 (rev 1032): No Patches
IOS15 (rev 257): Trucha Bug, ES Identify, Flash Access, NAND Access
IOS16 (rev 512): Stub
IOS17 (rev 1032): No Patches
IOS20 (rev 16174): Trucha Bug, NAND Access
IOS21 (rev 1039): No Patches
IOS22 (rev 1294): No Patches
IOS28 (rev 1807): No Patches
IOS30 (rev 16174): Trucha Bug, NAND Access
IOS31 (rev 3608): No Patches
IOS33 (rev 3608): No Patches
IOS34 (rev 3608): No Patches
IOS35 (rev 3608): No Patches
IOS36 (rev 3608): No Patches
IOS37 (rev 5663): No Patches
IOS38 (rev 4124): No Patches
IOS40 (rev 16174): Trucha Bug, NAND Access
IOS41 (rev 3607): No Patches
IOS43 (rev 3607): No Patches
IOS45 (rev 3607): No Patches
IOS46 (rev 3607): No Patches
IOS48 (rev 4124): No Patches
IOS50 (rev 16174): Trucha Bug, NAND Access
IOS51 (rev 4864): Stub
IOS52 (rev 16174): Trucha Bug, NAND Access
IOS53 (rev 5663): No Patches
IOS55 (rev 5663): No Patches
IOS56 (rev 5662): No Patches
IOS57 (rev 5919): No Patches
IOS58 (rev 6176): USB 2.0
IOS60 (rev 16174): Trucha Bug, NAND Access
IOS61 (rev 5662): No Patches
IOS62 (rev 6430): No Patches
IOS70 (rev 16174): Trucha Bug, NAND Access
IOS80 (rev 16174): Trucha Bug, NAND Access
IOS202[60] (rev 65535, Info: hermesrodries-v6): Trucha Bug, NAND Access, USB 2.0
IOS222[38] (rev 4, Info: hermes-v4): Trucha Bug, ES Identify, NAND Access, USB 2.0
IOS223[38+37] (rev 4, Info: hermes-v4): Trucha Bug, ES Identify, NAND Access, USB 2.0
IOS224[57] (rev 65535, Info: hermesrodries-v6): Trucha Bug, NAND Access, USB 2.0
IOS236[36] (rev 65535, Info: rev 3351): Trucha Bug, ES Identify, NAND Access
IOS249[56] (rev 21008, Info: d2x-v8final): Trucha Bug, NAND Access, USB 2.0
IOS250 (rev 65535): Trucha Bug, ES Identify, NAND Access, USB 2.0
IOS254 (rev 65281): BootMii
BC v2
MIOS v10
Report generated on 2014/01/03.



[icebrg5]

Does it boot to a black screen? or is the black screen happening when trying to run an app like cfg loader ext...?



[Nevernever]

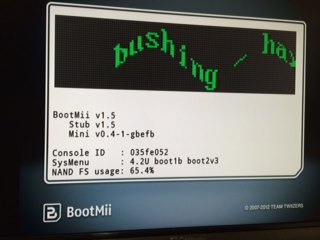

If I remove the SD card, then it boots to the black screen. If I have SD card in the Wii then it books to bootmii or priiloader if I hold the reset button
cfg loader runs but when I try to play the game it black screens
All apps load



[icebrg5]

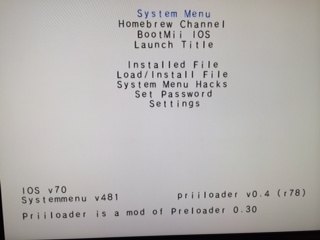

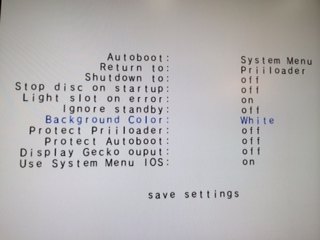

Go into priiloader and see what hacks are enabled.

You might have the boot to black screen hack turned on.



[Nevernever]

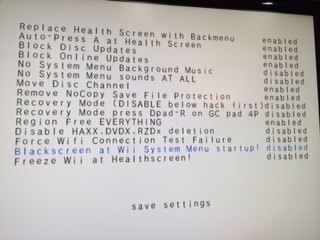

I went to system menu hacks and enabled Blackscreen at Wii System Menu startup!
I still get a black screen.



[Nevernever]

sorry I read your post wrong.

The boot to blackscreen was already turned off. I turned it on after reading your post wrong.
I've disabled it again but I still get the black screen



[icebrg5]

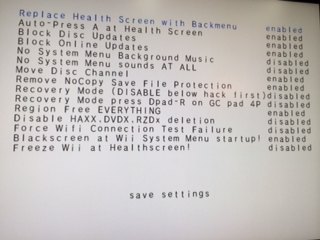

I would recommend turning off all your hacks right now and see what difference that makes.

I can remember modding wiis in the past and enabling some hacks and they actually turned on other hacks instead.



[Nevernever]

Disabled everything still not working



[icebrg5]

you leaving the sd card in the wii or out when trying?



[Nevernever]

SD in the Wii, but I tried it out of the Will and still a black screen



[icebrg5]

I have no idea then.

Could be a banner brick where you installed a bad wad, or it could be the wifi/bluetooth module or it could be your modchip causing it.



[Nevernever]

1. Since the modchip could be bad. What if I remove it, since a modchip is no longer needed and try to turn on the Wii to see if it works?
2. If that doesn't fix it what if I remove the Bluetooth module and try to turn on the Wii to see if it works, or is a working Bluetooth module required to be installed for it to work?
3. If that doesn't fix it what if I remove the Wireless card module and try to turn on the Wii to see if it works, or is a working Wireless card module required to be installed for it to work?



[icebrg5]

The bluetooth and wireless modules need to be working in order for the wii to turn on.

You could swap out parts from known working consoles and see if that fixes your issues.



[Nevernever]

I'll try removing the modchip first.



[Nevernever]

Removed modchip, but I still get a black screen. what do you suggest that I replace first the Bluetooth or wifi module?



[Nevernever]

Just got my Bluetooth Module in, replaced it, and it working now using the backup nand from 06/25/2010.

Thanks for the help



[Nevernever]

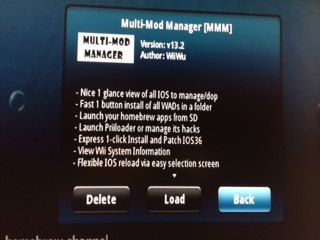

I spoke to soon. My disc drive is not working, it does not pull the disc in and when pushed in manually it does not spin. I think the disc drive was broken before it crashed but the Wii was working fine besides the fact that it could not play disc. Now the Wii boots up, but the shop, weather, news, mii, & internet channels don't work. The usb forwarder loads cfg, but when you try to start the game, I get a black screen and then the same error message. I formatted the Wii using the system format in the Wii settings, then rehacked. I've also formatted using the 4.1u-Nand_Formatter. I've also used ModMii to rehack it from 4.2u to 4.2u and reinstalled all the channels. I've also updated the Wii to 4.3u officially through the Wii rehacked it with ModMii. I'm still not able to play backed up games that I own. BootMii loads and works fine. The HomeBrew Channel loads and works fine. The MMM loads and works fine. Patching of ios 236 completes successfully. Prii loader also works fine. Since the disc drive isn't working, I'm going to install a 2TB 2.5" Hdd internally, if I can ever get it working.

Is there anything else that I can try.



[almmiron]

Have the same problem than Nevernever, in the same conditions except for the modchip(i dont have one). How do I change bluetoth module? My wiimotes doesnt assign to the wii. The syscheck doesnt work. I have tried to do, but its freezes when reading ios 202.
