My Nintendo Switch Cooling Mod

Discussion in 'Switch - Console, Accessories and Hardware' started by M1dn1ghtN1nj4, Dec 2, 2017.

  1. M1dn1ghtN1nj4
    OP

    M1dn1ghtN1nj4 Newbie

    Newcomer
    6
    13
    Dec 1, 2017
    United States
    I'm sure everyone knows what was in the last thread that was deleted. So I'm not going to go through and say it all again.

    The videos: (edited to comply with former complaints)

    Part 1: The Design



    Part 2: The Testing


    Part 3: The Prototype

    Last edited by M1dn1ghtN1nj4, Dec 4, 2017
    Sasori, B4rtj4h, MeowMeowMeow and 2 others like this.
  2. isoboy

    isoboy GBAtemp Fan

    Member
    369
    159
    Dec 23, 2016
    United States
    I like mods. I am a modder myself. The switch dock is shit and Nintendo will acknowledge that by including a small stand type with the revision like the chinese ones you can get now. Other than that your mod is excellent for those who wants to use this dock. Really excellent video tutorials.

  3. M1dn1ghtN1nj4
    OP

    M1dn1ghtN1nj4 Newbie

    Newcomer
    6
    13
    Dec 1, 2017
    United States
    Got the prototype made, and a new video about how it looks, functions, and installs. Uploading the video now. Will be a couple hours. Slow connection at home.

  4. Jayro

    Jayro MediCat USB and Mini Windows 10 Developer

    Member
    GBAtemp Patron
    Jayro is a Patron of GBAtemp and is helping us stay independent!

    Our Patreon
    5,212
    2,852
    Jul 23, 2012
    United States
    Octo Canyon

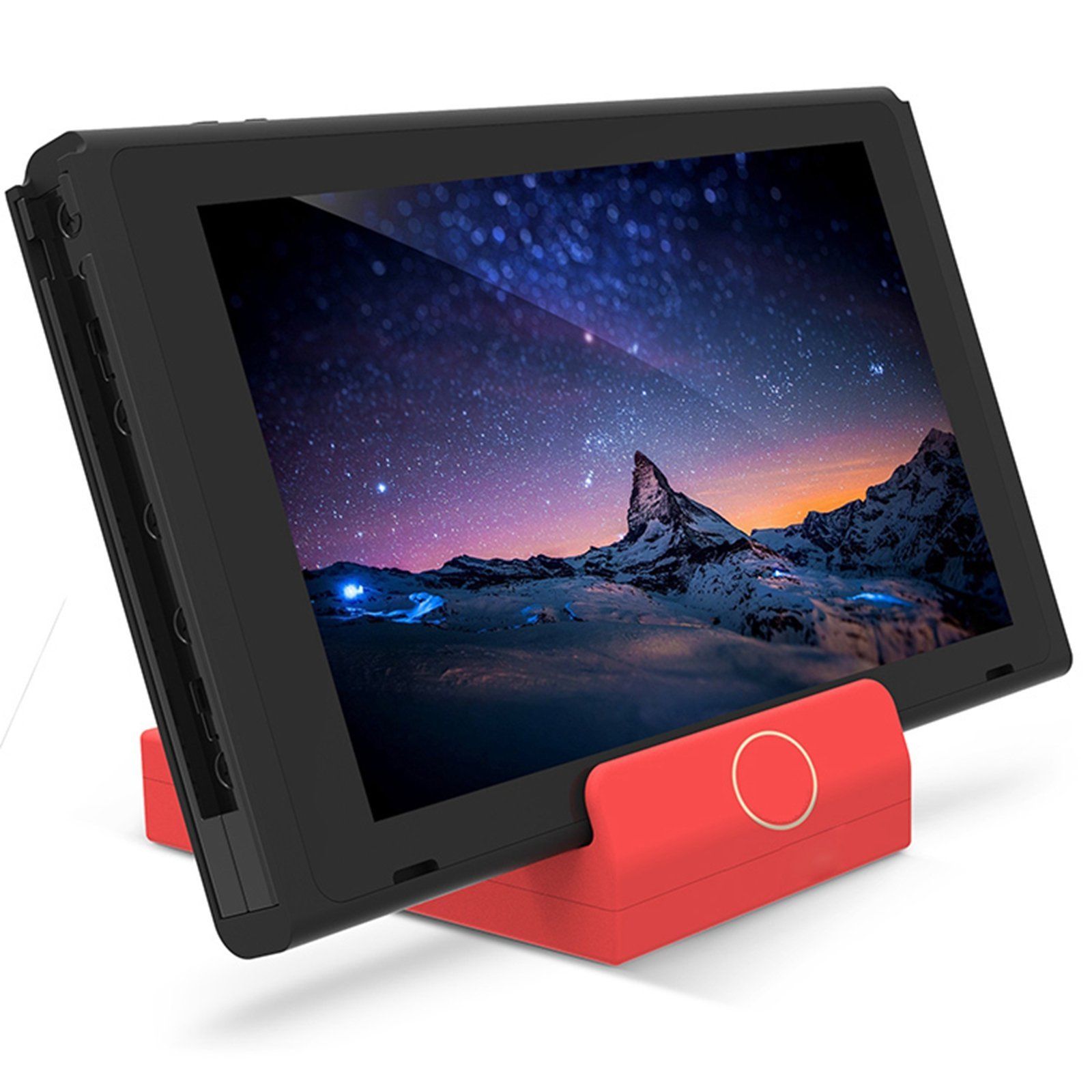

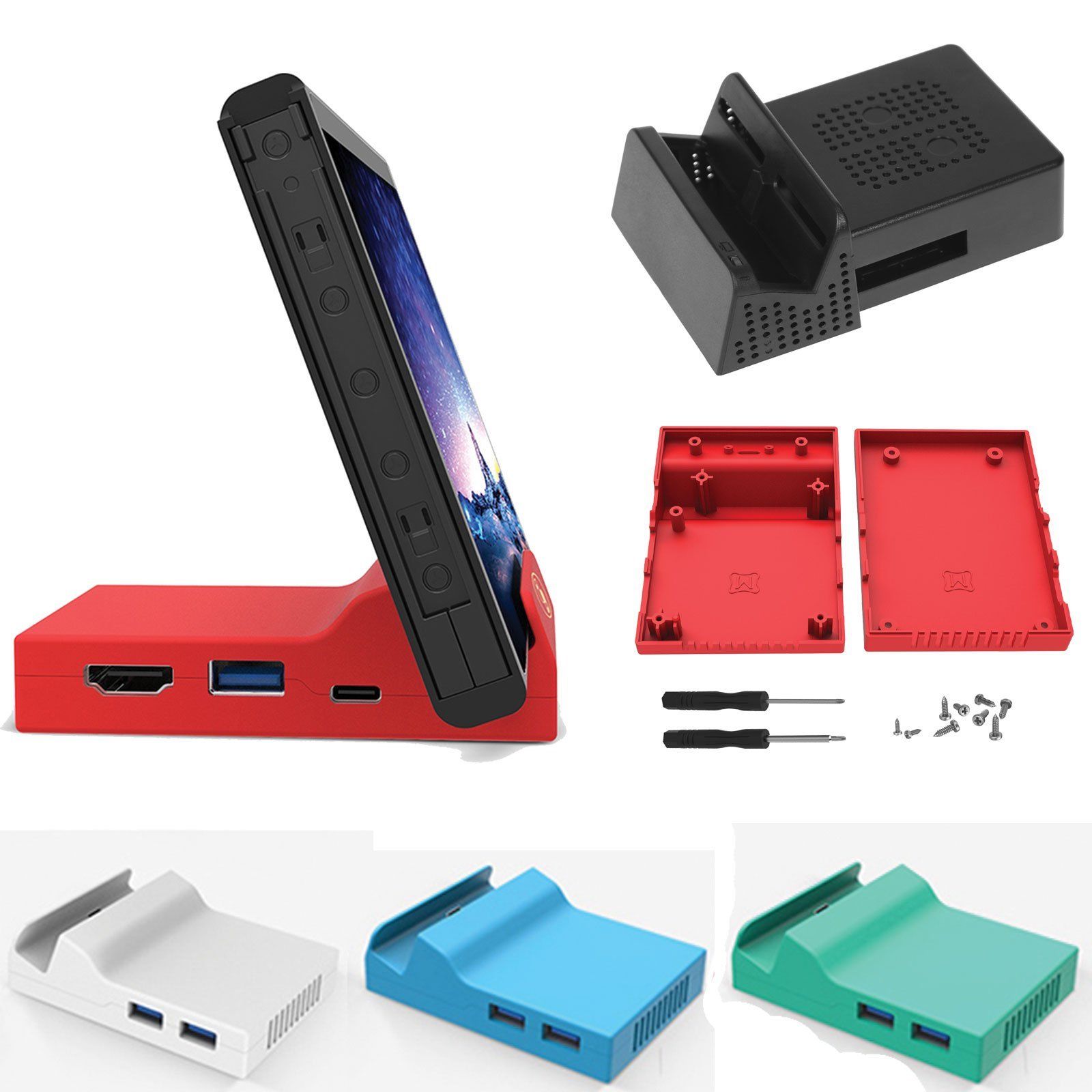

    I got a chinese dock plastic thing that is of good quality. My only beef is I need two hands to pull the switch out because the dock isn't weighted.

    s-l1600.jpg s-l1600 (1).jpg

  5. M1dn1ghtN1nj4
    OP

    M1dn1ghtN1nj4 Newbie

    Newcomer
    6
    13
    Dec 1, 2017
    United States
    Just cut a lead or steel plate maybe 1/8" thick, and as big as will fit in the bottom of that plastic shell, and glue it in place (or epoxy). That should give you plenty of weight to use one-handed.

    B4rtj4h and Jayro like this.
  6. jpx86

    jpx86 GBAtemp Regular

    Member
    105
    55
    Jun 21, 2006
    What were the before and after numbers?

  7. M1dn1ghtN1nj4
    OP

    M1dn1ghtN1nj4 Newbie

    Newcomer
    6
    13
    Dec 1, 2017
    United States
    84 before
    76 after

    Those numbers will likely change once I test the new prototype.

    jpx86 likes this.
  8. Thirty3Three

    Thirty3Three Musician Member

    Member
    3,580
    1,969
    Mar 22, 2013
    United States
    Wherever you want me, baby.
    Mmmm the switch dock is fine, mate. WTF? It sounds like you're trying hard to pull the "better-than-you" card :/

  9. M1dn1ghtN1nj4
    OP

    M1dn1ghtN1nj4 Newbie

    Newcomer
    6
    13
    Dec 1, 2017
    United States
    Check the OP for part 3. I got my 3D printed prototype basically complete. Just needs to be run through the tests.

  10. isoboy

    isoboy GBAtemp Fan

    Member
    369
    159
    Dec 23, 2016
    United States
    I honestly think it sucks big time. The small 3rd party ones are great and I've got two. Look at how far OP is going with this mod. That says plenty.

  11. sarkwalvein

    sarkwalvein More coffee, please!

    Member
    GBAtemp Patron
    sarkwalvein is a Patron of GBAtemp and is helping us stay independent!

    Our Patreon
    5,414
    5,842
    Jun 29, 2007
    Germany
    Niedersachsen
    I really want to get a 3rd party one, specially to improve portability on travels, etc.
    Do you suggest one model in particular based on your experience?
    Do you yourself run them with the Nintendo AC adapter or do your use some other cell phone USB-C charger?

  12. WiiUBricker

    WiiUBricker Insert Custom Title

    Member
    7,096
    4,190
    Sep 19, 2009
    Argentina
    Espresso
    Are heat issues an actual problem?

  13. kumikochan

    kumikochan GBAtemp Maniac

    Member
    1,126
    500
    Feb 4, 2015
    Belgium
    Tongeren
    Nah not really. Just take it apart when the 2 year warranty is over and put paste on the chips instead of those thermal pads Nintendo uses.

  14. sarkwalvein

    sarkwalvein More coffee, please!

    Member
    GBAtemp Patron
    sarkwalvein is a Patron of GBAtemp and is helping us stay independent!

    Our Patreon
    5,414
    5,842
    Jun 29, 2007
    Germany
    Niedersachsen
    Perhaps if you play it on the Sahara under direct sunlight?

  15. g00s3y

    g00s3y Asshole

    Member
    348
    262
    Aug 6, 2008
    United States
    FL
    Never had an issue with my dock or system, just like most people.

    Decent mod, but not needed at all.

  16. M1dn1ghtN1nj4
    OP

    M1dn1ghtN1nj4 Newbie

    Newcomer
    6
    13
    Dec 1, 2017
    United States
    The way I see it, if you have the ability to run the system cooler, that's always a plus. Cooling it down never hurts. Not everyone cares, that's fine, I'm just doing this for those that do.

    Sasori, zenamez and The Real Jdbye like this.
