CGB Front-lighting - "101" (Kitsch-bent / LOCA) mod

Trevor Belmont

Well-Known Member
OP
Member
Joined
Mar 30, 2013
Messages
136
Trophies
0
Location
timbuk2, kamtucky
XP
108
Country
United States
I have had many people asking about how to do this mod using the kitsch-bent, CGB front-lighting panel and have yet to produce a proper tutorial.
However, they are back in stock again (as of this writing) and so I feel obligated to share this knowledge with the rest of you, at least in a simple form, in case you are not already aware.

Setting the panel into the shell and soldering are pretty simple and covered in the product tutorial, so for now, I'll just cover the light panel / lcd bonding, which is the hardest part.

[I am using a stripped down light panel that I had from my older experiments so it is missing the led strip with wires.
Same steps apply. ---> On your new one, the led strip with wires and front, reflective tape will stay in place.]

- - - - - - - - - - - - - - - - - - - -

Items used:
- 1x cgb lcd screen
- 1x kitsch-bent cgb light panel
- 1x tube of loca (liquid optical clear adhesive)(the higher quality the better, right now I prefer "Osaka" brand)
- UV curing lamp (or equivalent, large UV curing bulb, etc)(I'm using a UV nail curing lamp (china, ebay) direct sunlight also works)

- - - - - - - - - - - - - - - - - - - -

Basic steps to properly bonding the light panel to the lcd screen.

1.) Remove the foam layer off the back of the lcd (to relieve pressure to the screen when reassembling cgb)


2.) Remove the clear, protective layers from both sides and the reflective strip of tape from the back (smooth) side of the light panel. (to have a nice, flush bond with the lcd screen)(the front of the light panel has the bumps on it. that side goes facing out from the lcd screen to face the user as the game boy is being played)

3.) Apply the loca to the back side (again, the smooth side) while laying the panel face down. This may take a little practice. I have screwed it up a handful of times, better to not be enough than too much since the light panel can be pulled off and reset with more loca.
Apply similarly to the photos, in that general amount (maybe just a tiny pinch less).
Place the lcd screen onto the loca'd light panel, slowly and gently, then apply some pressure to spread it a little.


Lift the entire thing together so you can see all the little details like all those wonderful little air bubbles (you will get them every time).
Not a problem my friend! As the kitsch-bent light panel is very resilient in it's ability to be cleaned again and again of fingerprints or dirt and debris.
Just don't get any loca on it, especially if you don't have any loca remover. (who needs it anyway if you're careful enough?)


Now that you can see every single air bubble, simply apply some pressure to them directly to force them off and out the edge.
Do this while spreading the loca as evenly as possible, covering all the hard to reach spots like the corners.
Take your time and start in the middle, working your way to the edges.
They are generally compliant but sometimes you'll get a toughy or two, try working those a little more.
The idea is to get the bubbles out without making a big loca mess.
Use a rag you don't care about to clean up any small leakage you may have (if any, maybe you're pretty slick). Again, avoid getting loca on the light panel itself as it will leave darker spots on the panel when it lights up.

Now that the bubbles are taken care of, set the light panel to align properly with the lcd screen for a proper seating into the shell case.
May be hard to see in the pics but basically, the top of the light panel should be aligned with (or as close as you can get it to) the darker edge of the lcd screen. The dark boarder that surrounds the main area of the screen.



Clean up the light panel face with some screen cleaner or rubbing alcohol and a micro-fiber cloth to ensure there are no traces of loca.

4.) Find a way to keep the ribbon cable flat so when you place the lcd screen on a flat surface to cure so the cable won't push the lcd screen up at an angle, making the light panel slide around (don't be a wise guy and bend the cable back, I screwed that up too. use something like a pair of pliers to lay on the ribbon cable when curing so the whole thing stays flat, your call)

5.) Cure (bond) the loca to the lcd using a proper UV curing method (like I said above, direct sunlight or a decent UV curing lamp work the best (no heat lamps! they just make the loca all runny and messy)
Be sure to check and make sure the light panel is still set where you placed it and hasn't skewed off.
The internet info I found said 3 minutes would do to cure the Osaka loca and it was correct. (time may vary depending on the type of loca used. do your research if not sure)





That's basically it.
After that, it's smooth sailing.
Just cut your slots in the lcd housing for the wires, place your lcd, solder the wires, reassemble and fire her up!




Hope that helps save some GBA-SPs from getting poached for their light panels.
Now go get some kitsch-bent light panels before they sell out again you crazy kids! 3-).
They're going fast!

Benefits in comparison to the standard, GBA-SP front-light method:
- improved brightness
- better light distribution
- no more wavy lines / bad glare
- eliminates dust / debris contamination between lcd and light panel
- better durability (the one SP led light is VERY delicate and prone to failure from age / heavy use or hard bangs / bumps)
- easier shell case interchangeability
- MUCH easier to handle / clean the light panel
(mishandling an SP light panel is a sure way to ruin it along with your day)
- no additional resistor required
- less light bleeding through shell case (on non-corrected orientation SP light panels)
- minimal modification required to inner shell case

Original inspiration and ideas for the loca application:
http://chipmusic.org/forums/topic/13236 … bc/page/3/


overdriver

Well-Known Member
Newcomer
Joined
Sep 27, 2010
Messages
61
Trophies
0
XP
125
Country
United States
Thx for excellent tutorial. BTW, I wonder if kitschbent panel has better contrast than gba SP panel. I can see kitschbent one is definately much brighter but I really want better contrast not brightness.. Anyone has any exp. on this ??


Bonny

Well-Known Member
Member
Joined
Dec 8, 2008
Messages
825
Trophies
1
Location
Bavaria
XP
2,084
Country
Germany
Well, so much work for such an average result :unsure:

I'am happy with my GB Boy Colour Clone from Kong Feng. At least it has a real backlight.


yafeee

Well-Known Member
Newcomer
Joined
Oct 22, 2008
Messages
45
Trophies
1
XP
642
Country
France
I've just did the mod, and it's easier than I thought. I was afraid of fucking up both screen and frontlight with the loca, but you really have the time to work in order to avoid bubbles. Thank you for the tutorial !

PS: I did it with direct sunlight (around 1h outside).



Trevor Belmont

Well-Known Member
OP
Member
Joined
Mar 30, 2013
Messages
136
Trophies
0
Location
timbuk2, kamtucky
XP
108
Country
United States
I've just did the mod, and it's easier than I thought. I was afraid of fucking up both screen and frontlight with the loca, but you really have the time to work in order to avoid bubbles. Thank you for the tutorial !

PS: I did it with direct sunlight (around 1h outside).

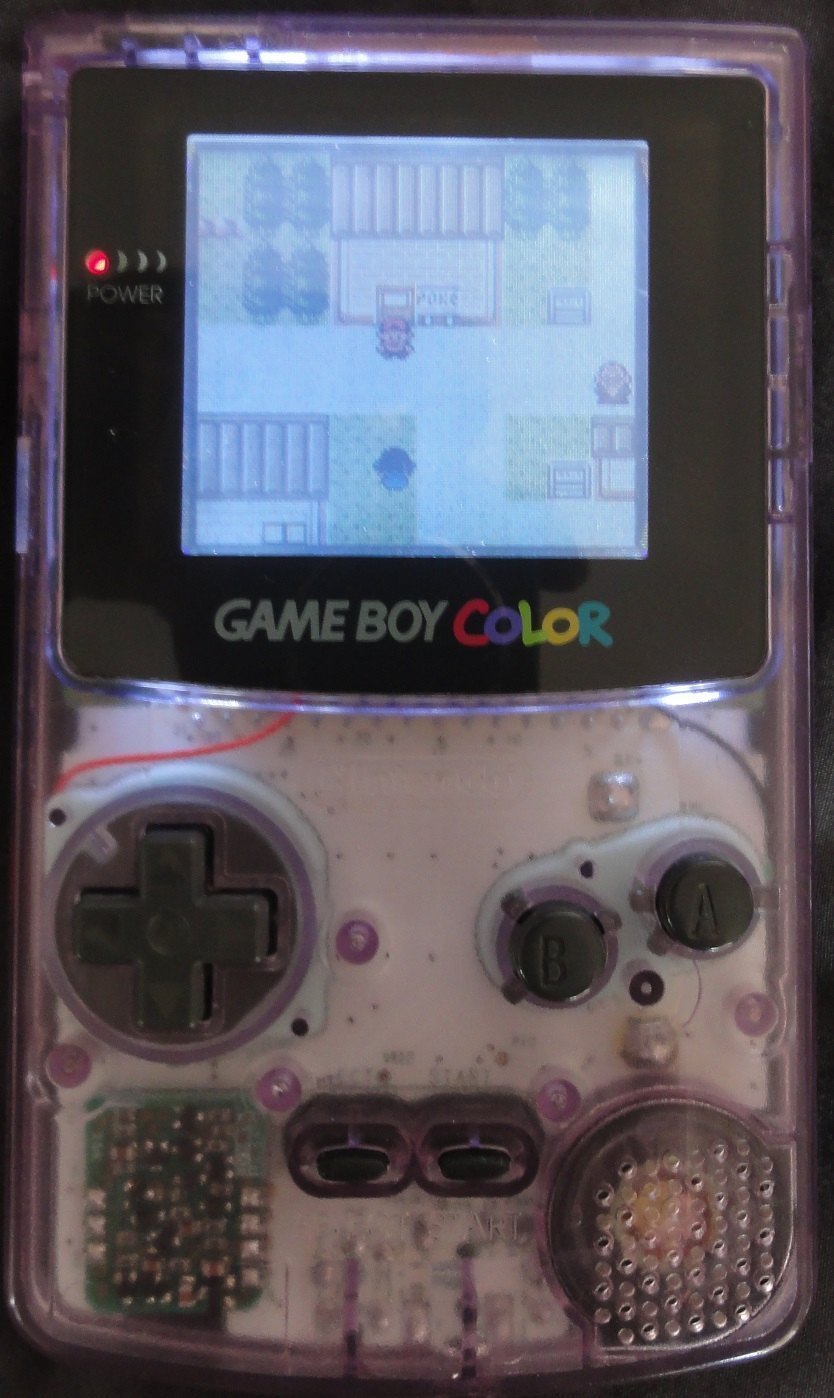

View attachment 9014


Awesome! Looks great for your first try! I screwed up maybe like 3 when I first started. Of course, I didn't have any experience with loca at that time or a tutorial to go off of, so... ;-)


yafeee

Well-Known Member
Newcomer
Joined
Oct 22, 2008
Messages
45
Trophies
1
XP
642
Country
France
It is not as clear as yours. The light is not really uniform, it may be because I touched a lot the panel to get rid of the bubbles.

But I have a question about the mod, is their another soldering points which could be used (I used the soldering points found in the basic tutorial, on kitsch bent website) ? I thought about the soldering points for the mod with an AGS-001 frontlight. Because if I let my battery in the game boy, they are completely dry after 24-48 hours, without doing anything :(


Trevor Belmont

Well-Known Member
OP
Member
Joined
Mar 30, 2013
Messages
136
Trophies
0
Location
timbuk2, kamtucky
XP
108
Country
United States
Yes, there are potential solder points all over the motherboard. The ones in the tutorial I think are used to hide most of the wires and because of it's convenience to eachother.

Another example of alternate solder points for Ground / VDD is on the front of the motherboard, under where the lcd sits. There is that long row of pins where the cartridge slot is afixed to the m/b through the backside.

On the far left and far right on that row are 2 wider soldered cartridge slot pins labeled "GND" (black wire) and "VDD" (red wire).
Those can be used as well.
I use those to test a completed loca'd lcd screen to see how it will look before I make a new, modded GBC.

Also, the batteries may be going dry due to low charge capacity. (mAh)
I use Eneloop rechargeable AAs (1,900 mAh each) almost exclusively due to their longer charge life.


Jabodie

Well-Known Member
Newcomer
Joined
Mar 22, 2009
Messages
56
Trophies
0
XP
270
Country
United States
So is there some issue with using the solder points shown in the tutorial?

Would others that have done this mod say it was worth it?


sweis12

Well-Known Member
Member
Joined
Oct 20, 2013
Messages
1,248
Trophies
0
Age
32
XP
1,368
Country
Saint Kitts and Nevis
Just finished my mod! I got a few black spots on the right side of the screen, and in normal play I don't really notice them. Without loca, the screen was so blurry it was unplayable. Loca helped 100%! Thanks for this guide! I used a $6 tube of loca from ebay, and I cured it in the sun.
20150714_010340.jpg 20150714_010431.jpg

Last edited by sweis12,

sweis12

Well-Known Member
Member
Joined
Oct 20, 2013
Messages
1,248
Trophies
0
Age
32
XP
1,368
Country
Saint Kitts and Nevis
It is not as clear as yours. The light is not really uniform, it may be because I touched a lot the panel to get rid of the bubbles.

But I have a question about the mod, is their another soldering points which could be used (I used the soldering points found in the basic tutorial, on kitsch bent website) ? I thought about the soldering points for the mod with an AGS-001 frontlight. Because if I let my battery in the game boy, they are completely dry after 24-48 hours, without doing anything :(
I do not belive that the pins in the tutorial cause battery drain. For that to happen the LEDs would have to be on right? I don't think they are pulling any power if the system is off.


Nusdogg

Well-Known Member
Member
Joined
Feb 3, 2013
Messages
383
Trophies
0
Age
36
Location
St. Paul, MN
XP
396
Country
United States
Sorry to bring this up from the dead but anyone else have been doing this mod lately? I just did mine. Got it almost perfect except for four tiny bubbles that I didn't see when I was finishing it up. But overall, i'm happy with it. Also, I tucked the front light wires for a clean look:




Last edited by Nusdogg,

sweis12

Well-Known Member
Member
Joined
Oct 20, 2013
Messages
1,248
Trophies
0
Age
32
XP
1,368
Country
Saint Kitts and Nevis
Sorry to bring this up from the dead but anyone else have been doing this mod lately? I just did mine. Got it almost perfect except for four tiny bubbles that I didn't see when I was finishing it up. But overall, i'm happy with it. Also, I tucked the front light wires for a clean look:



Wow, Good job on that. It looks a lot better than mine did. xD! Yours is almost perfect. Plus, this thread deserves to be bumped every once and a while.

  • Like
Reactions: Nusdogg

Nusdogg

Well-Known Member
Member
Joined
Feb 3, 2013
Messages
383
Trophies
0
Age
36
Location
St. Paul, MN
XP
396
Country
United States
Wow, Good job on that. It looks a lot better than mine did. xD! Yours is almost perfect. Plus, this thread deserves to be bumped every once and a while.

Thankyou. I was annoyed to find out that about those tiny bubbles. But I'm still happy with the results. I'm going to be doing couple more with new shells ( transparent black shell and front glass lens)

And I agree, I didn't want to waste post when there's already one here and minus well keep everything here since we're already here discussing this.


rad3ds

Well-Known Member
Member
Joined
Jul 22, 2015
Messages
113
Trophies
0
XP
152
Country
United States
I'm actually curious about the properties of these front lit glass screens for the sake of doing this to some non gameboy consoles which have a different screen size.

Do the glass diffusers have any special surface properties, or are they just plain old glass? How are the led edge lights adhered to the glass? Any other considerations that go into their construction?
